1 дюймовыечистые этикетки пробки механический счетчик топлива для всех топливных насосов перекачки 1% точность, FM 120 2 механические расходомера

Share on (60507721783):


Price:

Quantity:


Product Overview

Description

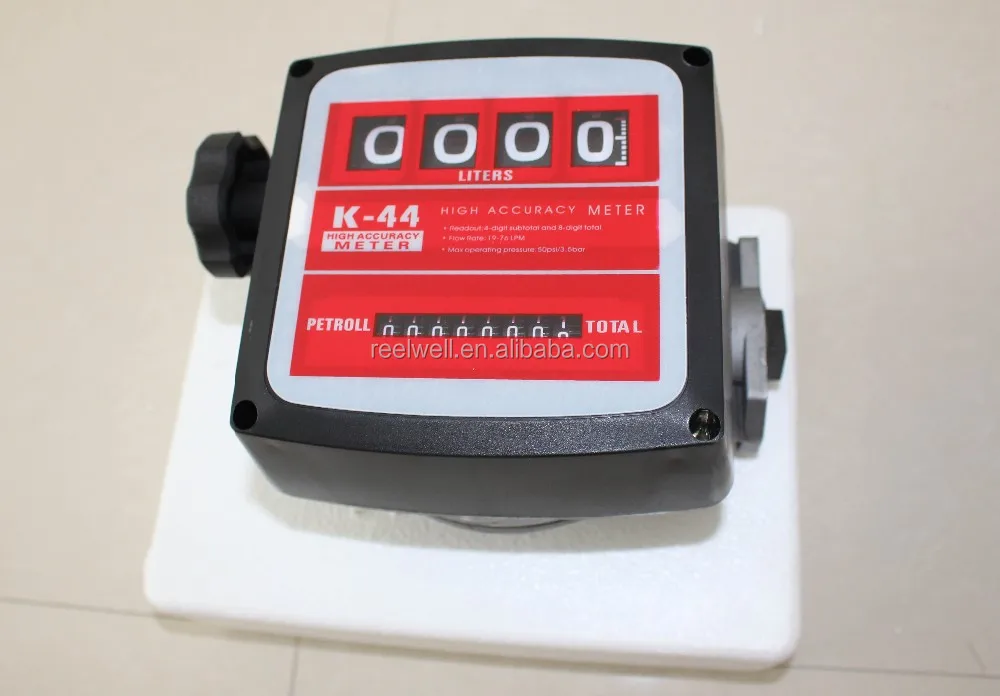

1" Mechanical Fuel Meter for All Fuel Transfer Pumps 1% Accuracy ,FM-120-2 Mechanical Flow Meter







Product Description


If you interest in our products, please send an inquiry or contact us directly.  20140819024322243.png







FM-120-2 flow meter is a nutating-disk meter that measures the exact quantity of the dispensed fuel or lubricant.
It is designed for non-commercial use only.
This flow-meter is reliable, inexpensive, easy to install and simple to calibrate on the workplace.
The Pulser model is fitted with a pulse emitter for connection to a fuel management system.
Thanks to reduced flow resistance, it can also function by gravity.
























































Model Number


K44 flow meter


Display


Mechanical, 4 Digit (3.1)


Power Source


None Required


Minimum Flow Rate


20 lpm


Maximum Flow Rate


120 lpm


Accuracy


±1% (User Calibration)


Pulse Out


None


Factory Calibration


Yes


User Calibration


Yes


Inlet / Outlet Fittings


1" BSP Female


Maximum Operating Pressure


10 bar / 145 PSI


Burst Pressure


30 Bar





Images

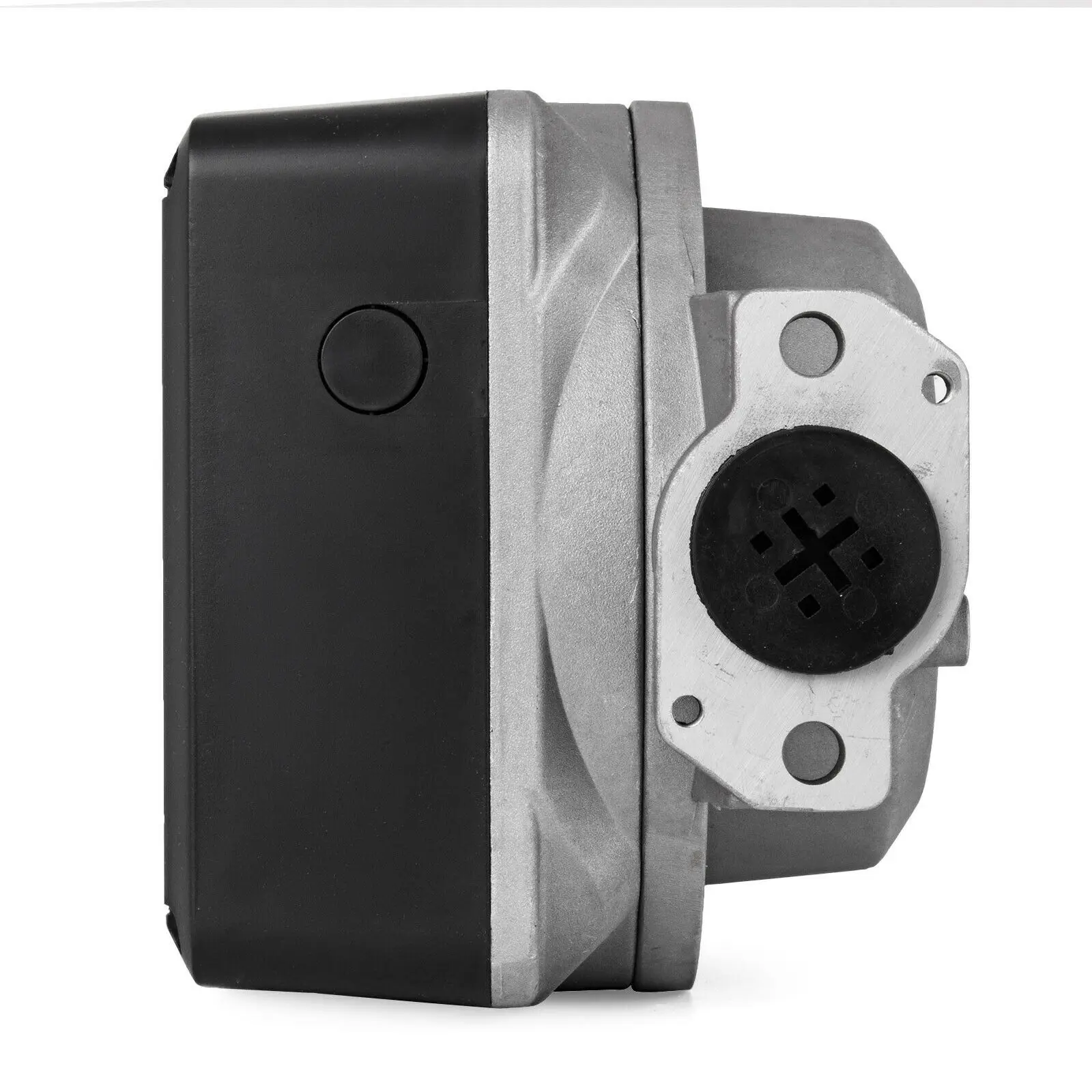

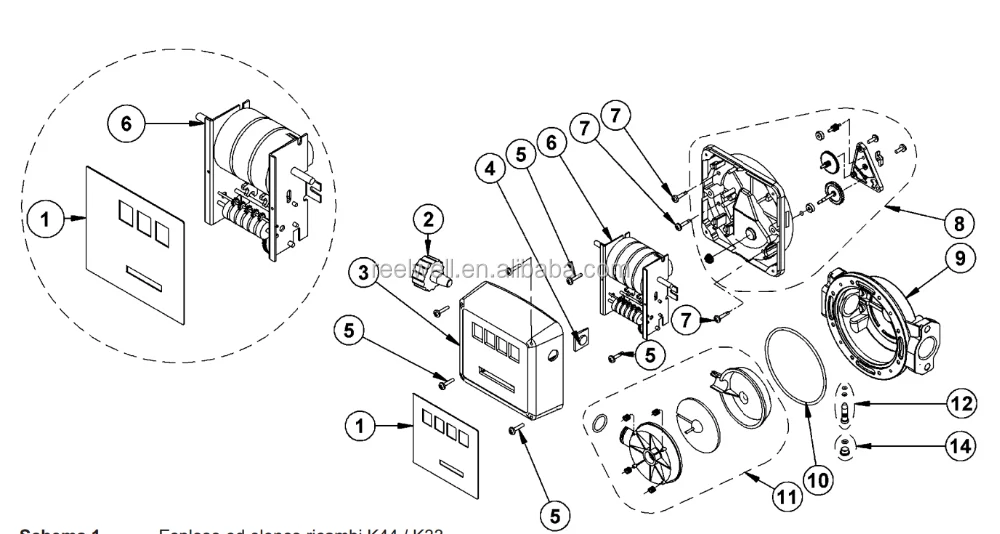

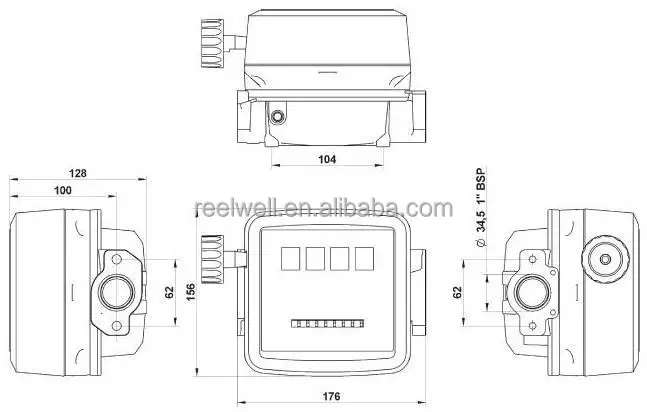

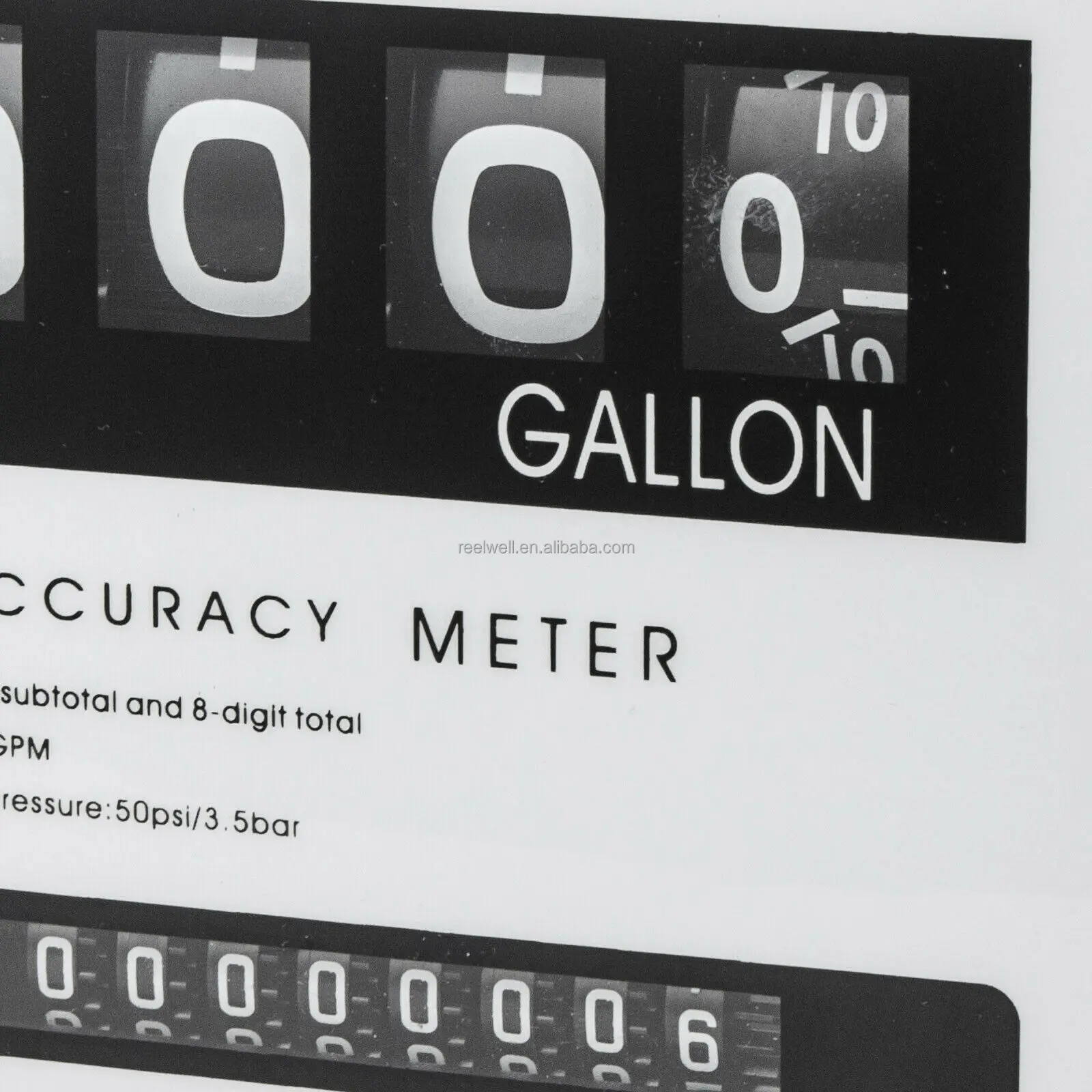

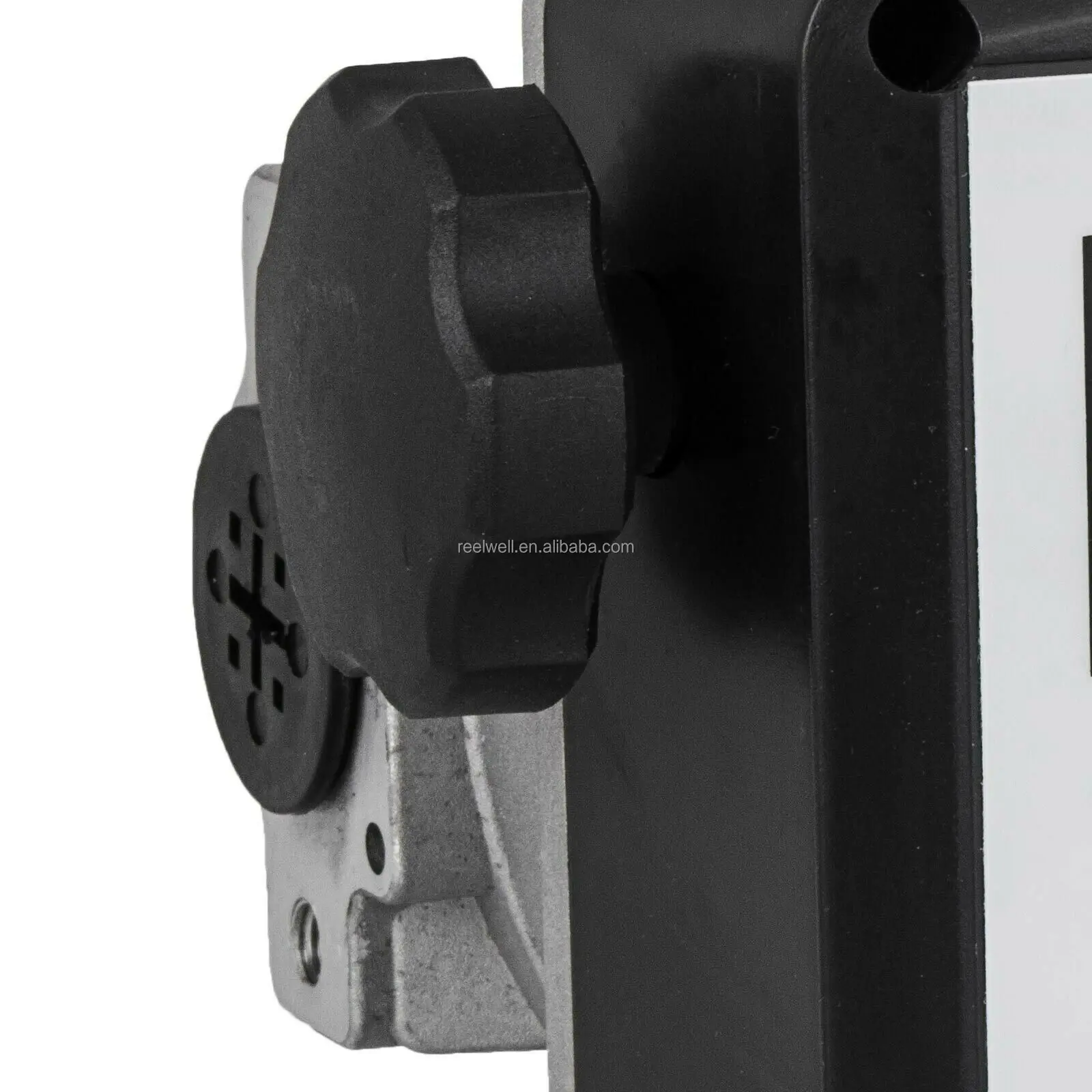

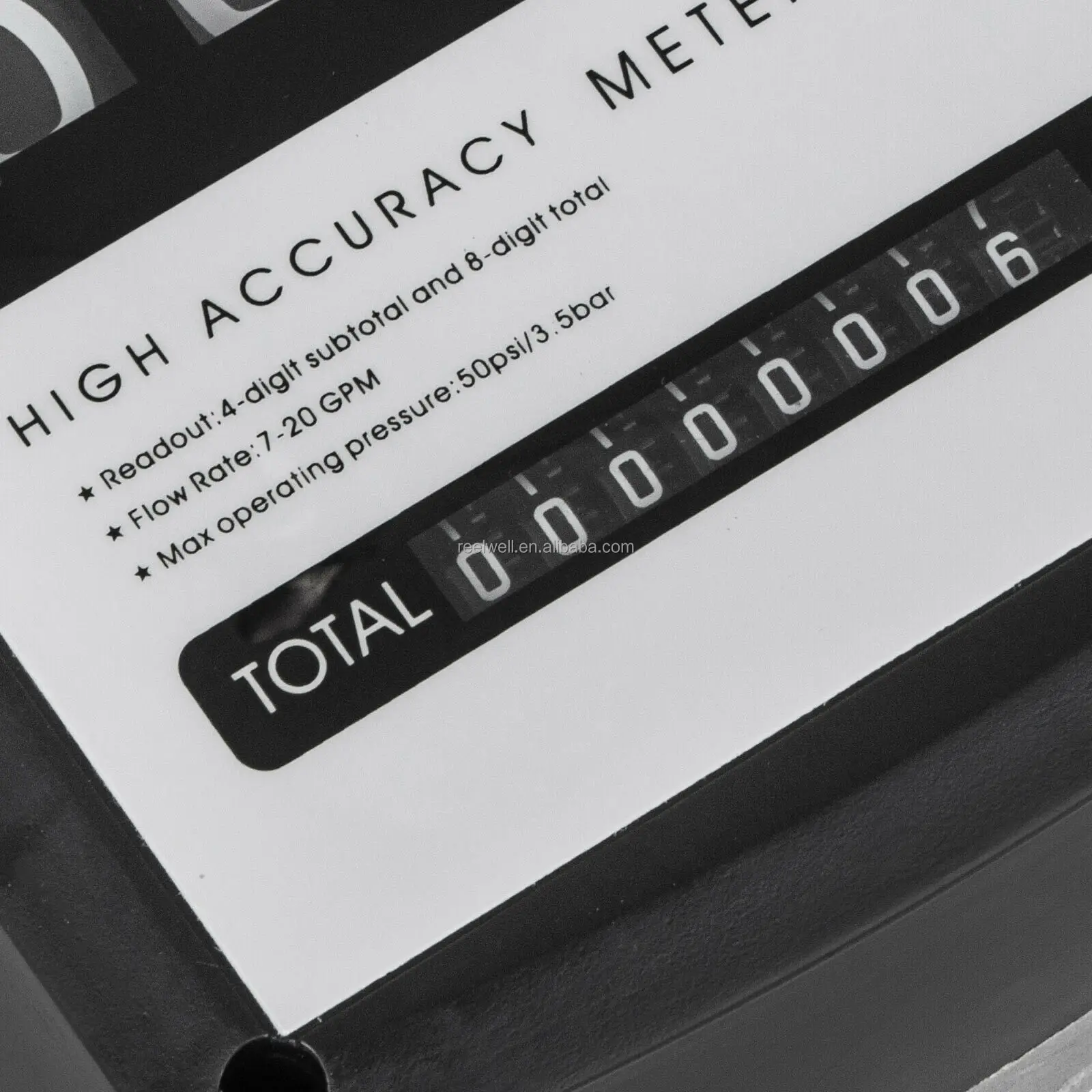

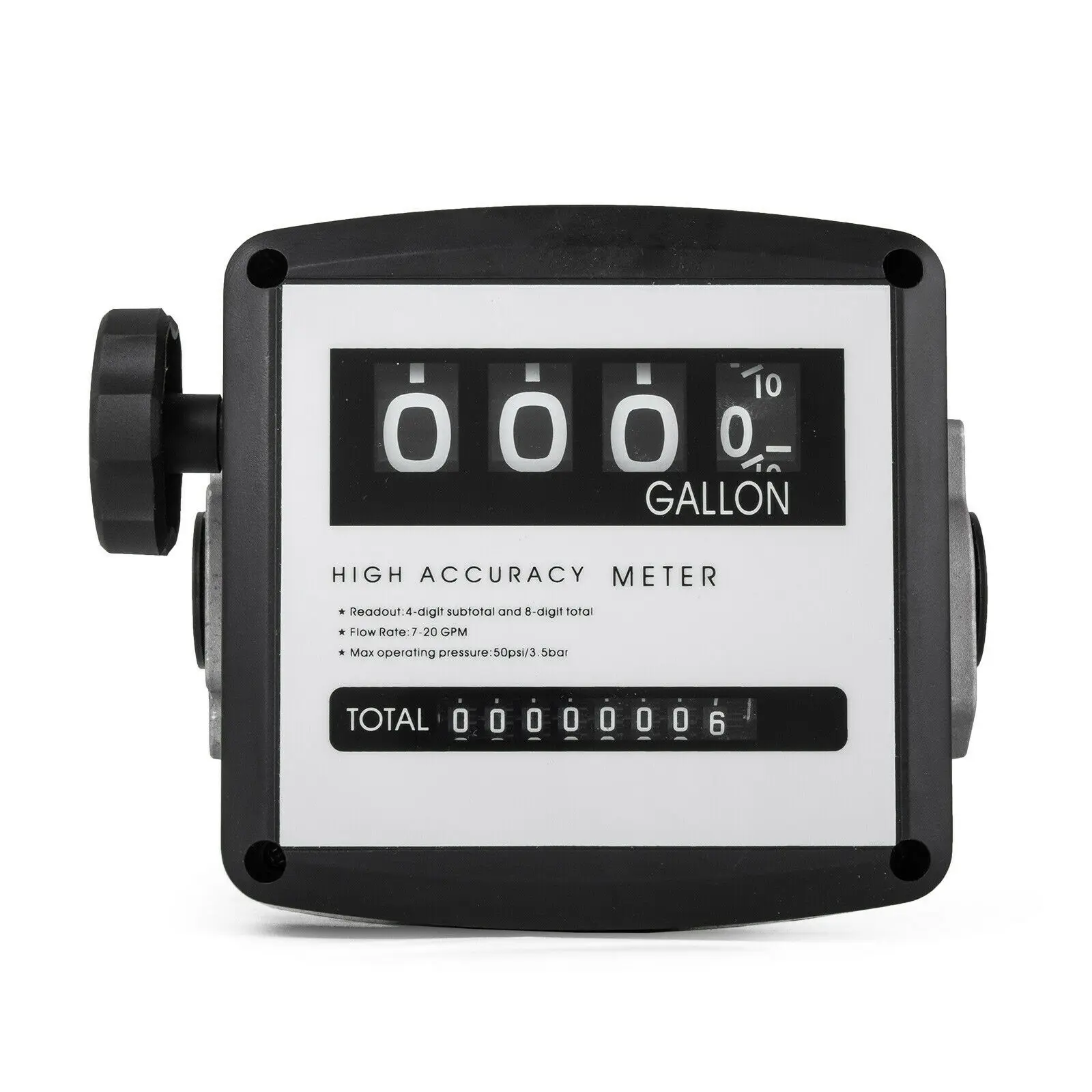

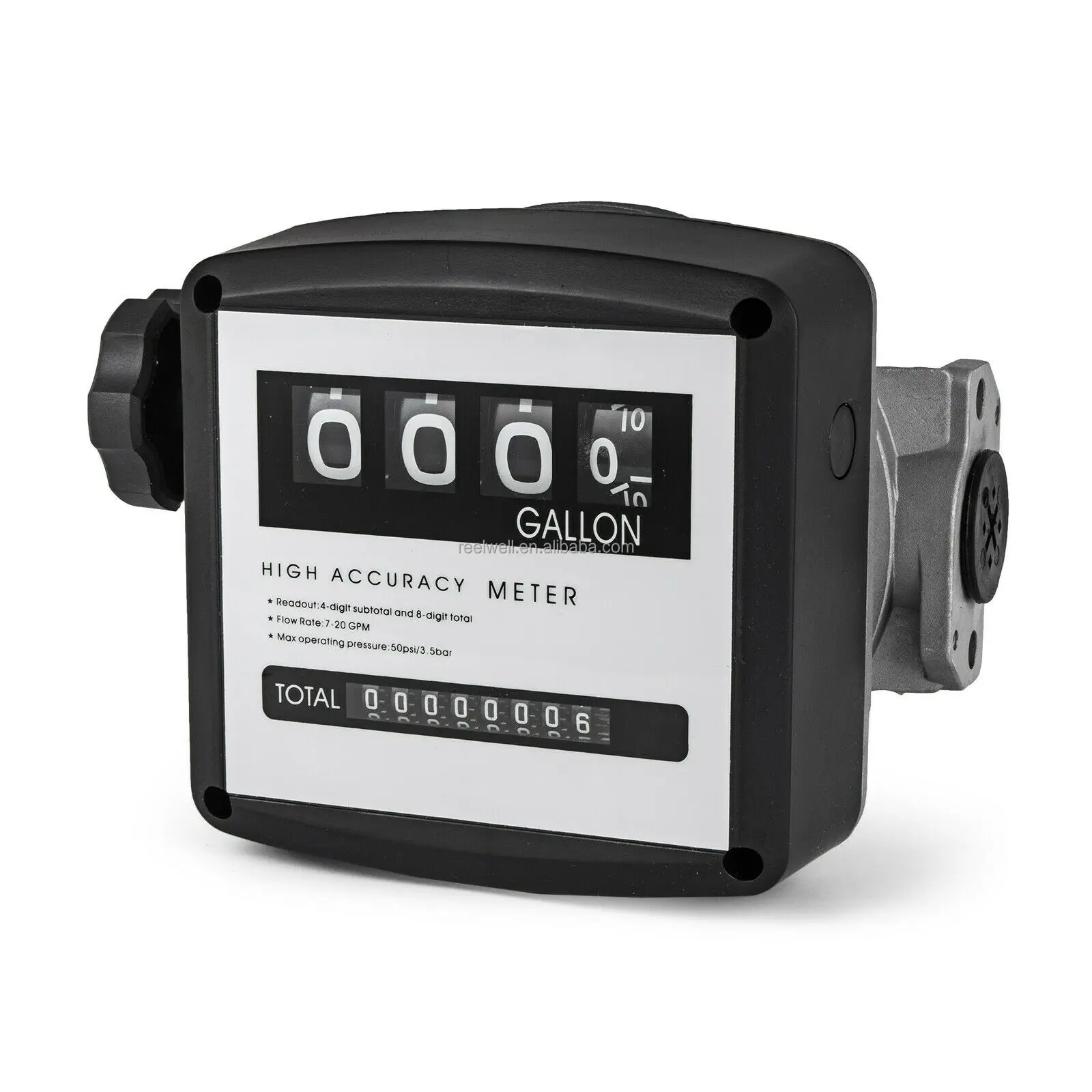

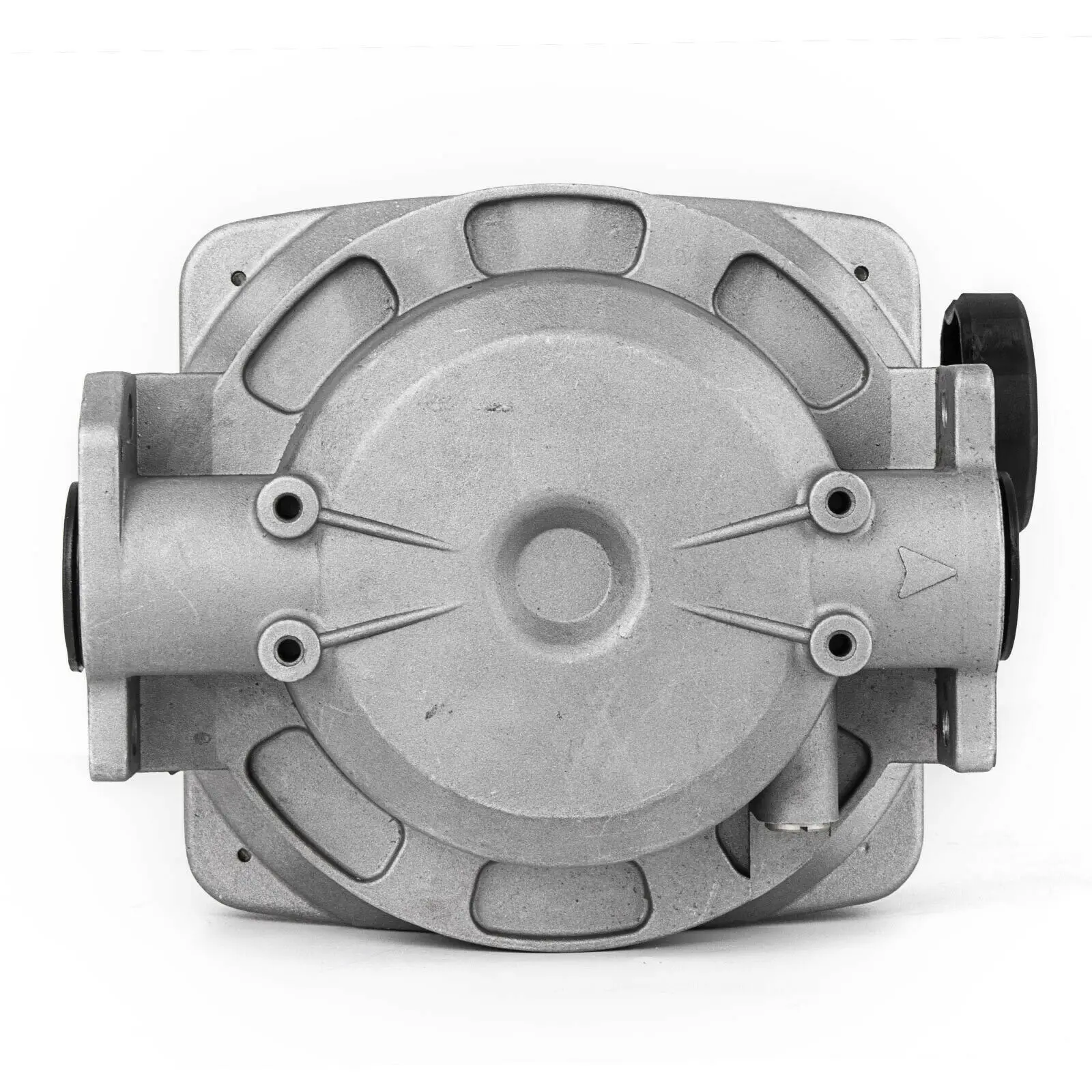

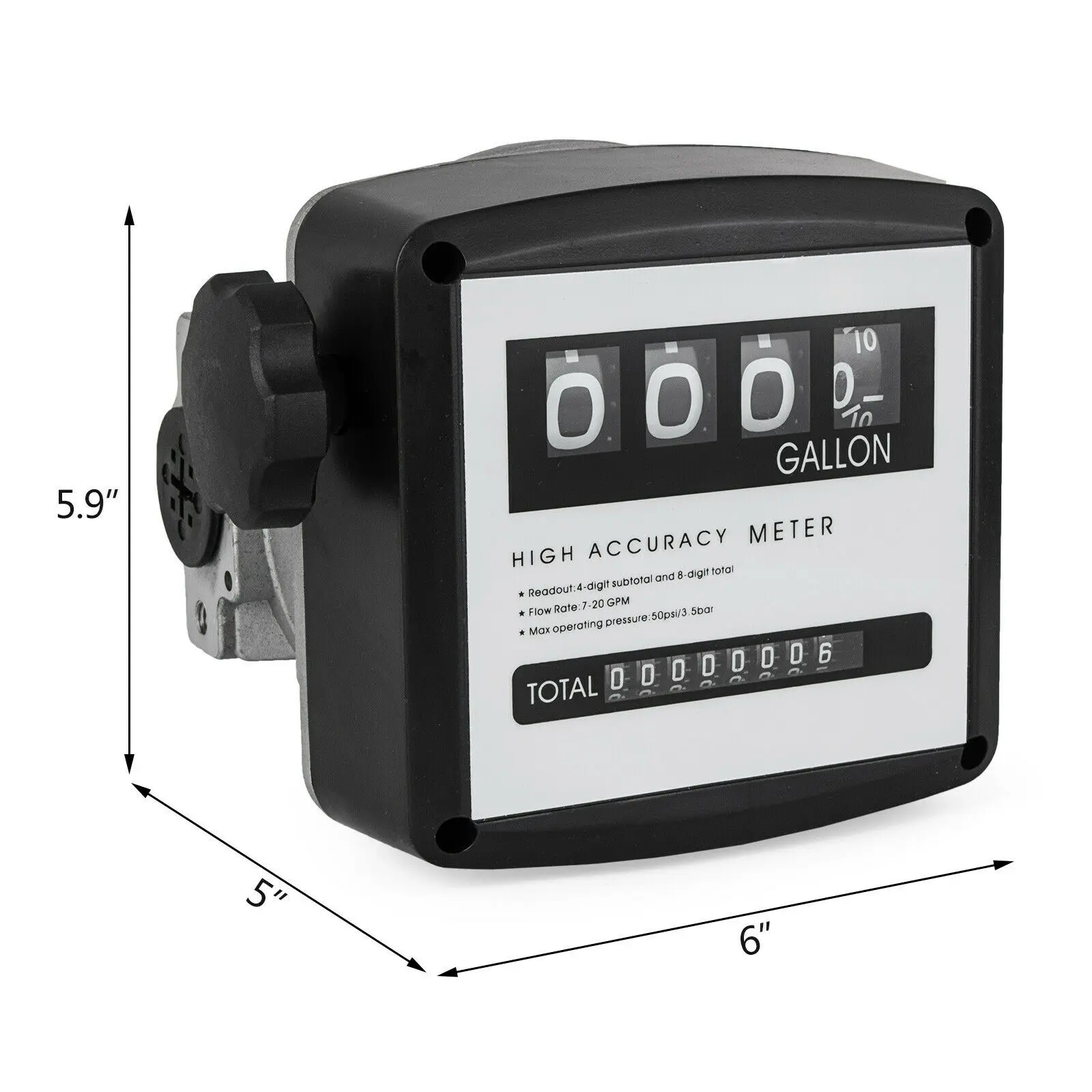

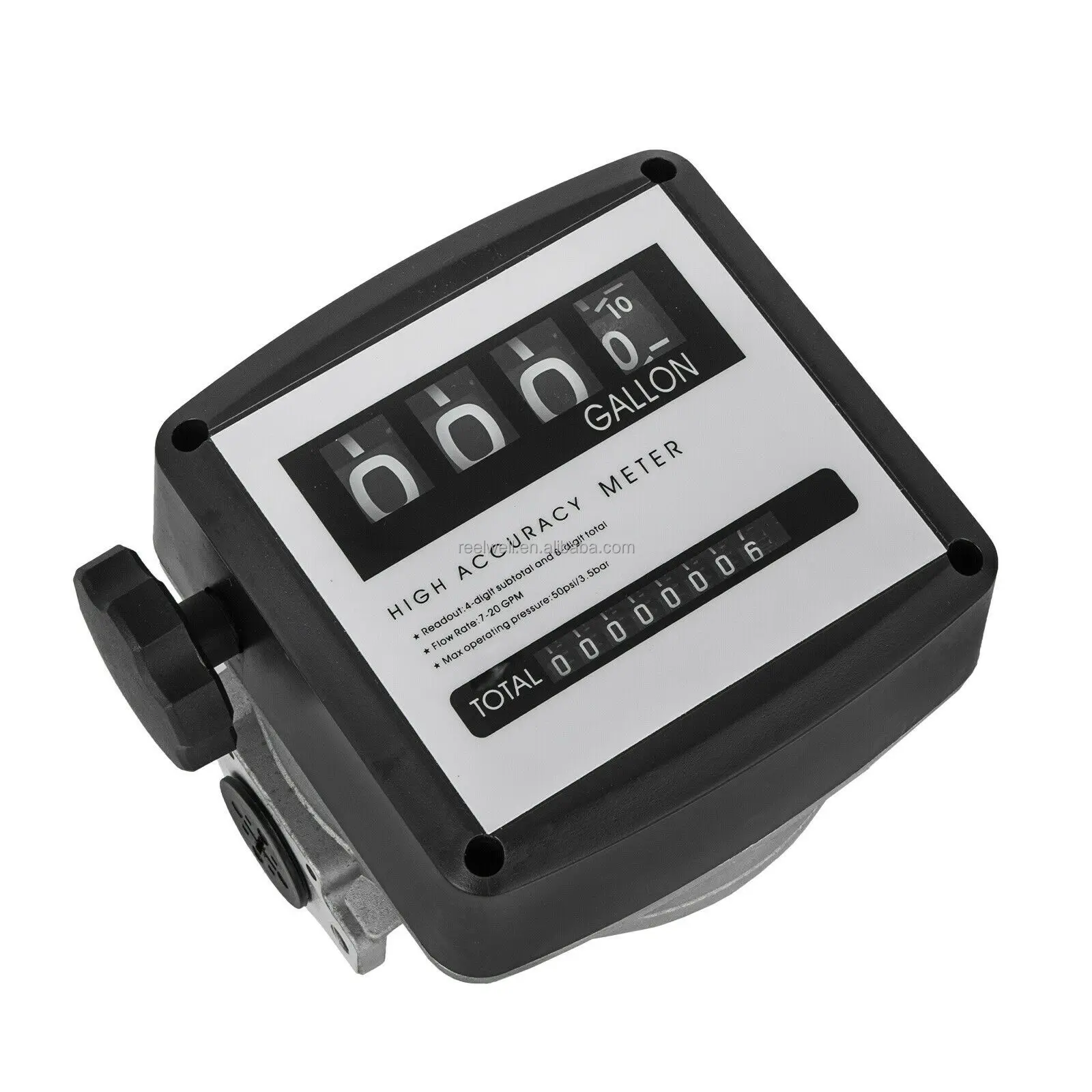

 FM-120-2 (1).jpgFM-120-2 (4).jpgFM-120-2 (5).jpgFM-120-2 (6).jpgFM-120-2 (7).jpgFM-120-2 (8).jpgFM-120-2 (9).jpgFM-120-2 (10).jpgFM-120-2 (12).jpgFM-120-2 (13).jpgFM-120-2 (14).jpgExplosive view



















Certificate


Certificate





main certificate





Related products


fuel dispenser.pngfuel nozzle.png          hose reel  (1).png





           FUEL DISPENSER                               FUEL NOZZLE                                    HOSE REEL





hose reel  (2).png  pump.pngfuel tank.png





           FLOW METER                                   FUEL PUMP                                             FUEL TANK





Our Services


Contact us              stock-vector-happy-and-successful-businesspeople-jumping-in-the-air-business-concept-in-teamwork-and-199942565_.jpg



  • If you want to discuss any of our product, please find Ms. Alicia as below info:


                        business card name

Leadtime



  • Usually can be finished in 25 days after your Advanced payment received.





Payment terms



  • T/T   L/C  Western union   Paypal





Samples



  • Normal type can be free.

  • OEM need pay for the sample fee .and the customers need to cover the shipping cost.





Package







We sell Top Quality Products at Wholesale Prices. All our items are thoroughly researched & tested prior to being offered.
