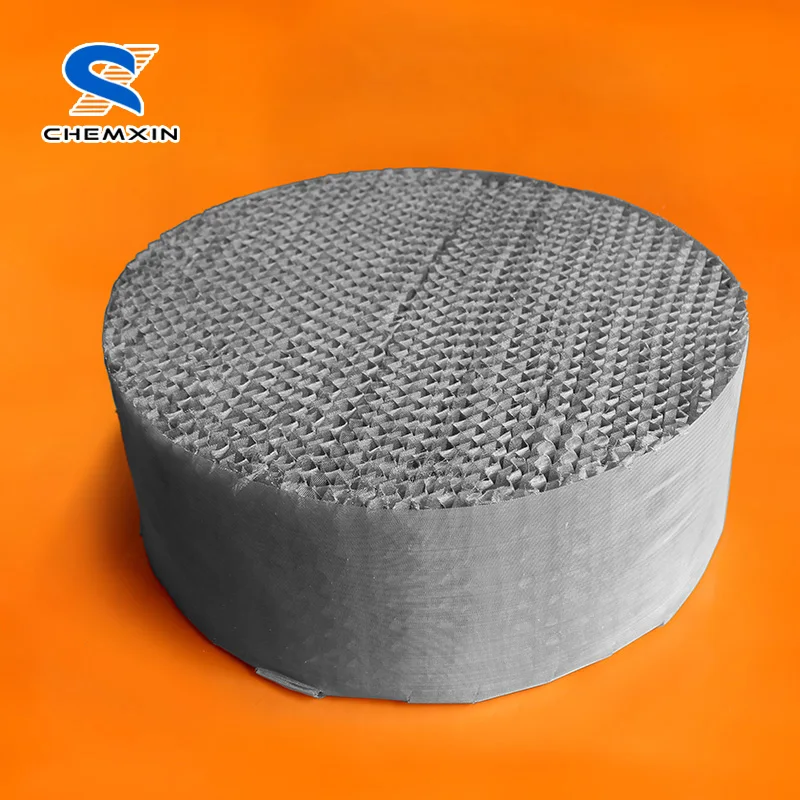

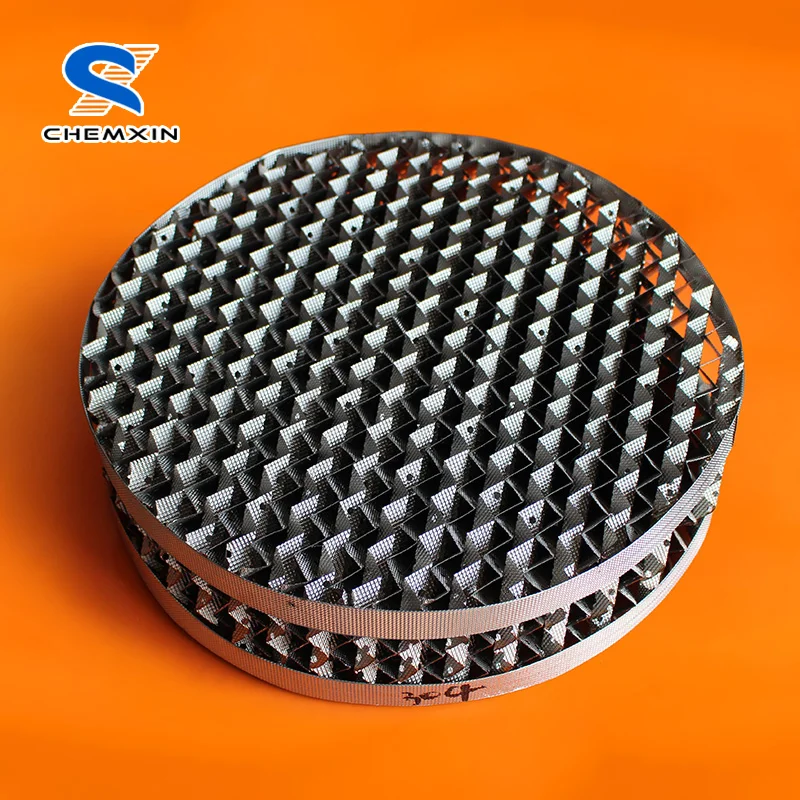

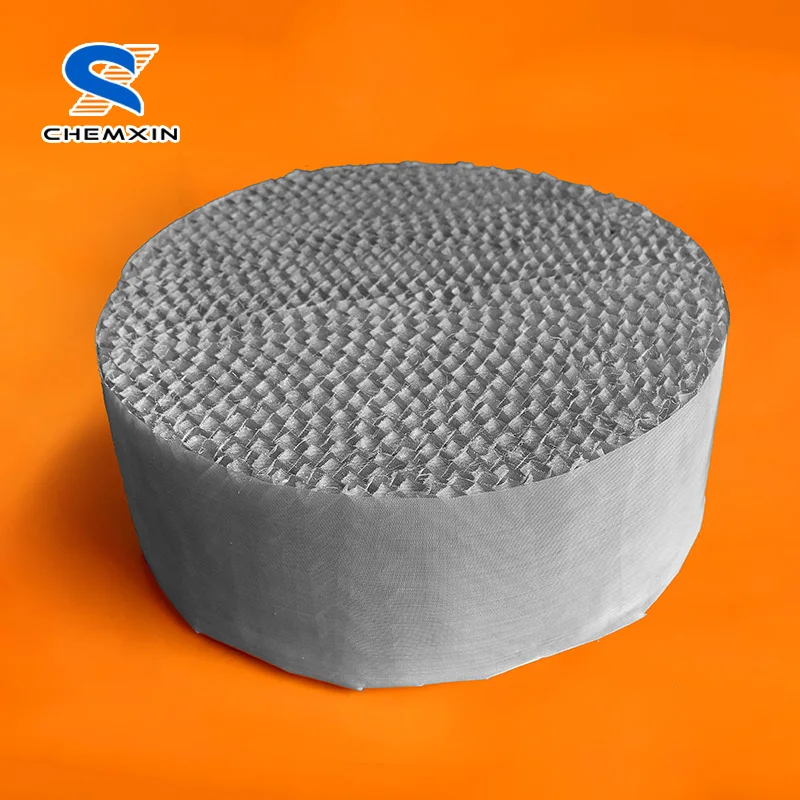

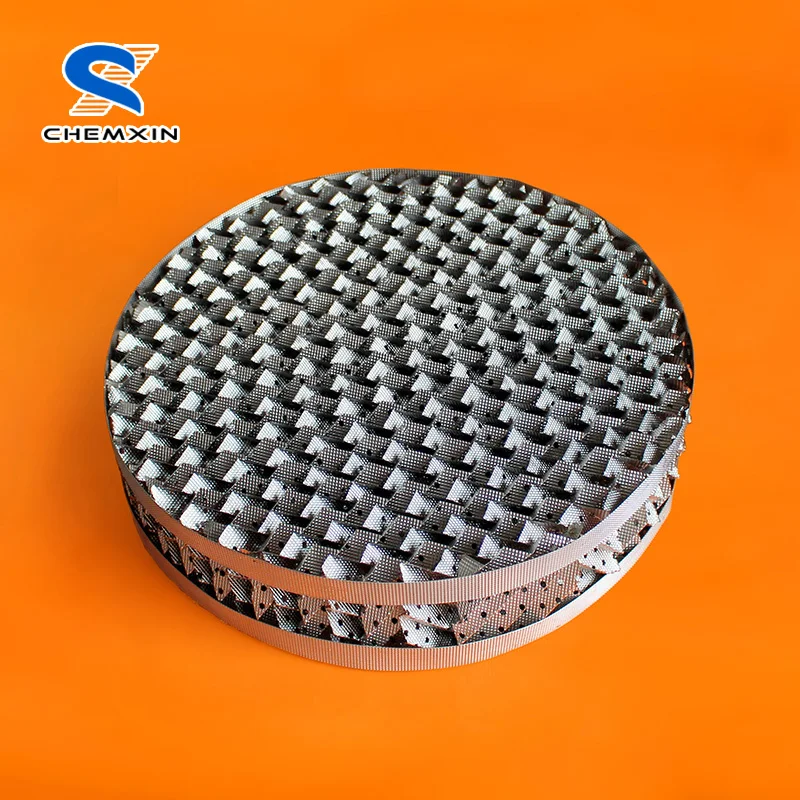

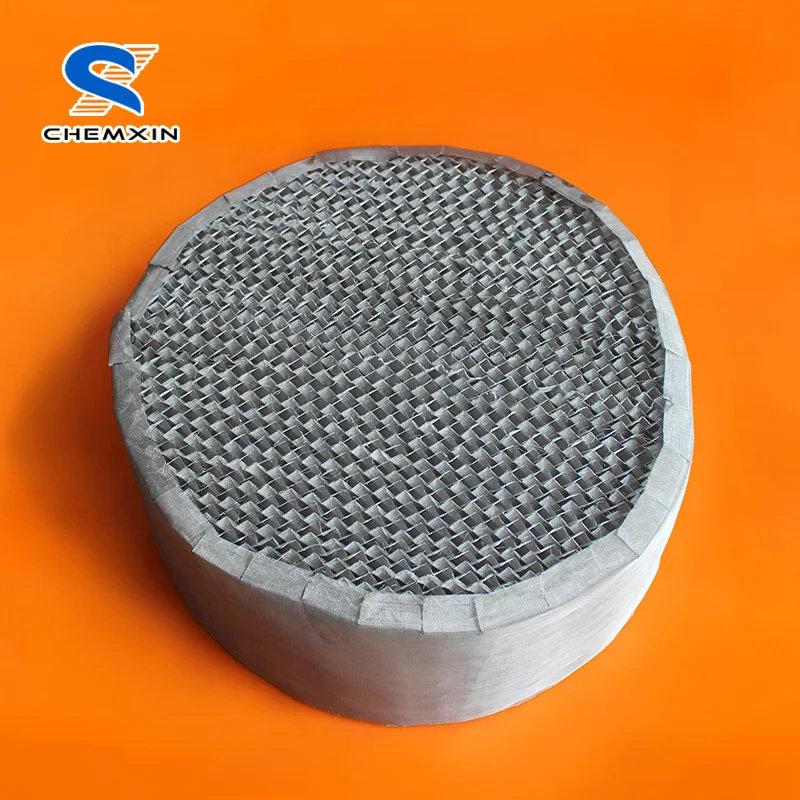

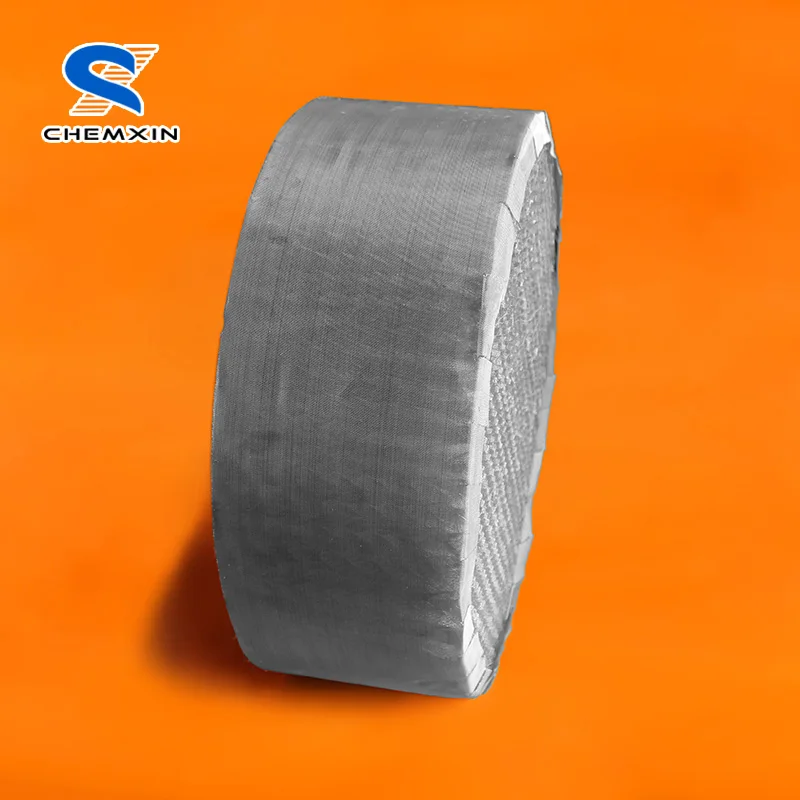

SS 304 SS316 structured packing
- Category: Chemical Machine Parts >>>
- Supplier: Guangzhou Chemxin Environmental Material Co. Ltd. [Guangdong China]Guangzhou
Share on (60508469209):
Product Overview
Description
Technical Parameter
| Model | Perforated Plate Corrugated Packing | ||||||||
| Material | SS 304, 304L, 410, 316, 316L, etc. | ||||||||
| Model | 125Y | 250Y | 350Y | 500Y | 125X | 250X | 350X | 500X | |
| Specific surface | (m2/m3) | 125 | 250 | 350 | 500 | 125 | 250 | 350 | 500 |
| Bulk density | (kg/m3) | 100 | 200 | 280 | 360 | 100 | 200 | 280 | 360 |
| Void ratio | (%) | 98 | 97 | 94 | 92 | 98 | 97 | 94 | 92 |
| Obl. | angle | 45° | 45° | 45° | 45° | 30° | 30° | 30° | 30° |
| P | (Pa/plate) | 200 | 300 | 350 | 400 | 140 | 180 | 230 | 280 |
| Theo. plate | (piece/m) | 1~1.2 | 2~2.5 | 3.5~4 | 4~4.5 | 0.8~0.9 | 1.6~2 | 2.3~2.8 | 2.8~3.2 |
| Typical Application | Absorption, scrubbing and stripping services | ||||||||
| Package : | Carton box; | ||||||||
| M.O.Q: | 1 CBM | ||||||||
| Payment Terms: | T/T; L/C; PayPal; West Union | ||||||||
| Warranty: | a) By National Standard HG/T 4374-2012; HG/T 21556.1-1995 | ||||||||
| b) Offer lifetime consultation on problems occurred | |||||||||
| Container | 20GP | 40GP | 40HQ | Normal order | Minimum Order | Sample order | |||
| Quantity | 25 CBM | 54 CBM | 68 CBM | <25 CBM | 1 CBM | < 5 pcs | |||
| Delivery Time | 7 days | 14 days | 20 days | 7 Days | 3 days | Stock | |||
| Comments: | Customized making is allowed. | ||||||||

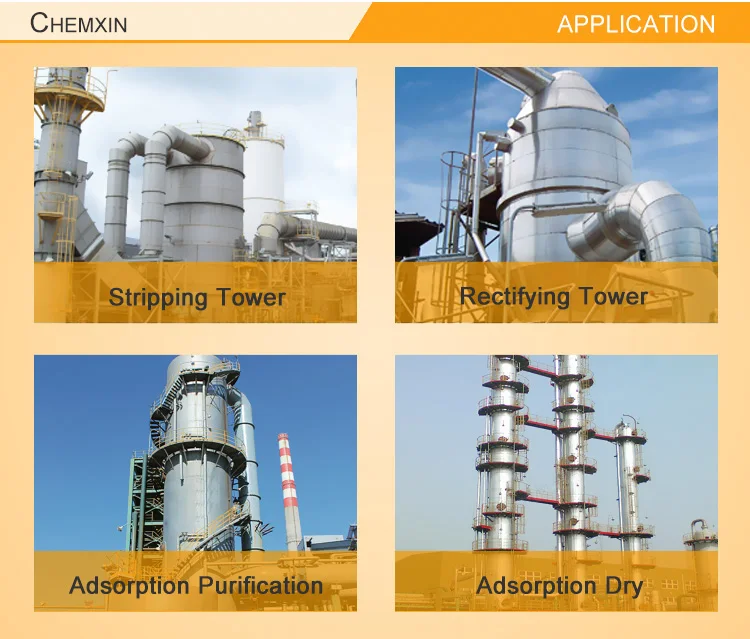

Application
Perforated plate corrugated packing with the wide range of applications.
Diameter: 0.1-12m;Pressure: Vacuum to high pressure;
Liquid lood: 0.2 to more than 300 m3/m2.h;
System: Ethylbenzene/ styrene, Fatty acide, cyclohex anone/ cyclohexanol, caprolaction, etc, Absorption desorption.
Q : How do I pay for my purchase order? A : T/T advance and balance payment, L/C at sight, Paypal, Western Union, Alibaba Trade Assurance, etc... |
Q : What's the MOQ? A : We accept 1 pallet quantity as MOQ. Adsorbent & Desiccant 560-800 kg. Tower packing 1 CBM, Alumina ceramic ball 1000 kg.. |
Q : What's the delivery time? A : It will takes about 5-7 days for stock. Around 10 days for FOB delivery. |
Q : Can I have my own customized product? A : Yes, your customized requirements are available. |

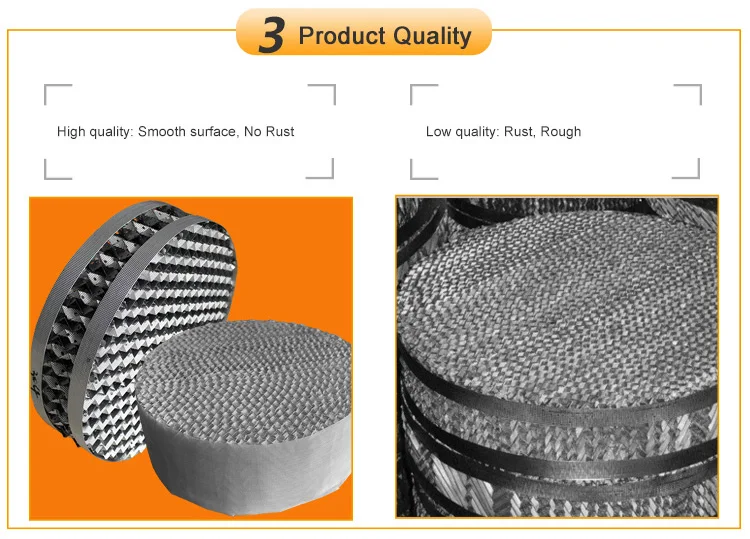

Q : What is your quality control system? A : We issue inhouse COA( Certificate of Analysis ) for every shipment,and accept 3rd party lab testing. |
