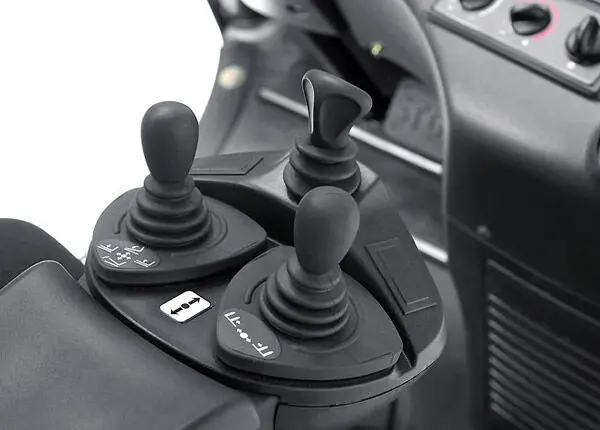

Linde Forklift Joystick Single Handle Gated joystick 7919040041
Linde Forklift Joystick Single Handle Gated joystick 7919040041
Linde Forklift Joystick Single Handle Gated joystick 7919040041

Linde Forklift Joystick Single Handle Gated joystick 7919040041

Share on (60509415313):


Price:$48.00 - $60.00

Quantity:


Product Overview

Description



Product Description




Specification




1. Automatic spring return
2. Single axis, dual axis and 360 degree
3. Potentiometer, hall output
4. Full sealed design
 5. Adapt to any complex environment

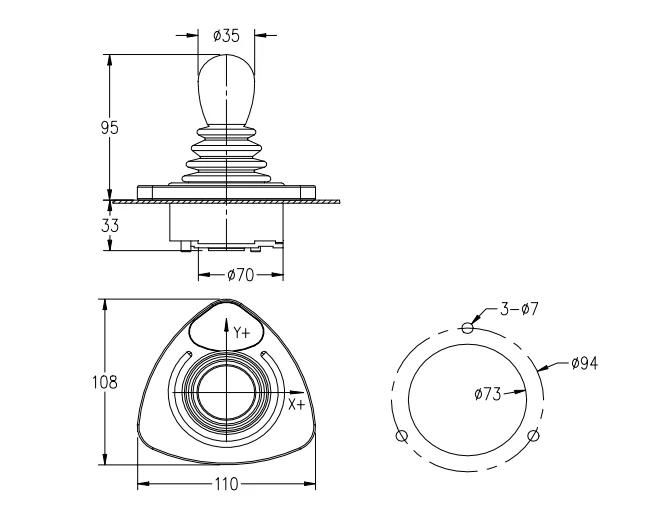

Linde forklift joystick 7919040041& 7919040042
Technical Specifications


Environment Specifications
Storage temperature
—50℃~+80℃
Operating temperature
—30℃~+80℃, hall —40℃~+80℃
Installation of flange protection grade
IP64
Vibration
amplitude of vibration ±3g, frequency 10HZ-200HZ
Shock
20g, 6ms, half sine type
EMC anti-interference rank
100V/m, 30MHz to 1GHz, 80% sine wave modulation, meet EN50082-2(1995) standard
EMC Emission rank
150KHZ-30MHZ, grade B, satisfy EN 50081-2 (1993) standards
ESD anti-interference grade
Level 4, 8 kv contact discharge, 15 kv air discharge, satisfy IEC 61000-4-2 standards

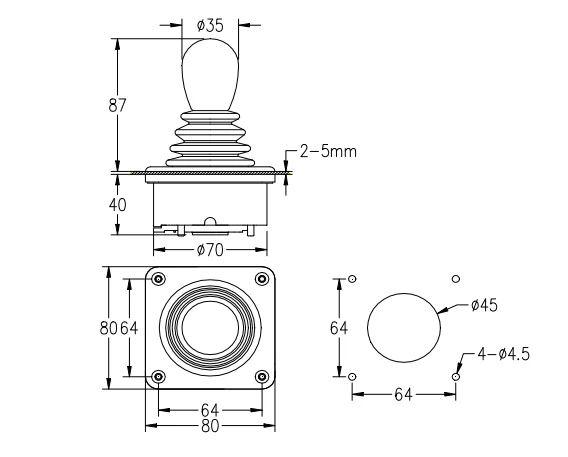

Mechanical Specifications
Mechanical rotation
±32° (potentiometer) ±20° (hall sensor)
Operating torque
5N(50Nmax)
Mechanical life
5,000,000 cycle
Mechanical tolerance
±0.5°
Electrical Parameters




Hall type
Power supply voltage
5±0.5VDC
The power consumption of current
6.5 mA/each hall chip
Resolution
infinition
Maximum voltage
15 VDC continuous
Reverse polarity maximum voltage
14.5VDC
The median voltage (no-load)
48~52%Vs
Load resistance
5KΩ







Potentiometer type
Power supply voltage
DC24V
Power supply current
<20mA
Resolution
Infinition
Resistance (10%)
2KΩ, 5KΩ, 10KΩ
Electrical rotation
±32°
Output voltage range (Relative voltage)
0~100%;10~90%
Maximum voltage
48%~52%
Potentiometer maximum load of voltage
32VDC
Maximum power consumption (25 ℃)
0.25W
The direction of the switch
Switch position ±3°

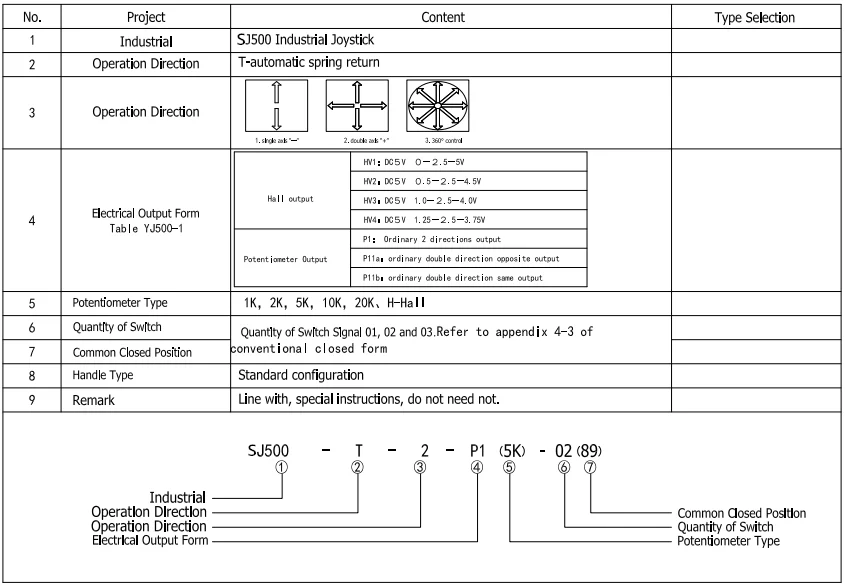

PRODUCT CONFIGURATION
