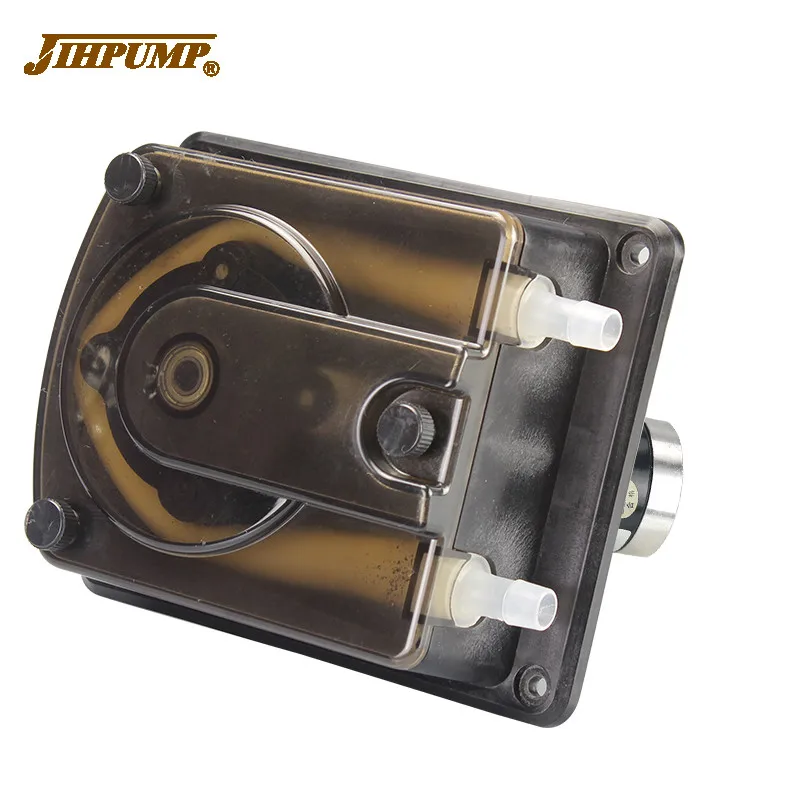

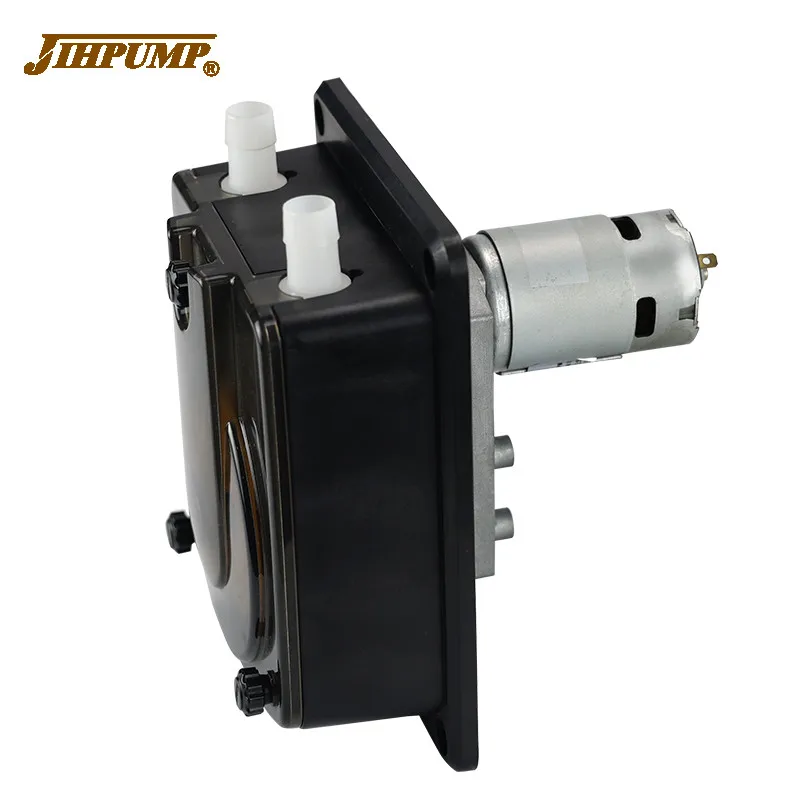

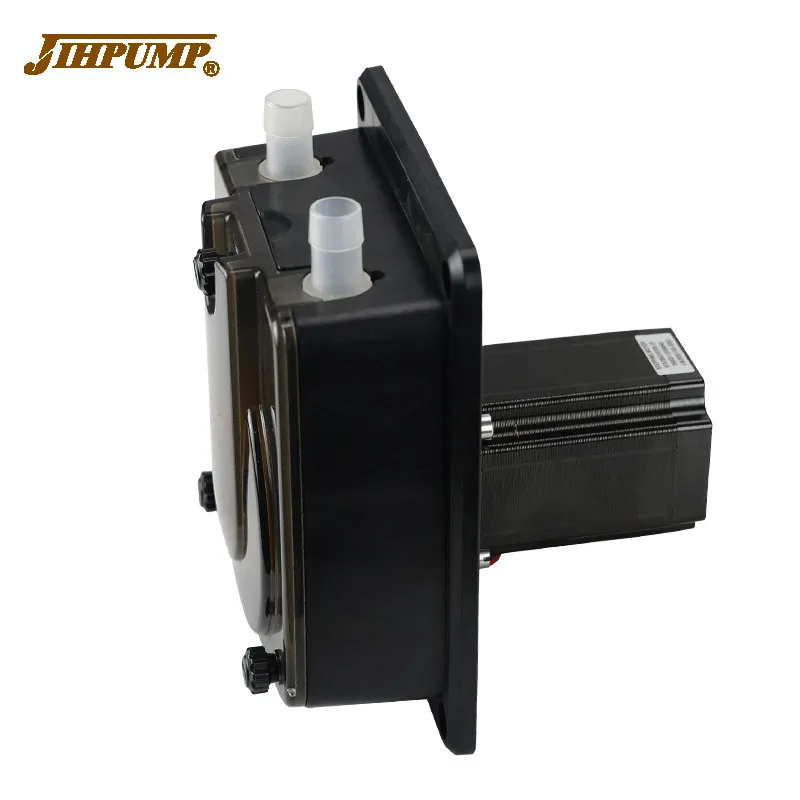

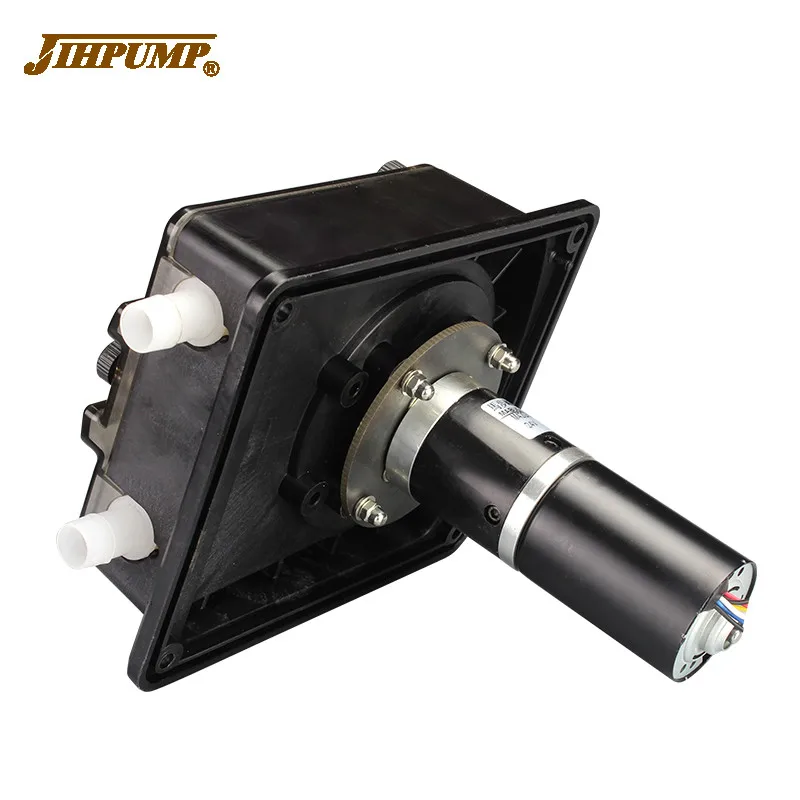

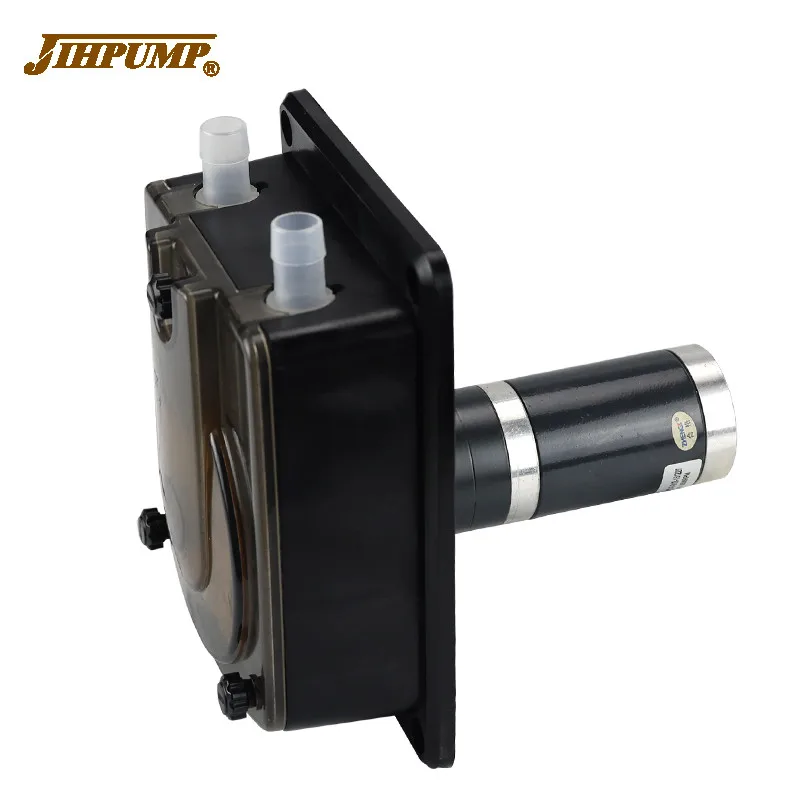

JIHPUMP 353K Small Micro Peristaltic Pump for Water Liquid Dosing Dispensing Pumps Sanitizer Detergent Laundry Medical Chemical
- Category: Pumps >>>
- Supplier: Chongqing,Jieheng,Peristaltic,Pumps,Co.,Ltd.
Share on:
Product Overview
Description
About Us
Chongqing Jieheng Peristaltic Pumps Co., Ltd.
China leading manufacturer and provider of peristaltic pumps.
Has been meeting OEM customers peristaltic pumps needs.
Offer peristaltic pumps and customizable pumps solutions.
Offer free technical and application support.
Over 15 years of application experience, sold more than 1 million sets peristaltic pumps.
How to select peristaltic pumps:
1. Flow rate elements:pressure, viscosity, temperature, suction and head height

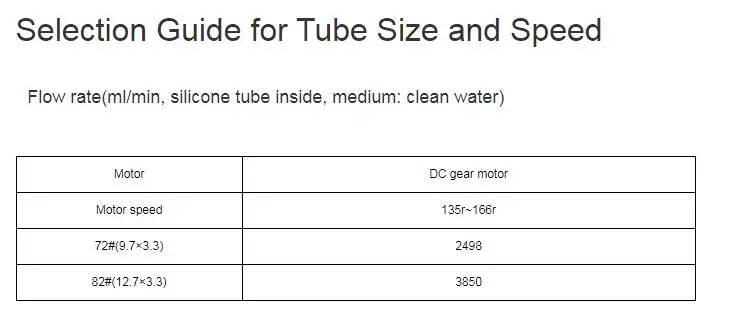

2. Choose pump model according to flow: selection tables of complete pump丨OEM pump
Note : The form needs to be viewed on MAC / PC
3. Pump configuration: working and control modes to be considered

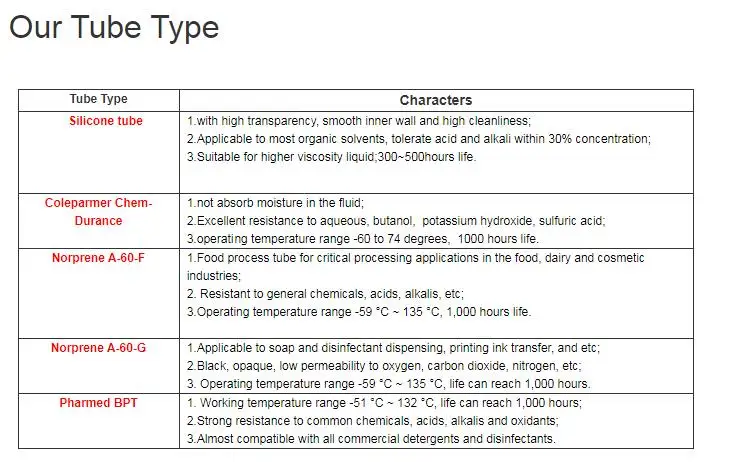

4. Select pump tube: chemical compatibility guide
Note : The form needs to be viewed on MAC / PC
3. Pump configuration: working and control modes to be considered
4. Select pump tube: chemical compatibility guide
JIHPUMP has dedicated application engineers available to help customers make the right pump choice.
Products Description

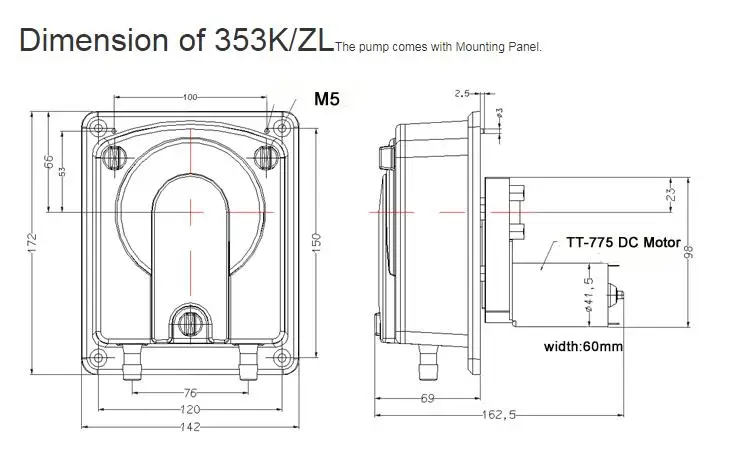

1. Fully compatible with friction pump , but more competitive : appearance and mounting dimensions are compatible with SR10/30 friction peristaltic pump
2. Driving gear transmission: driving gear transmission, less tube wear and longer operation life
3. High reliability and no backflow: high precision, morereliable, stable effluent and no backflow
4. Pump head can be adjusted postions: The pump head can be 90 degrees free rotation installation
2. Driving gear transmission: driving gear transmission, less tube wear and longer operation life
3. High reliability and no backflow: high precision, morereliable, stable effluent and no backflow
4. Pump head can be adjusted postions: The pump head can be 90 degrees free rotation installation

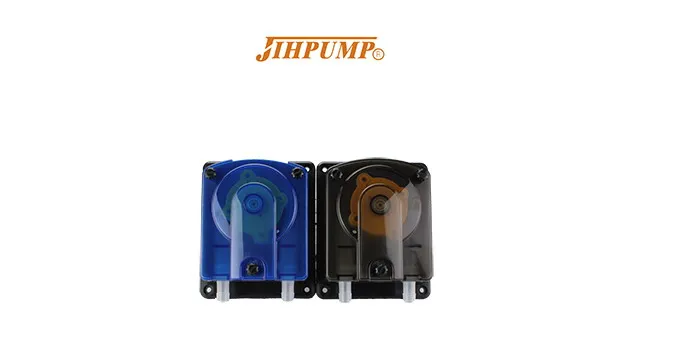

5. Micro peristaltic pump, compact structure,Can be installed side by side to save space
6. Tool-free disassembly and assembly of the pump cover, easy to replace the hose
6. Tool-free disassembly and assembly of the pump cover, easy to replace the hose

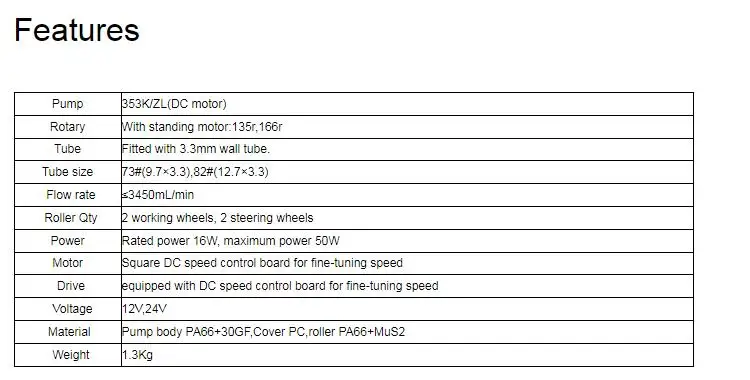

Parameters | ||||||||
Speed Range： | With standing motor:135r,166rrpm | |||||||
Working Environment： | 0-60 ℃, relative humidity≤85% | |||||||
Power： | 12V,24V | |||||||
Output pressure： | ≤0.17Mpa | |||||||
Title | JIHPUMP 353K Small Micro Peristaltic Pump for Water Liquid Dosing Dispensing Pumps Sanitizer Detergent Laundry Medical Chemical | ||||||

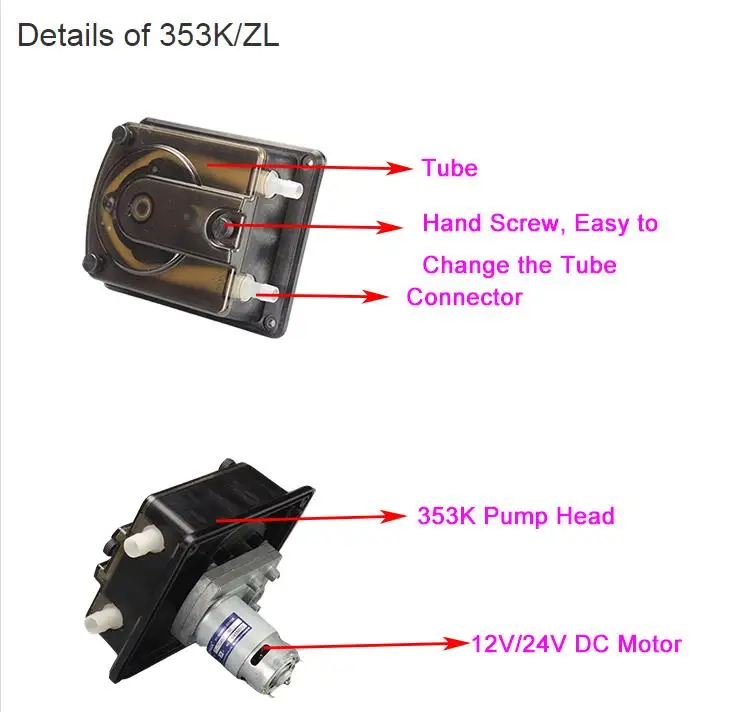

Pump model | 353K/ZL | ||||||
Flow capacity | Max 7270 ml/min | ||||||
Voltage | DC24V，4A or DC36V，3.3A | ||||||
Function | Transfering, dosing, dispensing | ||||||
Wide applicable devices | Detergent delivery: such as washing machine, dishwasher detergent delivery Analytical instruments: such as analysis and testing instrument media injection Printing equipment: such as ink delivery Food machinery: such as beverage delivery Kitchen equipment Laundry equipment Car washing equipment Industrial Process Fine Chemicals | ||||||
Application industries | Medical, pharmaceutical, environmental, analysis, lab, printing, washing, household appliances, food and beverage, industrial machinery | ||||||
Applications | 1. beverage machine 2. icecream machine 3. coffee machine 4. laundry equipment 5. dishwasher | ||||||

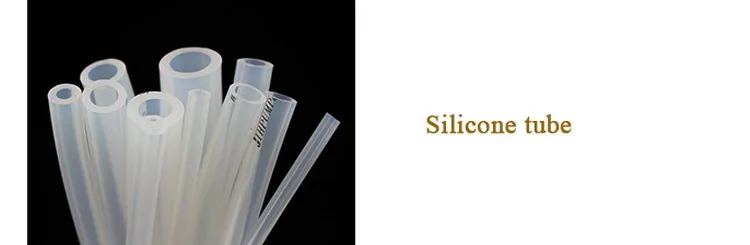

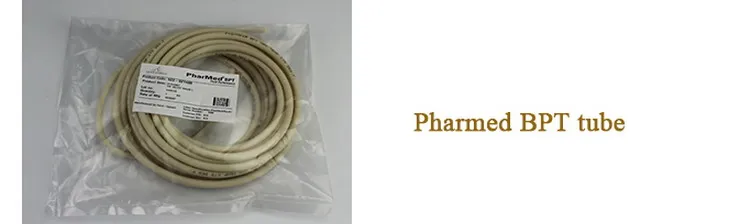

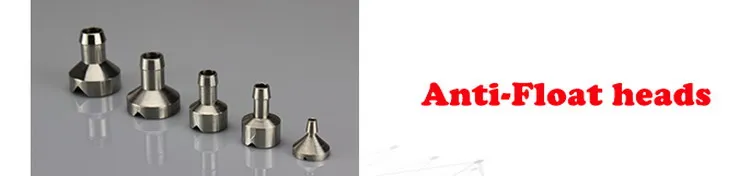

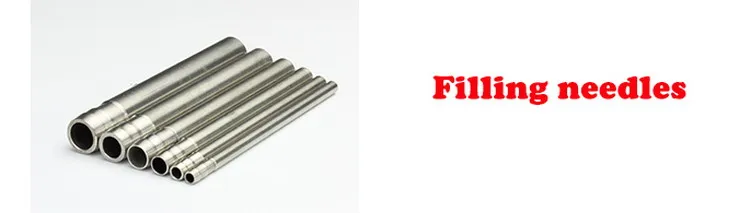

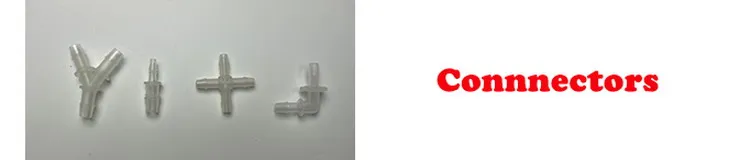

Accessories available
Application Industry
Rich experience Mature scheme Application worry free
JIHPUMP is a professional manufacturer and supplier of peristaltic pumps, has more than 15 years of experience in peristaltic pump applications. We are committed to providing customers with standard and customized peristaltic pump solutions. More than 1 million sets peristaltic pumps have been shipped throughout the world. Printing, washing and industrial machinery and other fields have been successfully applied.
JIHPUMP 353K Small Micro Peristaltic Pump for Water Liquid Dosing Dispensing Pumps Sanitizer Detergent Laundry Medical Chemical
Why Choose Us
JIHPUMP Chongqing Jieheng Peristaltic Pumps Co., Ltd. is founded in 2006. We are a high-tech enterprise providing professional product application solutions, manufacturer and service provider of peristaltic and constant flow pumps. The company produces more than 50 series and over 200 models of peristaltic pump products. We have shipped more than one million cost-effective, high-reliability peristaltic pumps to users around the world in the food, beverage, chemical reagents, printing inks, detergents, laboratories, analytical instruments, fine chemicals, smart homes, medical care, biopharmaceuticals, environmental and industrial fields.
