1.5KW Hydro Turbine Generator Micro Hydro Kaplan Turbine
US $720.00-$760.00
Small Pelton Turbine / Small Water Turbine / Mini Hydro Generator
- Category: Hydro Generator >>>
- Supplier: Fuchun Industry Development Company Ltd. Shenzhen
Share on (60510187806):
Product Overview
Description

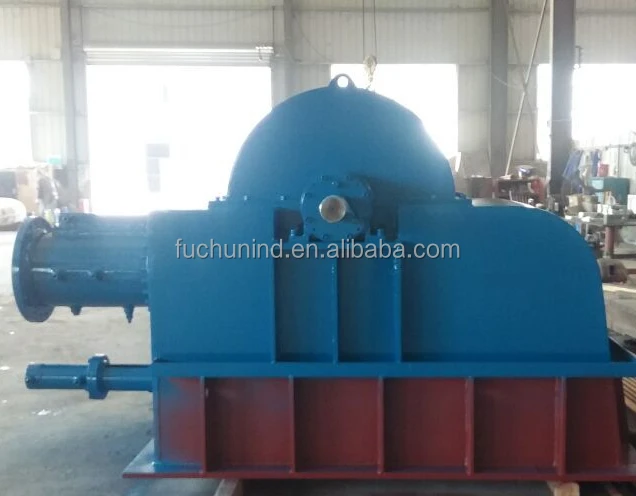

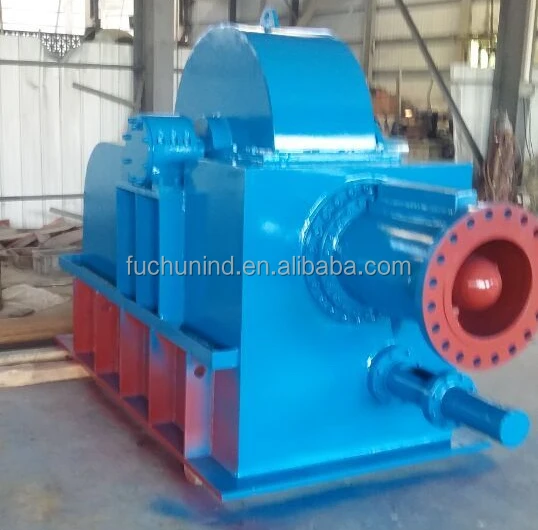

Small Pelton Turbine / Small Water Turbine / mini hydro generator
Item | Parameter |
Capacity | 1×100KW |
Rated Head | 90m |
Rated Flow | 0.14 m3/s |
Pelton Turbine | |
Type | Pelton (Horizontal) |
Model | CJA475-W-64/1×7 |
Rotation Speed | 600r/min |
Runaway Speed | 1150r/min |
Runner Diameter | 64cm |
No. of Nozzle(s) | 1 |
Jet Diameter | 7.0cm |
Runner Material | Stainless Steel (06Cr13Ni4Mo) |
About The Model:
CJA475–W-64/1×7 turbine
CJ — Pelton turbine
A475 — Code of runner
W — Horizontal shaft
64 — Diameter of runner in cm
1 — Number of nozzle
7 — Diameter of jet flow in cm
The turbine is connected to a generator by the flexible ring coupler
Runner runs clockwise, viewed from generator
A long nozzle of 62°/45°, 135°jet elbow and inlet elbow
Rolling bearing with reverse nozzle apparatus braking device
Company Information
FUCHUN INDUSTRY DEVELOPMENT CO., LTD SHENZHEN is an experienced engineer/manufacture company for small/medium hydro power equipments (50KW to 50MW). We are a known manufacturer & EPC contractor.
Fuchun has the whole service package for your hydro-power project:
project design
equipment manufacture
on-site installation guidance
testing, repair and maintenance
The factory of Fuchun takes up an area of 560,000 m2. There are 18 workshops and more than 320 sets of precision producing/testing machines. We have a research center in South China, and several testing facilities.
As a giant with 50 years of industry experience, Fuchun is in close touch with several research institutionsin this field, ensuring you of high tech quality equipments. Up till now, over 20 equipments are awarded at the national/provincial level, as we stay in line with ISO9001, IEC and CE standards.
Processing/Producing Machinery
Horizontal Lathe
MC1363 cylindrical grinding machine
B1016A facing machine
Two points closed pressural machine
CQ5250 CNC Double Column Vertical Lathe
CNC Flame Cutting machine
500T Press machine 500T
VacuumPressure Impregnating
& the production line of resin-bonded sand
Packaging & Shipping
Standard export packing with wooden cases, structural steel, seaworth packing
Our Services
Fuchun will have engineers on site supervising/guiding the installation.
an electrical engineer
a mechanical engineer
a control engineer
& a translator
