Notice: This link's price is barebone system price, with Intel J1900 CPU, onboard 4gb ram, doesn't include hard disk, WiFi card and Wifi Antennas, if you need them, please contact us, we will give you the best price.

1) Intel Celeron J1900 quad core 2.0GHz; CPU core board is optional.
2) On board 2G/4G ram optional
3) 1*VGA+1HD+5*usb2.0+1*usb3.0+2*LAN+6*COM(COM1, COM2 support RS485/RS422)+10*LED lights+1*4Pin Phoenix Terminal
4) AMI 64Mbit SPI Flash ROM
5) High-quality pure aluminum Mini itx Case
6) 2*SATA3.0, 1*MSATA, 1*Mini-PCIE(support wifi/BT), 1*Mini-PCIE(USB channel signal)(support 3G/4G), Embedded Sim Slot
7) 2*Intel 82583V 1000M network card
8) Support DC 9~36V wide voltage ,Support positive and negative reverse protection
9) Applied in Digital signage, KIOSK, Advertising Machine, Self-service Terminal,
Electronic Whiteboard, ATM, POS/Retail, Networking, Automation, Surveillance
Parking Pay Station, Channel System, Medical electronic etc .





| Specification | |
| Model | IBOX-702 |
| Case | High-quality pure aluminum mini pc case |
| CPU | Adopt Intel Celeron J1900 quad core 2.0GHz; CPU core board is optional |
| Chipeset | Adopt Intel express chipset |
| Mainboard | 17*17CM mini itx motherboard |
| Usable system | Windows 7/8/10, linux OS |
| Memory | Onboard 2G/4G ram is optional |
| Lan | 2*Intel 82583V 10/100/1000M Lan |
| Graphic card | Integrated Intel HD graphic card |
| HDD | 500G(optional 320G~1T) |
| SSD | 16G/32G/64G/128G/256G optional |
| BIOS | AMI 64Mbit SMT Flash ROM |

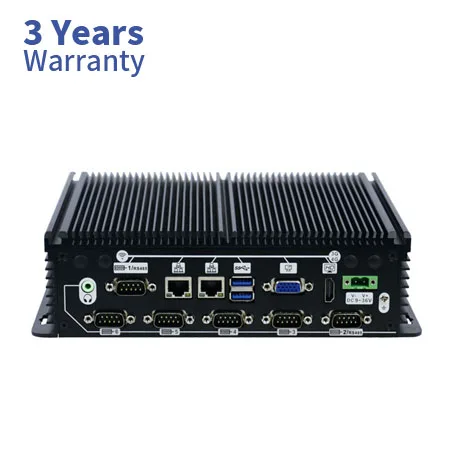

| Rear I/O | 1*usb2.0 |
| 1*usb3.0 | |
| 1*2Pin Phoenix Terminal | |
| 2*RJ-45 lan | |
| 1*VGA | |
| support 1*HD | |
| 6*COM(COM1,COM2 support RS422/485)(10*COM Optional) | |
| 1*Audio | |

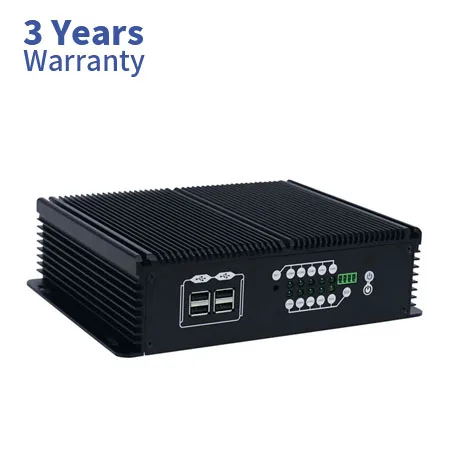

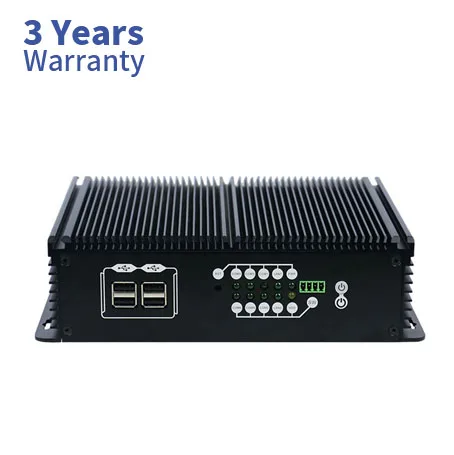

| Front I/O | 1*4Pin Phoenix Terminal |
| 4*USB2.0 | |
| 1*RST | |
| 10*LED lights | |
| 1*Power Switch | |
| expansion slot | 1*Mini-PCIE (support wifi/BT), 1*Mini-PCIE(USB channel signal)(support 3G/4G), embedded sim slot Support 1*PCIE 4X GPIO is optional |
| Network | 2*Intel 82583V 10/100/1000M Lan |
| Storage | 2*SATA3.0,1*MSATA |
| Temp | -10 ~ 60 °C |
| Power supply | Support DC 9~36V wide voltage ,Support positive and negative reverse protection |
| Dimension | IBOX-702 A:234 * 175 * 54mm, IBOX-702 B/C:234 * 175 * 64.5mm |
1.Delivery Time: 1 ~ 3 Days for one sample, 15 Working days for a large quantity.

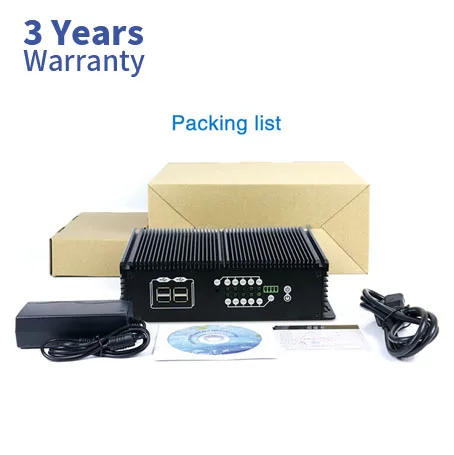

2.Packaging Ways: Each pc for one neutral box, five neutral box for one carton.
3.Shipping Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.
For a large quantity, we can support to ship by air or by sea.
