Product Overview

Description

 ZS terracotta panels

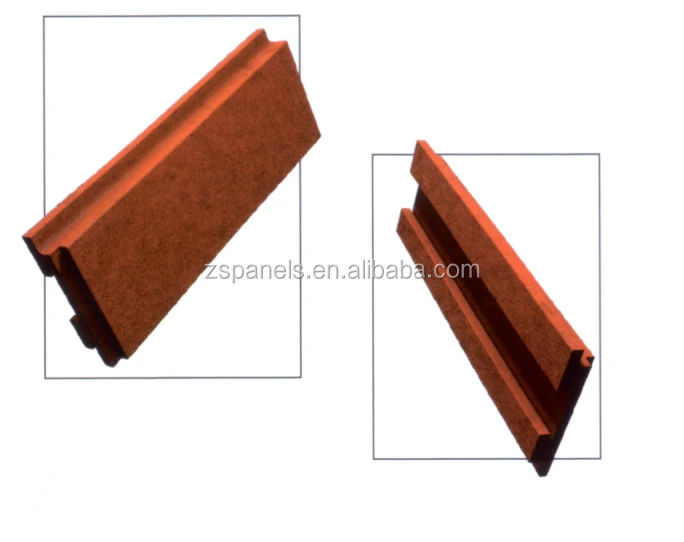

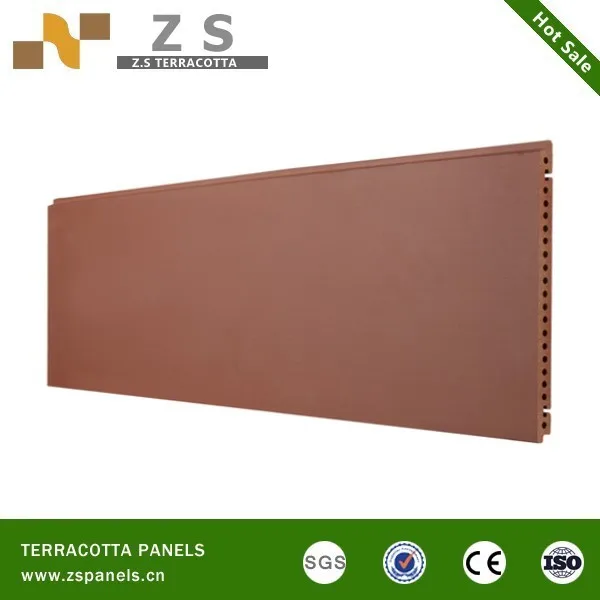

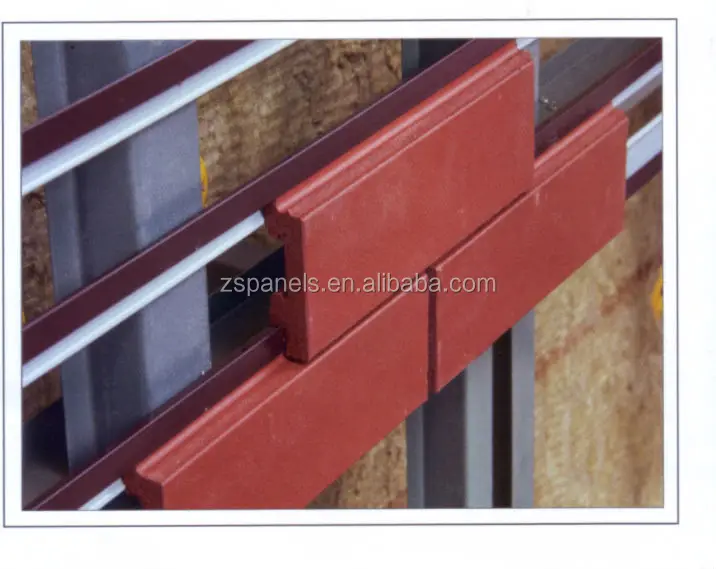

Terracotta panel is made by the natural clay material and fired with more than 1200 degree temperature with the advanced hollow structure and dry hanging system which it is widely used in curtain wall and interior wall

Three conditions are required to allow water movement through building envelopes:



• A source of water.
• A pathway for water to flow.
• A force to drive water along the pathway.



1. Terracotta sunscreen products advantages

*Natural clay material -100% green material and hollow structure



*Heat preservation and sound insulation



*No-static and no-radiation product



*Rich color and surface available



*Easy dry hanging system



*Non of the light pollution



*Self-cleaning system



*Never color fading



*Light weight





2. Terracotta usage

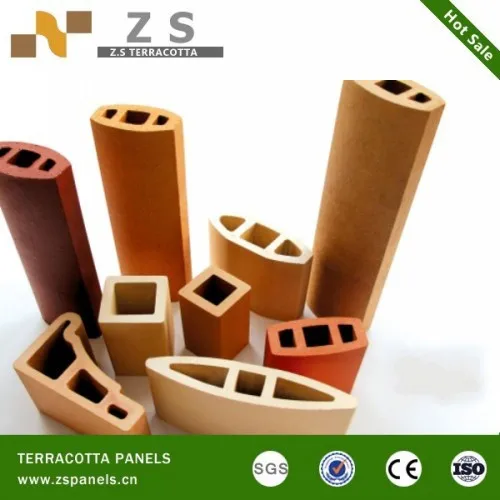

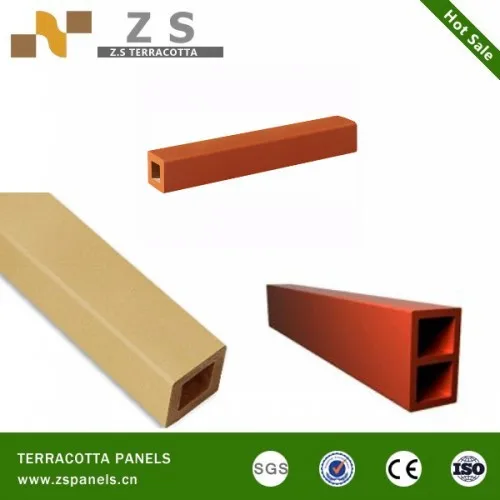

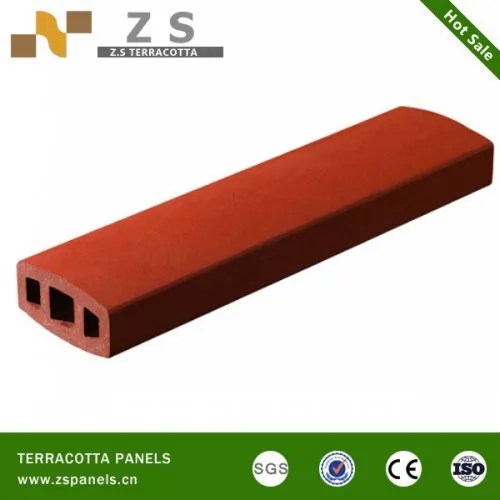

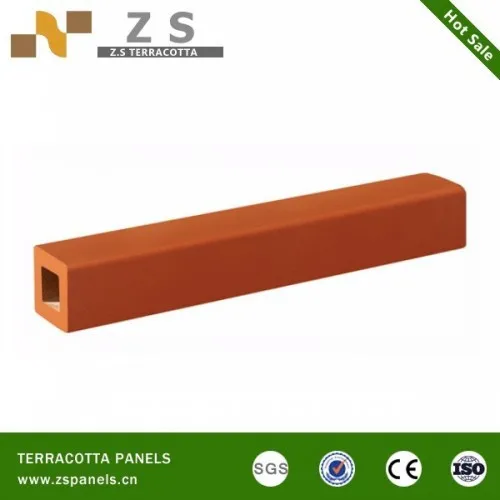

Terracotta panel have the dry hanging system which it is widely used in curtain wall, interior wall, floor and roof etc, it is the advanced and green building material, it normally called Terracotta panel for exterior wll, terracotta wall panel, Terracotta louver, Terracotta tube,   terracotta panel for curtain wall. etc



3. Normal colors

Red: Bright red, coral red, burgundy red, coffee

Yellow: Ivory, wheat yellow, maize yellow, orange yellow

Gray: Light gray, great wall gray, deep gray, dark gray

White, green ,blue

Terracotta panels Hot selling colors





4. Terracotta panels Normal size

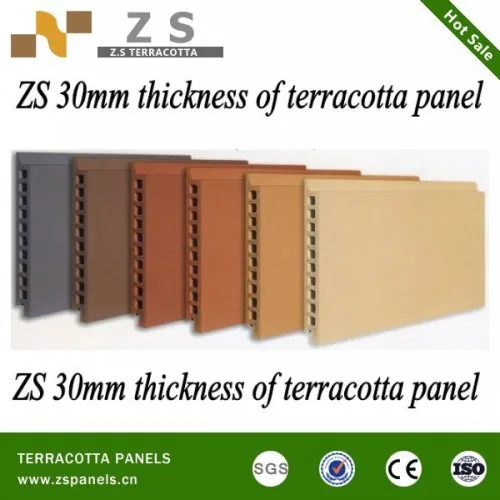

*  Available thickness 18mm, 30mm

 * Available width: 300mm, 400mm 450mm 500mm 550mm 600mm 650mm

 * length: 300mm 600mm 900mm 1200mm 1500mm

 * OEM and ODM are available



5. Terracotta panels Normal surface

Natural /stripy/groove/glazed/wood grain/napping



6. Terracotta panels Technical Data

A) Net weight: 31kgs/sqm for x18mm(thickness), 44kgs/sqm for x30mm(thickness)



B)Size error: within  +-1%, max is within +-2mm



C)Thickness error: within +-4.5%-8%



D)Center curvature: within +-1%



E)Side straight and right angle: within +-1%



F)Anti-pollution: Grade 3



G)Anti-corrasion: Grade UA



H)Wind pressure test  10 Kpa



I)Water absorption: 1%-7%



J)Frost resistence: No crack in -100 centigrade



K)Breaking strength: minium 3244N(300x600x18mm)



L)Fire-proofing Grade A1



M)Anti-impact:0.51-0.78



N)Anti-pollution: Grade 3



O)Noise-isolated 7-10DB



P) Rupture modulus are 16.2mpa

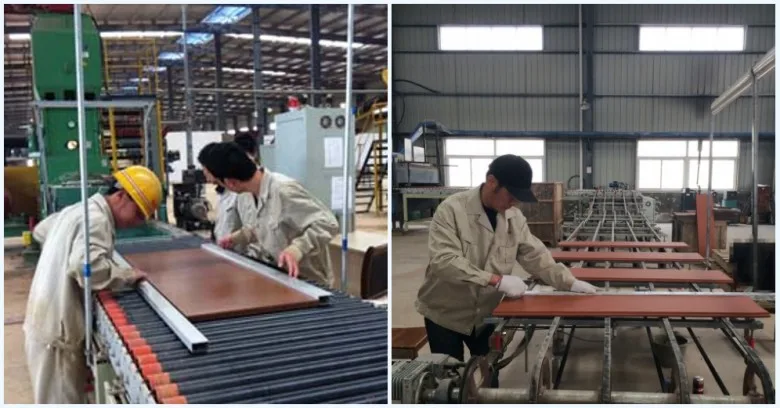

Our Terracotta panels work shop  pictures:

7. ZS panels advantage





Advantages of ZS Terracotta Panel , comparing with Stone and Glass
NO.	Contents	Terracotta Panel	Nature Stone	Glass
1	Material	Natural Clay, 100% green material	granite,marble, sandstone	quartz alkaline colloid
2	Dry Weight	hollow structurer, 30-32kg/m2, 70% weight of the Nature Stone	2.4-2.7kg/m³	2.5kg/m³
3	Dry-hanging System	with its own groove for dry-hanging, standard, safe and easy handle.	on-site processing, fragile,security risk	on-site fixing
4	Color	Never fading, color inherent,stable color for each production.	natural color, but it is greatly affected by mine or location	heavy-metal oxide
5	Durability	not new in ten years, not old in one hundred years.	easy to be second weathering	easy to be errosion
6	Acid and alkaline resistance	high	middle	low
7	Radiactivity	none	with radiactive elements	With radiactive elements for bright color glass
8	Low-carbon ability	hollow structure ,good heat and sound insulation, light-weight, greatly saving steel,half of stone's heat-conducting, recycling.	low heat and noise insulation, heavy, needing to be reinforced.	high light-transimission, no heat-insulation
9	environmental protection of the processing	using shale and terracotta, or coal waste, easy for exploration, no need to process too much, little waste	much wasting water, stone material is limited, causing great damage to environment.	limited good silicon
10	Light pollution	no, matte surface	no	high,dazzling







ZS Terracotta Panels Data Information
NO.	Contents	X18 (300X600X18MM) Terracotta Panel	China N. S. GB/T4100-2006	EN14411 standard
1	Water Absorption	3%≤average≤8%	(II) 6-10%	(II) 6-10%
2	Net Weight	31kg/m2	no value	no value
3	Breaking Strength	3475N	≥ 900N	≥ 750N
4	Frost Resistance	no crack under -60 centigrade	tested value of the report	tested value of the report
5	Modulus of Rupture	avg. 13.1Mpa, min 11.8Mpa	Avg. ≥ 9Mpa, single value≥ 8Mpa	Avg. ≥ 9Mpa, single value≥ 8Mpa
6	Earthquake resistance	over 8 degree	no value	no
7	test under simulated wind load	No breakage under 10Kpa	no value	no
8	sound insulation	Noise reduction by over 8dB	7-10dB	no
9	Wind pressure	9kPa	tested value of the report	tested value of the report
10	heat conductivity	0.32 w/m. k	no value	no
11	Fire resistance	leval A1	no value	no
12	resistance to acid and alkali	Level UA	tested value of the report	no
13	radioactivity	Class-A decorative material	no value	no
14	Right angle	0.1%- -0.2%	within ±1%	no
15	Size error	300L: 0.1%- -0.4%         600L:   0.2%- -0.5%	with in ±2% , max is within ±2mm,	no
16	Thickness error	within ±4.5%	: within ±10%	no
17	Diagonal line	-0.5 ~ +0.2             Max 1.0mm	within ±2%	no





Packing

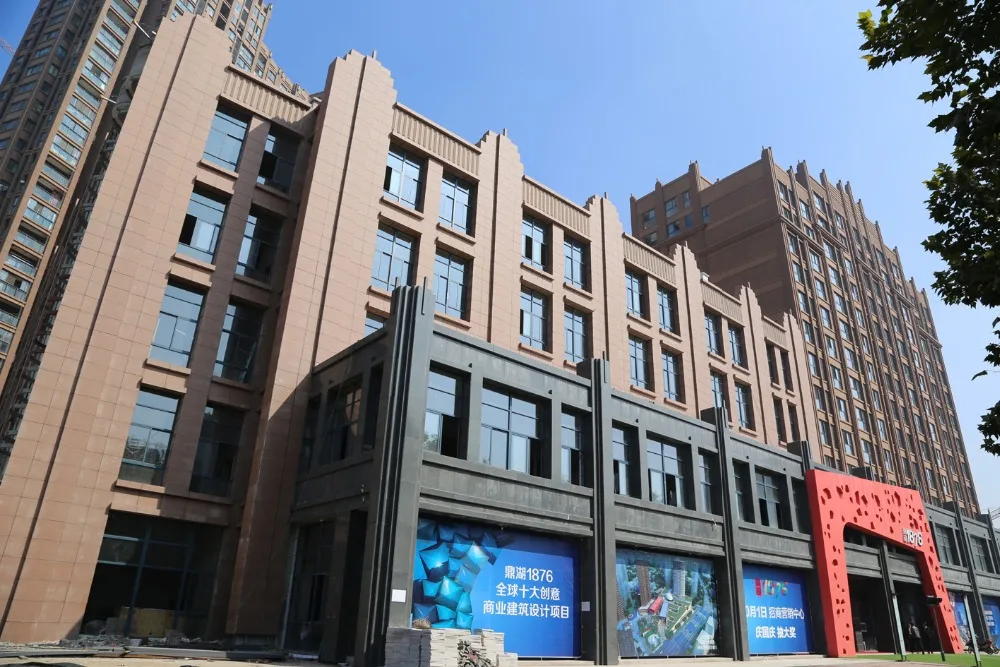

Projects

Certificate



Simple to Install

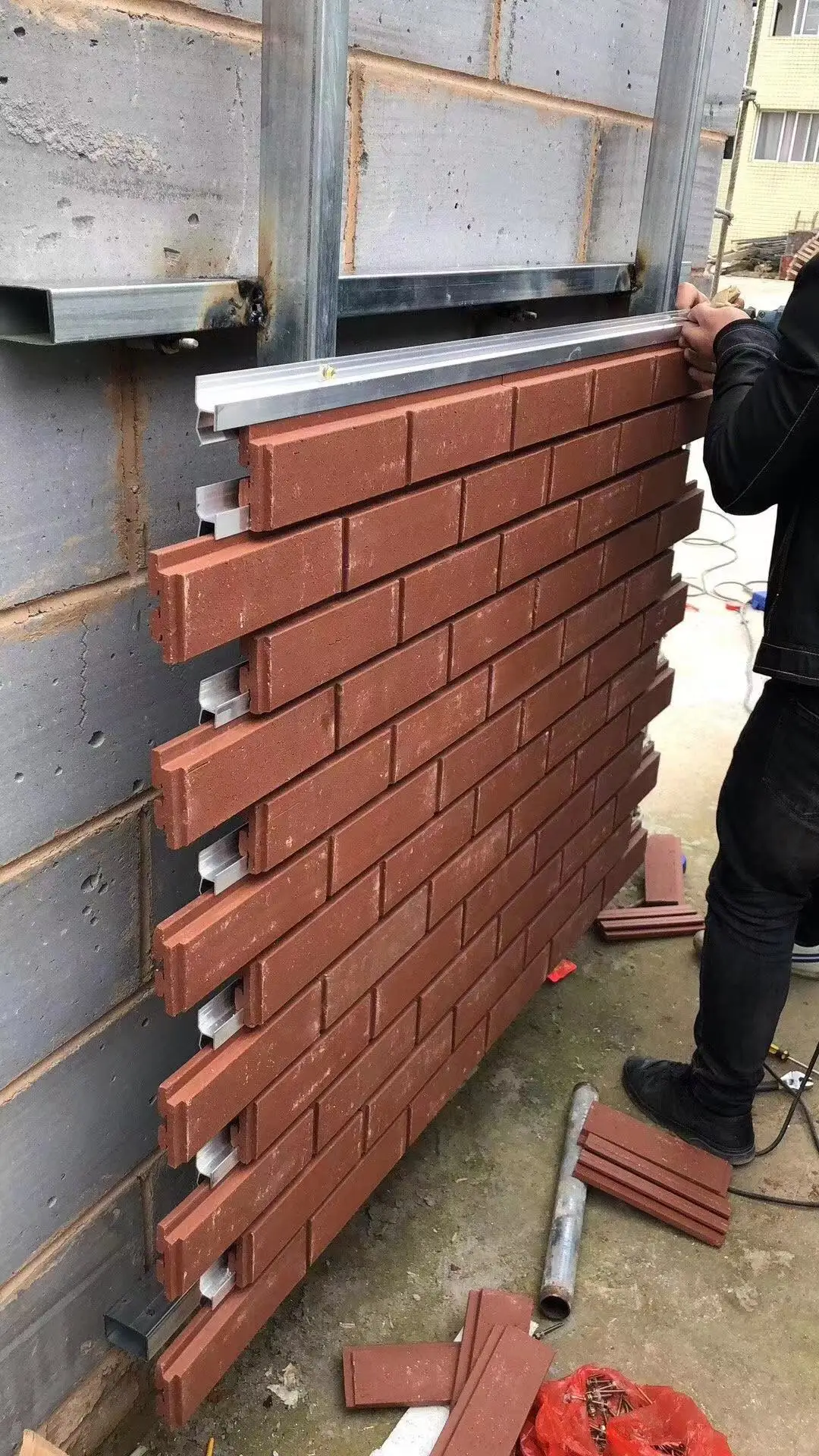

The ZS rain screen system is easy to install with the step by step procedures of our installation guide. As a ship-lapped, open-joint cladding, the ZS system can be installed in all weather conditions because it requires no mortar. The pre-punched aluminum track speeds installation of the panels as it allows each clip to click into place. A silicone isolator on each clip and gasket running the length of the vertical track create a snug fit for each panel.



Required Tools



ZS panel installations require the following common tools:



• Tape measure
• Level
• Utility knife
• Screw gun
• Plumb line
• Flathead screwdriver
• Rubber mallet
• Putty knife
• Chop saw for aluminum
