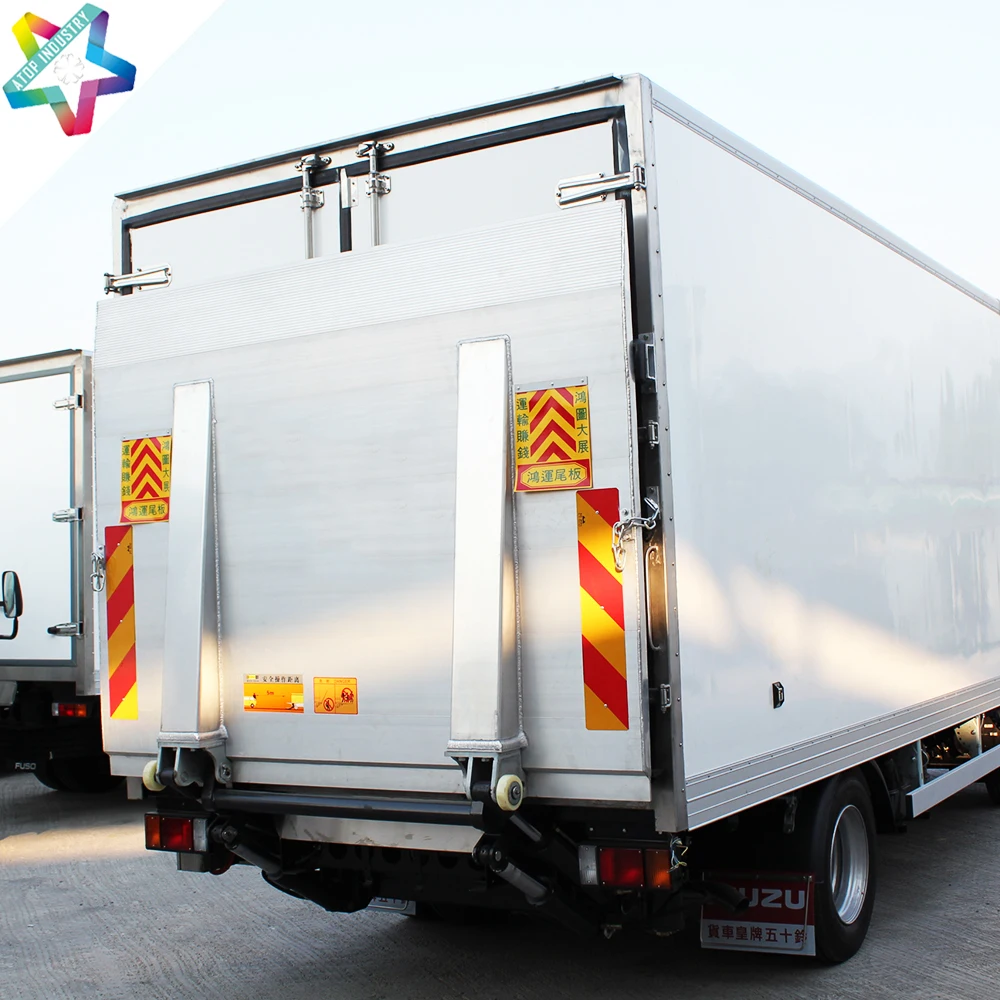

ATP full aluminum 2.0T cantilever (conventional) hydraulic tail lift
- Category: Truck Accessories >>>
- Supplier: Jinan Atop Industry & Technology Co. Ltd.
Share on (60513971503):
Product Overview
Description
Product Description
Product Application
The newly developed ATOPYZ-20-4DT range of hydraulic tail lifts is specially designed for semi-trailer and high deck heavy duty truck up to 30 tonnes G.V.W. The tail lift features a strong, lightweight choice of full aluminium alloy or steel platforms and a robust 4-cylinder lift mechanism with an overall lift weight of 2,000 kg (1,620 mm theoretical platform height). hydraulic tail lift hydraulic tail lift hydraulic tail lift hydraulic tail lift hydraulic tail lift hydraulic tail lift hydraulic tail lift
Hydraulic Tail Lift Brand | ATOP | Hydraulic Tail Lift Model | ATOYZ-20-4DT |
Hydraulic Tail Lift Type | Cantilever (Conventional) | Hydraulic Tail Lift Max. Lifting | 2,000Kgs |
Theoretical Lifting Height | 1620mm | Power Pack | Haldex 12/24V 1.6Kw |
Platform Material | Full Aluminum Alloy | Optional Platform Material | Full Steel |
Lifting Cylinder | 2 Pcs | Tilting Cylinder | 2 Pcs |
Rear Overhang Space | ≥860mm | Beam Width | ≥850mm |
Detailed Images

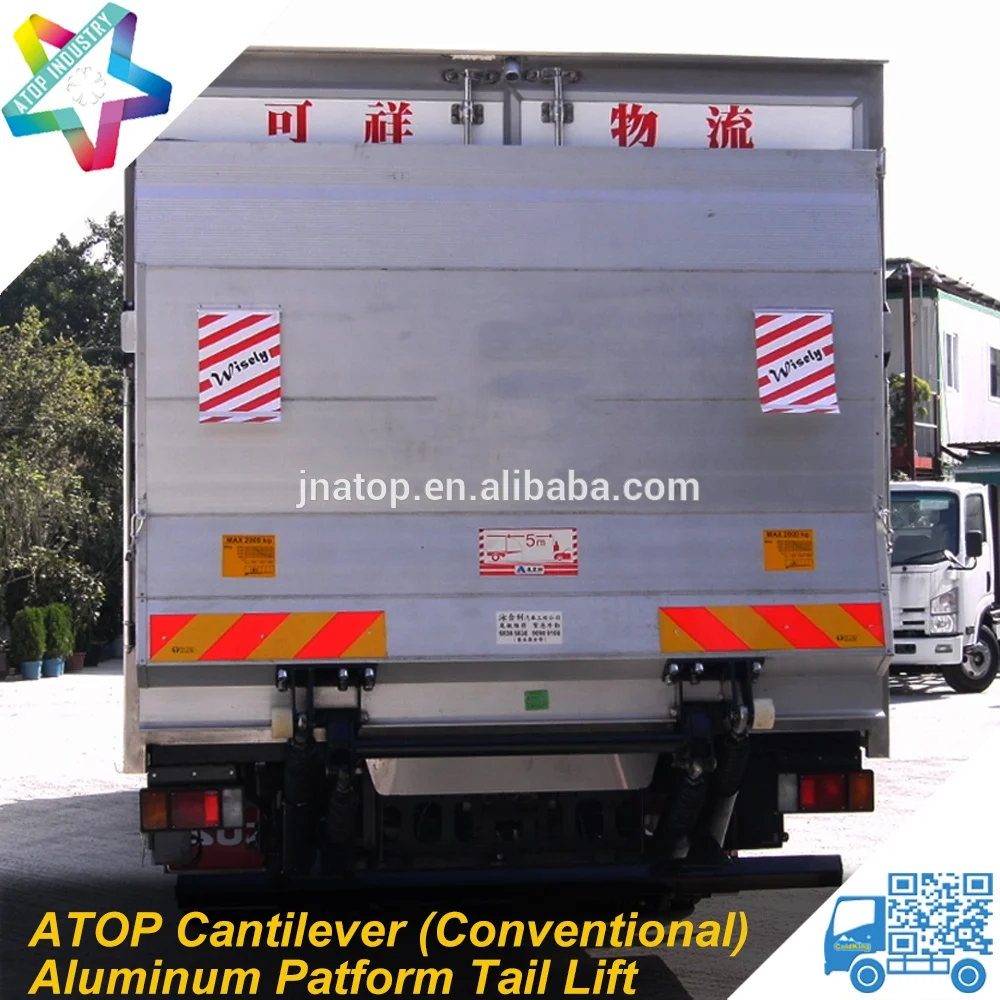

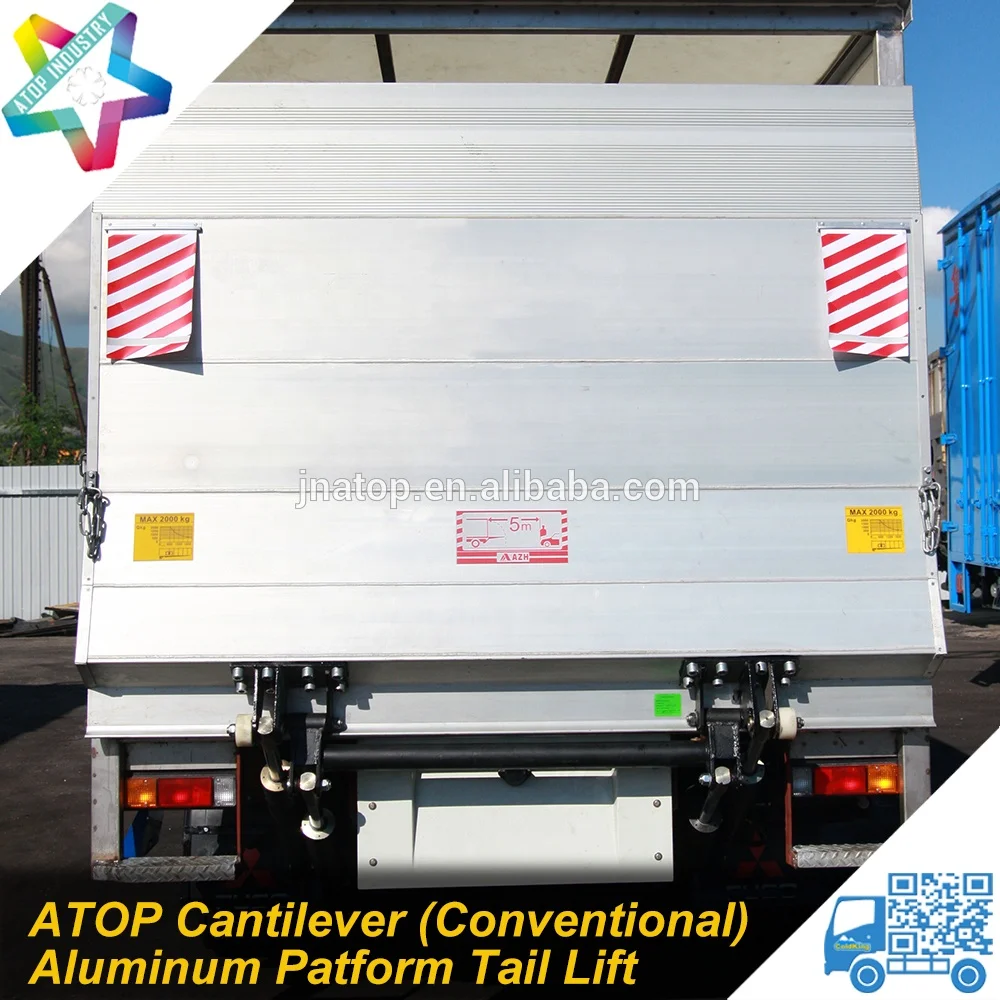

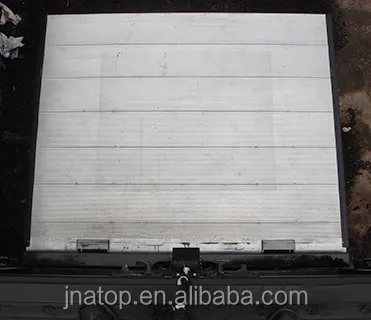

Aluminum Alloy Platform
Heavy duty full aluminium platform with non-slip surface.
Optional Configuration:
1. Multi-directional LED warning lights mounted onto the platform and Trolley stops built into the platform for added safety.
2. Integrated 3-button foot control in platform. hydraulic tail lift hydraulic tail lift hydraulic tail lift hydraulic tail lift hydraulic tail lift hydraulic tail lift hydraulic tail lift

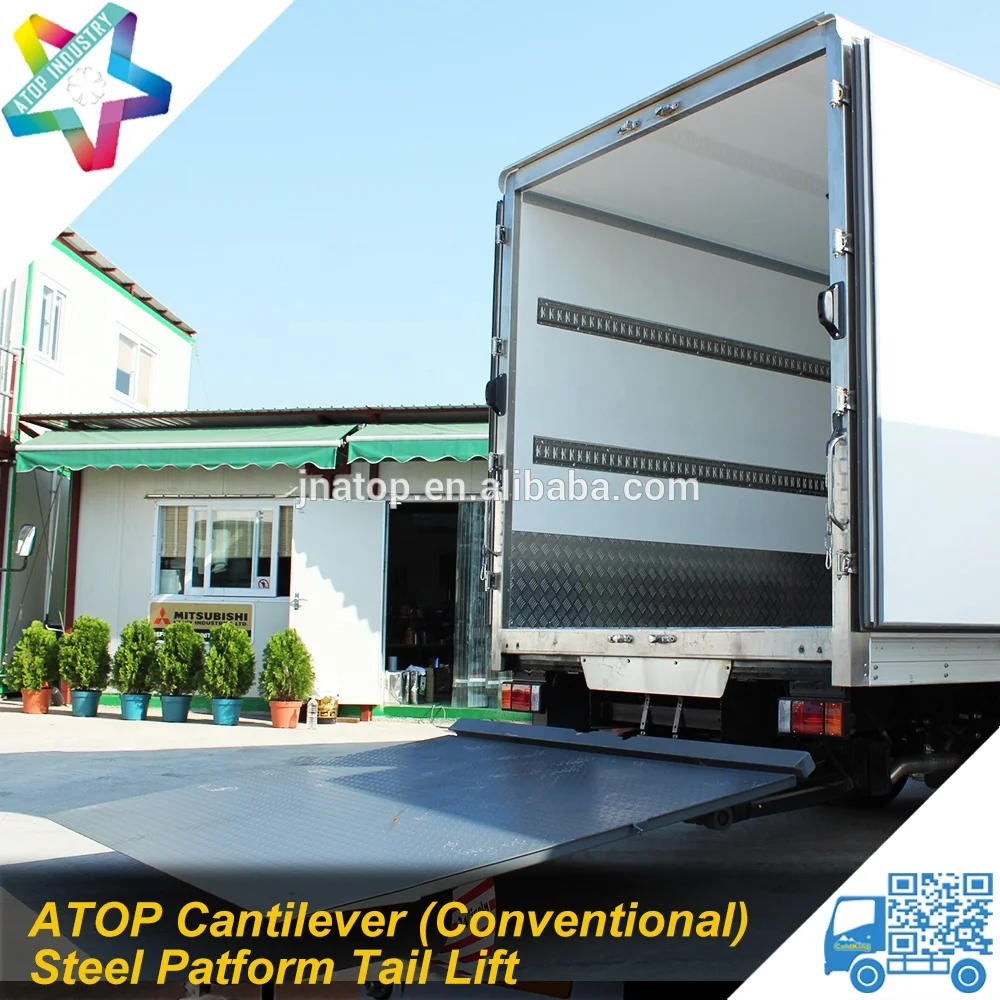

Full Steel Platform
Heavy duty full steel platform with non-slip surface.
Optional Configuration:
1. Multi-directional LED warning lights mounted onto the platform and Trolley stops built into the platform for added safety.
2. Integrated 3-button foot control in platform.
hydraulic tail lift hydraulic tail lift hydraulic tail lift hydraulic tail lift hydraulic tail lift hydraulic tail lift hydraulic tail lift

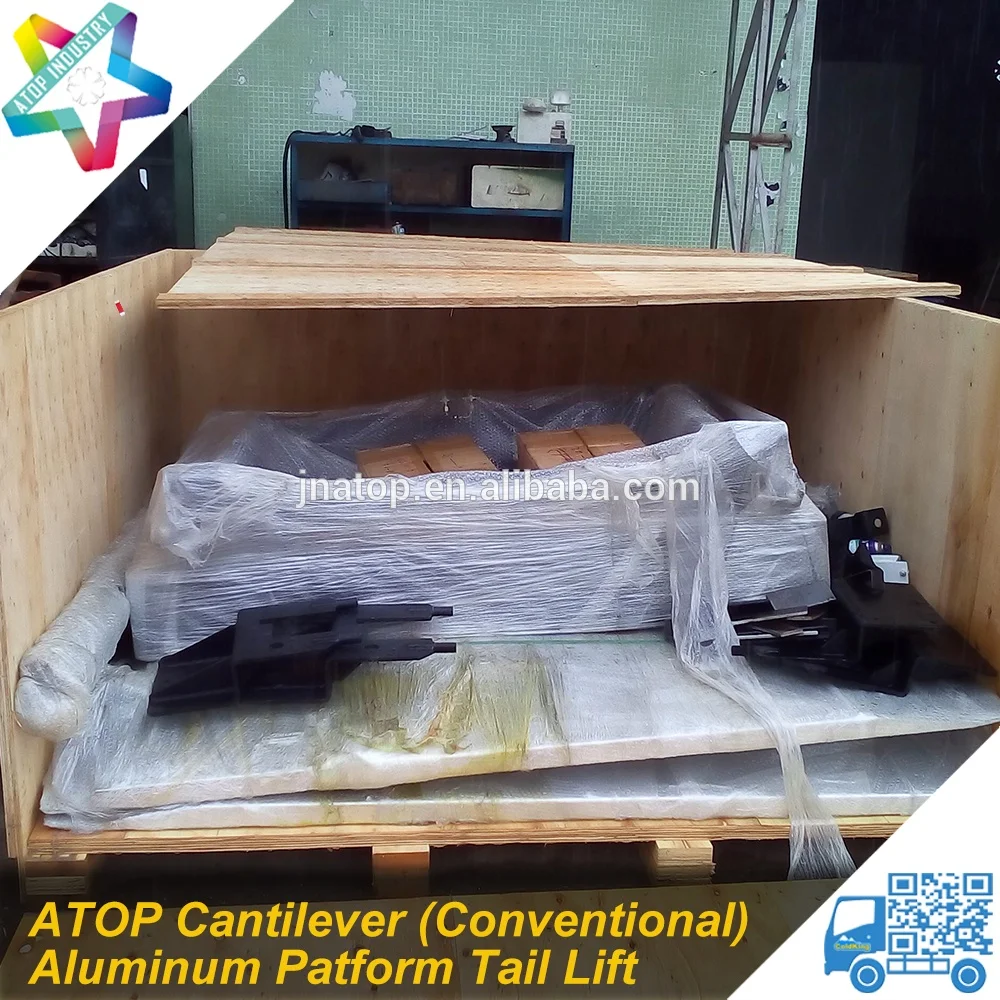

Packing & Delivery
Packaging of 2 Units | ||
Size | 2250mm(L) * 2100mm(W) * 1150mm(H) | |
Weight | 1300Kgs | |
Packaging Details | The normal package is plywood box. We make special packing or package according to customers special request. | |
Packaging of 1 Unit | ||
Size | 2250mm(L) * 2100mm(W) * 700mm(H) | |
Weight | 650Kgs | |
Packaging Details | The normal package is plywood box. We make special packing or package according to customers special request. | |
