heavy duty four side moulder wood planer
US $22300-$23300
HJD M416D хит продаж P0roduct четырехсторонний строгальный станок по низкой цене для изготовления кровати
- Category: Wood Planer >>>
- Supplier: Foshan Leabon Machinery Company Limited
Share on (60516284066):
Product Overview
Description
Product Description

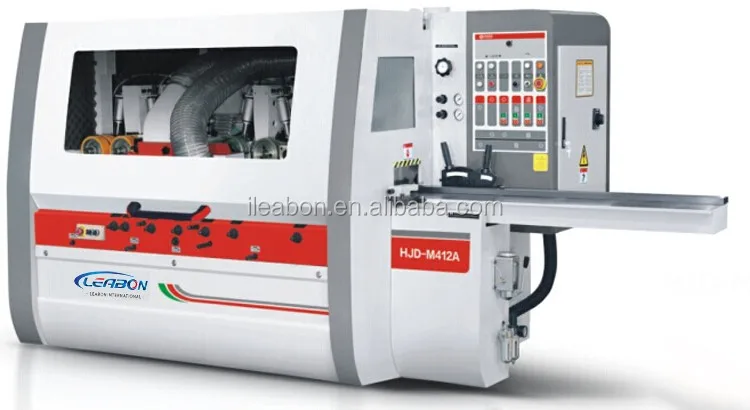

Four Side Planer
Four side planer is lower price thickness planer for woodworking 5~22m/min feed speed wood planer HJD-M412A is a kind of planer products for woodworking machine . Mainly used for processing wood square, board, adornment wood line, top and down sides for planing light treatment. Leabon Machinery is specialized in the manufacture and R&D for woodworking machines,your special requirements are welcome.

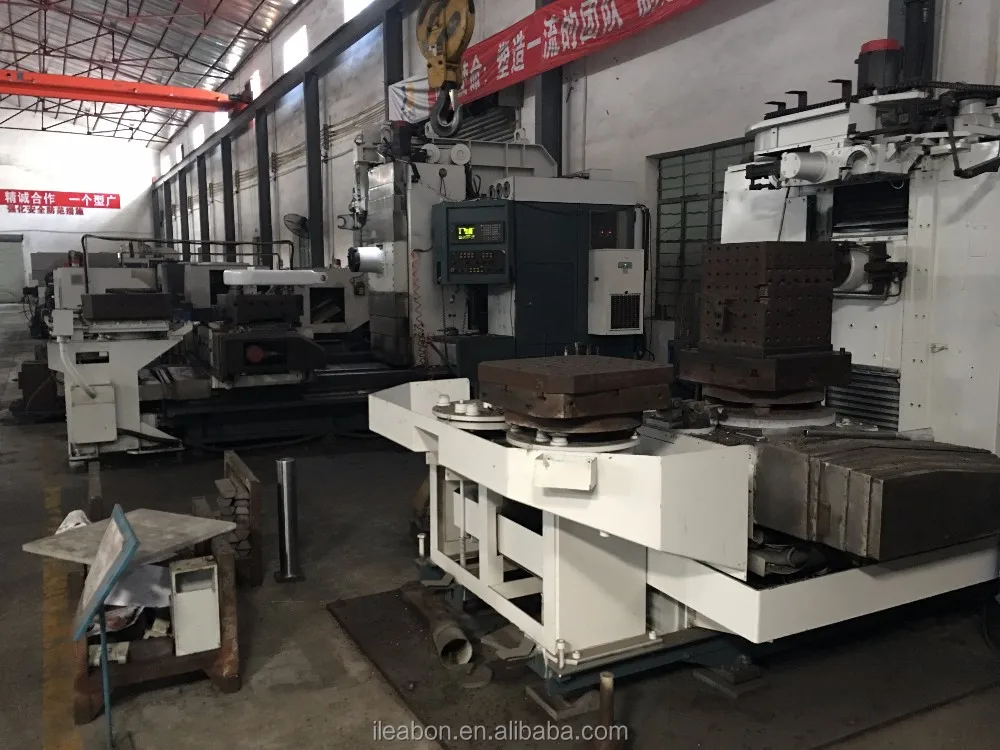

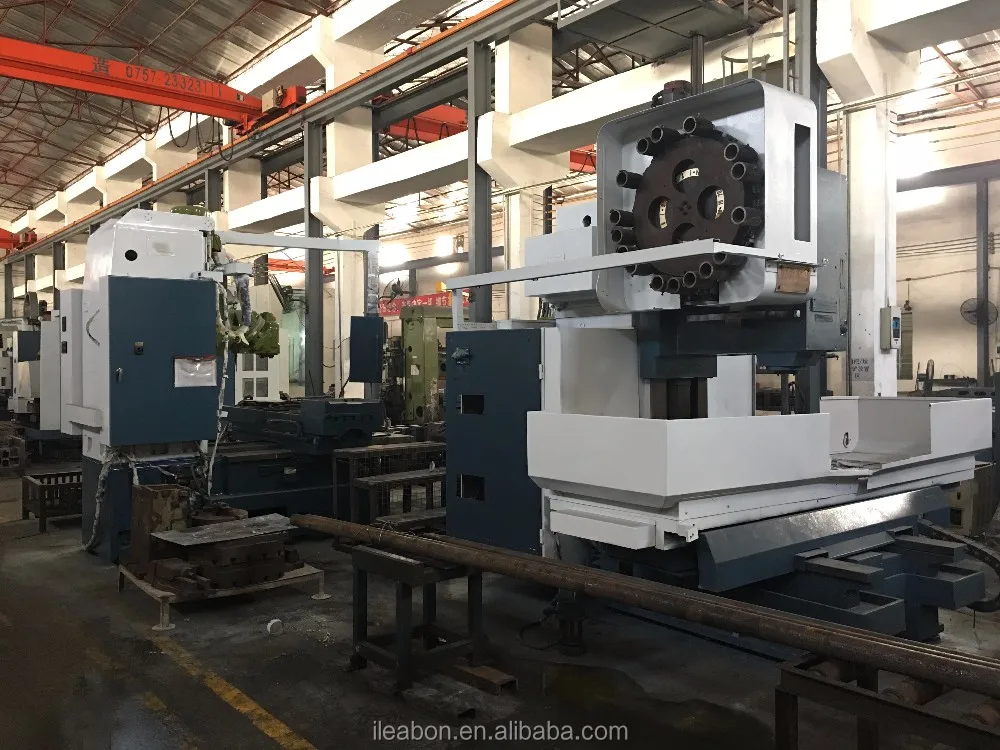

To get assembly accuracy and the guarantees for reasonably ensure machines quality, we have invested in high precision machining equipment at our factory and have been committed to produce key parts of our planers.
It is suitable for making doors frame ,door ,bed etc furniture.
Here following is YouTube Link of our four sided planer, please have a short look for better understanding.
https://youtu.be/LRistYKcqkg
HJD-M412A Specification | ||||||

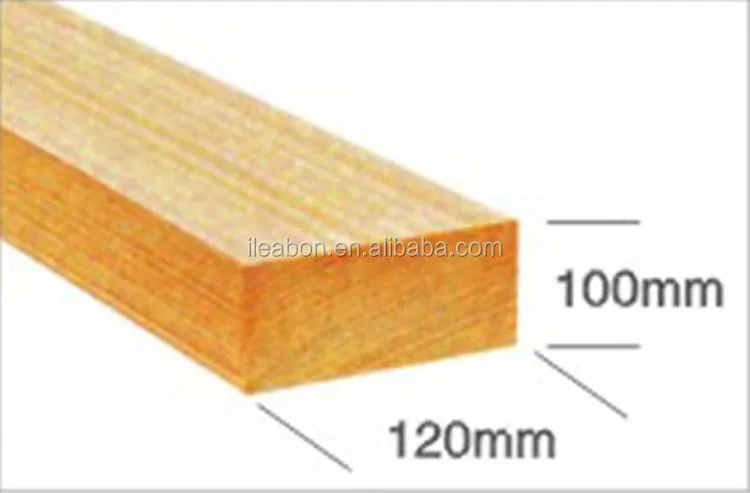

Machine Parameter | Working Width | 25~120mm | ||||
Working Thickness | 8~100mm | |||||
Working Table Length | 1250mm | |||||
Feeding Speed | 5~22m/min | |||||
Main Shaft Diameter | 40mm | |||||
Main Shaft Revolution | 6000r/min | |||||
PneumaticSource Pressure | 0.6mpa | |||||
Motor Power | 1st Lower Shaft | 3kw/4hp | ||||
1st Upper Shaft | 4kw/5.5hp | |||||
Right Vertical Shaft | 3kw/4hp | |||||
Left Vertical Shaft | 3kw/4hp | |||||
2nd Upper Shaft | / | |||||
2nd Lower Shaft | / | |||||
Feeding Beam Lifting | 0.55kw/0.75hp | |||||
Feeding Motor | 3kw/3hp | |||||
General Power | 15.75kw/21.25hp | |||||
Cutter Diameter | Right Vertical Shaft | 125~160mm | ||||
Left Vertical Shaft | 125~160mm | |||||
1st Lower Shaft | 125mm | |||||
1st Upper Shaft | 125~160mm | |||||
2nd Upper Shaft | / | |||||
2nd Lower Shaft | 125~160mm | |||||
Remark | Feeding Wheel Diameter | 140mm | ||||
Dust Outlet Diameter | 125mm | |||||
Overall Size (LxWxH) | 2500x1200x1610mm | |||||
Net Weight | 1830kg | |||||
Wooden Case Packing Size (LxWxH) | 2700x1400x1710mm | |||||
Four Side Moulder Features
1) This adopts step-less material feeding ,material feeding speed ranges from 5 to 22 m/min.
2) Each main shaft is driven by independent electric motor,cutting force is powerful.
3) Main shaft is adjusted to force on the front,operation is convenient.
4) Hard chrome plating work table is durable.
5) Equips with auxiliary unit alarming lack of material,it effectively improves smooth feed-in while lack of material.
6) Multi-group drive rollers improve feeding efficiency.
7) International brands electical parts are applied for good stability.
8) Spare parts are thick and solid to maintain high precision ,high stability and high reliability.
9) Pneumatic compressed feeding roller is applied,the pressing force can be adjusted by stages which is favorable for smooth feeding of timbers with different thickness.
10) Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiently and protect operators.
Detailed Images

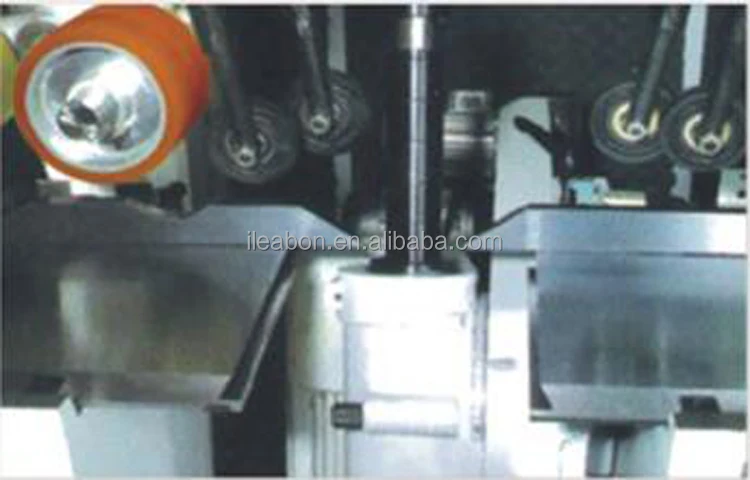

The pressing wheel machanism for short material
The pressing wheel machanism for short materials ,ensuring the smooth conveying of the short materials.

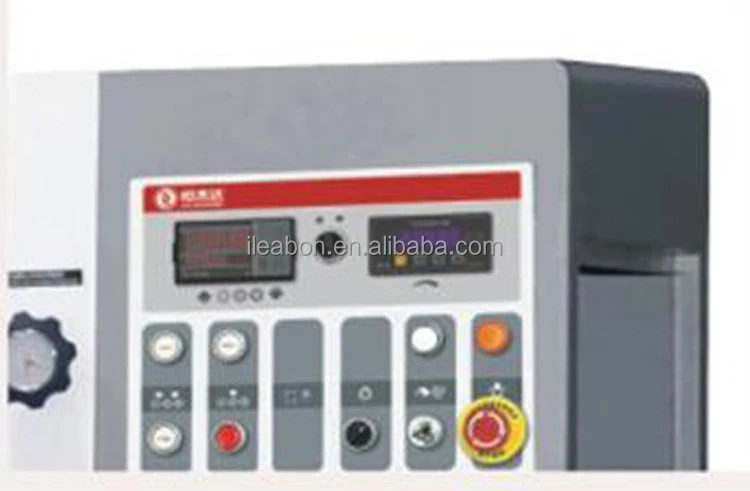

Display
More visual and attractive brand new panel design with electronic digital display.

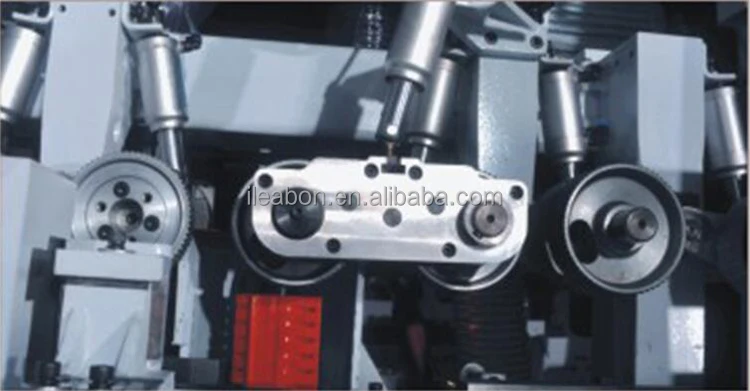

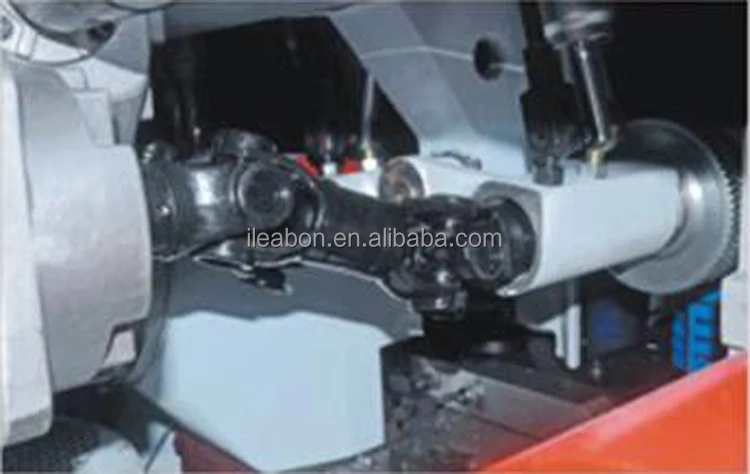

Universal Transmission
The universal transmission for feeding materials is precise,strong,long life,no need for maintenance for years.
Work Table

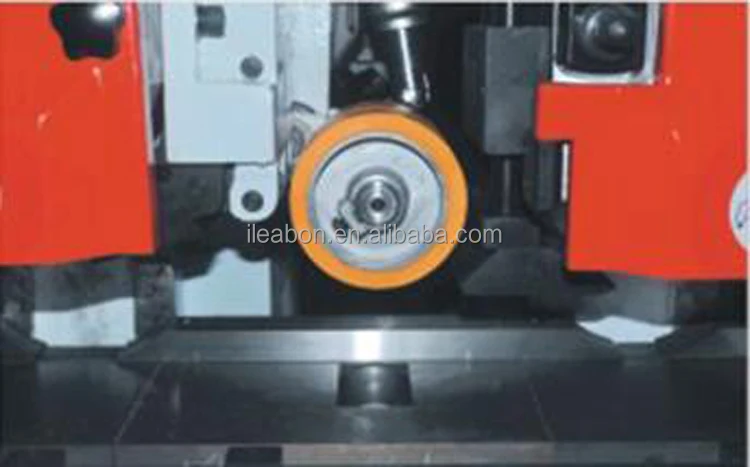

The work table is equipped with the active feeding wheel,ensuring the smooth feeding of materials.
Certifications

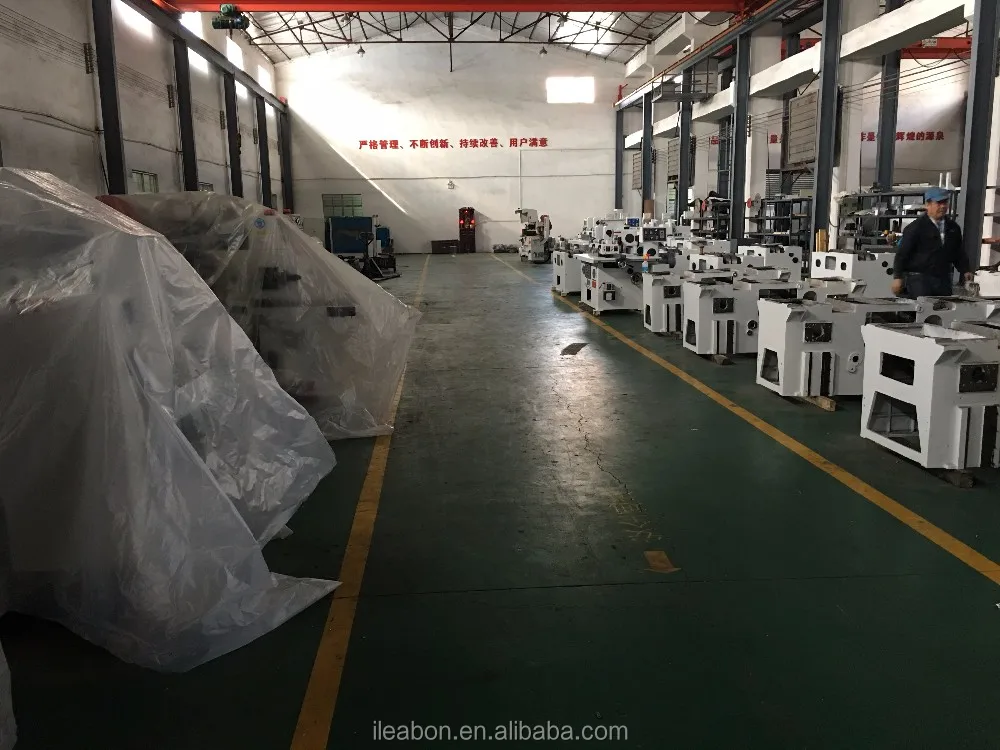

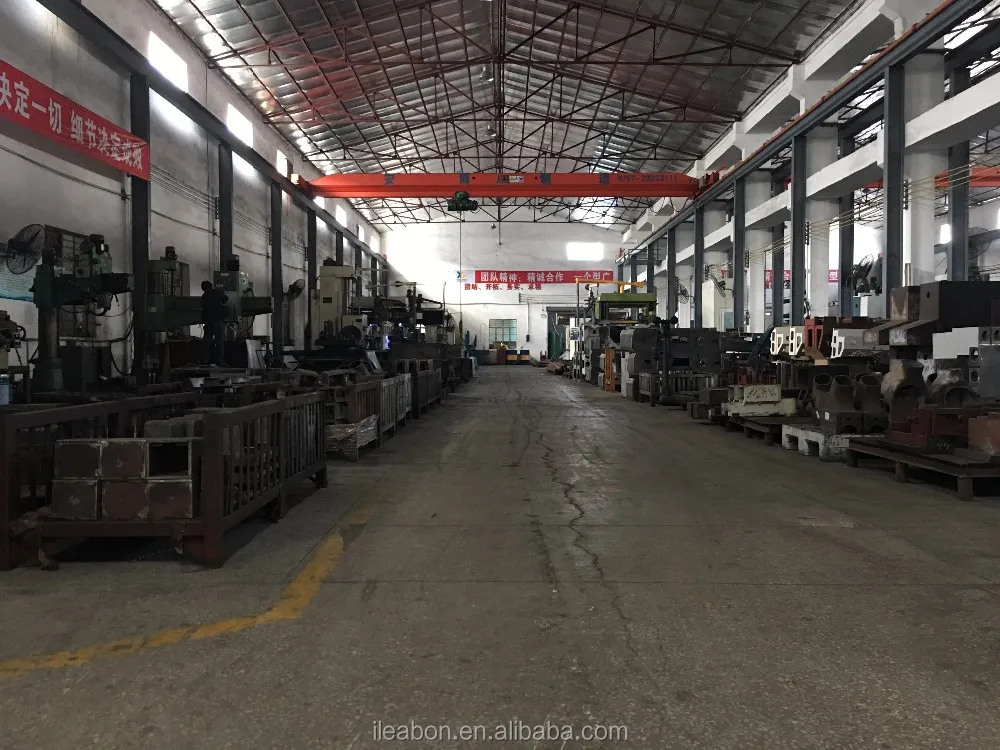

Our Company
