Wastewater Tretment Sludge Dewatering Screw Press Machine for Sale
- Category: Environmental Machinery >>>
- Supplier: Yixing Holly Technology Co. Ltd.
Share on (60516724539):
Product Overview
Description
Product Description

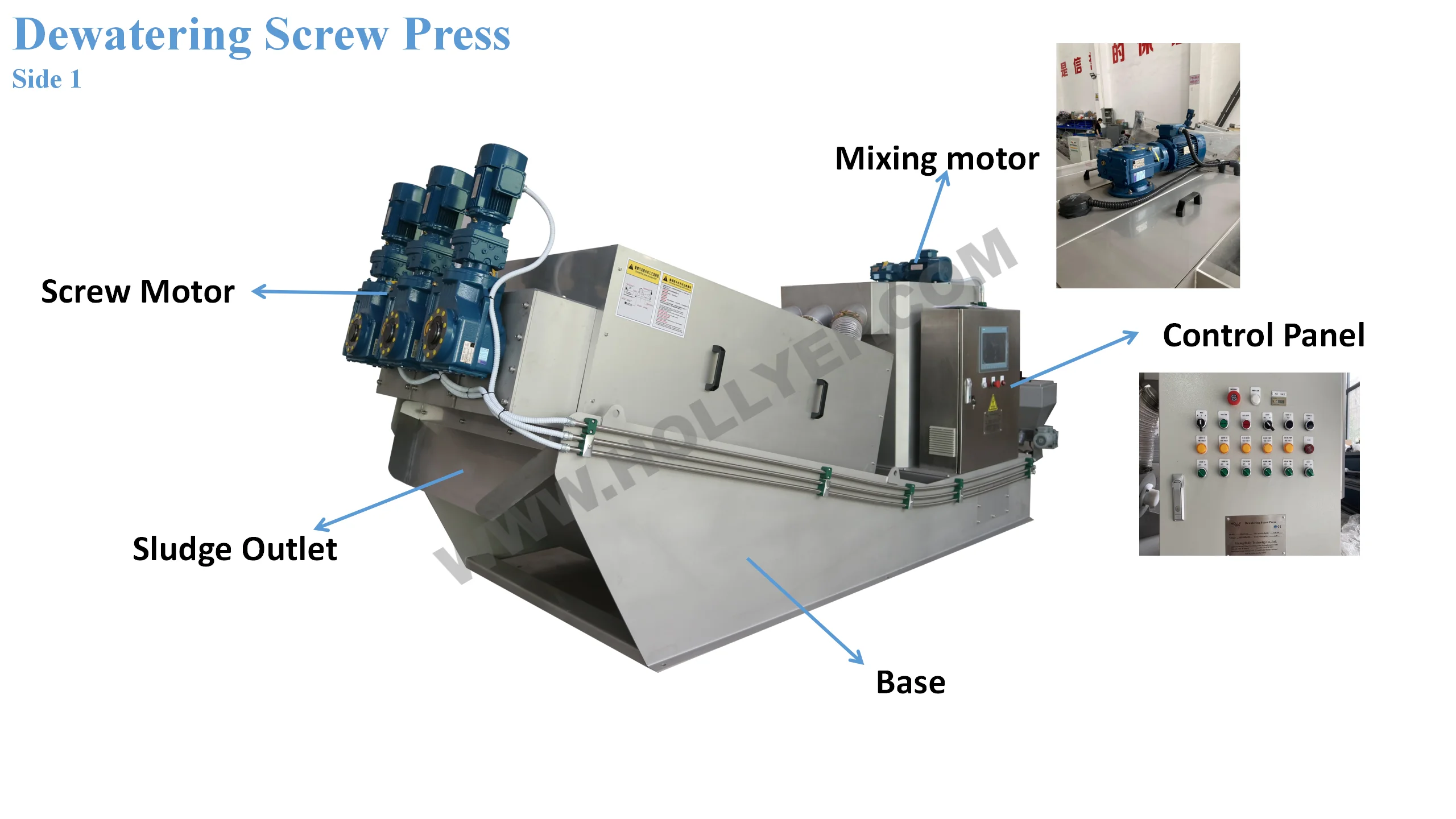

Professional design Dewatering Screw Press
Professional design Sludge Dewatering water oil screw press from China developed by HOLLY utilizes the dewatering principles of force-water homo-direction, thin-layer dewatering, proper pressure and extension of the sludge dewatering path. The new equipment,more advanced than the traditional dewatering equipment which are easily blocked, unsuitable for low-concentrated sludge and oily sludge, of high consumption and difficult to operate, well eliminate these problems and are of higher efficiency and power saving.
Optional modules
Screw Motor
Nissei GTR
Nord
Sew
Nessei Gtr motor is standard in series of HLDS-131,132 and 133. the other types is equipped with Guorong brand motor as the standard. IF you want sew, nord, nissei on the other types like HLDS-202. Please ask our sales manager for help.

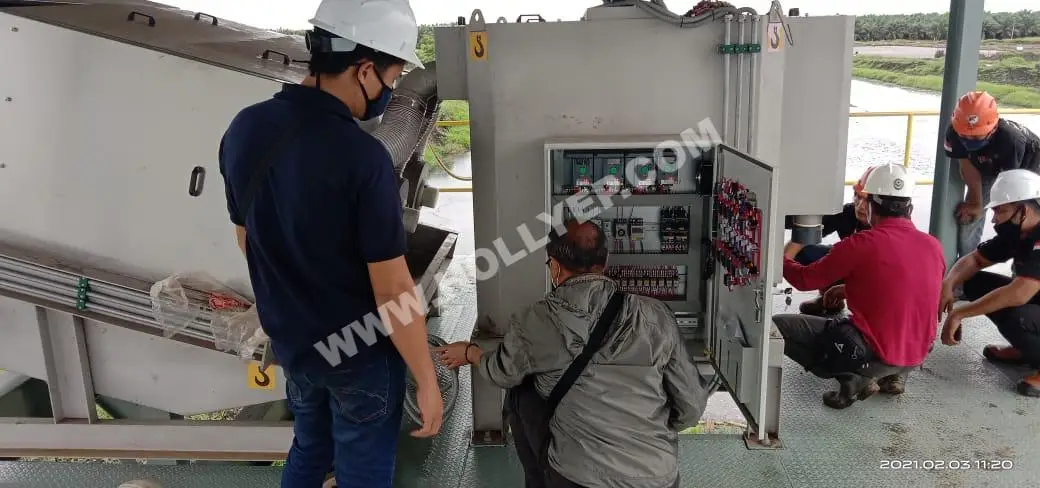

Control Panel
Explosion Proof Edition
SIEMENS PLC&HMI
Standard Edition
Picture 3 is a standard equipment. Picture 1&2 can bring a better using experience in special environment.
Advantages

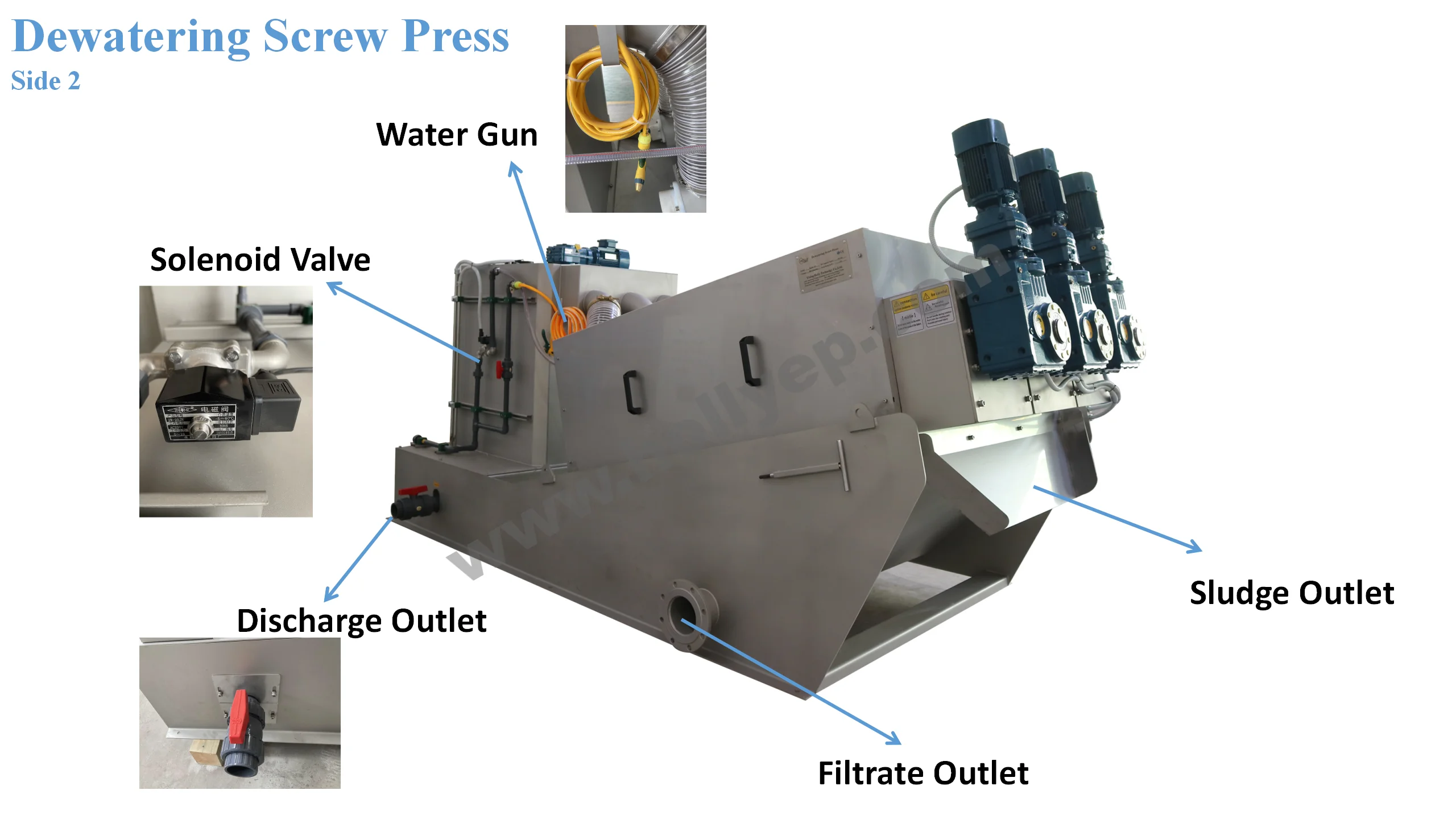

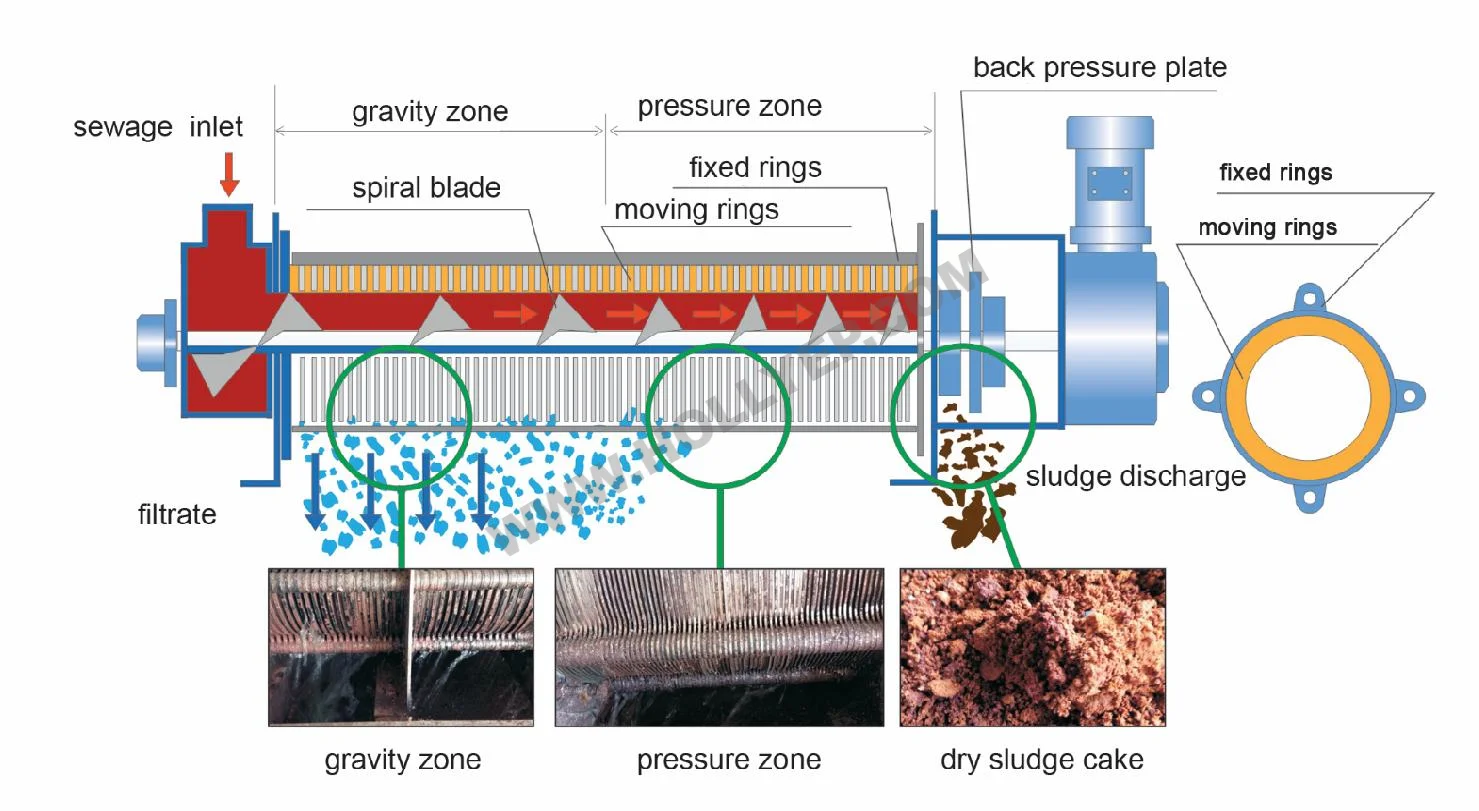

How It Works
ADVANCED DEWATERING SYSTEM
Widely Use
Applicable sludge concentration of 2000mg/L-50000mg/L.
Most especially for the oily sludge.
Fully Automatic Control
Combining with the auto control system, the machine runs very safely and simply and can be programmed according to the requirement
of the users. It can operate automatically for 24 hours, unmanned.
Applicable sludge concentration of 2000mg/L-50000mg/L.
Most especially for the oily sludge.
Fully Automatic Control
Combining with the auto control system, the machine runs very safely and simply and can be programmed according to the requirement
of the users. It can operate automatically for 24 hours, unmanned.
Low Running Cost
Power-use: less than 5% of centrifuge. Water-use: less than 0.1% of belt filter press. Polymer: saving around 60%.
Room: saving more than 60% of the investment for dehydration room.
Non-clogging
Self-cleaning with small amount of water.
Suit for Oily Sludge
No secondary pollution
The screw shaft rotational speed about 2~3r/min, no vibration and noise is very small .
Only need a small amount of water for self-cleaning, no secondary water pollution.
Sludge runs at a slow operating condition. The smell does not spread.
The screw shaft rotational speed about 2~3r/min, no vibration and noise is very small .
Only need a small amount of water for self-cleaning, no secondary water pollution.
Sludge runs at a slow operating condition. The smell does not spread.
Technical parameters
Type | Raw wastewater/Waste actived sludge/Chemically precipitated sludge | Dissolved-air sludge | Mixed raw sludge | ||||
Sludge concentration(TS) | 0.20% | 1.00% | 2.00% | 5.00% | 3.00% | ||
HLDS-131 | ~4kg-DS/h(~2.0m³/h) | ~6kg-DS/h(~0.6m³/h) | ~10kg-DS/h(~0.5m³/h) | ~20kg-DS/h(~0.4m³/h) | ~26kg-DS/h(~0.87m³/h) | ||
HLDS-132 | ~8kg-DS/h(~4.0m³/h) | ~12kg-DS/h(~1.2m³/h) | ~20kg-DS/h(~1.0m³/h) | ~40kg-DS/h(~0.5m³/h) | ~52kg-DS/h(~1.73m³/h) | ||
HLDS-201 | ~8kg-DS/h（~4.0m³/h) | ~12kg-DS/h(~1.2m³/h) | ~20kg-DS/h(~1.0m³/h) | ~40kg-DS/h(~0.8m³/h) | ~52kg-DS/h(~1.73m³/h) | ||
HLDS-202 | ~16kg-DS/h（~8.0m³/h) | ~24kg-DS/h(~2.4m³/h) | ~40kg-DS/h(~2.0m³/h) | ~80kg-DS/h(~1.6m³/h) | ~104kg-DS/h(~3.47m³/h) | ||
HLDS-301 | ~20kg-DS/h（~10.0m³/h) | ~30kg-DS/h(~3.0m³/h) | ~50kg-DS/h(~2.5m³/h) | ~100kg-DS/h(~2.0m³/h) | ~130kg-DS/h(~4.33m³/h) | ||
HLDS-302 | ~40kg-DS/h（~20.0m³/h) | ~60kg-DS/h(~6.0m³/h) | ~100kg-DS/h(~5.0m³/h) | ~200kg-DS/h(~4.0m³/h) | ~260kg-DS/h(~8.67m³/h) | ||
HLDS-303 | ~60kg-DS/h（~30.0m³/h) | ~90kg-DS/h(~9.0m³/h) | ~150kg-DS/h(~7.5m³/h) | ~300kg-DS/h(~6.0m³/h) | ~390kg-DS/h(~13.0m³/h) | ||
HLDS-351 | ~40kg-DS/h（~20.0m³/h) | ~60kg-DS/h(~6.0m³/h) | ~100kg-DS/h(~5.0m³/h) | ~200kg-DS/h(~4.0m³/h) | ~260kg-DS/h(~8.67m³/h) | ||
HLDS-352 | ~80kg-DS/h（~40.0m³/h) | ~120kg-DS/h(~12.0m³/h) | ~200kg-DS/h(~10.0m³/h) | ~400kg-DS/h(~8.0m³/h) | ~520kg-DS/h(~17.3m³/h) | ||
HLDS-353 | ~120kg-DS/h（~60.0m³/h) | ~180kg-DS/h(~18.0m³/h) | ~300kg-DS/h(~15.0m³/h) | ~600kg-DS/h(~12.0m³/h) | ~780kg-DS/h(~26.0m³/h) | ||
HLDS-401 | ~70kg-DS/h（~35.0m³/h) | ~100kg-DS/h(~10m³/h) | ~170kg-DS/h(~8.5m³/h) | ~340kg-DS/h(~6.5m³/h) | ~442kg-DS/h(~16.0m³/h) | ||
HLDS-402 | ~135kg-DS/h（~67.5m³/h) | ~200kg-DS/h(~20.0m³/h) | ~340kg-DS/h(~17.0m³/h) | ~680kg-DS/h(~13.6m³/h) | ~884kg-DS/h(~29.5m³/h) | ||
HLDS-403 | ~200kg-DS/h（~100m³/h) | ~300kg-DS/h(~30.0m³/h) | ~510kg-DS/h(~25.5m³/h) | ~1020kg-DS/h(~20.4m³/h) | ~1326kg-DS/h(~44.2m³/h) | ||
Main Features
♦ Exclusive pre-thickening device enables a wide solid concentration ranging from 3000mg/l to 50000mg/l

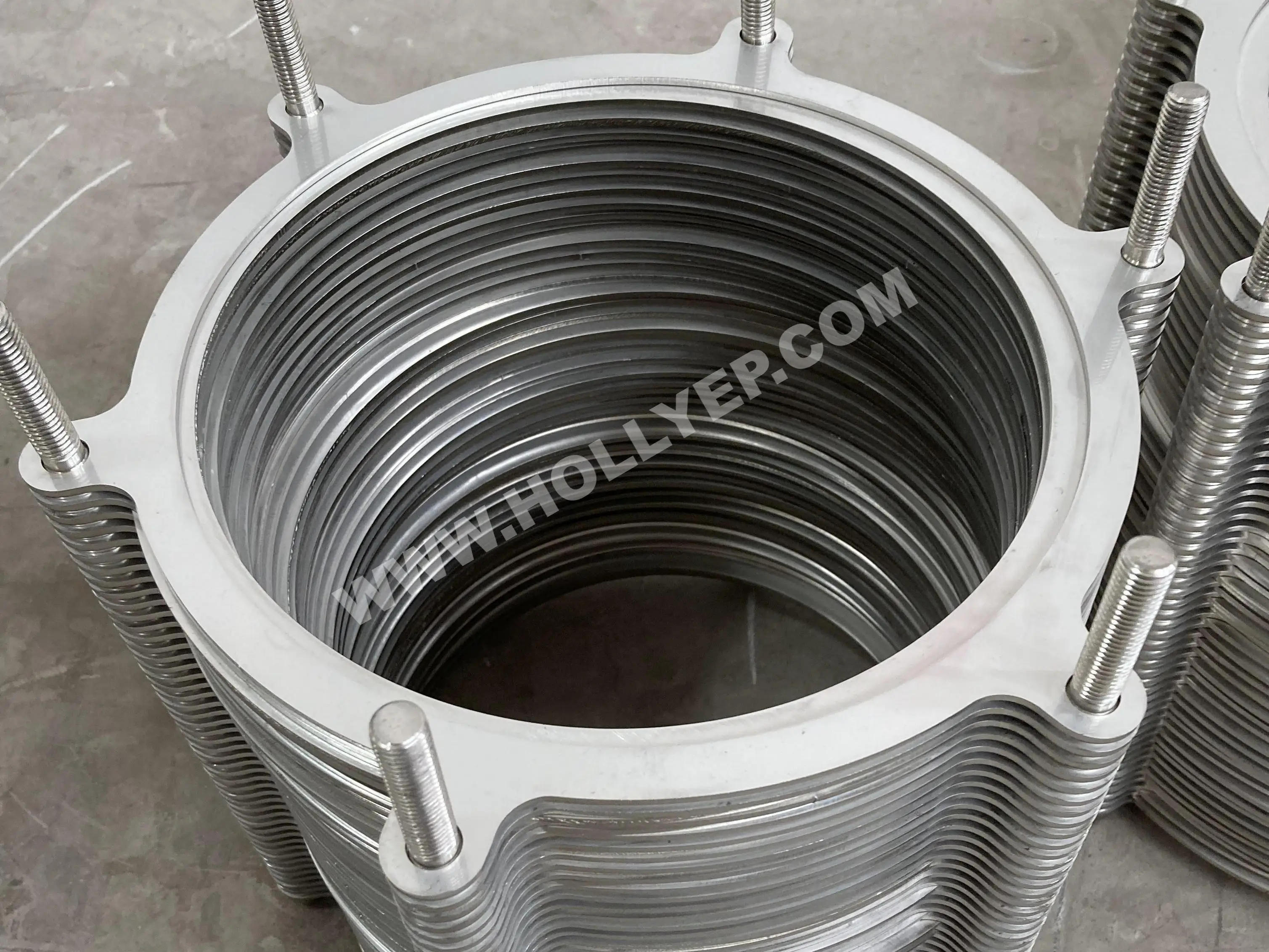

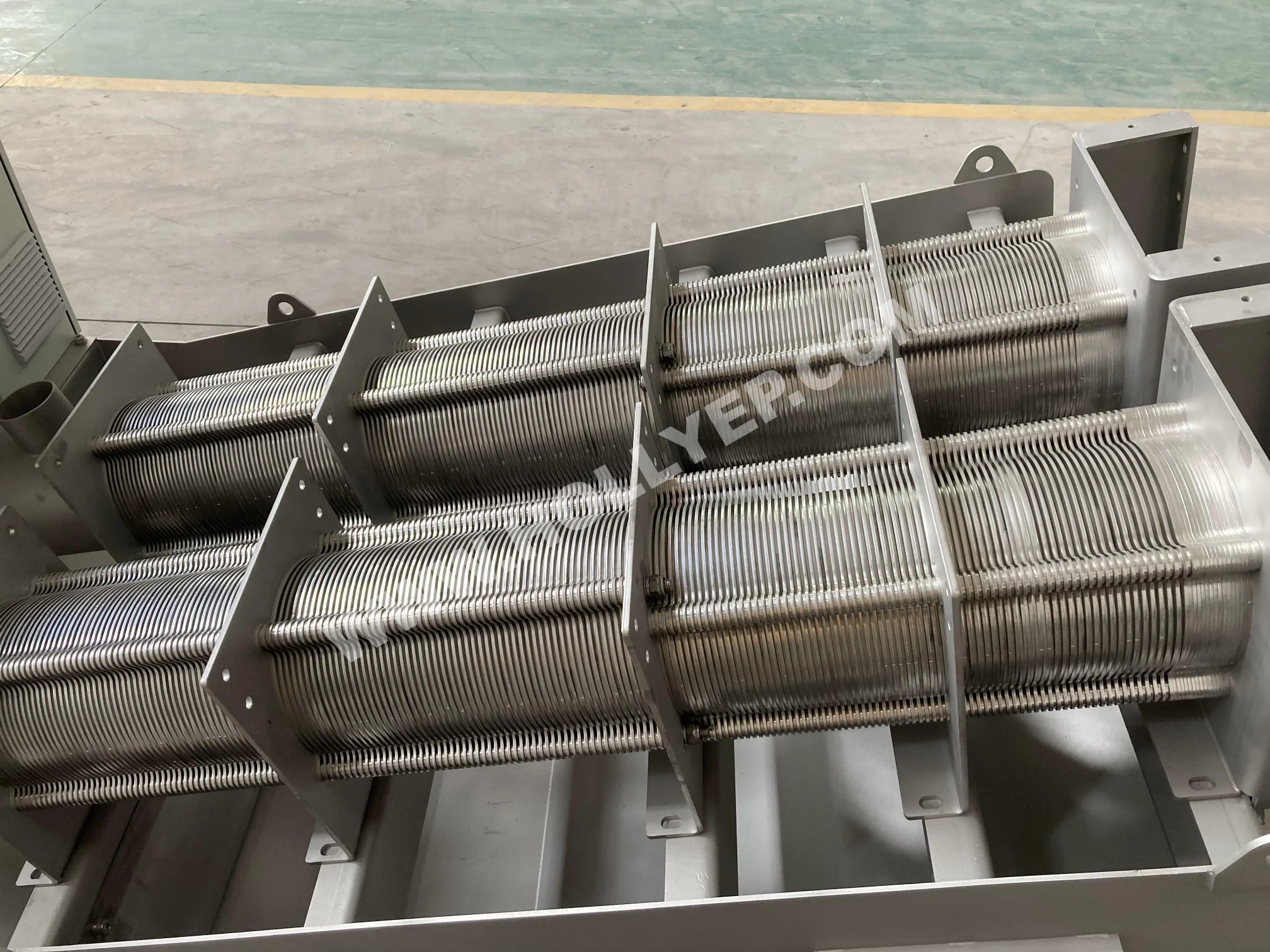

♦ Fixed and moving plates replace filter cloth, self-cleaning, clog-free, easy to handle oily sludge
♦ Low running speed, low noise, low power consumption, 1 /8 of Belt Press and 1 /20 of centrifuge
♦ Less capital construction cost, more excellent working performance
♦ Fully automatic control, Easy operation and simple maintenance

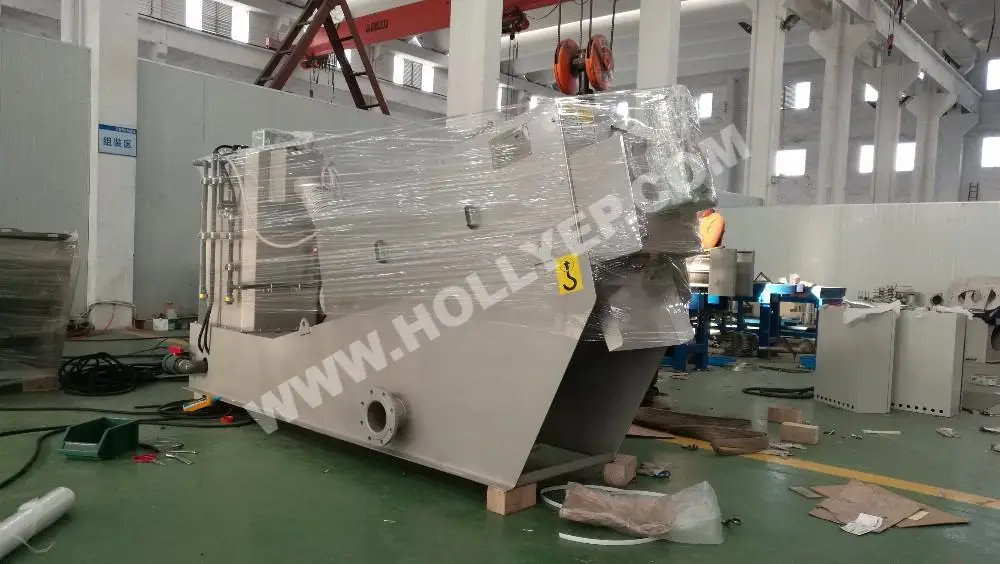

Packing

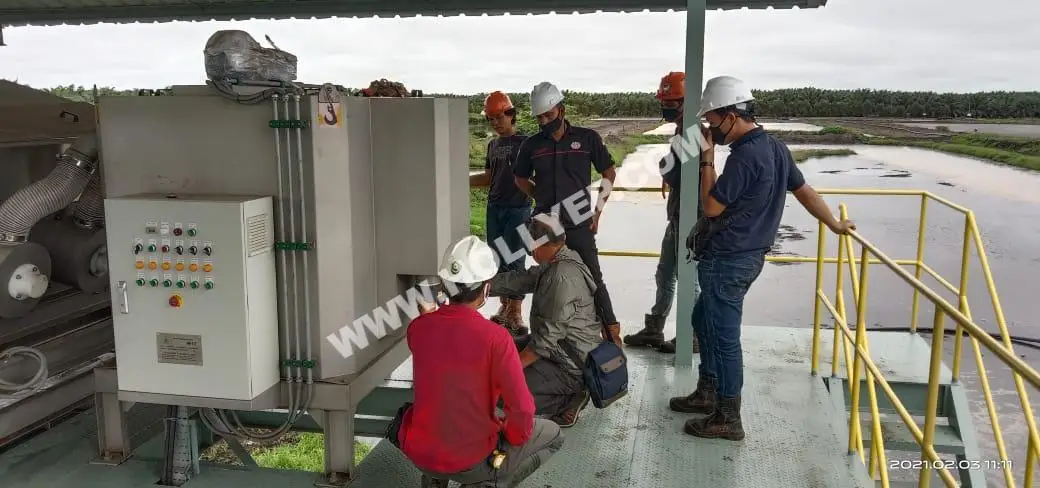

Applications
Related Products
About Us
Yixing Holly Technology Yixing Holly Technology Co., Ltd is located in Yixing, Jiangsu Province, China. Established in 2007, Holly Technology is a domestic forerunner in producing environmental equipments and parts used for sewage treatment.Nowadays, our company has developed into a comprehensive enterprise integrating production, trading, design and installation service of sewage treatment equipments.
