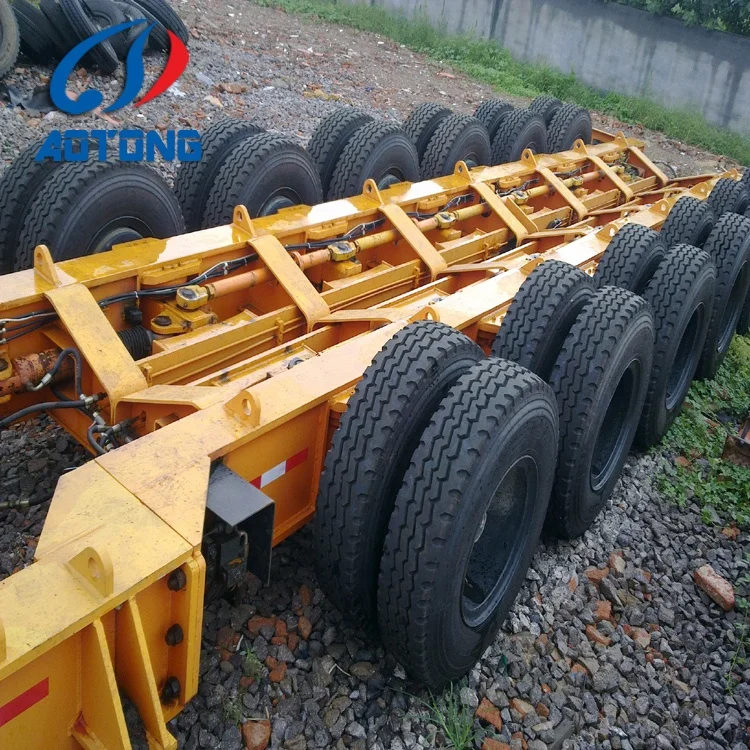

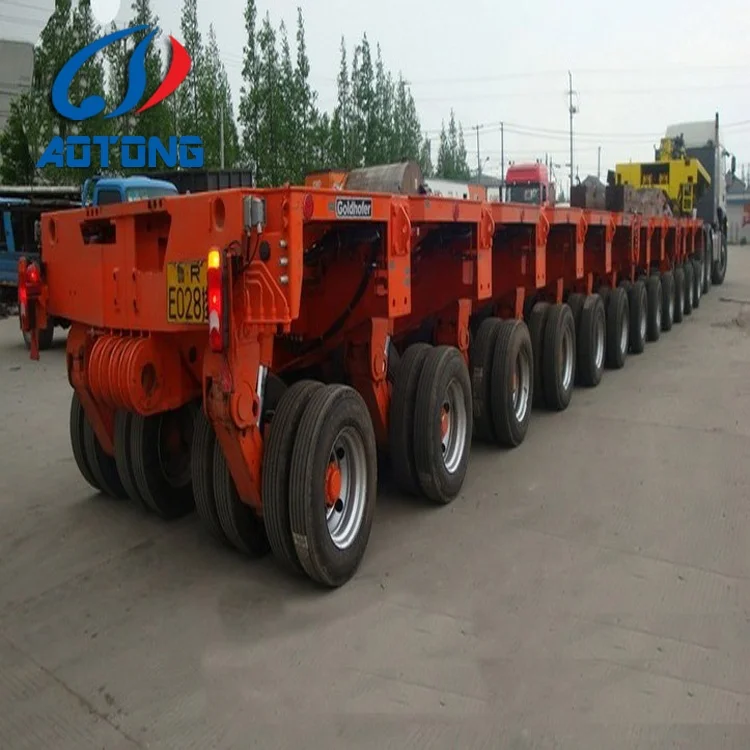

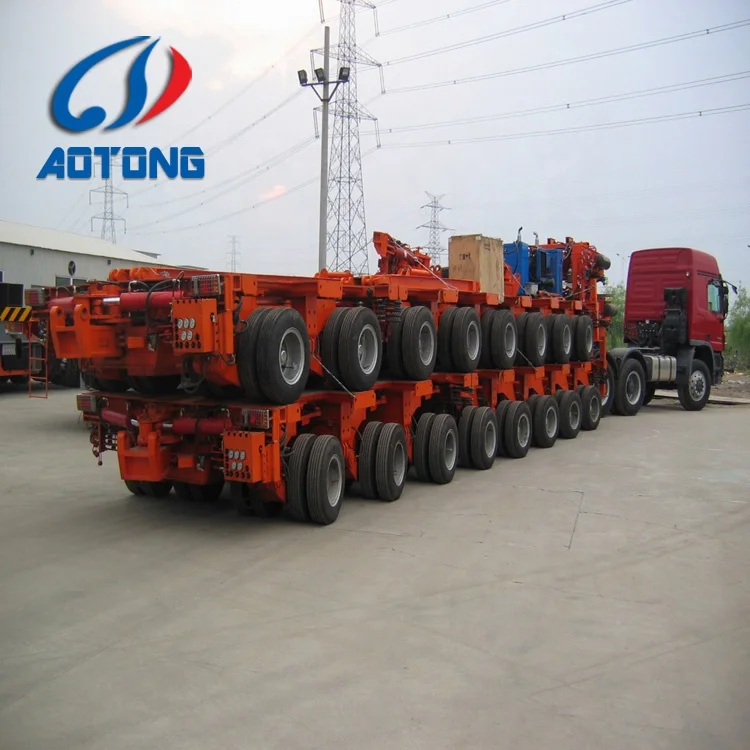

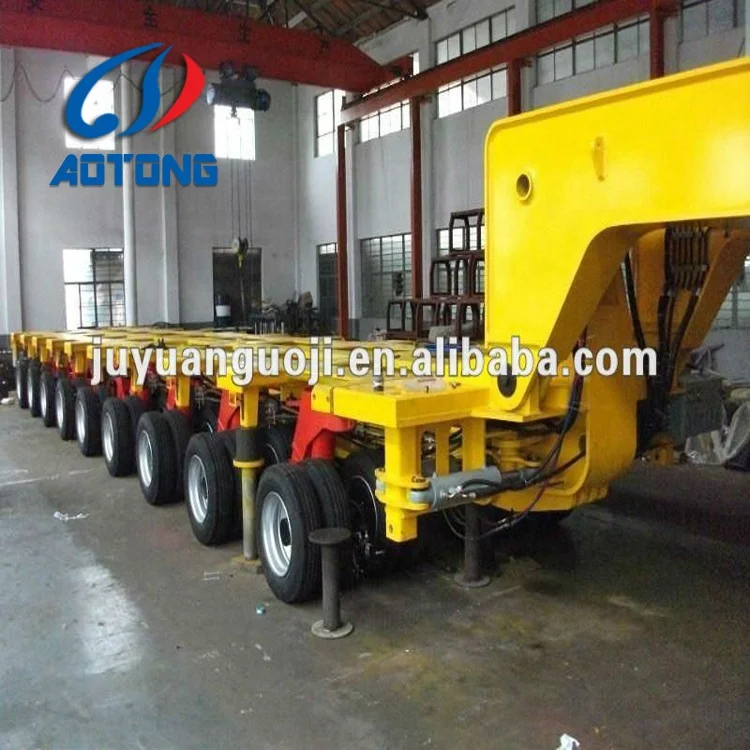

SPMT self propelled modular trailer for heavy equipment transporter
- Category: >>>
- Supplier: Qingdao Juyuan International Trading Co. Ltd.
Share on (60517935845):
Product Overview
Description
Product Description
| Brand | Aotong |
| Rated Capacity | 35000kgs /Row @ 0.6Km/h |
| Tare Weight | 3100 kgs/Row |
| Material | S690, AH60, 40Cr high tensile Steel |
| Loading Deck Height | 1175±300mm |
| Width of Platform | 2990mm-3000mm |
| Max Steering Angle | +/-55° |
| Brake | Dual line pneumatic brake system,T30/30+T30 air chamber; parking brake; |
| Electrical System | 24V, 7core socket, lights according to European standards. |
| Wheelbase | 1500mm |
| Tire | 215/75R17.5 |
| Rim | 6.00-17.5 (10holes) |
| Approaching Angle | 25°/ 28° |

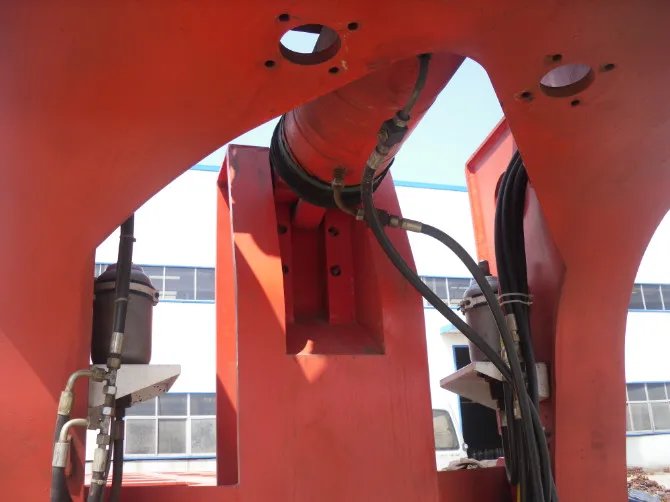

| Suspension | Hydraulic Air suspension with lifting and steering / Axle Steering |
| Tire & Rims No /line | 8 sets |
| Connection Platform | Optional by Cargo / Machine Size |
| Pin Height | According to the height of the tractor saddle. |
| Painting | Three coats painting; Any color will be available |
| Welding | automatic submerged arc welded |
| Lights | Rear light, rear reflector, turn indicative light, side |
| reflector, fog lamp, number plate light | |
| Painting | Three coats painting; Any color will be available |
Related Products

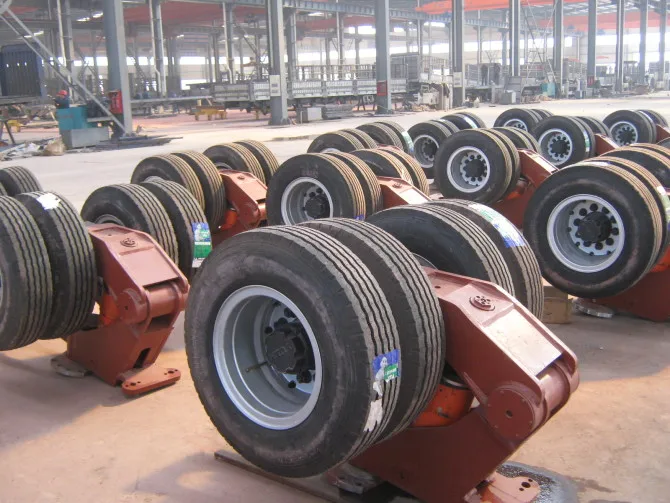

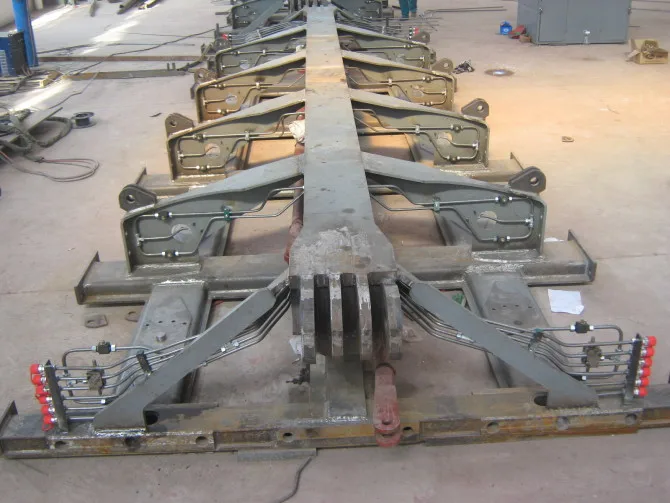

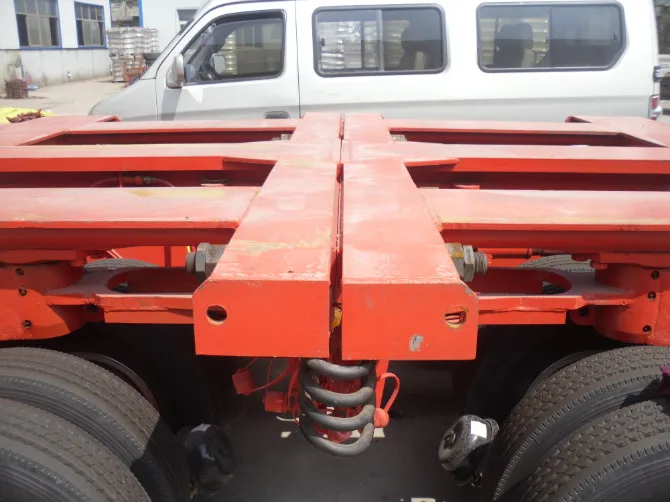

Work Shop Show
According to client's speical requests for trailer, we can design full set drawings for clients.
(1) .The material of trailer frames is high quality and strength steel that can extend the using life of trailer.
(2). It has been designed appropriately according with clients requirements, such as dimension, payload, main beam and so on.
(3). Brake system and Electric system are well-known brand in the world.
(4). Shot blasting twice and particular coat painting can guarantee the quality of trailer surface.
(5). All componenet/configuration (OEM parts) can be arranged based on clients detailed requirements and meet clients need.
