Robotic Arm for Injection Moulding Machine

Product Overview

Description

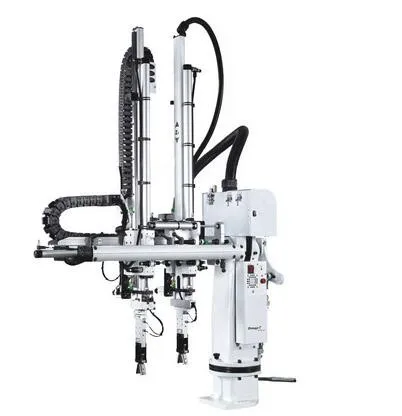

The robot is applicable to all types of horizontal injection machine ranges of 60-200T for take-out products and sprues. Vertical arm is single type, with product arm and runner arm two types, suitable for two plate or three plate mold products take out. Traverse axis driven by AC servo motor. After installed this robot, the productivity will be increased 10-30%, reduce defective rate, ensure safety of operators, reduce manpower and accurately control the output to reduce waste.

For more Robot arm, please send your inquiry or feel free to find me at WhatsApp or Wechat:+8613586527662, thank you!













Specifications:

Model	Power Source (KVA)	Recommended I.M.M (ton)	Traverse Stroke (mm)	Traverse Driven	Crosswise Stroke (mm)	Vertical Stroke (mm)	Max. Loading (kg)	Dry Take Out Time (sec)	Dry Cycle Time (sec)	Air Consumption (nl/cycle)	Net Weight (kg)
BRB600IDY/ISY	0.6	60T-120T	1000	AC Servo Motor	P: 300 R: 125	600	5	1.8	8.5	25	176
BRB700IDY/ISY		100T-200T	1200			700					195



Denote:     I: Single stage

                 D: Product arm + Runner arm

                 S: Product arm

                 Y: AC Servo driven on traverse axis



Optional: A: Remote adjustment of crosswise axis

                 G: Remote adjustment of vertical axis



Outer Dimensions:



Model	A	B	C	D	E	F	G	H	I	J	K	M
BRB600IDY	1540	1270	545	1160	1000	170	1910	105	650	150	120	385
BRB700IDY	1610	1380	545	1280	1200	170	2090	105	770	150	120	385
