500EB Hand held aluminum foil bottle cap Induction Sealing Machine (20 100mm)

Product Overview

Description

This model is only 220V, doesn't have 110V type.



Hand-Held Induction Sealing Machine with English panel (Manual induction sealing machine,drug sealer,bottle sealing machine,aluminum foil filling machine, manual induction sealer):



We believe that our range of induction sealers, from a low cost hand held induction sealing machine to a high speed fully automatic induction sealer, is the best in Asia if not the world.



Just contact us and we will be pleased to advise you which is the best induction bottle sealing machine for your needs.

Model 500EB is a hand-held electromagnetic induction heating apparatus, specializing for the aluminum foil sealing of containers in pharmaceutics, chemical industry, pesticide, foodstuffs, cosmetics and light industry. Containers made of various materials are sealable. With small size, light weight, easy operation, it is suitable for low-volume production and operation in labs. The machine operates on the principle of electromagnetic induction: The aluminum foil on the bottle top is highly heated instantaneously and melted so that the bottle mouth is closely wrapped and sealed. The sealing is damp-proof, mould-proof, forgery-proof and theft-proof and prolongs goods storage time. The containers sealable can be made of PE, PP, PS, PET, ABS, glass, porcelain etc. but not metal. With Japan's latest modular power devices adopted, it is more economized in power and 20~30 times quicker in instantaneous heating than conventional vacuum tube-induced heaters, its heating efficiency being up to more than 90%.



Machine specification :

Power Supply:220V/50Hz

Power output: 800-1200W
Operating frequency: 100KHz ±5%
Sealing dia.: 20-100mm
Sealable container height: Not limited

Dimensions: 340×320×75 (mm)
Weight: 2.7kg

Voltage: 220V

English Panel and English manual is available



Shipment:

Most of our models are in stock, if not in stock, production time is 5-7 working days.

Sea shipment for large quantity. Door-to-door Express shipping is good for small quantity. We usually use DHL, TNT, EMS, Fedex for fast shipment with good shipping freight.





Features:

• Fast and efficient. The foil seals tightly without being affected by moisture, grease or powder contamination on sealing area.
• The detector checks the presence of foil. It sends a signal when foil is missed in a certain cap. This prevents unsealed products from being delivered.
• Safe in use. The machine is built with protection circuit to protect against electric current overload, voltage overload and output overload.
• Easy & simple to use. All functions are clearly labeled on the display panel, which is convenient to access.
• Modular component design minimizes maintenance requirements.
• A broad range of applications can be simply setup by button control.
• Solid state elements contribute high efficiency yet low power consumption.
• Quick adapters on power and control wires provide easy replacement.
• The IGBT/MOS-FET module provides high efficiency, low power consumption and long service life.
• Height of electro-magnetic coil is adjustable and flexible for a range of bottle heights.
• Applications:
• Suitable for non-metal containers of glass or plastic bottles, such as ABS, PE (HDPE, LDPE), PET, PP, PS, PVC.
• Suitable for screw caps, tamper-proof caps, etc.
• Suitable for any product in the container:
• A: Medicine - Powder, Lotion, Capsule, Ingot.
• B: Cosmetic - Skimmed milk, Lotion.
• C: Beverages - Water, Milk, Juice, Yogurt.
• D: Chemical - Alcohol, Cleaner.
• E: Food - Jelly, Fish food.
• F: Others - Engine oil, Machine oil.

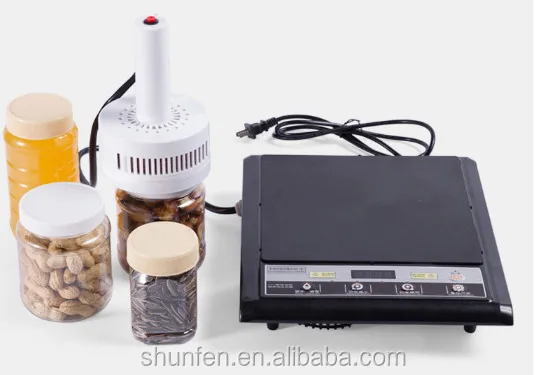

Model 500E Hand-held Induction Sealing Machine:

Operation Screen:

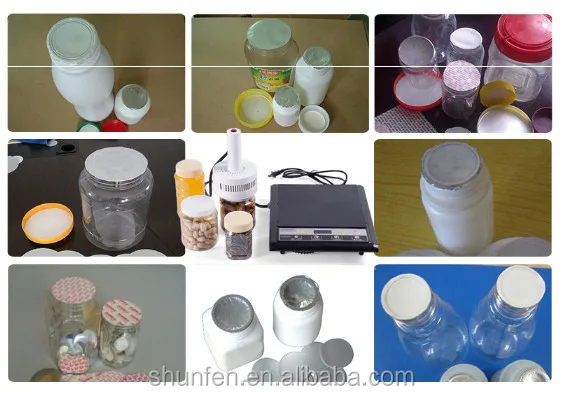

Bottle Samples:



Package for shipment





Professional Package with English Manual inside



Other Induction Sealing Products:



Automatic Continuous Induction Sealing Machine (for production line)



Model 1200/1600





Model DL300 (continuous Induction Sealer with mini conveyor)



Smart Type Induction Sealing Mahcine (10-100mm)

(seal the bottle automaticaly without pressing the red button)





10-130mm Induction Sealing Machine (for larger cap)





500A induction sealing machine (10-60mm)



We also produce quality aluminium foil



If you want to see the video, please contact the supplier freely.



1. Our factory has been producing induction sealing machine for 30 years.

Products are very mature and quality.

2. This model only has 220V, no 110V available

3. We accept return product within 7 days.

4. Any inquiry or question will be replied within 24 hours.
