Product Overview

Description



Product Description






Product Name

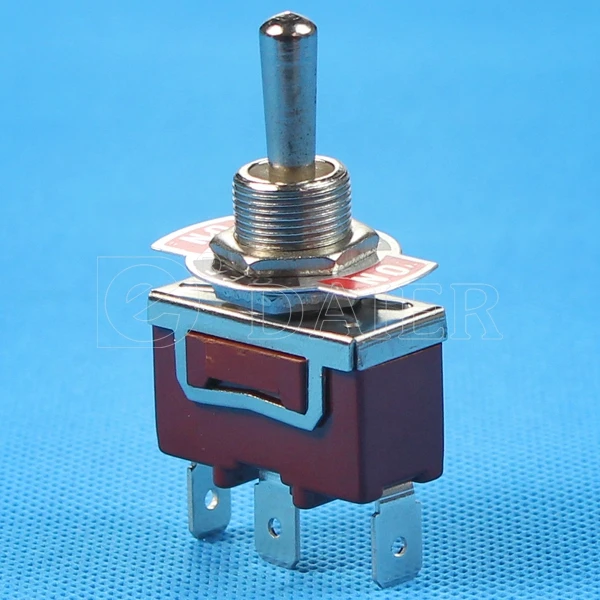

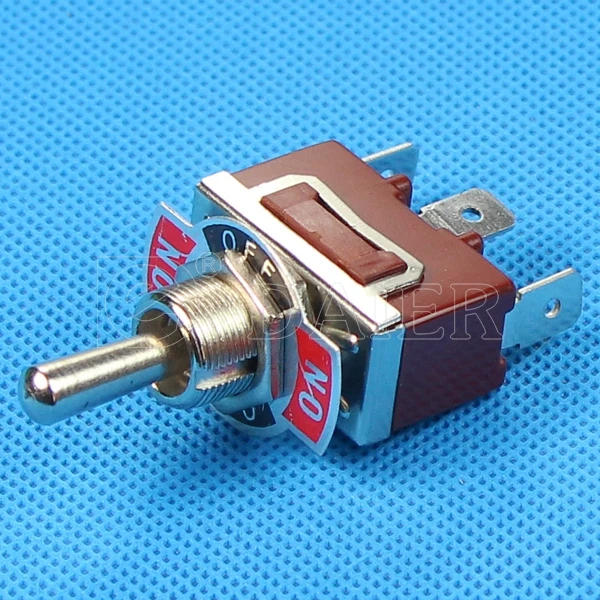

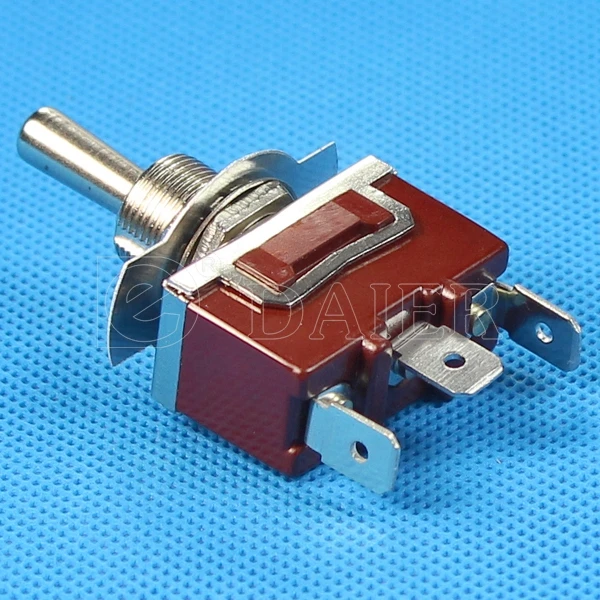

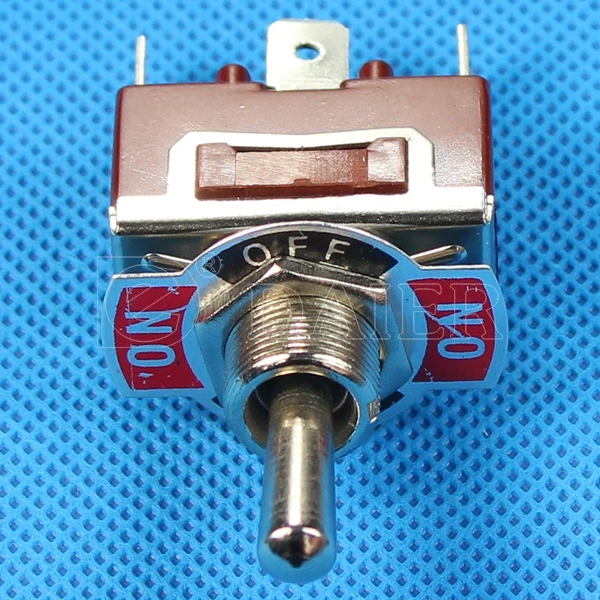

ON OFF ON Toggle Switch KN3(C)-103P 15A 250V~
Rating
       ( )10A 125VAC,
             6A 250VAC
       (A )15A 125VAC,
               10A 250VAC
     ( AA )20A 125VAC,
                15A 250VAC
Contact resistance
< 50MΩ
Insulation resistance
>500VDC 1000MΩ Minute
Dielectric Strength
>1000VAC, 1 Minute
Operating Temperature
-25°C~+85°C
Mechanical life
>50000 CYCLES
Electrical life
>10000 CYCLES


Products Show

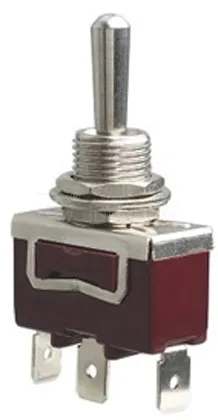

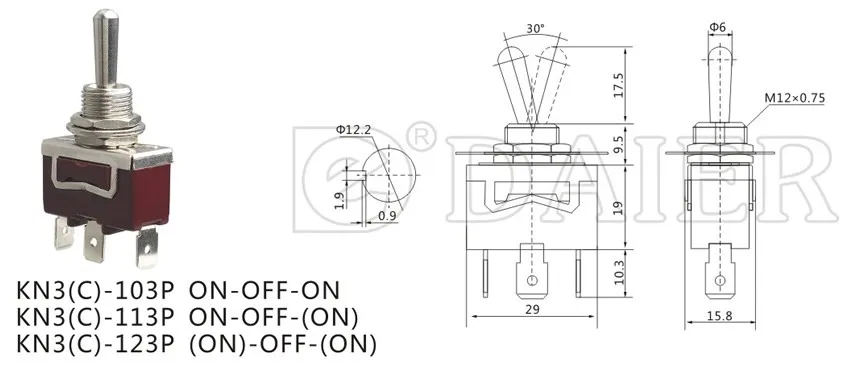

KN3(C)-103P


1. CE,Rohs,CQC
2. More than 10 years' manufacture
3. Reliable price, 8 years' exporting




KN3 series toggles switches are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.



Related Roducts




KN3(C)-201AA on off 2-way 12v toggle switch

KN3(C)-203 ON-OFF-ON dpdt toggle switch

KN3(C)-202 6 PIN on-on toggle double pole switch



APPLICATION
