refining mill refiner machine for Rubber with competitive price

Product Overview

Description

 Rubber refiner

1.Main Uses



One another point different from the open mixing mill:the roller is of waist drum model and mainly used for stripping away impurity substance of reclaimed rubber.



2.Structure



This machine consists of two rollers(waist drum model), base, frame, rack,transmission device,Bearing,Lubrication device, Decelerator, Adjustment device of the roller temperature,Emergency shutdown device and brake rigging,NGW Planetary hardened-gear Speed Reducer and etc.



3.Features



1'Two rollers are made from Chilled Cast Iron,smooth surface is highly polished and scratch proof by cutting knife:high hardness and wear-resistant;

2'The roller is hollow structure,which is for adjusting the temperature of the rollers by steam or cooling water in term of different request;

3'The machine is equipped with an overlaod protection device to prevent the major components from being damaged due to overloading.

4'The machine is also equipped with an emergency device. When an emergent accident happens, just draw the safety pull-rod, and the machine will stop immediately. It is safe and reliable.

5'The machine is equipped with scraper and wind-up unit, which can take the reclaimed rubber away from the wind-up roll

Specification	Roll diameter ×Length(mm)	Front roll speed(m/min)	Speed ratio	Capacity (kg/h)	Motor power(KW)	Overall dimension(mm)	Weight (t)
XKJ400	400x500	24.5	1:1.7	200	45	3520x1710x1850	7.7
XKJ450	450x600	25	1:1.7	230	55	4600x1920x1870	11
XKJ480	610/480x800	25.6	1:1.815	250	75	5610x2450x2000	19
XKF480	610/480x800	25.6	1:1.55	250	75	5610x2450x2000	19

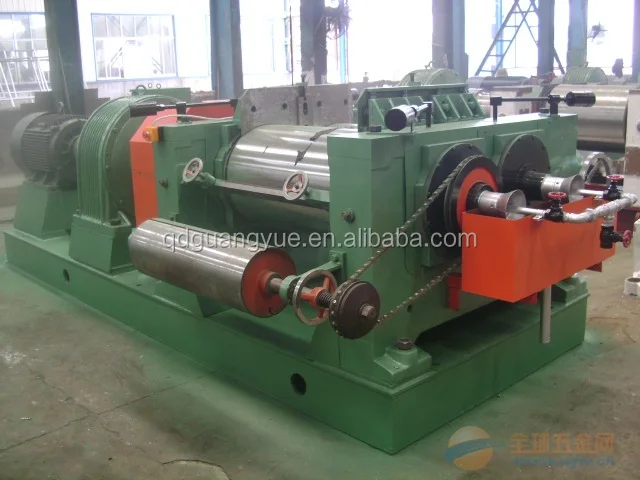

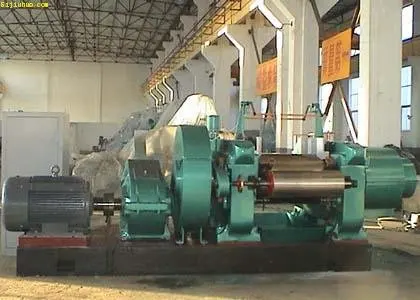

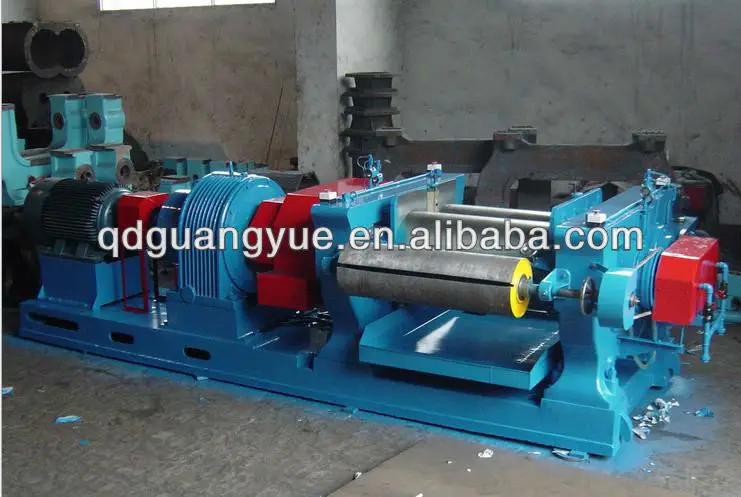

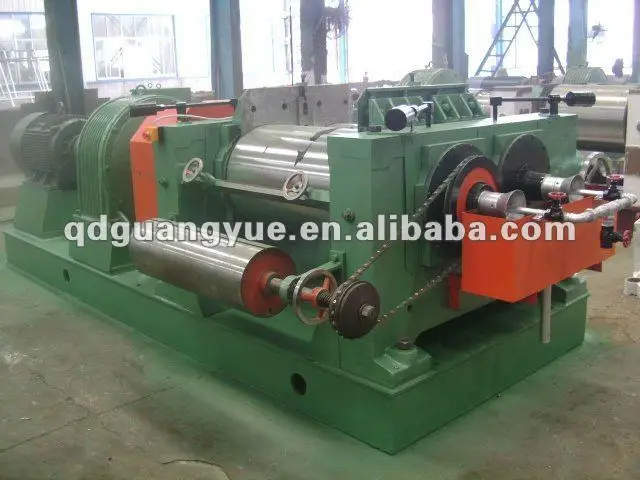

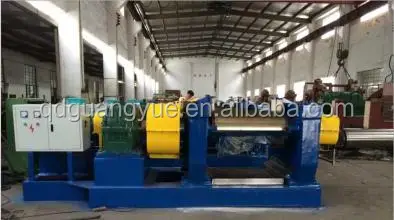

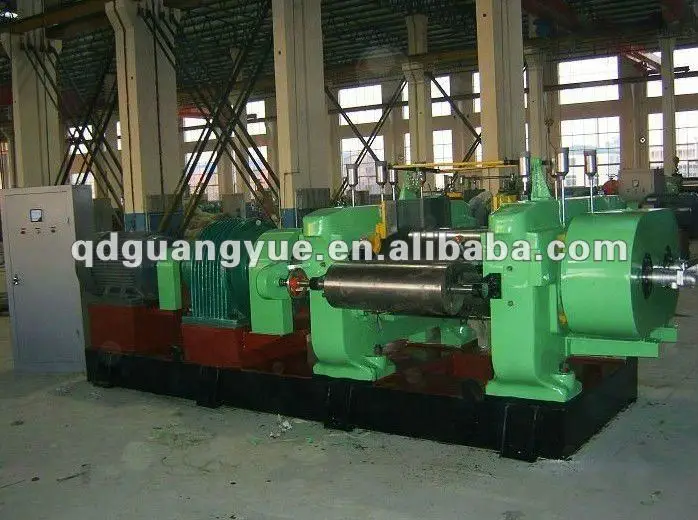

photo of rubber refiner
