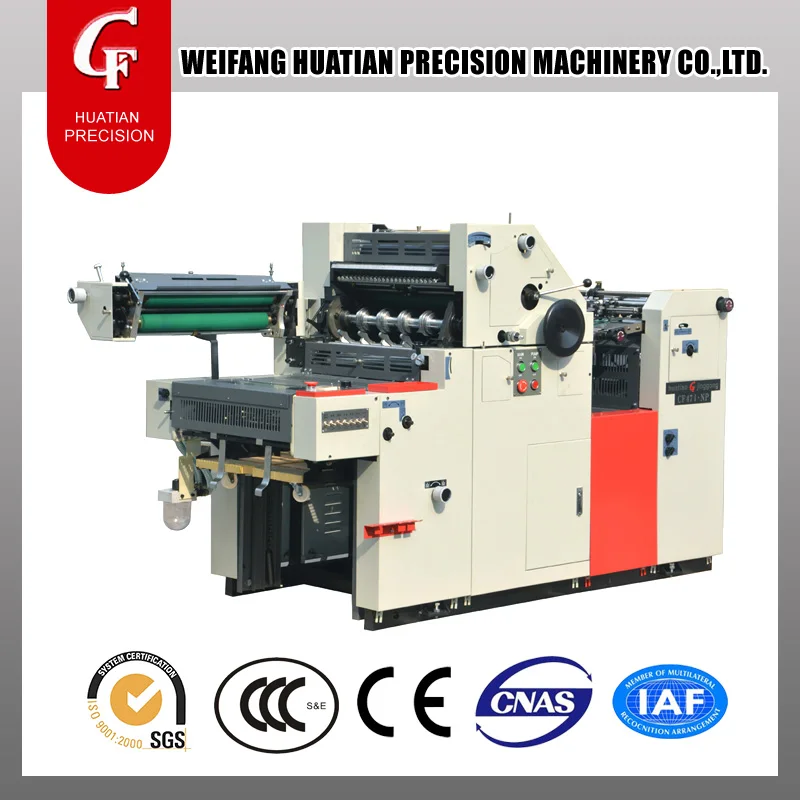

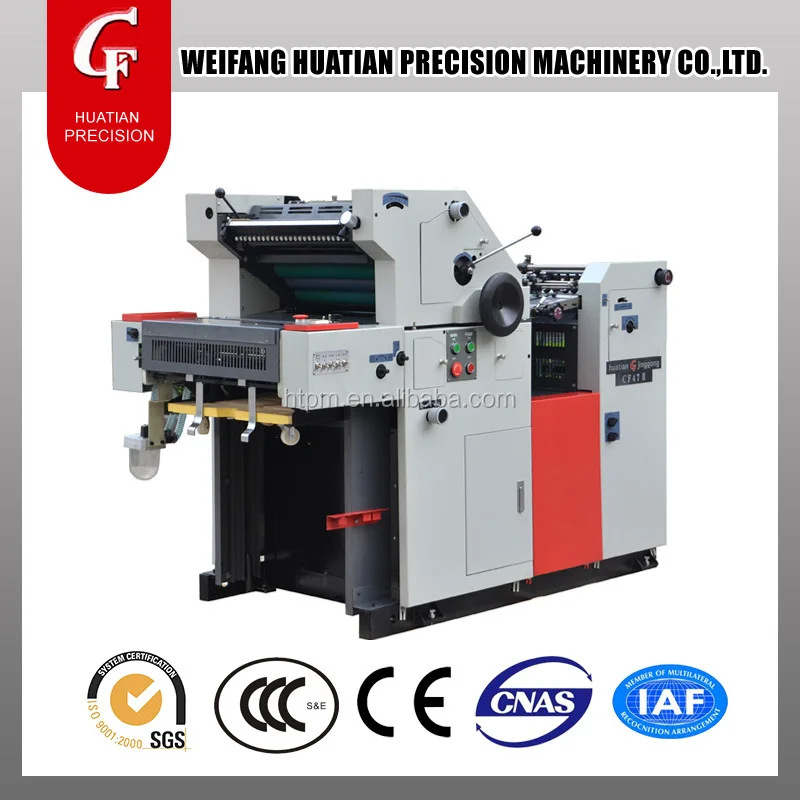

Perfectiy designed,these printing machines are a new type of functional,economical and practical offset presses for planographic printing and code printing.
CF56I-NPoffset presses are added with NP units on the basis of the II-generation offset presses, in addition to all the functions of single-color coding offset presses, they also have the advantages of beautiful color and solid printing with large ink amount as second-generation offset presses. They are really multi-functional, widely applicable, and high quality printing machines with high printing quality.
offset printing machine parameter:
Model No.
CF56II-NP
Maximum printing area
544 x 380mm
Maximum paper size
560 x 390mm
Minimum paper size
200 x 148mm
Paper type
17-250g/m2
Number of ink rollers
Main machine system :14 pieces (3 form rollers)
NP system 6 pieces 2 form rollers
Number of dampening rollers
4 pieces (1 form rollers)
Minimum space between codes
Vertical code: vertical 71mm horizontal 48mm
Gripper edge 25mm
Horizontal code: vertical 47mm horizontal 60mm
Gripper edge 25mm
Registration mechanism
Roller type side lays
Printing speed
2000-8000 sheets/hour
Motor power
Main motor: 1.5KW/380V
Air pump moto:0.55KW/380V
Machine size
2089L*1129W*1300H mm
Weight
890KG

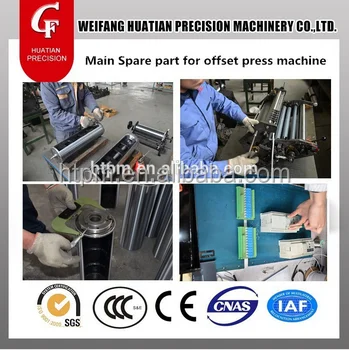

Spare parts :

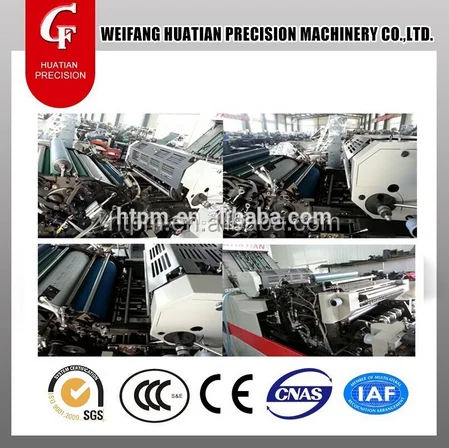

Factory picture:

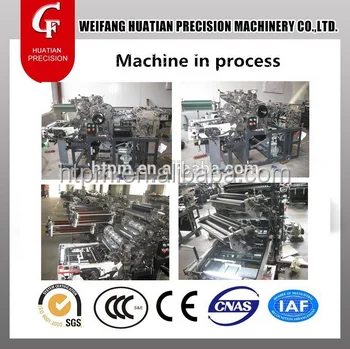

We have the production line , now 90% the spare parts we make it ourself, so we can control the quality.
