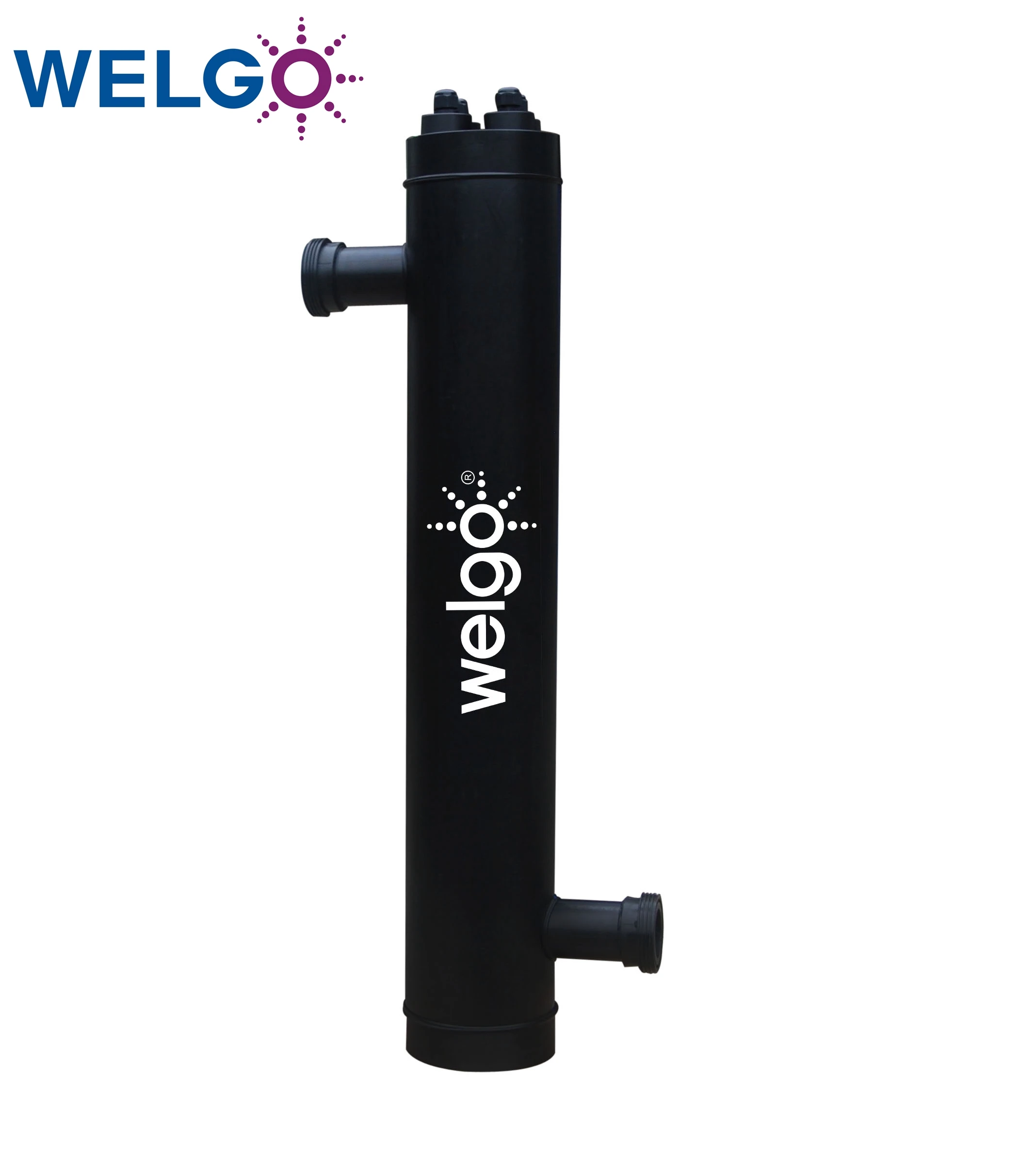

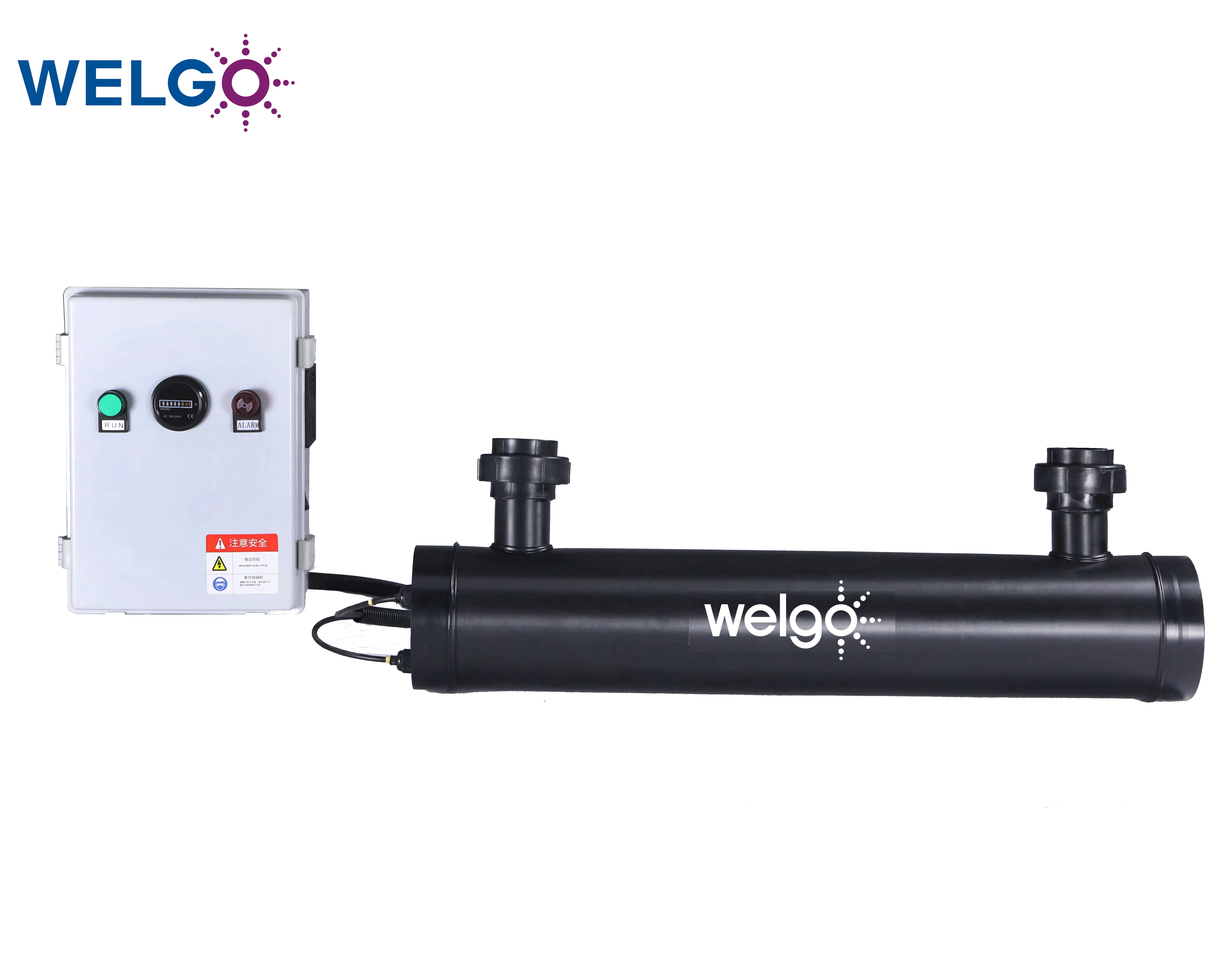

RAS Fish Farming Water UV Sterilizer for Aquaculture water System
- Category: Water Treatment Machinery >>>
- Supplier: Guangzhou Welgo Environmental Equipment Co. Ltd.
Share on (60526447519):
Product Overview
Description

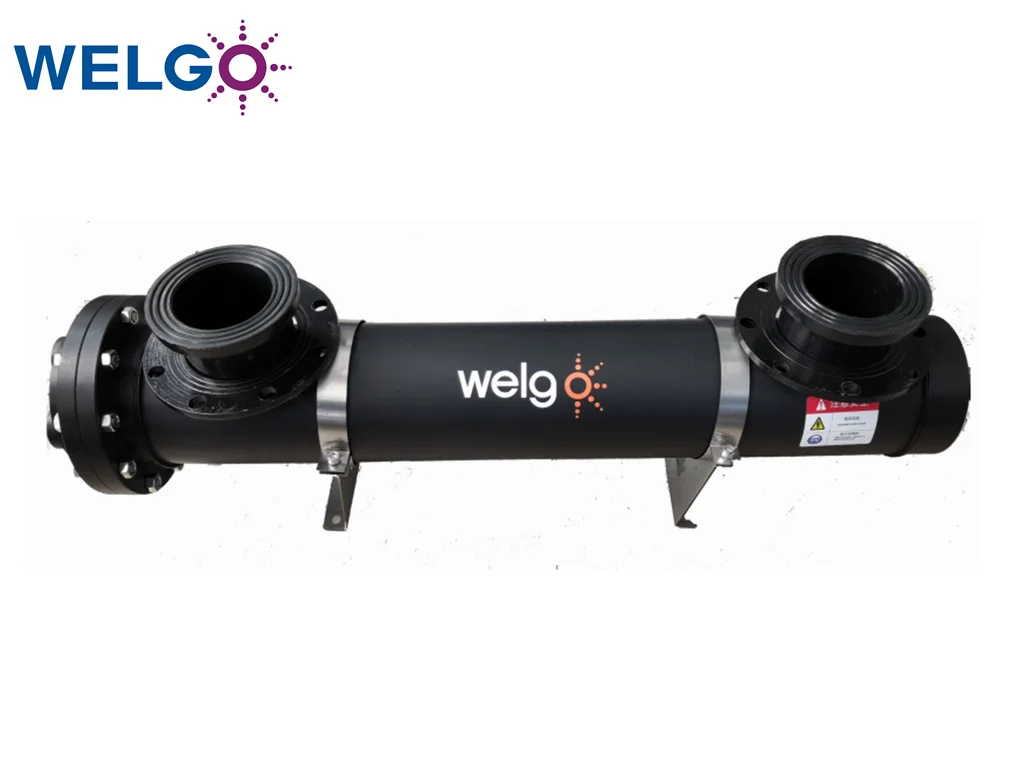

HDPE MATERIAL INDUSTRY WASTE WATER UV STERILIZER
HDPE UV SYSTEM FOR AQUACULTURE/AGRICUTLURE/SEA WATER/WASTE WATER TREATMENT
RAS Fish Farming Water UVSterilizer for Aquaculture water System
Plastic screw and nut for optional
Anti-crossion plastic srew for sea water application field
HDPE UV SYSTEM FOR AQUACULTURE/AGRICUTLURE/SEA WATER/WASTE WATER TREATMENT
HDPE MATERIAL INDUSTRY WASTE WATER UV STERILIZER
Technical parameters
Model | Flow Rate @30mj/cm² | Lamp Watt | Lamp QTY | Total Power | Inlet/ Outlet Port | Reator Size(MM) | ||||
L | W | H | ||||||||
WGUV-HDPE-12T80-2U | 12m³/Hr | 80W | 2PCS | 200W | dn65 | 980 | 180 | 400 | ||
WGUV-HDPE-20T80-3U | 20m³/Hr | 80W | 3PCS | 280W | dn80 | 980 | 195 | 400 | ||
WGUV-HDPE-25T80-4U | 25m³/Hr | 80W | 4PCS | 360W | dn100 | 980 | 215 | 450 | ||
WGUV-HDPE-30T80-5U | 30m³/Hr | 80W | 5PCS | 440W | dn100 | 980 | 250 | 500 | ||
WGUV-HDPE-35T80-6U | 35m³/Hr | 80W | 6PCS | 520W | dn100 | 980 | 250 | 500 | ||
WGUV-HDPE-45T155-4U | 45m³/Hr | 155W | 4PCS | 650W | dn100 | 1700 | 215 | 450 | ||
WGUV-HDPE-55T155-5U | 55m³/Hr | 155W | 5PCS | 800W | dn100 | 1700 | 250 | 500 | ||
WGUV-HDPE-66T155-6U | 66m³/Hr | 155W | 6PCS | 970W | dn150 | 1700 | 280 | 520 | ||
WGUV-HDPE-110T320-5U | 110m³/Hr | 320W | 5PCS | 1650W | dn150 | 1700 | 280 | 520 | ||
WGUV-HDPE-130T320-6U | 130m³/Hr | 320W | 6PCS | 2000W | dn150 | 1700 | 280 | 520 | ||

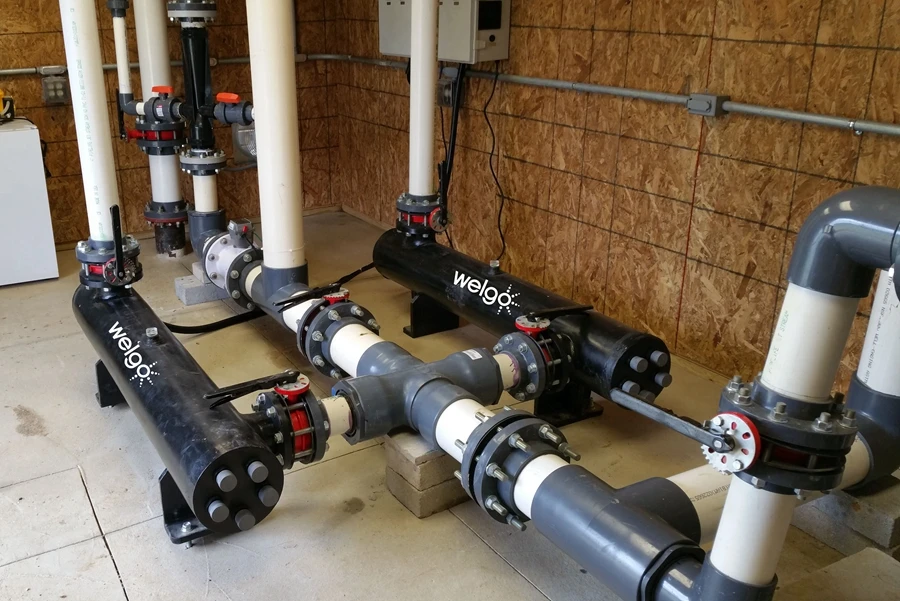

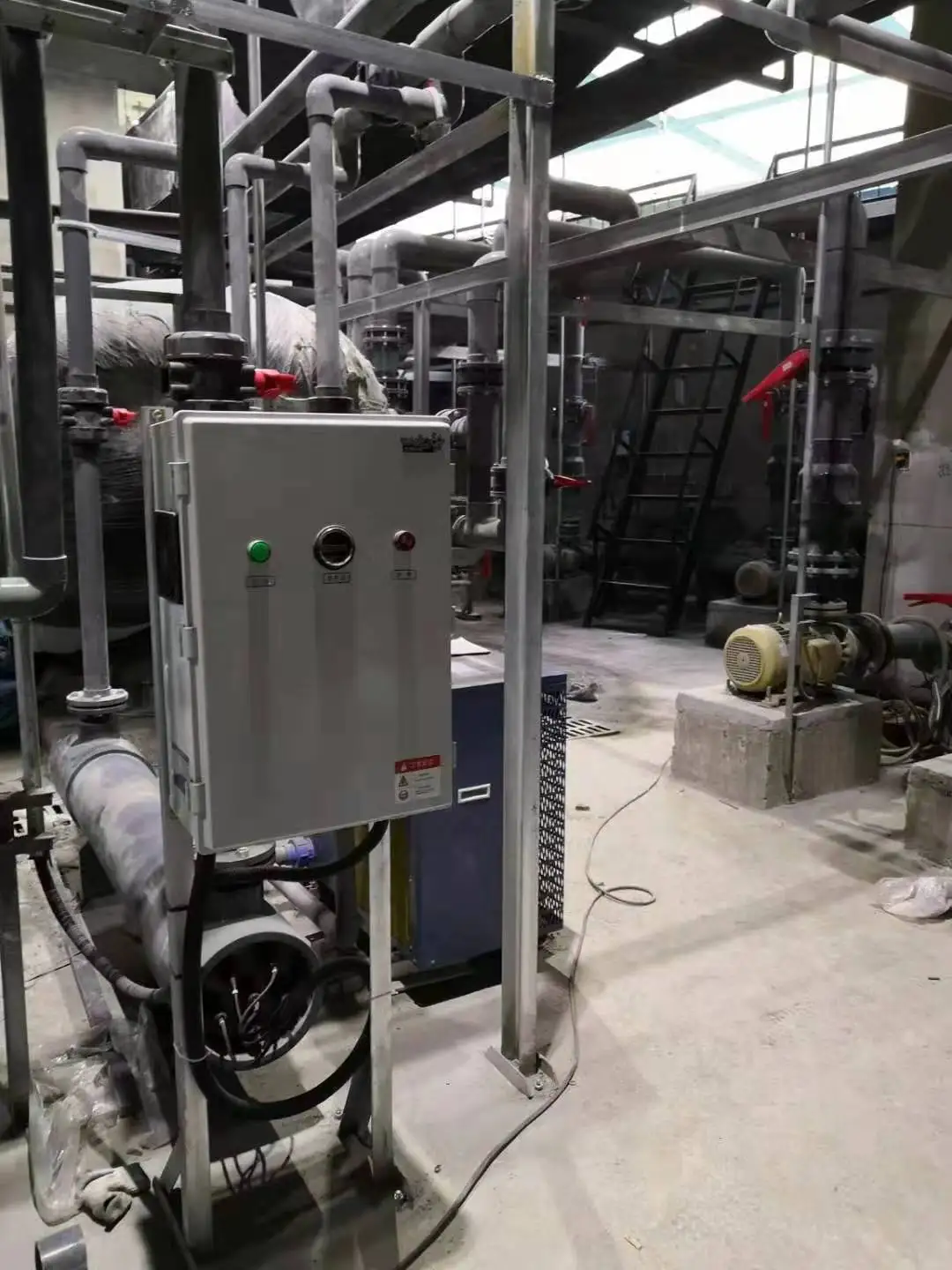

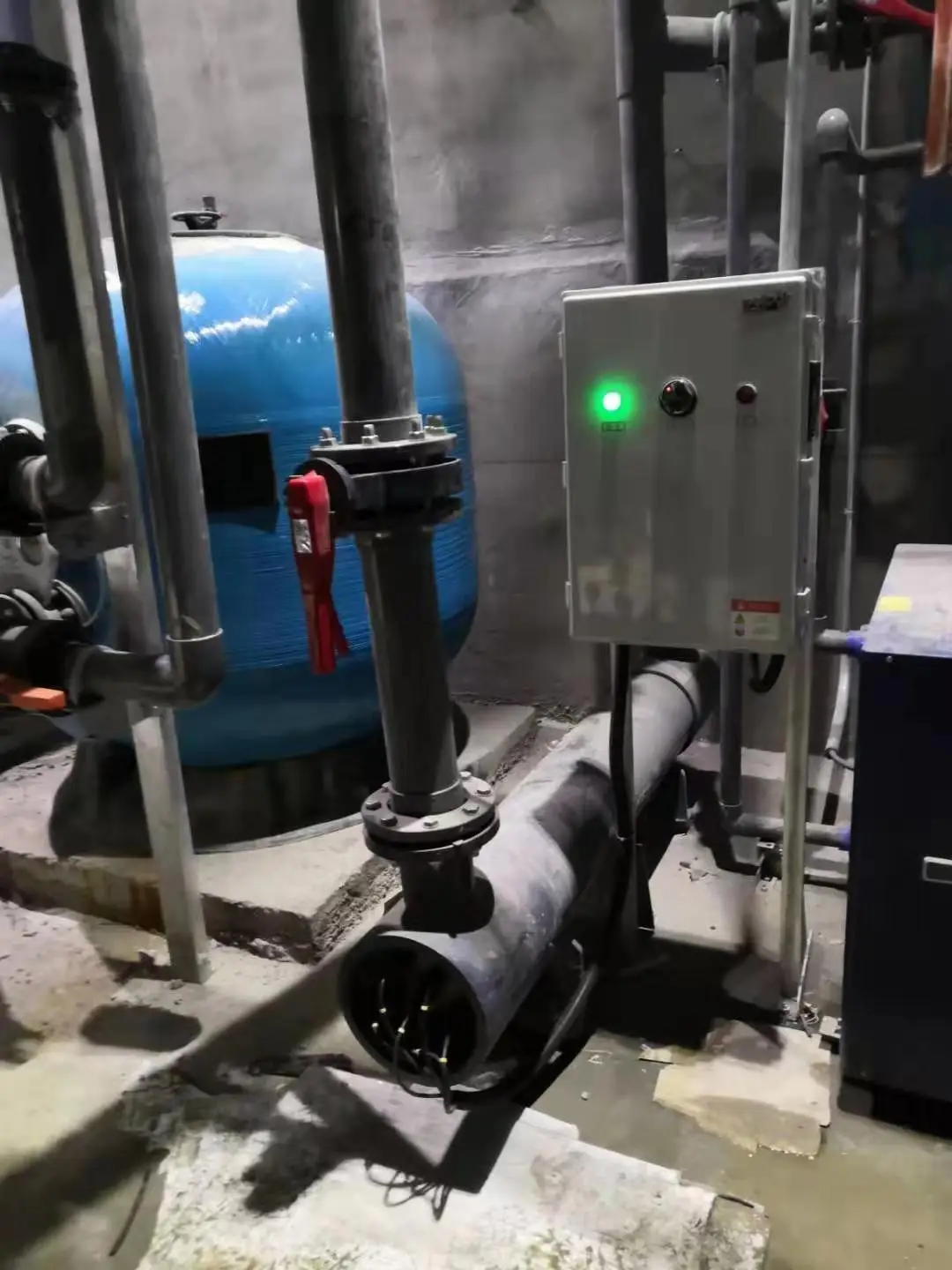

Projectc cases
1. Q: Can I get your products with our logo and design?
A: Customized service is available.
2. Q: What about Lead time ?
A: About 15 work days normally. Your order will be arranged to production once the deposit be received.
3. Q: Do you accept sample order?
A: Yes,we can make your customized sample before mass order placed.
4 Q: What's the MOQ ?
A: We can offer the quantity you required, as we do not have MOQ requirement.
5. How do you control the quality?
A: Strictly check the material and control the quality at every stage of production, from the incoming raw materials to the finished product.
6. What is the Packing material?
A: Carton, Plywood case, Pallet. They are suitable for shipment.
7.What information we need to let you know before order?
a. What is the raw water?
b.What's the flow rate per hour?
c.What is your industrial voltage and frequency?
8.What's the payment terms?
1) Small order: T/T100% payment in advance
Big order: T/T 30% deposit in advance, 70% paid before shipment.
2)Western Union
3)Alibaba Escrow.
4)L/C at sight.
9.After sales service
(1) 24 hours we are ready to explain question for you.
(2) Professional engineers supported, along with strong technical service.
(3) Welgo will send engineers to customers factory to Offer installation, debug and technology training to if you need.
RAS Fish Farming Water UVSterilizer for Aquaculture water System
A: Customized service is available.
2. Q: What about Lead time ?
A: About 15 work days normally. Your order will be arranged to production once the deposit be received.
3. Q: Do you accept sample order?
A: Yes,we can make your customized sample before mass order placed.
4 Q: What's the MOQ ?
A: We can offer the quantity you required, as we do not have MOQ requirement.
5. How do you control the quality?
A: Strictly check the material and control the quality at every stage of production, from the incoming raw materials to the finished product.
6. What is the Packing material?
A: Carton, Plywood case, Pallet. They are suitable for shipment.
7.What information we need to let you know before order?
a. What is the raw water?
b.What's the flow rate per hour?
c.What is your industrial voltage and frequency?
8.What's the payment terms?
1) Small order: T/T100% payment in advance
Big order: T/T 30% deposit in advance, 70% paid before shipment.
2)Western Union
3)Alibaba Escrow.
4)L/C at sight.
9.After sales service
(1) 24 hours we are ready to explain question for you.
(2) Professional engineers supported, along with strong technical service.
(3) Welgo will send engineers to customers factory to Offer installation, debug and technology training to if you need.
RAS Fish Farming Water UVSterilizer for Aquaculture water System
