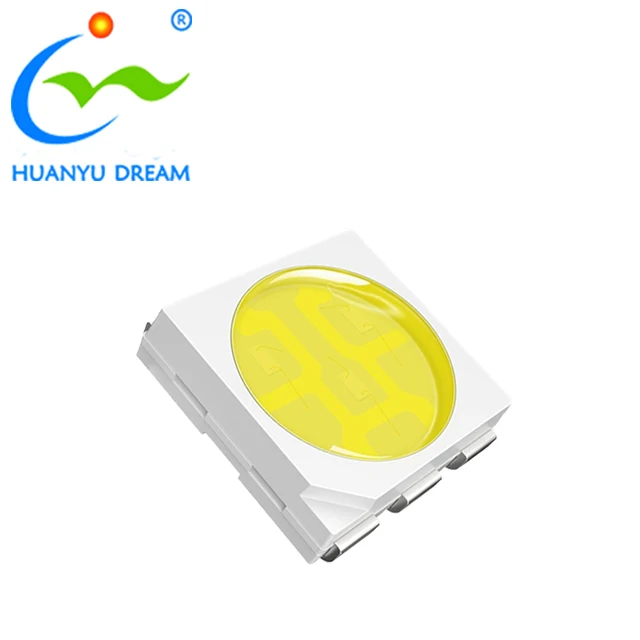

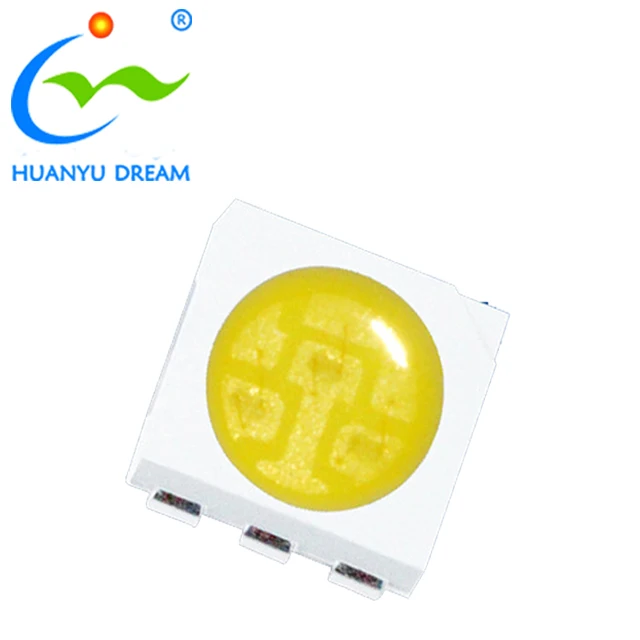

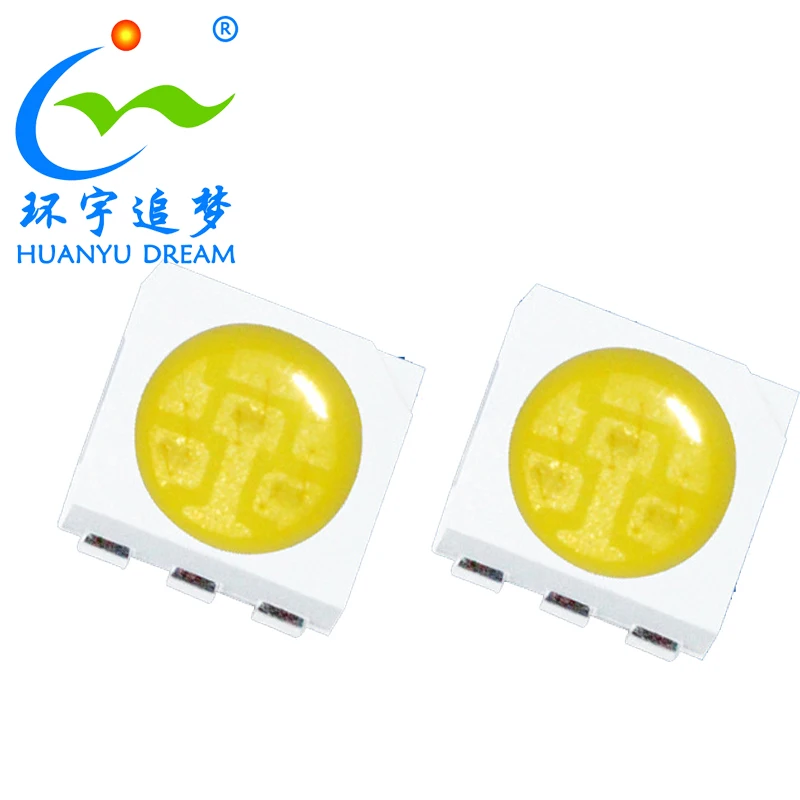

Hot Sales RGB high power led chip 0.5w rgb led 5050 Epister Chips SMD Led 0.2W 1.5W 2W

Dimension

Huanyu Dream SMD LED Chip use Gold Wire and Copper Stand only !

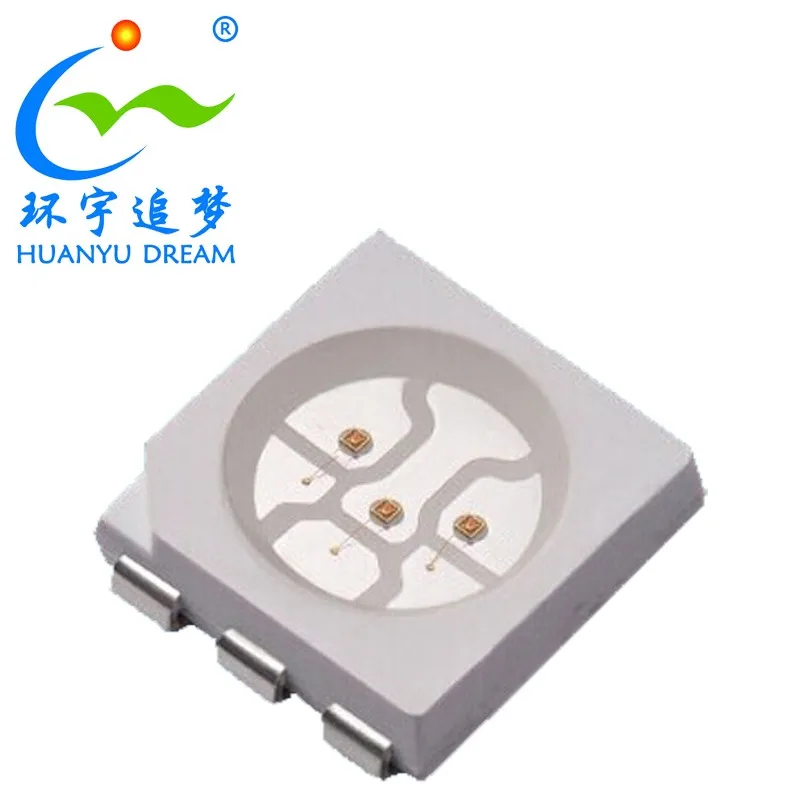

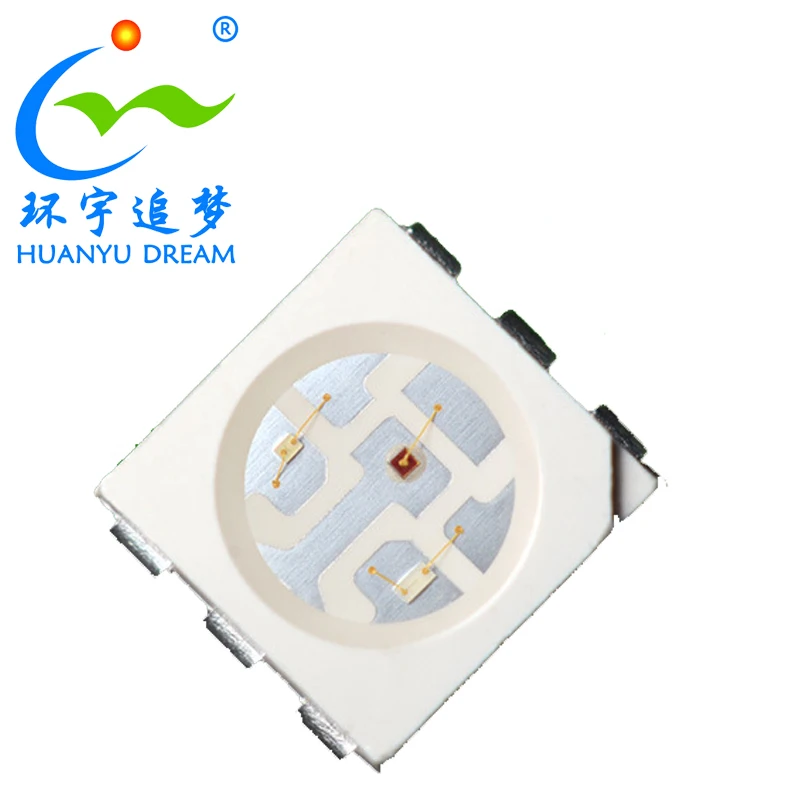

RGB high power led chip 0.5w rgb led 5050

Absolute Maximum Ratings (TA=25ºC)

1/10 Duty Cycle, 0.1 msec Pulse Width. 5050 smd led chip, smd 5050 led chip, chip smd led 5050, 0.2w smd led chip

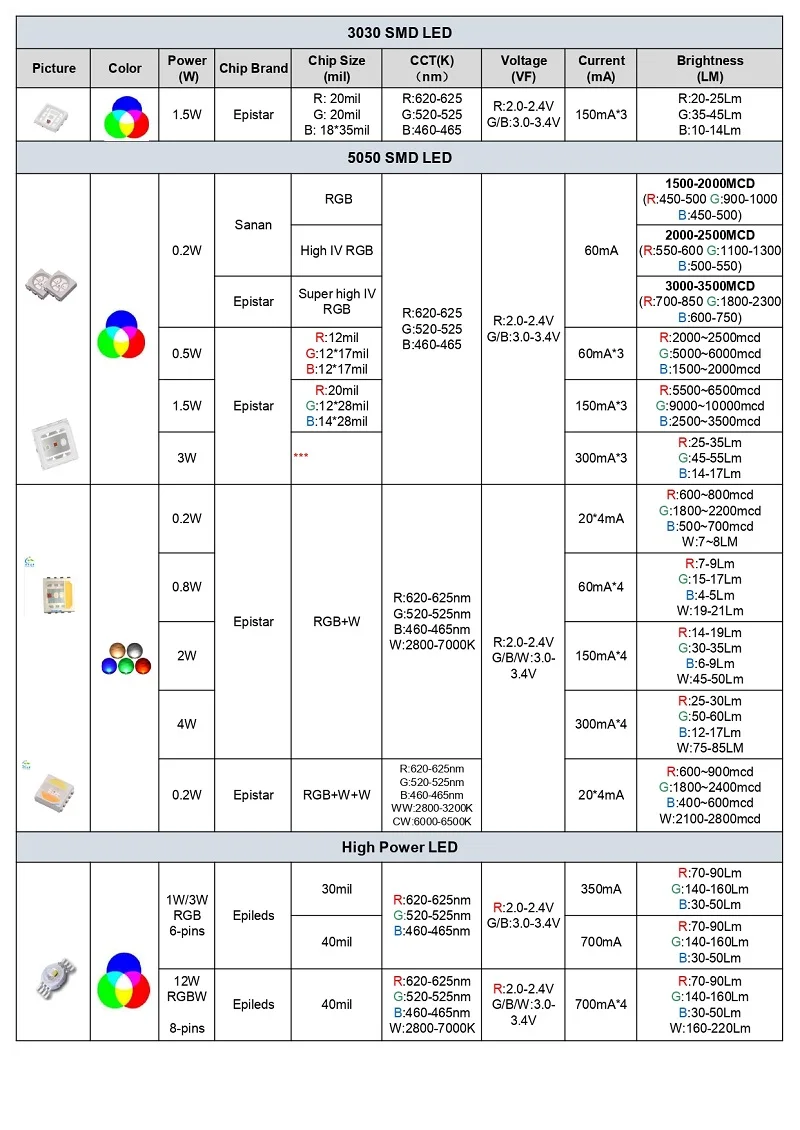

Initial Electrical/Optical Characteristics (TA=25ºC)  RGB high power led chip 0.5w

Cautions RGB high power led chip 0.5w rgb led 5050

1)Soldering Conditions

Number of reflow process shall be less than 2 times and cooling process to normal temperature is required between first and Second soldering process.

2)Static Electricity

It is recommended that a wrist band or an anti-electrostatic glove be used when handling the LEDs.All devices, equipment and machinery must be properly grounded.Damaged LEDs will show some unusual characteristics such as the forward voltage becomes lower, or the LEDs do not light at the low current. Criteria : (VF > 2.0V at IF=0.5mA)

3)Moisture Proof Package

It is recommended that moisture proof package be used .

4)Storage

Before opening the package ,The LEDs should be kept at 30°C or less and 70%RH or less. The LEDs should be
used within a year.

5)After opening the package, The LEDs should be soldered within 24 hours (1days) after opening the package.

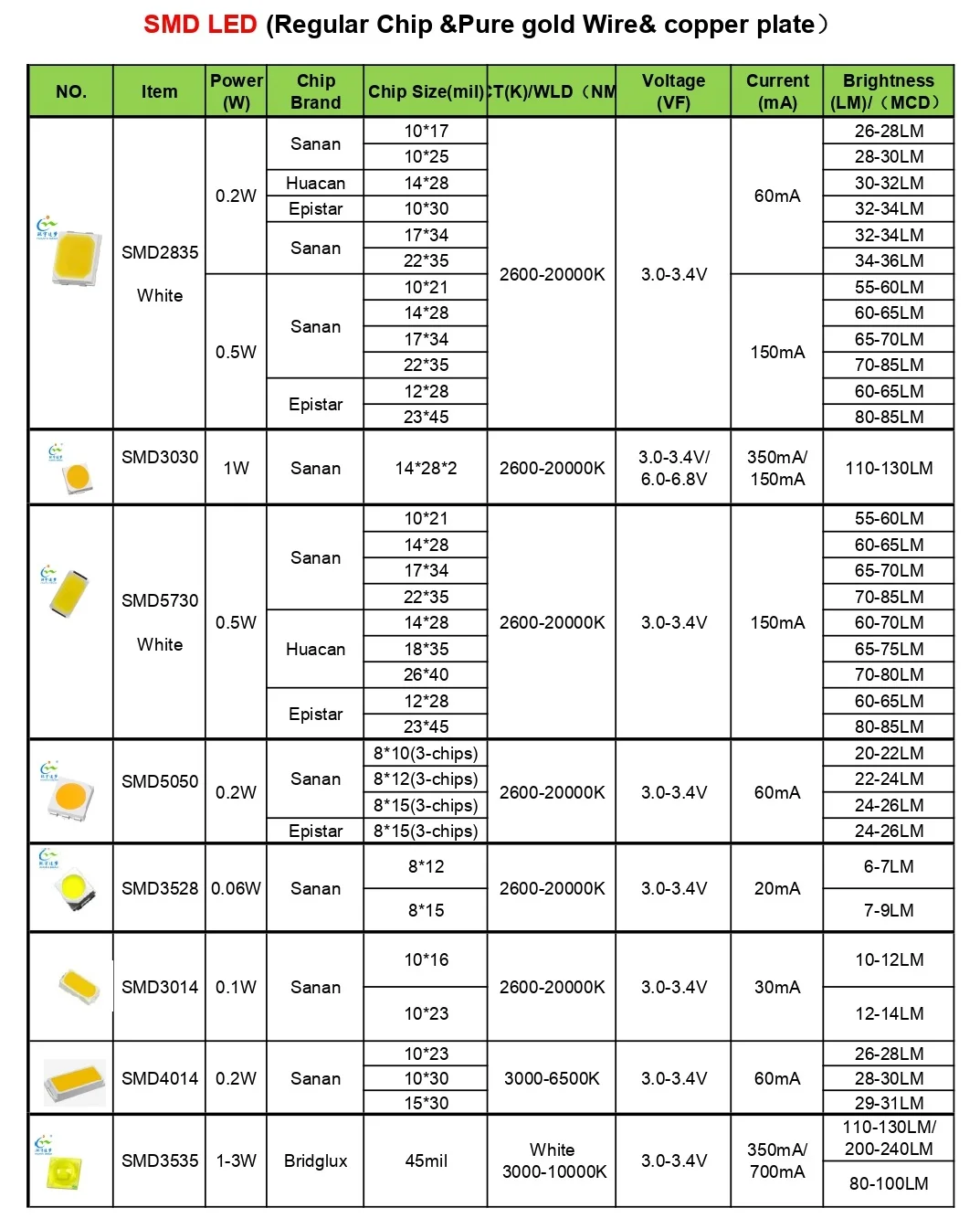

Except the 5050 led, we also supply Samsung5630,SMD5730,SMD2835 ,SMD3014,SMD3528,SMD4014 SMD3030,1W 3W high power etc smd led chip, welcome to sent inquire.
