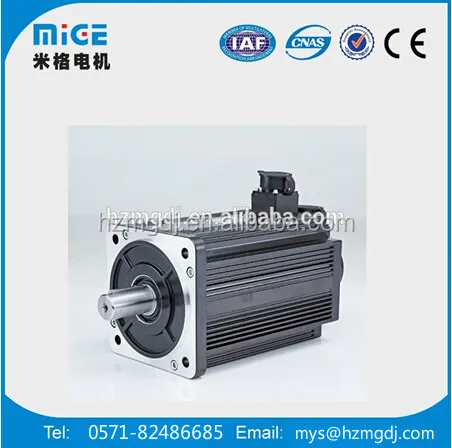

MIGE the latest 130 series 1KW 10Nm robot servo motor

Motor model

130ST-M10010

ated power(Kw)

1.0

Rate volage(v)

220

Rated current(A)

4.5

rated speed(rpm)

1000

Rated torque(N.m)

10

Peak torque(N.m)

20

Voltage constant (V/1000r/min)

140

Moment coefficient(N.m/A)

2.2

rotor inertia(Kg.m2)

1.94*10-3

Resistance line-line (Ω)

2.7

Inductance line-line(m H)

8.8

Electrical time constant(ms)

3.26

Encoder line(PPR)

2500

Insulation class

Class B

Grade of Protection

IP65

The operating of Evironmental conditions

Temperature

-20~ + 40 degree

Humidity

Below 90%RH No dewing

Environment

Far away active gas,combustible gas, oil drop,ash.

Other special requirement please contact the MIGE Technology to negotiate.

Weight(kg) 10.2
