Product Overview

Description





Metal mesh shielding film is a new type of shielding film. The nano metal wire is tilted at a certain angle and processed together with the polyester film through a special process. Compared with the traditional metal wire mesh, it has better sense of feeling, no net feeling, natural vision, no distortion in both dynamic and static scenes, and convenient construction. It can be cut into any shape, with adhesive backing, and directly posted on the surface of transparent tempered glass, plexiglass or PC / PMMA board and other transparent materials. The surface of the film is a metal layer, which is convenient for grounding and simple for operation. The special structure of the shielding film converts the diffraction of electromagnetic wave into internal energy, which has the advantages of non reflection of signals.















item
value
Material
PET
Type
Metallized Film
Usage
Emi Shielding
Feature
Flexible & Conductive
Hardness
Soft
Transparency
Transparent
Place of Origin
China
Model Number
EMI-150
Product Name
150Mesh Emi Shielding Film
Thickness
125um
Width
1500mm
Adhesive
Available
Color
Transparent
OCA Thickness
25um
Transmittance
>76%
Line Width
17um
Line Spacing
143um
Resistance
<0.09ohm/sq


Diffuse Reflection@45°
≤0.14%
Specular Reflectivity@45°
≤1.2%
Standard Angle
45°+/-1°
Resistance
≤0.09ohm/sq
Total Thickness
125um
OCA Thickness
25um






OPTICAL PERFORMANCE
In addition to increasing transparency, blackening reduces diffuse reflection, even in the
sun, the grid is visible.


SPECIFICATION
The line spacing of 143um (150 OPI) is the best spacing for electronic displays. The
metal surface is blackened, no need to adjust the angle, to avoid moire fringes, it is
an anti-glare shielding film.


Metal Mesh Film For Medical Display
There is glue on backside, can directly stick to LCD screen or glass or other panel, easy operation!
Metal Mesh Film For Military Screen
High transmittance, no moire fringe!


Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

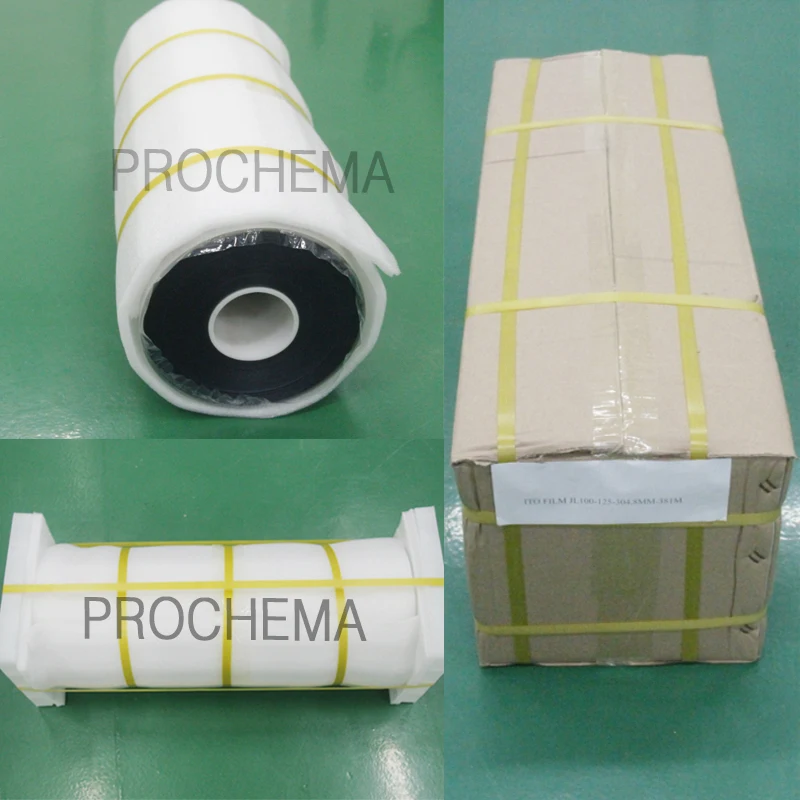

plastic bag and carton




Our company is in a leading position in the innovation and development of display &
window EMI/RFI shielding solutions. With the design update of display size and definition,
the new generation of nano mesh film has higher transparency and stronger shielding
effect. Adopting the innovative principle of nano-alloy wire conductive printing process, the
introduction of etching grid technology, and the optimized display mode, making our
mesh film to be the first choice for window and touch screen shielding.






Mianyang Prochema Commercial Co., Ltd. is a leading manufacturer of ITO transparent conductive films for EMI,EL,E-PAPER,FPV(flexible solar cell),LCD etc. And Prochema is in supply of resistive Touch screen, capacitive touch film as per customer design. Meanwhile we still go on with our old business of insulation films.

Below is the list of supplying:
1.ITO PET FILM
Resistance:35, 50,100 ,150 ohm/sq
Thickness:25-175microns
Width:305-1220mm
2.Touch screen
Type: resistive , capacitive
Size:2-22"
Form:film+glass,film+film, film single layer
3.Insulation film
Material:FEP, PFA,PVDF,PCTFE,ETFE ,Polyimide,polyester film
Insulation temperature range:130-265C


Prochema has well trained staff to help you source in China for other special materials. Keep watching us, and start enjoying the excellent service.

We are looking forward to your cooperation with us for mutual benefits.




1. who are we?
We are based in Sichuan, China, start from 2004,sell to South Asia(30.00%),North America(20.00%),Eastern Europe(18.00%),South America(10.00%),Mid East(10.00%),Western Europe(5.00%),Southern Europe(5.00%),Domestic Market(2.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Transparent Conductive Film,Printing Film,Touch Control Film and Panel,Electronic Insulation Film,Handwriting Pad

4. why should you buy from us not from other suppliers?
1.Self produce ITO PET film
2.Professional expereinc in insulation film,wide knowledge service
3.TUV and Alibaba audit gold member,honest business
4.Stable quality and reasonable cheap price

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
