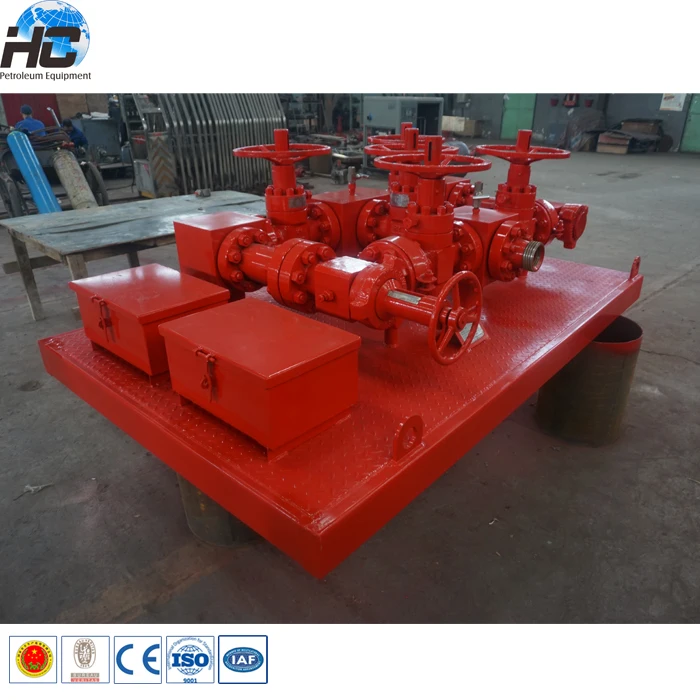

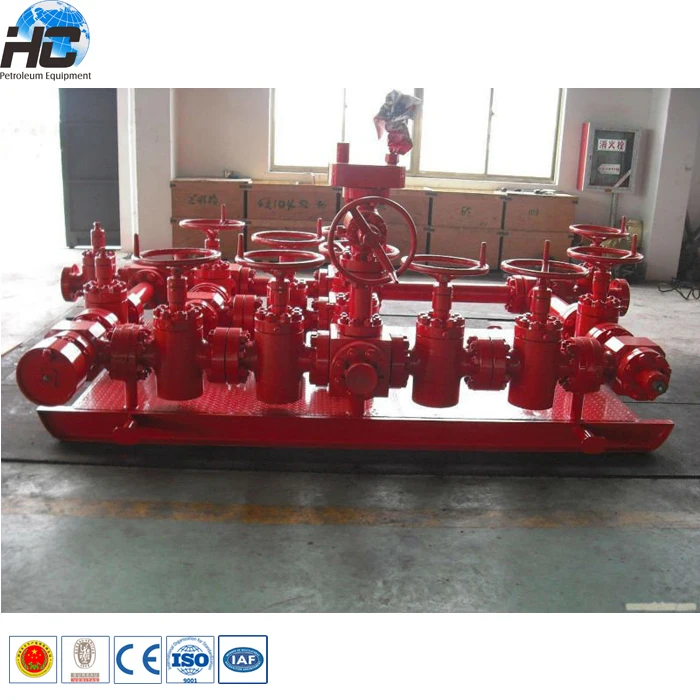

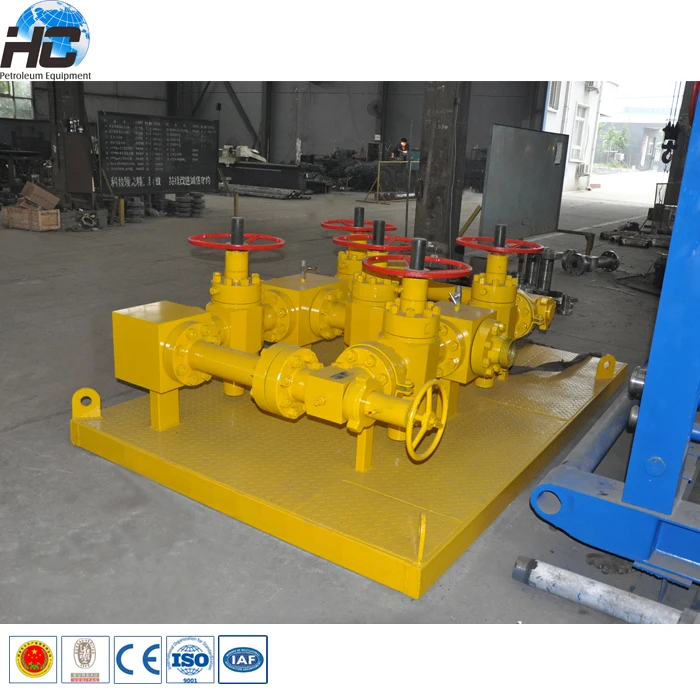

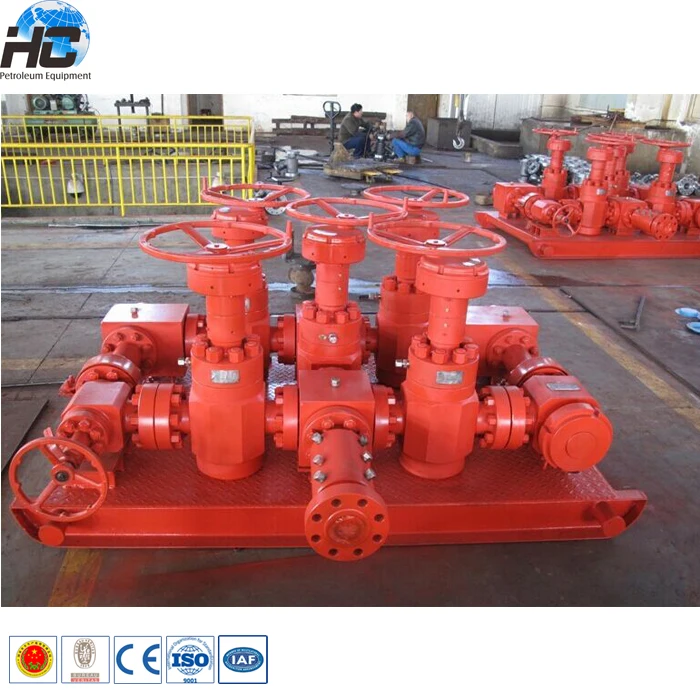

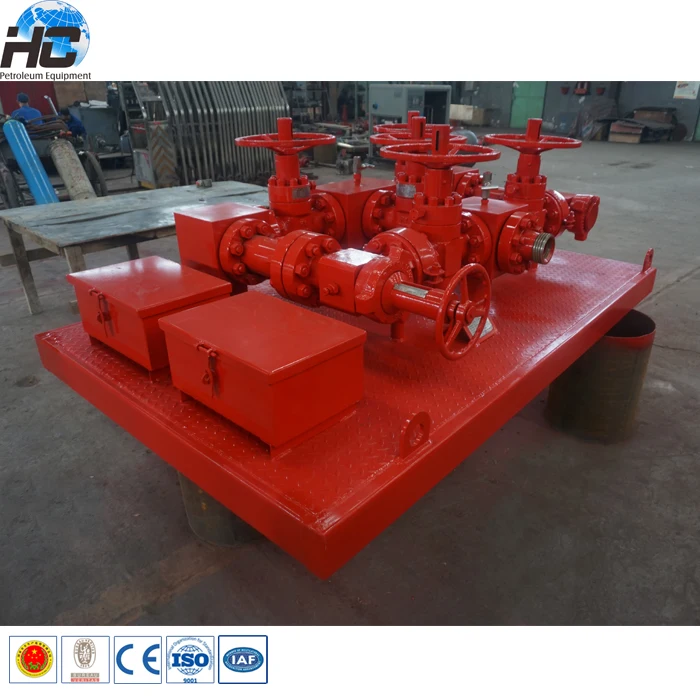

Oilfield manifold blowout preventers choke manifold with adjustable choke valve
- Category: >>>
- Supplier: HK HUICHUAN INTERNATIONAL PETROLEUM EQUIPMENT CO. LIMITED
Share on (60532298396):
Product Overview
Description
Oilfield manifold blowout preventers choke manifold with adjustable choke valve
Product Description
Choke manifold is the necessary equipment to control the flow rate and reduces well pressure before the flow enters the processing equipment for protecting the well. It can be equipped with hydraulic control panel for remote control.
Technical parameters of Oilfield manifold blowout preventers choke manifold with adjustable choke valve as below:
Pressure | 35MPa | 70MPa | 105MPa |
Parameters | |||
Color | Blue | Yellow | Red |
Model | CM52-35 | CM78-70 | CM78-105 |
Design Pressure | 35MPa | 70MPa | 105MPa |
Weight | 2530kg(5578lb) | 3580kg(7892.5lb) | 4630kg(10260lb) |
Dimension(L×W×H) | 1802×1339×680mm | 2516×1824×799mm | 3270×2371×1038.7mm |
70.9×52.7×26.8in | 99.1×71.8×31.5in | 128.83×93.34×40.95in | |
Material Level | EE | EE | EE |
Product specification level | PRL3 | PRL3 | PRL3 |
Working Temperature | PU(-29℃~121℃) | PU(-29℃~121℃) | PU(-29℃~121℃) |
Product performance level | PR1 | PR1 | PR1 |
Nozzle | Fixed and adjustable nozzle | Fixed and adjust table nozzle | Fixed and adjust table nozzle |
Characteristics | Five gate design | Five gate design | Five gate design |
work medium | Mud,oil and drilling fluid | Mud,oil and drilling fluid | Mud,oil and drilling fluid |
Connection type | Flange | Flange | Flange |
Features of petroleum and natural gas industry standpipe oilfield manifold blowout preventers with adjustable choke valve as below:
• Control the well fluid flow;
• specially used for tesing in oil or gas field
• Standard two flow systems: a positive choke and an adjustable choke
• Provides a means for fluid sampling, real-time pressure and temperature monitoring, and chemical injection
• Metal-to-metal, double seal to ensure reliability in harsh environments
• 15000psi adjustable nozzle adopts gear handle,reducing the operating torque;
• Positive choke is equipped with tungsten steel lining,making it twear-resisting and corrosion resistant.
• Can be customized upon customer request
• Complies with API-6A (PSL-2,PR1), NACE MR0175)
Company Information
Certifications

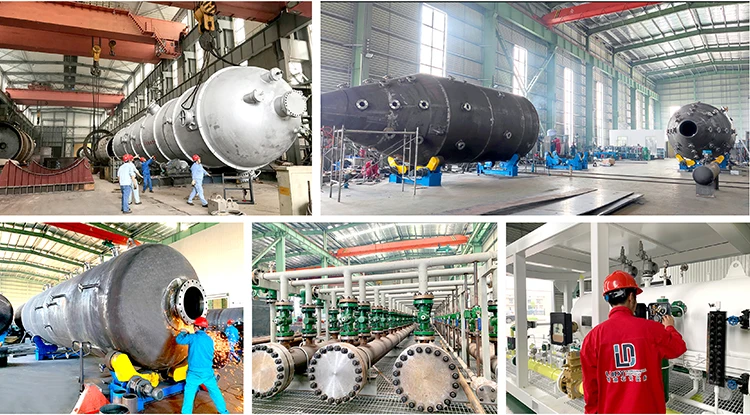

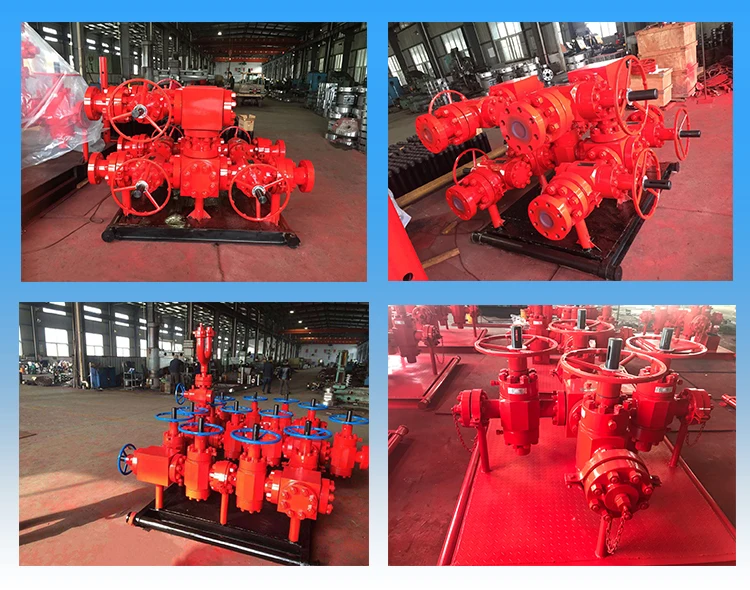

Factory Show
Workshop
Our main factory located in JiangSu province,YanCheng city, and we have professional design and product team.We have got ASME certificate. And we could design and manufacturer based on client's demand.The following photos are part of our products.If you are interested in our products, welcome to contact with us.
