Chocky bar CB25/40/50/65/90/100/130/150
- Category: >>>
- Supplier: Hunan Hyster Material Technology Co. Ltd.
Share on (60532707166):
Product Overview
Description
Hyster White Iron Wear Block(700BHN-63HRC)-- Range of products based on a composite white iron wear surface metallurgically bonded to a weldable mild steel backing plate. Wear block is fixed to the surface of fixed and mobile plant equipment, such as mining buckets and chutes, where protection from severe abrasion is required.
Hyster Overlay Wear Plates--Chromium carbide clad wear plate manufactured in HYSTER and marketed worldwide. Overlay plate is well suited to fixed and mobile plant equipment associated with the construction, mining and resource industries; particularly iron ore, coal, cement and steel applications.
Hyster NiHard--Abrasion and high impact resistant product. It is often cast into billets and liners and used extensively in the mining, construction and mineral processes industries, particularly in bulk handling situations.
Hyster Tungsten Carbide—High standard abrasion resistant product. It is often used where the application has no impact force or very slightly impact.
Features and Benefits
Reduced Maintenance
• Protects any high wear area, eliminating the need for frequent rebuild or replacing wear plate
• Lasts longer than other wear protection
• Excellent alternative to hard facing which can lead to cracking of major structural components Increased Productivity
• Reduced maintenance ensures maximum machine availability
• Wide variety of shapes and sizes allows small areas to be protected, minimizing the affect on penetration and material flow
Lower Operating Cost
• Can be fit to flat or curved surfaces, eliminating the need to have wear plate formed to fit
• Bucket life is significantly increased, minimizing repair and new bucket orders
Typical Data Numbers:
>white iron wear blocks life is 50% greater than that of Ni Hard Irons.
>At least 7 times longer than A.R. type steels 360/400 BHN
>5 times the wear rate of Manganese Steel
>3 times the wear rate of Tapco Weld Hardfacing
>4 times the wear rate of Astralloy-Vulcan
>16 times the wear rate of Carbon Steel
>3 times the wear rate of 500 BHN A.R. Plate
ABOUT US
About Us
Hunan Hyster Material Technology Co., LTD. was founded in 1995, we are a professional manufacturer & exporter of composite Bi-metallic wear blocks/wear plates, Bimetallic wear pipes, Chocky bars, Wear buttons(CrMo white iron vacuum brazed onto a mild steel base plate, hardness 63HRC/700BHN), Chromium carbide overlay wear plates, Ni-hard wear Liners/Billets, and other wear castings for Mining, Quarrying, Construction and other heavy industries. We factories are located in New and High-Tech Development Zones of Changsha city, capital of Hunan province, middle of China.
Over 95% products have been sold to nearly 300 customers in more than 40 countries and regions, such as Australia, Canada, Brazil, America, Chile, Argentina, South Africa, Indonesia, Thailand, Mexico, Russia, Holland, as well as many other countries and areas.
Following are our laminated wear blocks:
Laminated wear blocks---the most common types are:
1) Chocky bars (CB 25. CB40, CB50, CB65, CB80, CB90, CB100, CB130. CB150)
2) Standard wear bars (DLP201A, DLP 125, DLP184, DLP528, DLP619, DLP451, DLP450, DLP2230, DLP2017, DLP4, DLP919, DLP1191, DLP515, DLP200, DLP271, DLP270, DLP508, DLP115, DLP337, DLP1101, DLP343 )
3) Shaped wear bars
4) Wear buttons& donuts(WB60, WB75, WB90, WB110, WB115, WB150, DLP1920, DLP1921, DLP1994, DLP2196)
5) Shredder/Grinder hammer tips (DLP1654,90X90X50mm; DLP653,90X90X45mm; DLP1927, 90X90X55mm)
6) Bi-metallic wear plates
7) Knife edges(DLP1065-22, 203X22X50MM; DLP1265-22,305X22X50MM; DLP1065A-16, 203x16x50mm, DLP1065A-25, 203x25x62mm; DLP1265A-25, 305x25x56mm)
8) Skid bars, skid blocks(DLP412, 250x150x45mm; DLP413, 200x150x45mm; DLP414, 250x250x45mm)
9) Wafer strips, WS25, WS40, WS50, WS65;
10) Elbow wear blocks
11) Other sizes and shapes
12) Multi-function gradient cutter tooth
13) Rockbox liners
14) Micro-ledges
Overlay wear plates: standard sheet size 1500x3000mm, thickness 4+4(8mm), 6+4(10mm), 6+6(12mm), 8+5(13mm), 8+6(14mm), 10+5(15mm), 10+10(20mm), 12+12(24mm), 12+17(29mm).
FREE SAMPLES ARE AVAILABLE.
chockblock laminated
They are easy to use and install. They can be bent, cut and formed to suit different surfaces.
The standard thickness of chockybar is 23mm in thick, standard length is 240 mm, width could be from 25mm from 65mm. We can also produce according to your special requests.
Item No | Notched | Size(mm) | Length(A) | Width(B) | Wear(C) | Backing(D) | Thickness(E) | Weight(kgs) |
CB 25 | Yes | 240×25×23 | 240 | 25 | 15 | 8 | 23 | 0.9 |
CB 40 | Yes | 240×40×23 | 240 | 40 | 15 | 8 | 23 | 1.5 |
CB 50 | Yes | 240×50×23 | 240 | 50 | 15 | 8 | 23 | 1.9 |

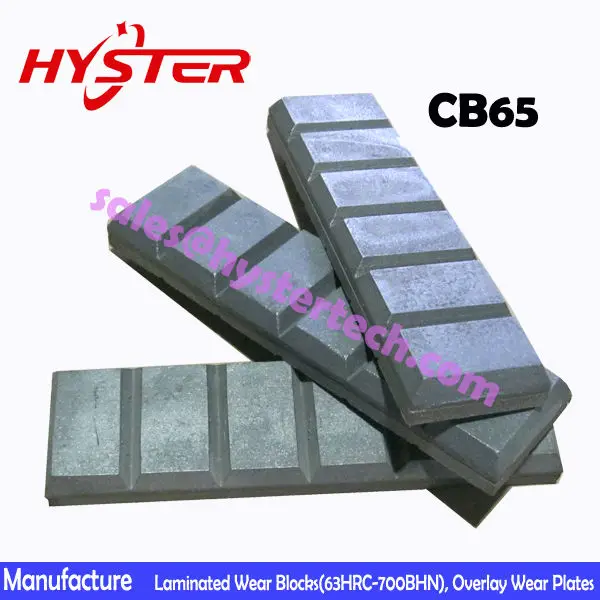

CB 65 | Yes | 240×65×23 | 240 | 65 | 15 | 8 | 23 | 2.5 |
CB 80 | Yes | 240×80×23 | 240 | 80 | 15 | 8 | 23 | 3.2 |
CB 90 | Yes | 240×90×23 | 240 | 90 | 15 | 8 | 23 | 3.5 |
CB 100 | Yes | 240×100×23 | 240 | 100 | 15 | 8 | 23 | 3.9 |
CB 130 | Yes | 240×130×23 | 240 | 130 | 15 | 8 | 23 | 5.2 |
CB 150 | Yes | 240×150×23 | 240 | 150 | 15 | 8 | 23 | 7.3 |

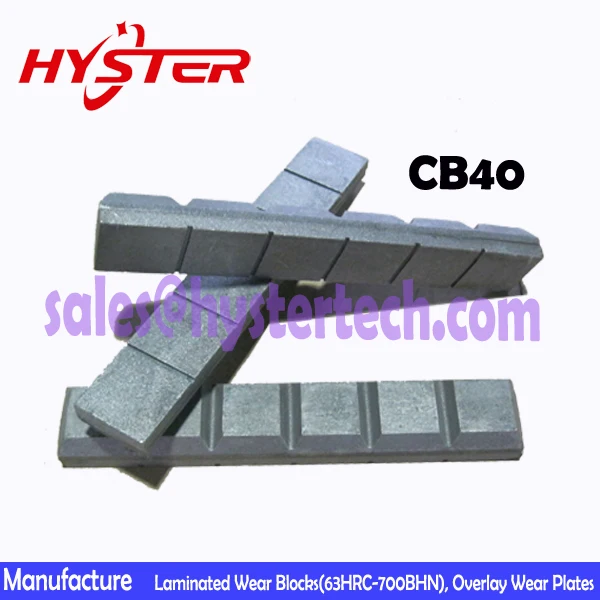

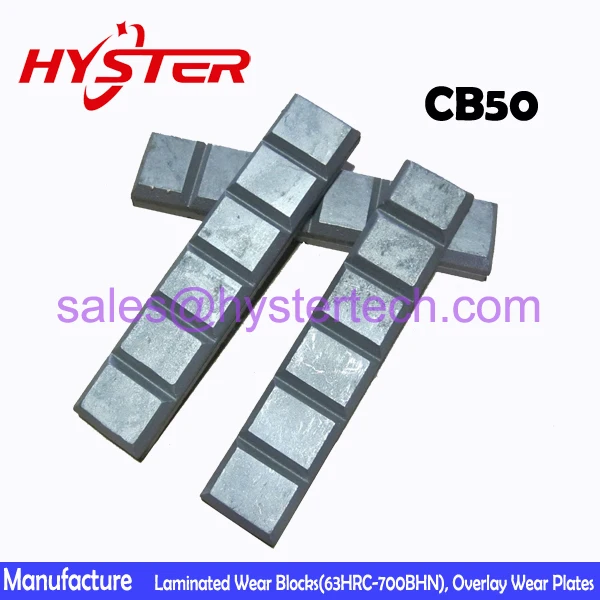

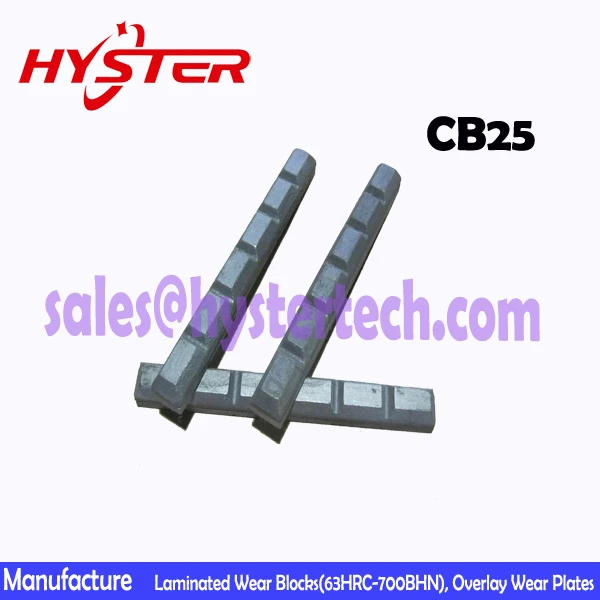

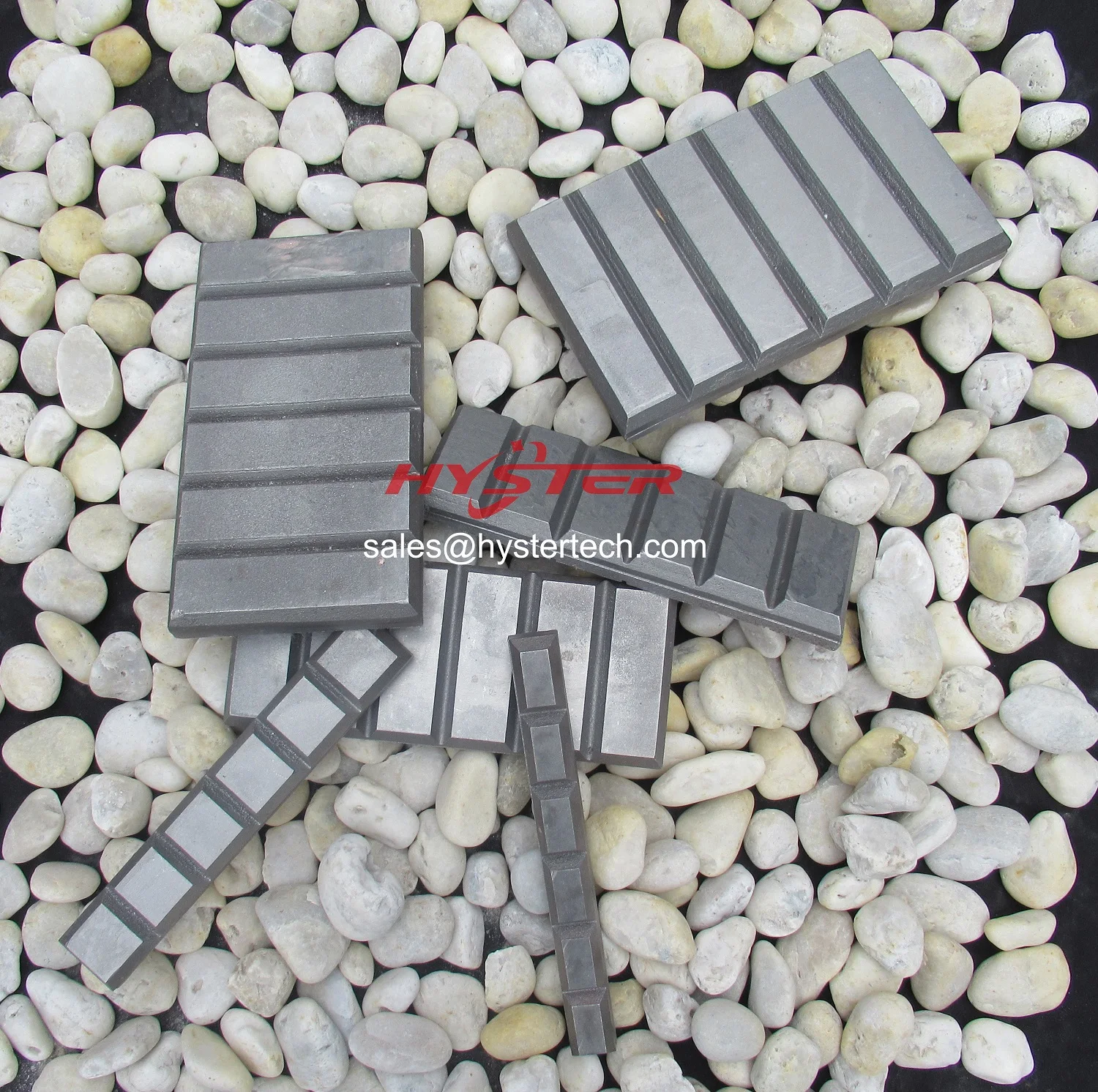

Product Photos
A. Material:
Wear portion is white iron(high chrome carbide). ASTM A532 15/3CrMo.
Impact portion is Q235 mild steel or Equivalent.
B. Chemical composition
C | Cr | Mn | Mo | Cu | P | Si | S | B.V.Nb |
2.5-3.5 | 15-18 | 0.5-1.0 | 0.5-2.5 | 0.5-1.0 | 0.02max | 0.5-1.0 | 0.02max | 0.1-0.5 |
C. Mechanical Property:
1) Tensile Strength 630Mpa Min.
2) Shearing Strength 250Mpa Min.
3) Hardness 63 HRC
D.Microstructure

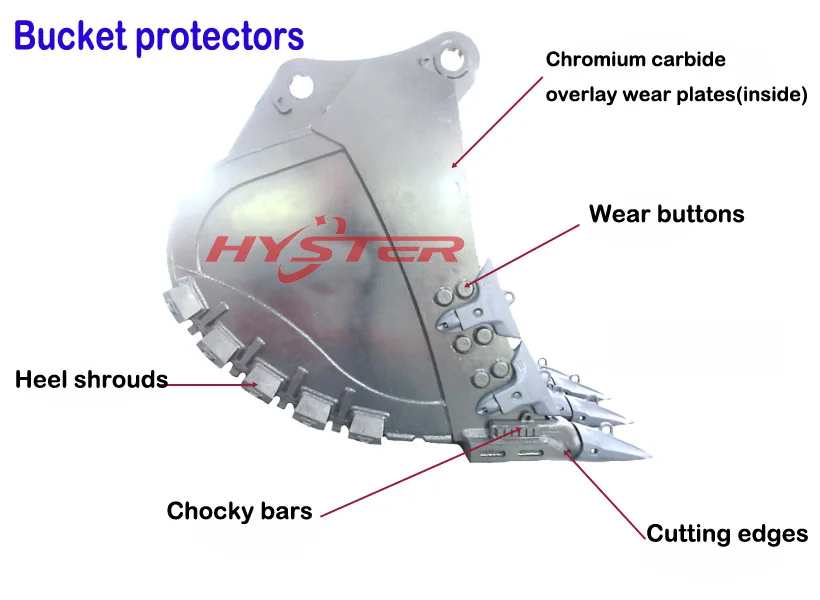

E. Actual Application
Packaging & Shipping
Packing Material:
Option 1. Poly-wood crates, Poly-wood pallets and Oil film, fastening belt.
Option 2. Carton, PVC, fastening belt.
Packing Photos:
HYSTER LABORATORY
Quality Guarantee
Quality Guarantee
Quality Report to be submit ahead of delivery: include Metallographic Analysis & Hardness & Chemical Composition Analysis & Welding Quality(UT) & Dimensions & G65 Dry Sand/Rubber Wheel Abrasion Test. 12 month warranty on quality.
The company is certified with ISO9001:2015. We have a dedicated R&D team that can tailor various products with special requirements (such as wear resistance, corrosion resistance, impact resistance, heat resistance, etc.) and provide professional wear resistance solutions. Since its establishment, the company has carried out a lot of experiments on improving the wear resistance and composite bonding strength, various heat treatment technology on different products, and the selection of wear-resistant alloys under different working conditions. The production process and product performance are continuously optimized.
Why Choose Hyster?
Why Our Partner Choose Hyster?
1. We have completly production line. Annual output of bi-metallic wear blocks/bars/plates is more than 3000tons, capable to produce about 1200 different sizes and shapes; annual output of wear-resistant castings is more than 3000 tons, and hardfacing wear plates more than 2000 tons.
2. We have a very skilled team of workers and engineers with more than 15 years of experience.
3. We have independent research and development capabilities.
4. We are fully equipted with all necessary testing devices.
5. Hyster has its own License for Import and Export and also a professional team of sales staff, who are familiar with English, Spanish, Russian and international logistics.
How We Work With Our Partners?
1. We always welcome OEM / Distributor / Agent / Dealer.
2. We supply continuously R&D Support.
3. We guarantee the fastest Service & Delivery.
4. We provide the most competitive Price & Top-grade Quality.
> Confidentiality > Professional > Innovation > Efficient
