Conching is a modern process in making chocolate. Characteristic taste, smell and texture of chocolate are developed at this stage.
The refining process is to reduce the particle sizes of both cocoa solids and sugar crystals in finished chocolate.

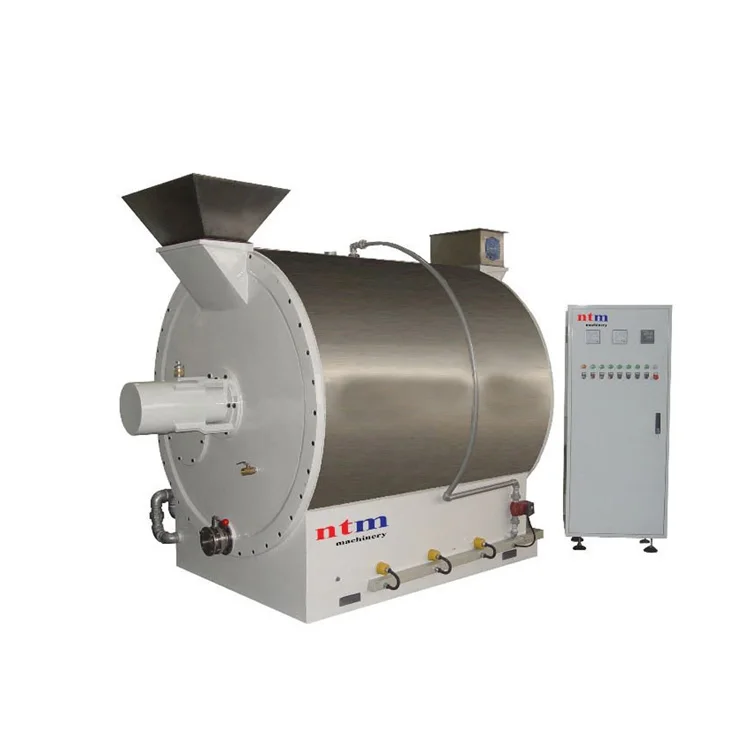

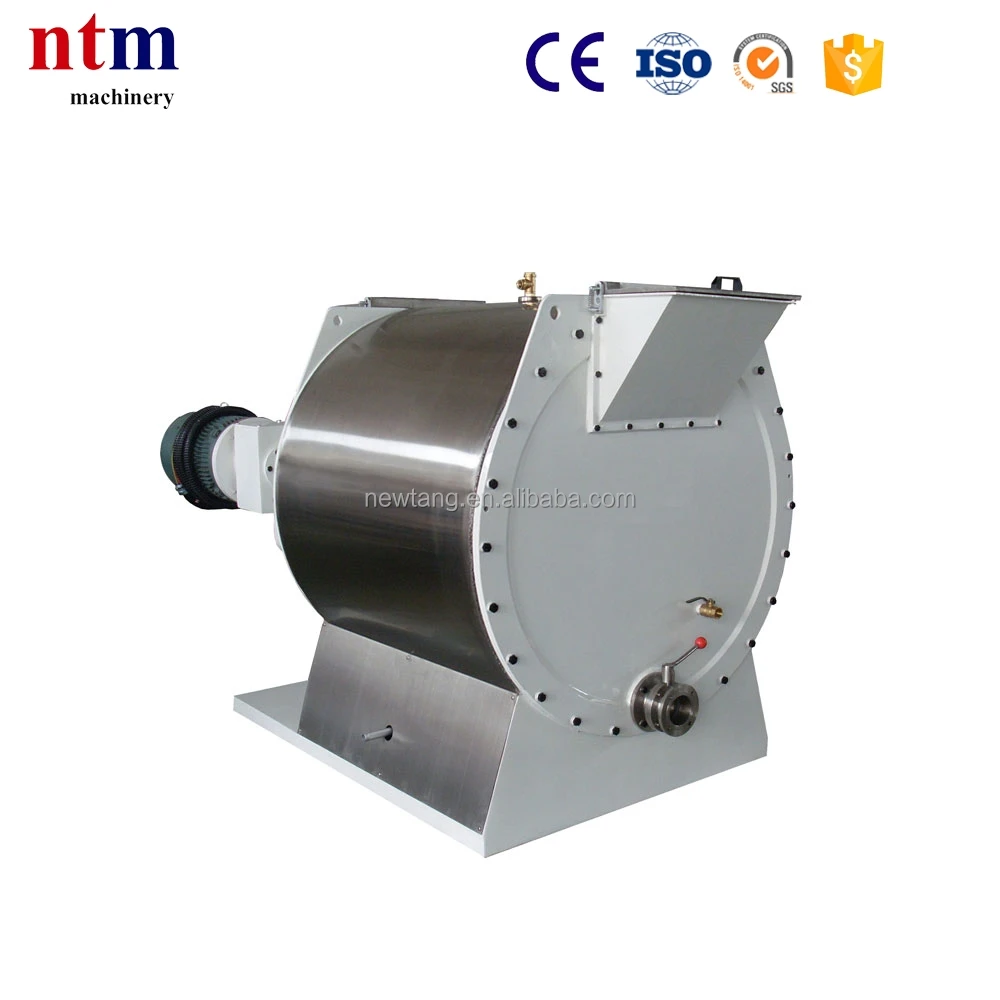

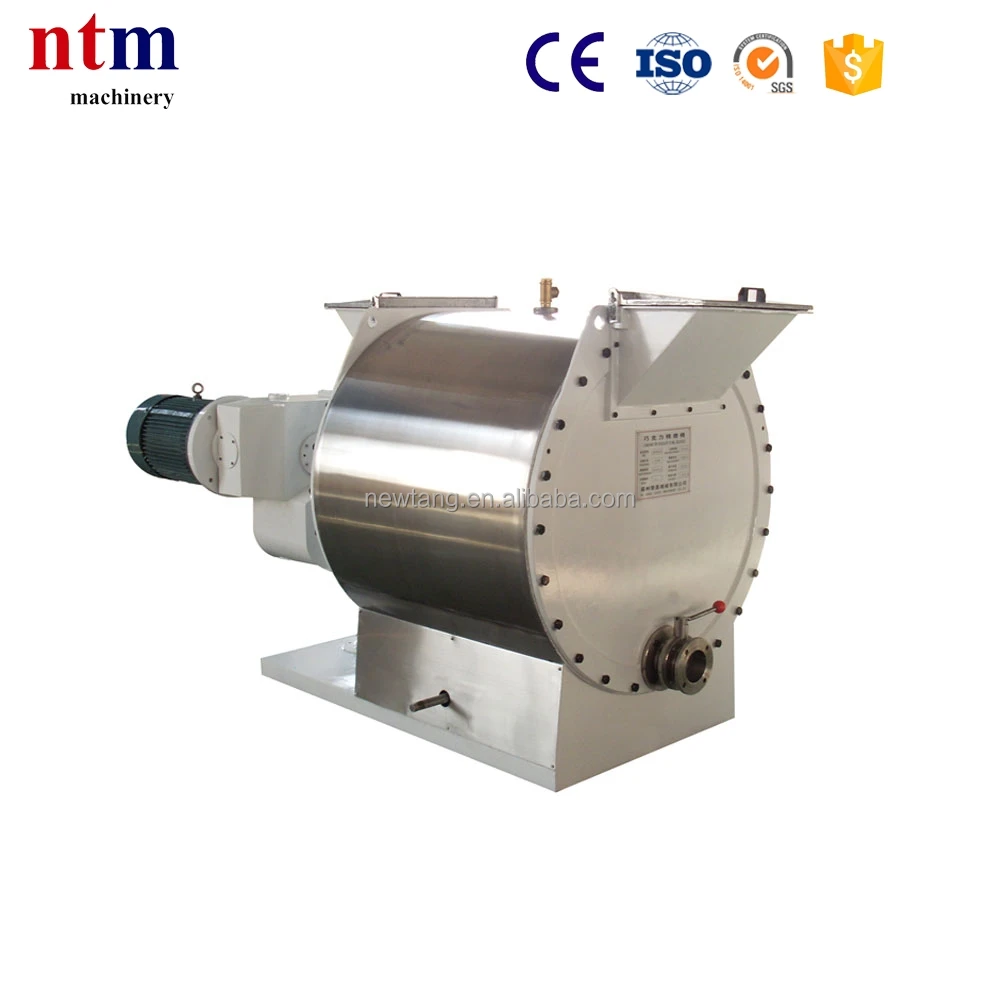

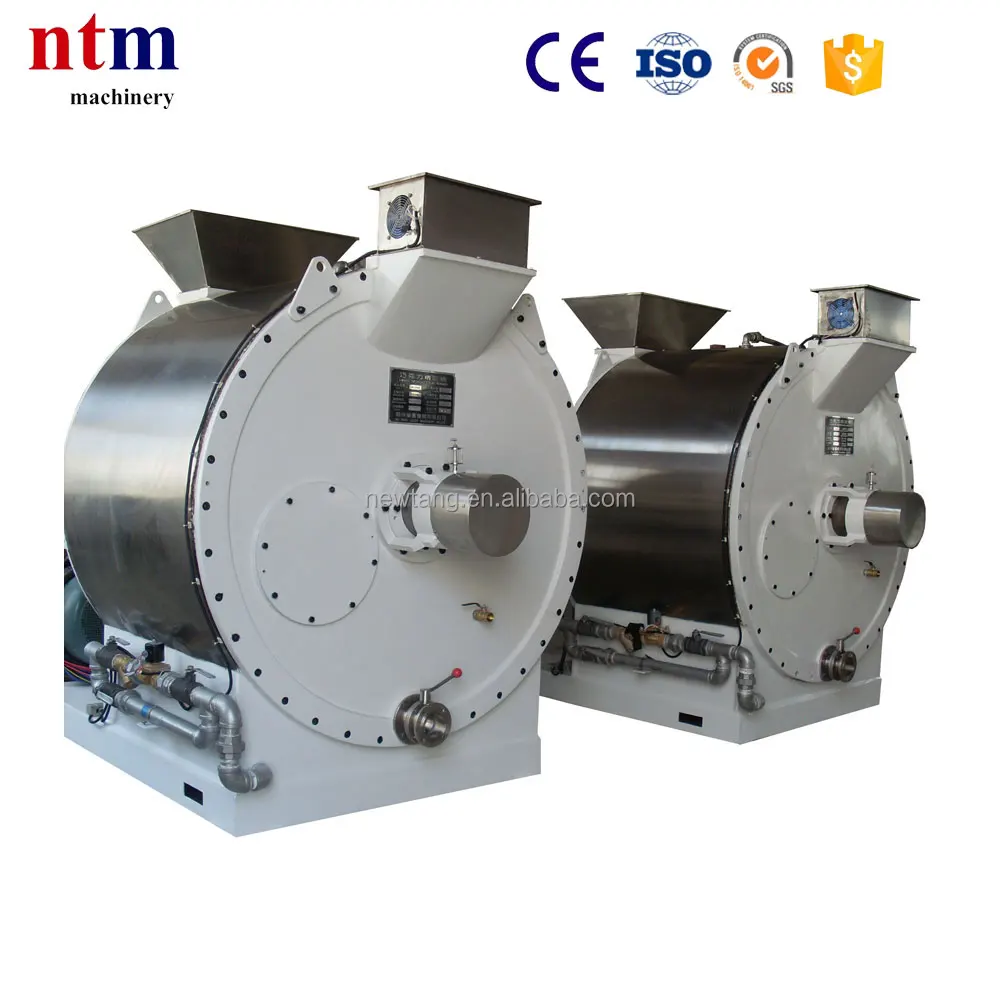

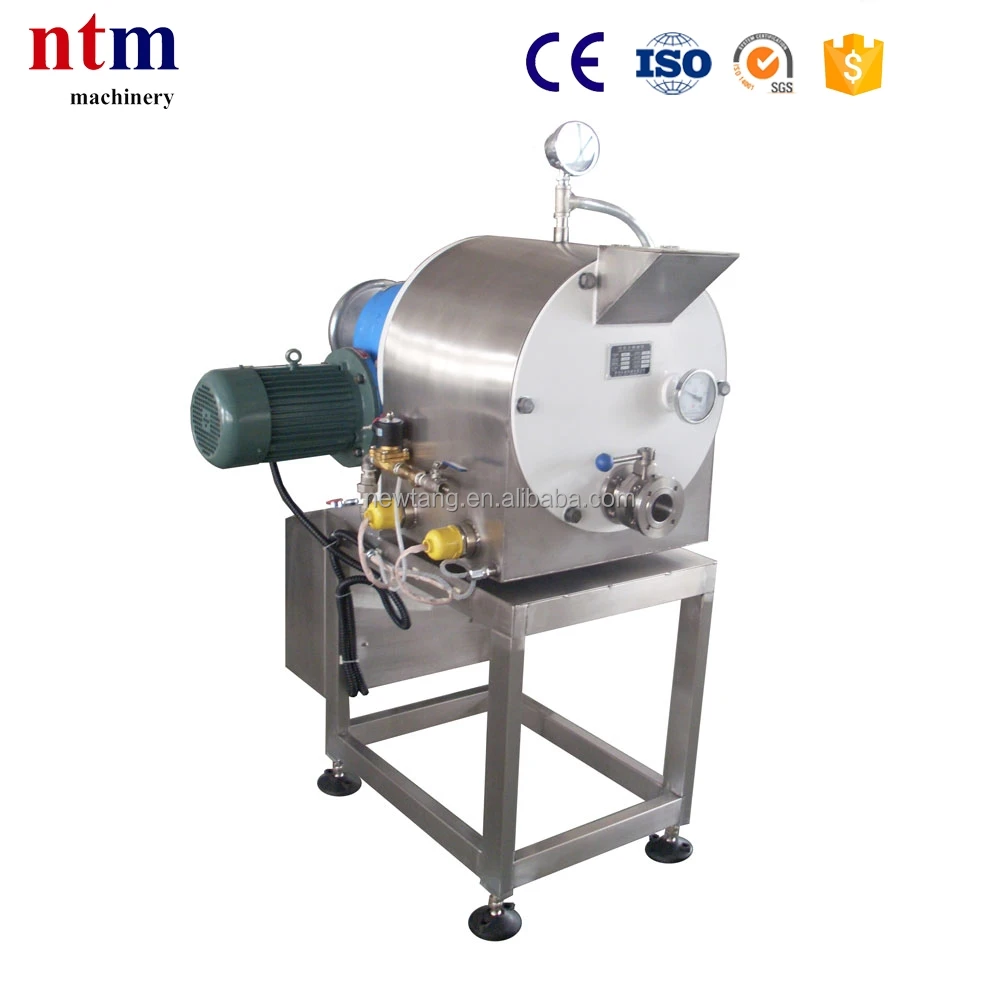

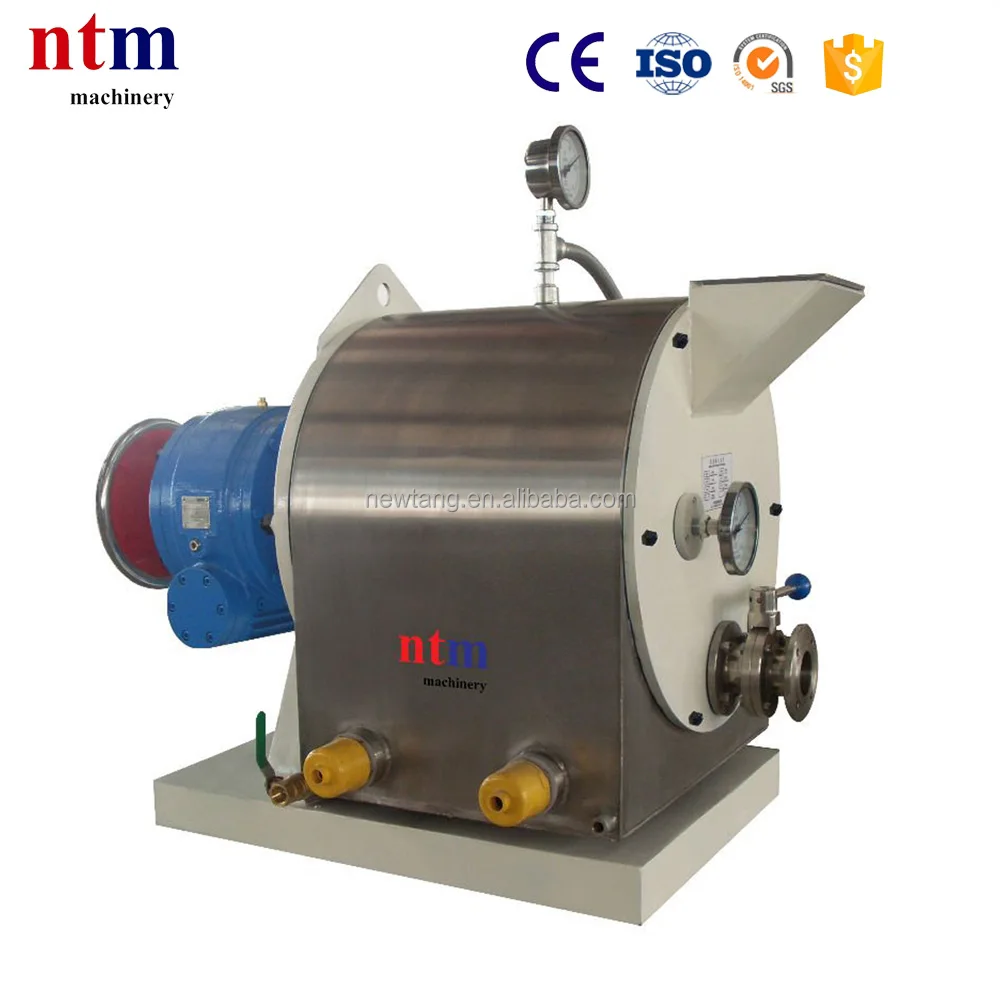

The chocolate conche refiner is heated by electric power. The behind cover is installed with the ventilating fan, surface cover made by SUS304, others are made by carbon steel with paint.
The material of the lining bars, scrapers are 65Mn after heating treatment, it can prelong their life. The base and gear box are cast iron, so it will be more stable and can make sure the fineness degree.
Model
Max Capacity(L)
Fineness Degree(um)
Conching Time(hrs)
Power(kw)
Weight(kg)
Dimension(mm)
JMJ40
40
20-25
7-9
2.2+2heating
360
1100*800*1100
JMJ500
500
20-25
12-18
15+7.5heating
2800
2500*1080*1370
JMJ1000
1000
20-25
14-20
22+7.5heating
3500
2780*1330*1800
JMJ2000
2000
20-25
18-22
37+9heating
5300
3320*2000*1950
JMJ3000
3000
20-25
18-22
55+9heating
8500
4200*2000*1950
