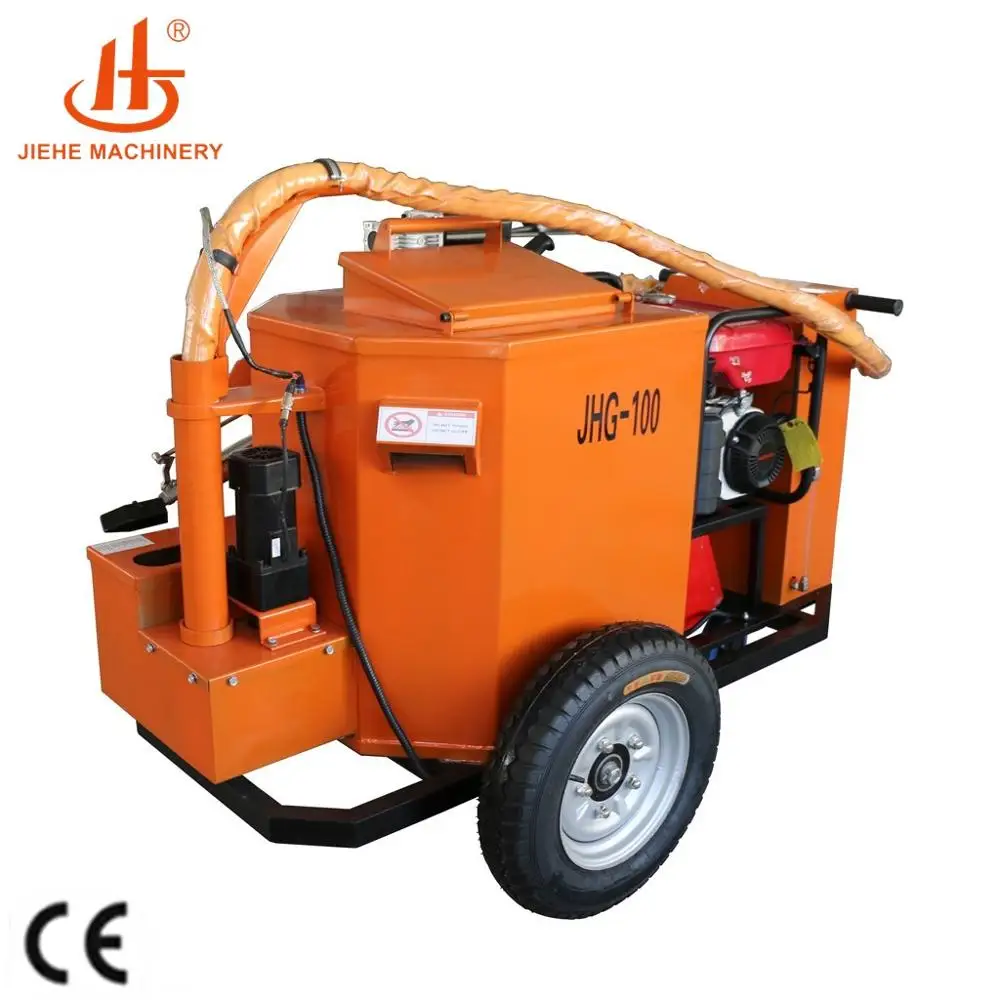

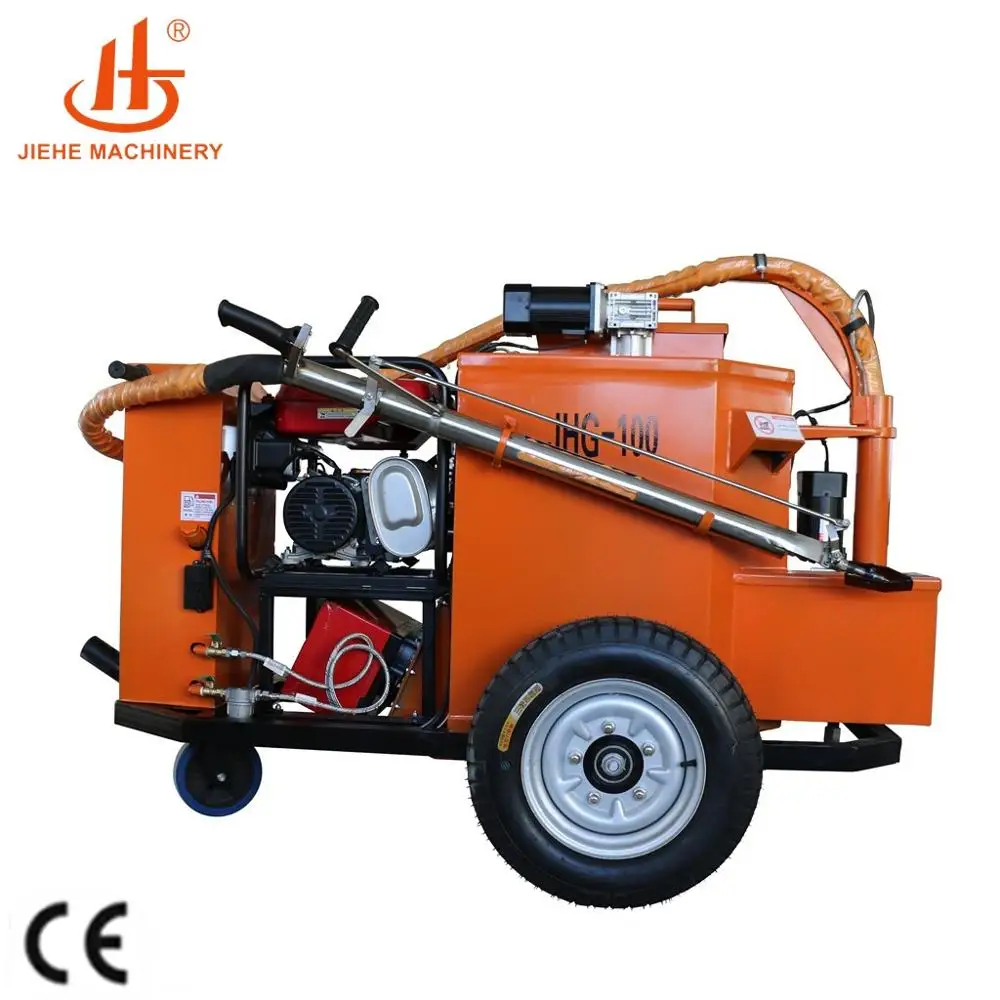

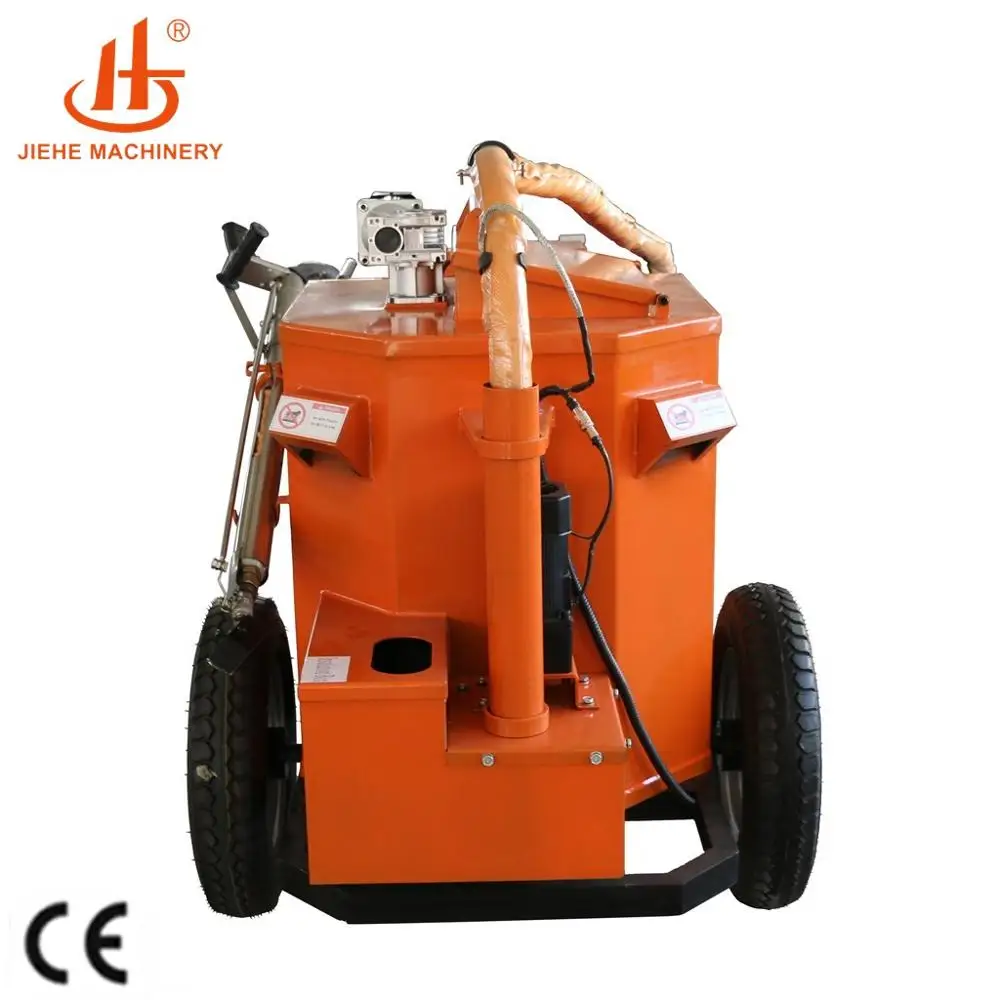

asphalt crack chip sealer tar machine,crack sealing machine JHG-100
Product Description
Applications
The crack pouring of hignway,municipal road,airport runway,country road,neighborhood and factory road ,etc.
Features and Benefits
1.To clean energy fuels, easy to use
2.Equipped with generators, providing enough power
3.Conduction oil circulation, the manual mixing, so that uniform heating fast, insulation lasting
4.Discharging pipeline heating, no need of cleaning
5.Control operation, adjustable flow
6.For ordinary asphalt and glue can be used
7.Rear universal rotation, can seam irregular cracks
8.Outlet adjustable, ensure the filling effect
9.It is a economical and environmental-friendly product.
Detailed Specification:
Model
JHG-100
Generator
Honda 2.2KW ,Output power.50HZ
Volts
220VRotateSpeed/Frequency:4000rmp(50HZ)
The length of electric heating tube
5M
Conduction oil
15L
Stirring Method
Automatic mixing style
Hot melt kettle volume
100L
Feeding Pump
Oil circulation heating pump
Combustor
Ltalian Riello combustor
Temperature control system
Automatic control by computer with digital display screen.
Heating method
Conduction oil indirect heating and extemal oil pump circulating heating
Feeding Mechanismrol
The outer material pump, the infinite speed regulation control, positive and negative control
Filling material heating time
40 minutes under normal temperature
Feeding mouth size
280*380
Operation weight
265kgs
Package Weight
305kgs
Size
1900*1050*1300mm
Product Details

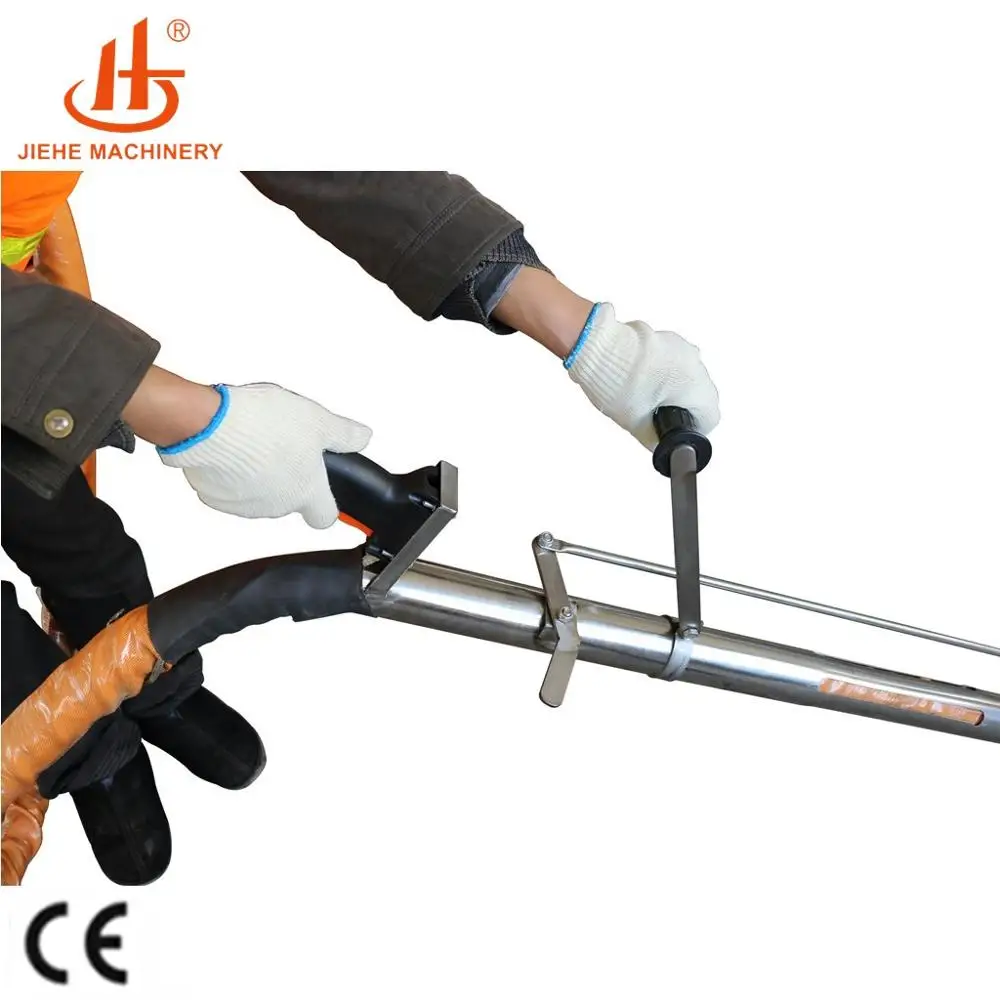

Picture1: Switch on the handle, can be control the material flow easily.

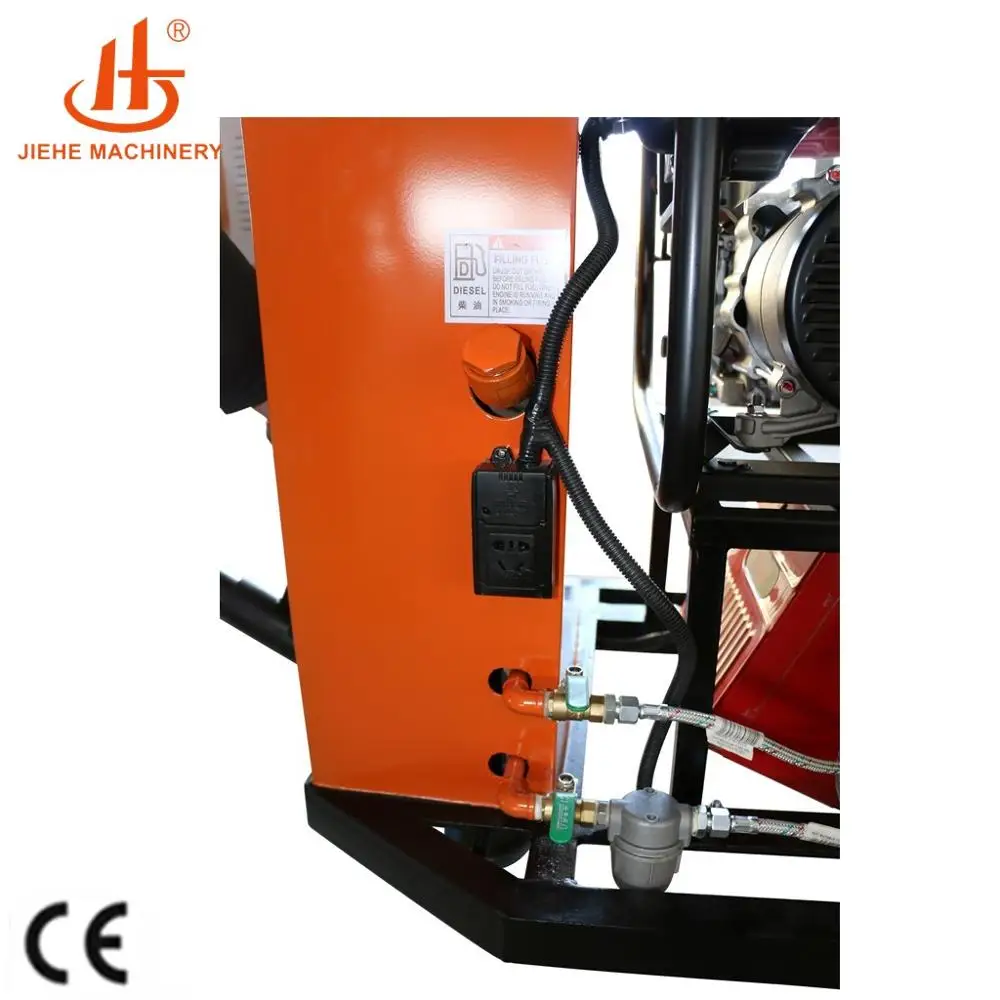

Picture2: Integration of electrical installations.
Picture3: Automatic mixing style, construction costs.
Picture4: With a single wheel in front .easy for construction.
Picture5: With a traction device for easy transport.
Performance and Effect:
Following photoes token in Norway construction site.
Unit without traction and wheels can be plated on your truck.
Click to see other products:
Packaging & Shipping
T/T 30% deposit,the balance against the copy of B/L Or L/C at
sight.
Our packaging is iron frame and carton generally.If customer have other requests, we will try to accommodate.JHG-100 packaging dimensions(mm) is: 1900*1050*1300mm.
