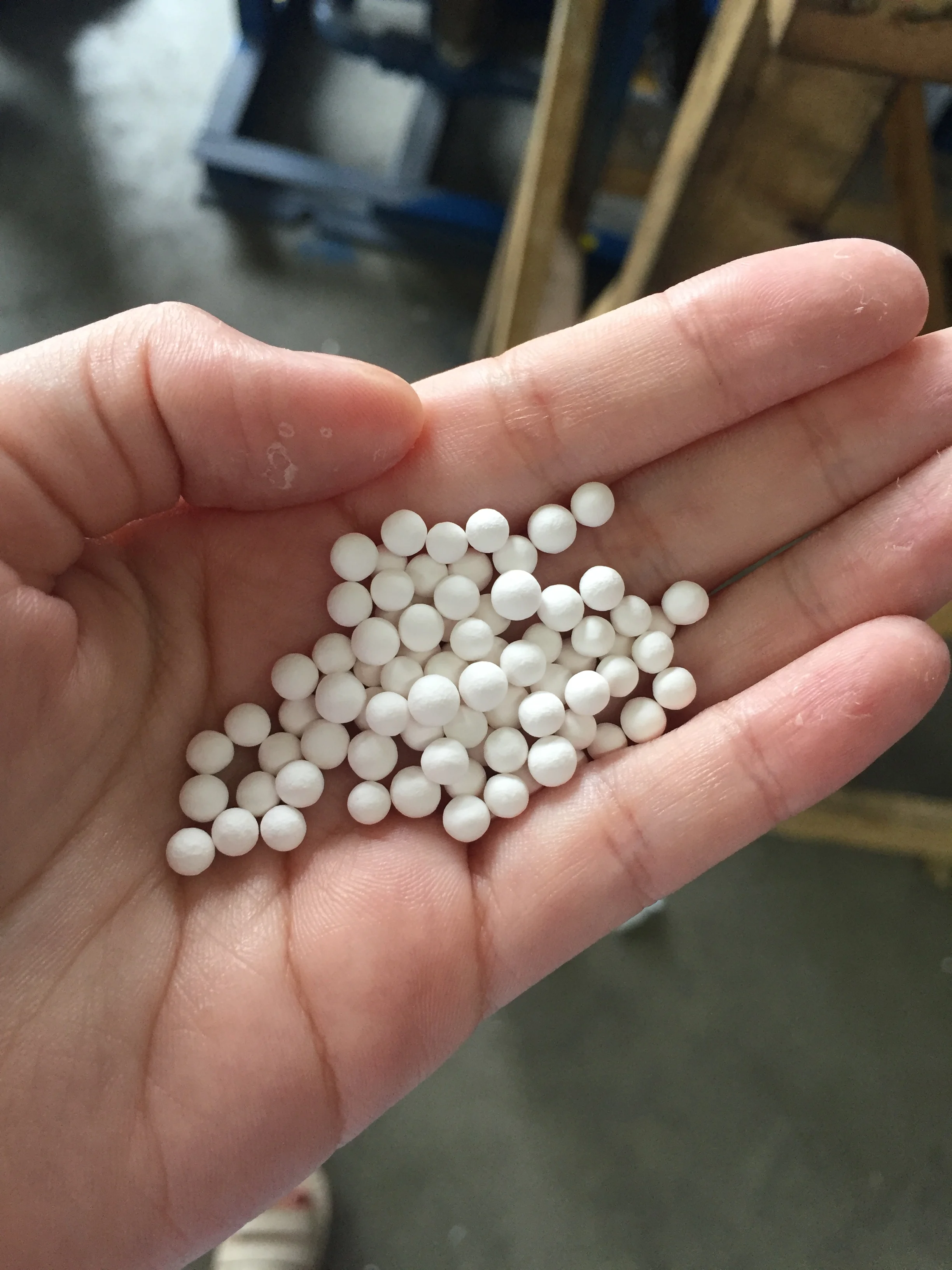

First the dryer will adsorb moisture in the compressed air with the help of desiccant which has
numerous super micropore. Then moisture will be desorbed from desiccant when pressure rel

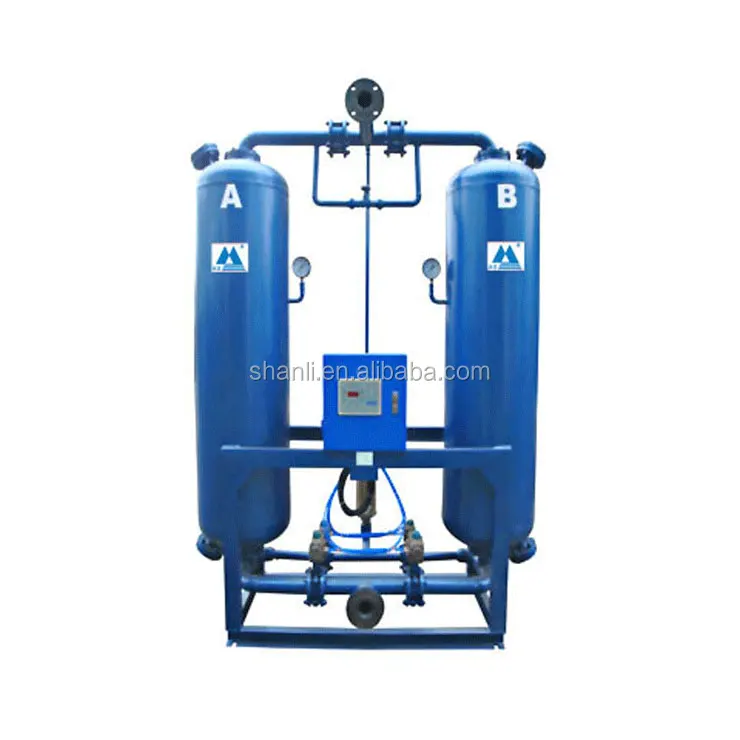

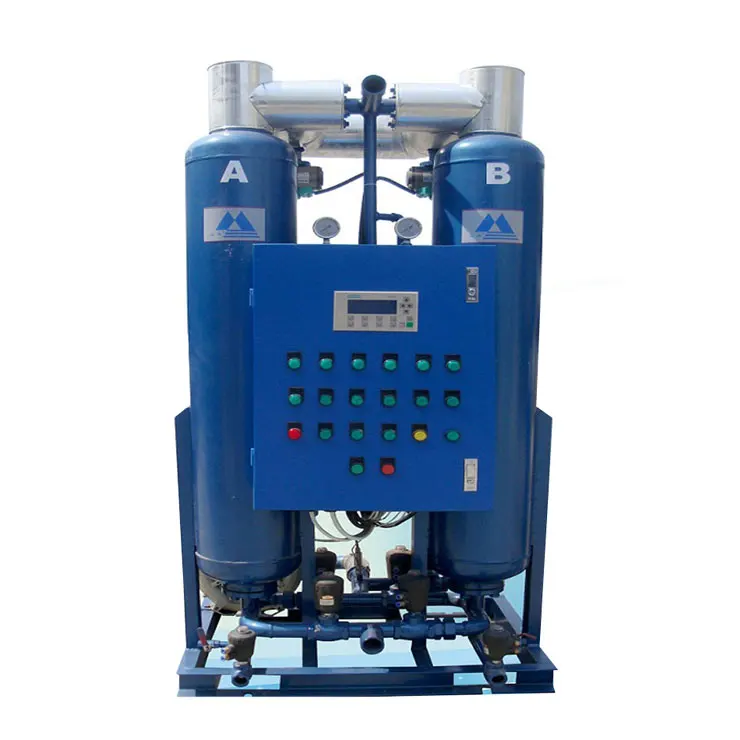

eased. The dryer is fully automatic with dual towers. The controller provides reliable control of
the system. As one tower is drying air, the other tower will be generating.
Techical Specifications
Air Inlet Temp
25~45 ℃
Oil Content:
≤0.1PPM
Air Inlet Pressure
0.6~1.0MPa
Pressure Loss:
≤3% Of InletPressure
Pressure Dew Point:
-40℃
Power
AC380V-50HZ/ AC220V-50HZ
Air Consumption
≤14%
Cycling Time
T=10 min
Control Method
Microcomputer Automatic Control
Note: All the above parameters are based on our standard working pressure 0.7MPa.
(Please contact us if you need customized service.)
Heatless Regeneration Adsorption Air Dryer
Model
Flow Capacity
Air Pipe Diameter
Net Weight (Kg)
Length (mm)
Width (mm)
Height (mm)
(Nm3/min)
cfm
SLAD-1WXF
1.2
42
G1"
163
732
500
1417
SLAD-2WXF
2.5
88
G1"
235
732
500
2017
SLAD-3WXF
3.6
127
G1"
356
962
530
1711
SLAD-4.5WXF
4.8
169
G1 1/2"
383
842
550
2225
SLAD-6WXF
6.8
240
G1 1/2"
481
950
550
2105
SLAD-8WXF
8.5
300
G2"
598
1288
600
2231
SLAD-10WXF
10.9
384
G2"
756
1288
600
2331
SLAD-12WXF
12.8
451
G2"
756
1288
600
2331
SLAD-15WXF
16
564
DN65
760
1743
705
2356
SLAD-20WXF
22
775
DN65
1171
1933
750
2415
SLAD-25WXF
26.8
945
DN80
1258
1903
807
2738
SLAD-30WXF
32
1128
DN80
1496
2101
800
2462
SLAD-40WXF
43.5
1533
DN100
2010
2200
870
2576
SLAD-50WXF
53
1868
DN100
2337
2213
870
2594
SLAD-60WXF
67
2361
DN125
2636
2416
1050
2827
SLAD-80WXF
90
3172
DN125
2900
2864
1050
2857
SLAD-100WXF
110
3877
DN150
3800
3460
1230
3048
SLAD-120WXF
130
4582
DN150
4330
3560
1307
3094
SLAD-150WXF
160
5639
DN200
5270
3960
1450
3322
SLAD-200WXF
210
7402
DN200
6920
4360
1600
3373
SLAD-250WXF
260
9164
DN250
8500
4424
1936
3697
SLAD-300WXF
310
10926
DN250
10700
4616
2060
3810
Product Overviews
Advantages
Company Information

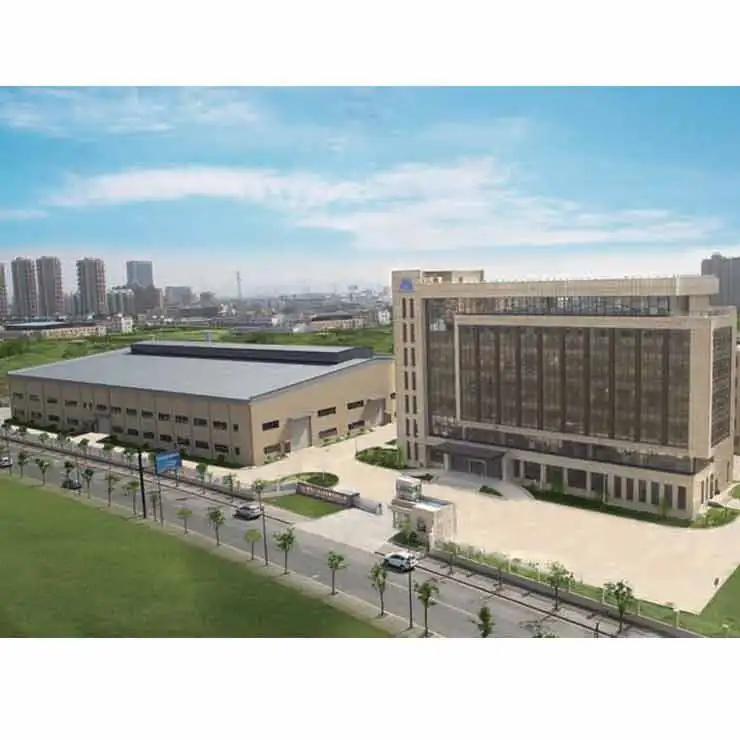

Established in 1997, Hangzhou Shanli Purify Equipment Corporation is an enterprise specialized in design, development and production of compressed air dryers, filters and other purification equipments. Our company has a workshop of 30, 0
00 square meters and more than 300 staff. Shanli has become one of the largest refrigerated air dryer manufacturers in t
he Chinese purification industry with the top sales turnover. Our self-design and self-made equipment is compatible with
many famous brands of air compressor to efficiently remove water, oil and dustfrom compressed air. On basis of IS0 9001
certification standard, our design, production, test and services of the machine are all well managed and strictly controlled
since year 2001.
Application
There are still some areas and applications where Shanli refrigerated air dryers can be used, such as power construction,
packing food, making ship, cleaning medical molding,removing EDM recast and discoloration, finishing and texturing inje
ction mold cavities, cleaning orifices in turbine blades,engraving optical lenses,cleaning and preparation of semi-precious stones and jewelry, etc.
