Forklift Wheelie Bin Tipper for 240L Plastic bins F FWE24

Product Overview

Description

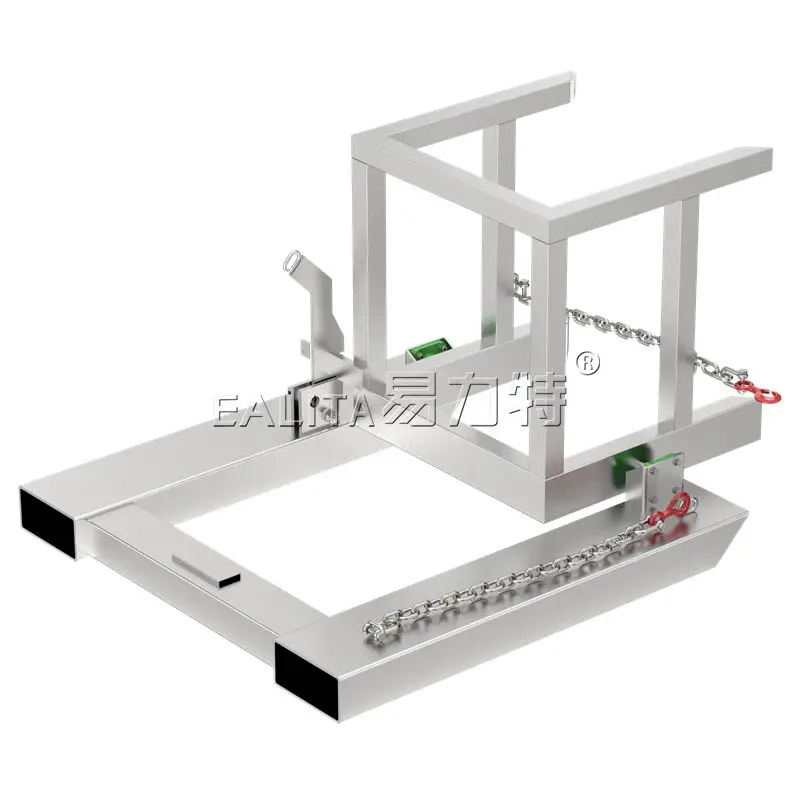

Wheelie Bin Tipper Type F-FWE24



The type F-FWE24 Wheelie Bin Tipper has been designed for emptying standard 240 litre plastic bins. The Bin is secured in the cradle by a Safety Chain allowing the bin to be lifted/transported about the workplace and emptied. The tipping operation is simple and safe with the operator never having to leave his seat using a draw chord to activate the tipping action.Standard finish on all Wheelie Bin Tippers is painted orangered.



SPECIFICATIONS:

- Working Load Limit(WLL) 500kg

- Load Centre 1000mm

- Unit Weight 80kg

- Pocket Size 185 x 65

- Pocket Centres 840mm

- Capable of 180° Rotation

- Horizontal C of G 650mm

- Vertical C of G 80mm

- Length 1295mm

- Width 1040mm

- To Top of Backrest 750mm



About us





EALITA is professional manufacturer who supply a wide range of attachments include: Forklift & Lifting attachments, Warehouse solution, Frame machines and Construction equipment.

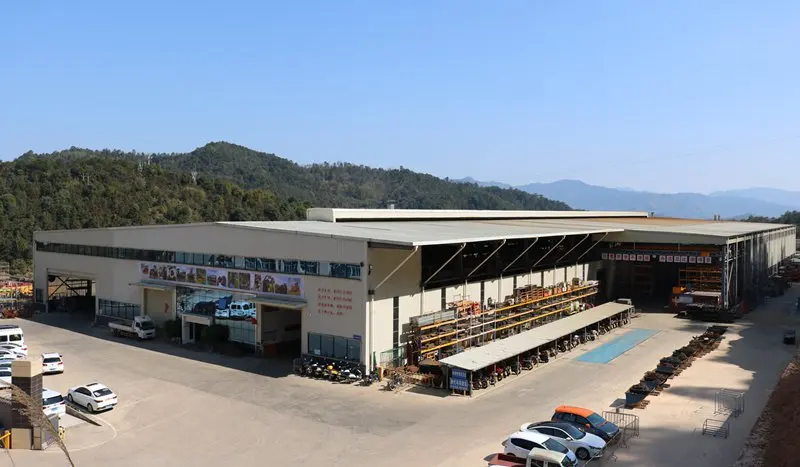

Our new factory of 23000 square meters located in Longzhou Industrial Zone, Longyan City. We have the capacity to custom make the products as your special needs.



Please contact us to discuss!
