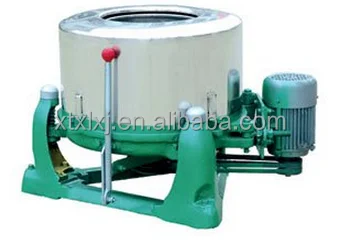

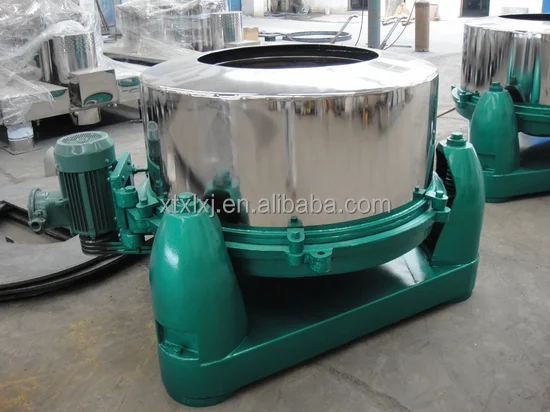

Cheap SS Small Basket Centrifuge

Product Overview

Description

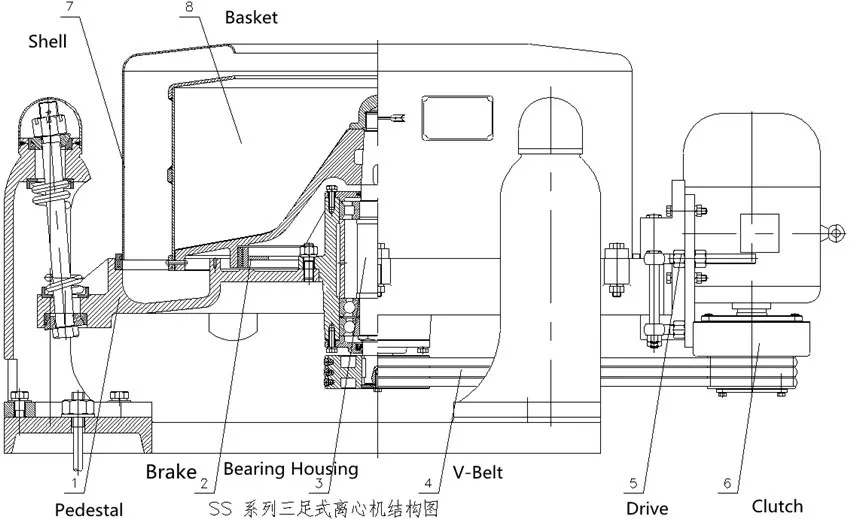

SS Small Basket Centrifuge



Application Of Basket centrifuge

Apply to separate/dehydrate the solid liquid suspension , the solid can be powder, granular, crystal and fibrous. and the diameter of the solid larger than 0.01 mm. it also applies to dewater the work pieces like yarn, textiles ,cloth and so on.



Working Principle

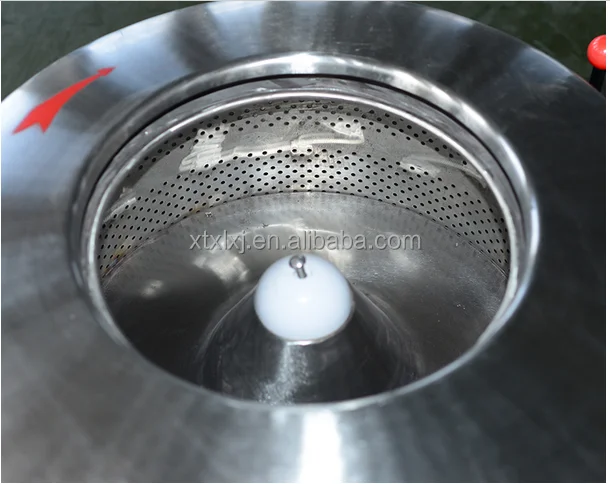

Once the materials to be separated enter the fast-spinning and distributed on the wall of the basket, it will be filtrated by the filter liner under the centrifugal force.but the solids deposit on the internal wall of the basket. Once the solid cake reach the rate capacity,feeding stop, and wash the solids cake, and then drain out the washing water.Finally stop the machine, the solid cake is discharged manually and move to the next batch.



Technical Parameter Of Basket centrifuge

Type		SS450 SS450-NA	SS600 SS600-NA	SS800 SS800-NA	SS1000 SS1000-NA	SS1200 SS1200-NA	SS1500-N	SS1800-N
Basket	Diameter mm	450	600	800	1000	1200	1500	1800
	Height  mm	220/300	315/350	320/400	420/450	450	500	550
	Effective Capacity  L	18/20	45/50	80/100	150/180	250	400	660
	Max Feeding  kg	30/35	75/85	140/165	195/230	300	400	500
	Speed  r/min	2000/2500	1600/1900	1200/1500	1000/1200	900/1000	300/600	510
	Separating Factor	1000/1600	860/1180	645/1000	560/800	545/672	302	340
Motor Power    KW		2.2/3	3/4	5.5/7.5	7.5/11	15	17	22
External Dimensions  L×W×H  mm		1130× 820×690	1325×1022×820	1785×1570×930	1995×1600×960	2315×1720× 1085	2840×2110×1100	2350×1800×1200
Gross Weight   kg		320/350	600/690	1142/1500	1500/1800	2300	3800	5000
Material touched the liquid to be separated		SS 304,SS316,SS316L Duplex Stainless Steel2205/2507, Rubber, Plastics or Titanium
Solid water content after the seapration		2%-50% depends on the solid concentration



 Features

1. Well-designed structure leaves no place depositing dusts and makes the machine clean easily. The modules are designed smoothly and polished on the surface. The case, fixing parts and drums are made of stainless steel. With hinged enclosure cover, it is easy to clean the gap between the case and the drum.

2. Hinged enclosure cover, feeding tube, washing tube, watching lens and lighting hol.

3. Automatic online cleaning system cleans the internal wall of the case, the basket and liquid slot to meet the clean requirements in accordance with GMP standards.

4. Simple structure, convenient repairing.

5. Wide range of applications. It can be applied for separating the suspension, also for fibers.

6. Inverter startup, smooth starting, adjustable relative centrifugal force. Non-touching braking system, static-proof belt transmission. Leak-proof structure with silicone rubber or fluoroelastomer seals. It is of anti-explosion applied to poisonous, flammable and explosive environment.

7. Nitrogen protection system ensures segregating the air outside from the machine chamber
