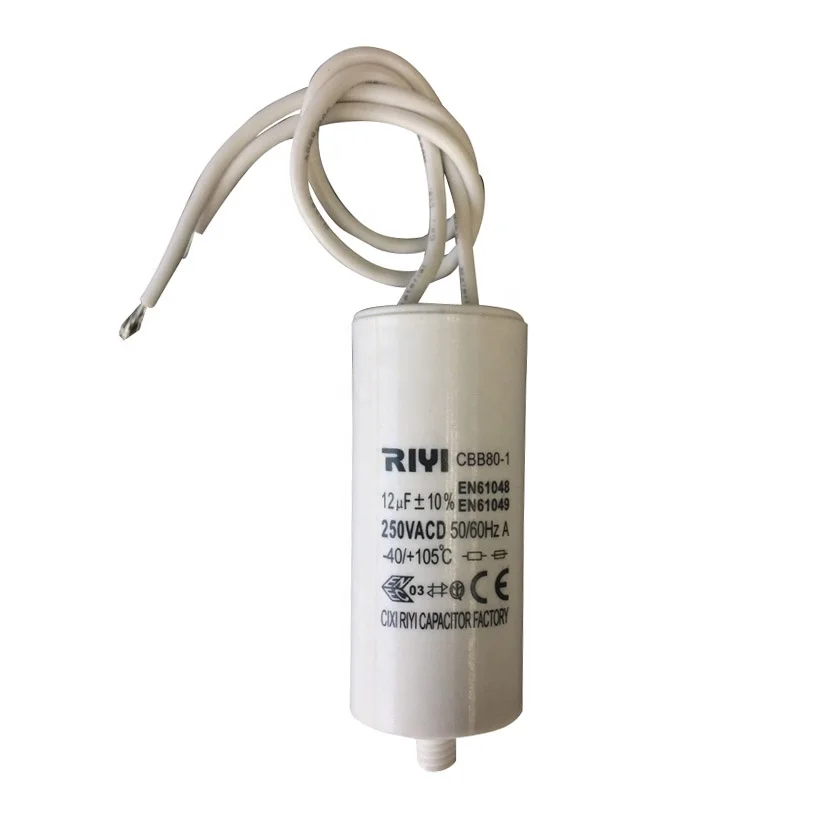

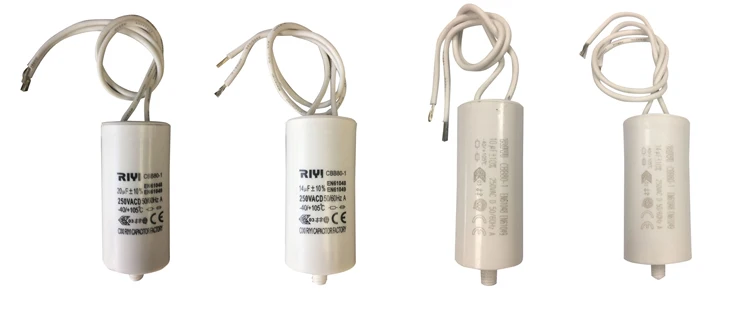

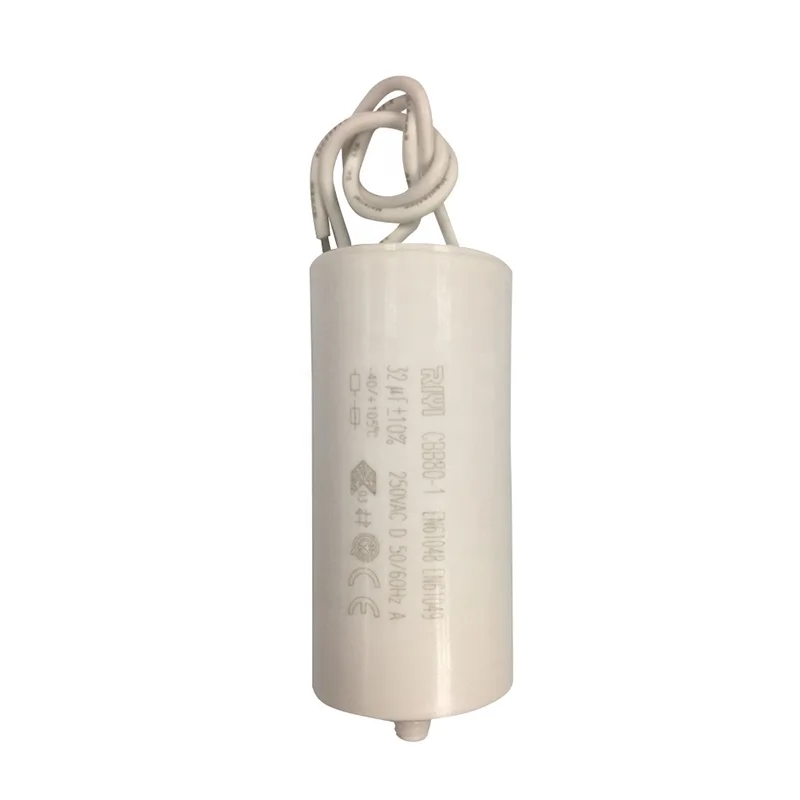

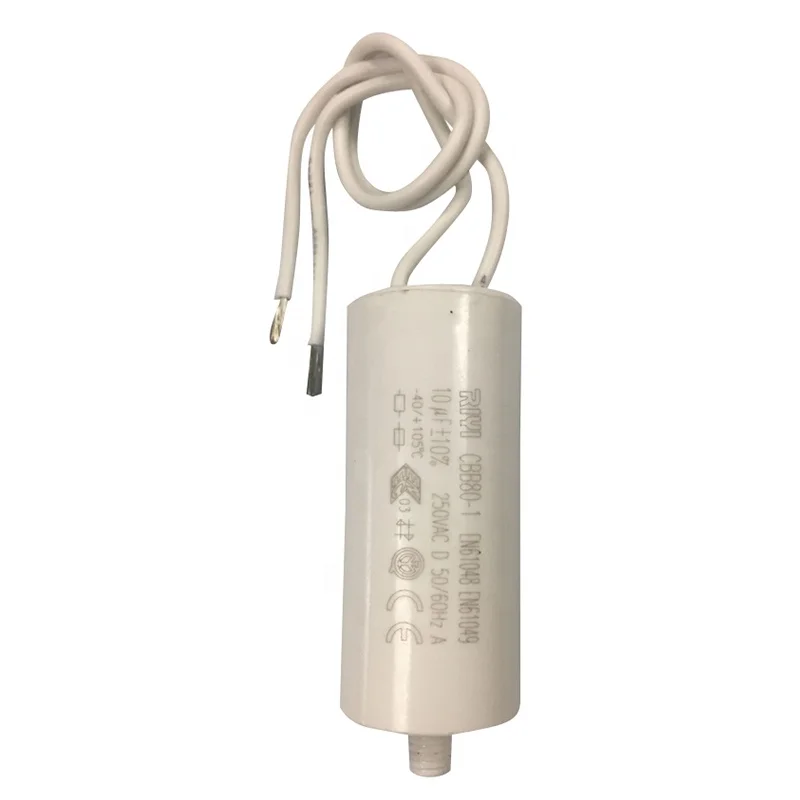

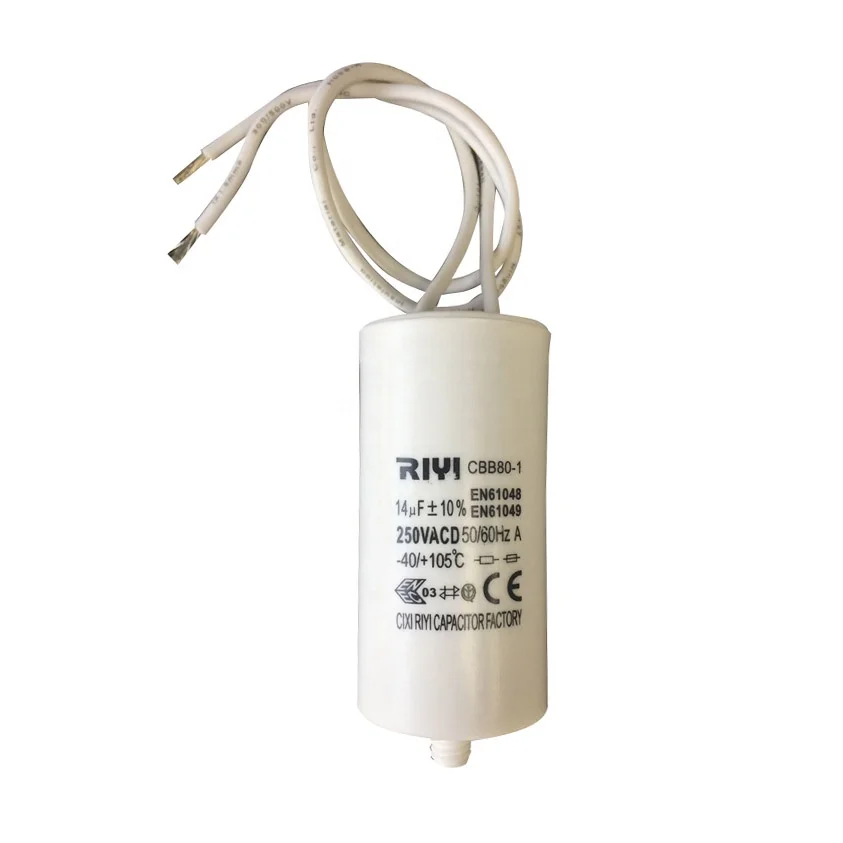

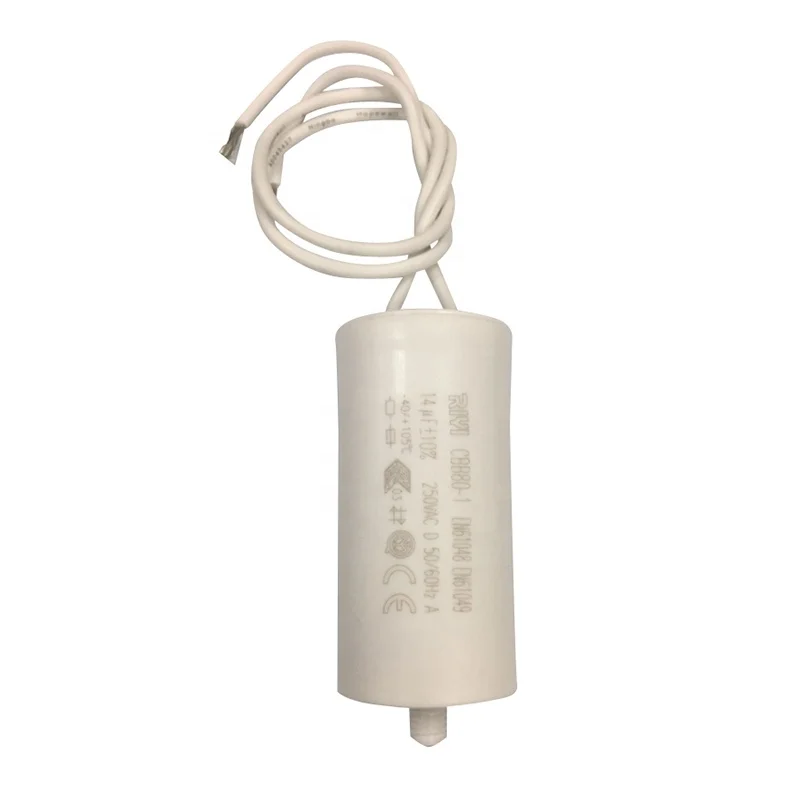

CBB80 1Polypropylene film lamp capacitor for lighting fixtures

Product Overview

Description



Product name



 CBB80-1Polypropylene film lamp capacitor lighting for lighting fixtures



Product Description

  CBB80-1Polypropylene film capacitors lighting used for lighting fixtures

   1. Type: Plastic case wire type with stud.

   2. Capacitor features and uses:

       High temperature plastic housing or the use of light, the internal structure of device discharge resistors

       and fused, The capacitor has advantages of low dissipation, hight insulation resistance, good self-healing           character, and steady electricity performance, anti-striking current, strong over-carrying capacity, etc.

        Used in high and low pressure sodium lamp, mercury lamp, metal halide lamp, since the role of power                  factor compensation.

   3. Capacitor technical parameter:

        Rated voltage: 250VAC

        Rated frequency: 50/60HZ

        Capacitance range: 2uf-120uf

        Capacitance deviation: +/-5%

        Reference standard: IEC61048 IEC61049 EN61048 EN61049 UL810

        Climatic category: 40/85/21

        Capacitance tolerance: +/-5%

        Certificate: VDE TUV CQC UL ISO IMQ



Size for some speci. for reference:



Rated capacitance	L (Length mm)	D (Diameter mm)
10uf	68	30
12uf	68	30
14uf	68	35
20uf	68	35
32uf	80	40
45uf	90	40



 Packing information for some speci. for reference



Rated capacitance	Qty/ctn(pcs)	G.W./N.W.(kgs)	Meas.(cm)
10uf	200	9.7/9.0	50x29x21.5
12uf	200	10.2/9.7	50x29x21.5
14uf	100	6.0/5.5	40x21x23
20uf	100	6.9/6.4	40x21x23
32uf	100	8.8/8.2	45.5x24.5x24
45uf	100	10.5/10	45.5x24.5x26
