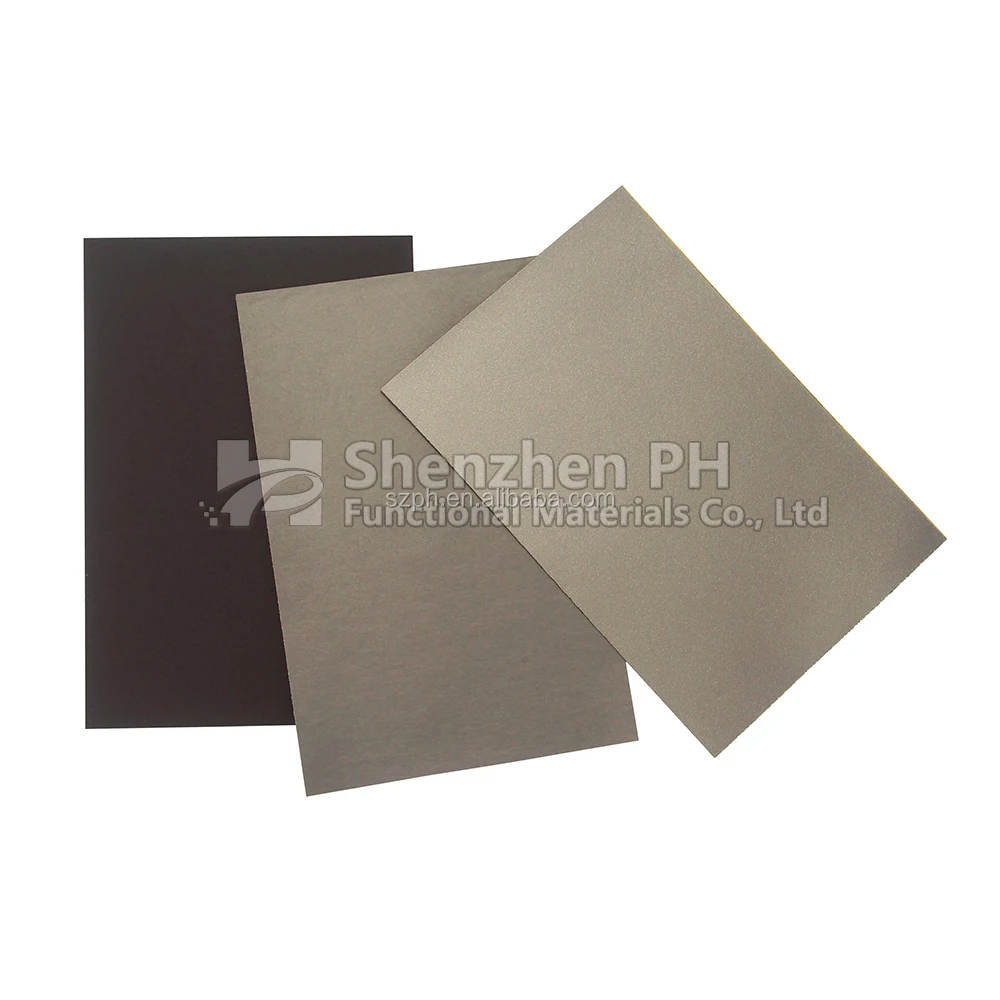

Wireless charging ferrite sheet original quality mnzn ferrite sheet

Product Overview

Description

Wireless charging ferrite sheet original quality mnzn ferrite sheet



PH Wireless charging ferrite including 3 categories, they are Ferrite Magnetic fabric (low-end),Soft magnetic alloy(middle high end) and Sintered ferrite films (high-end).

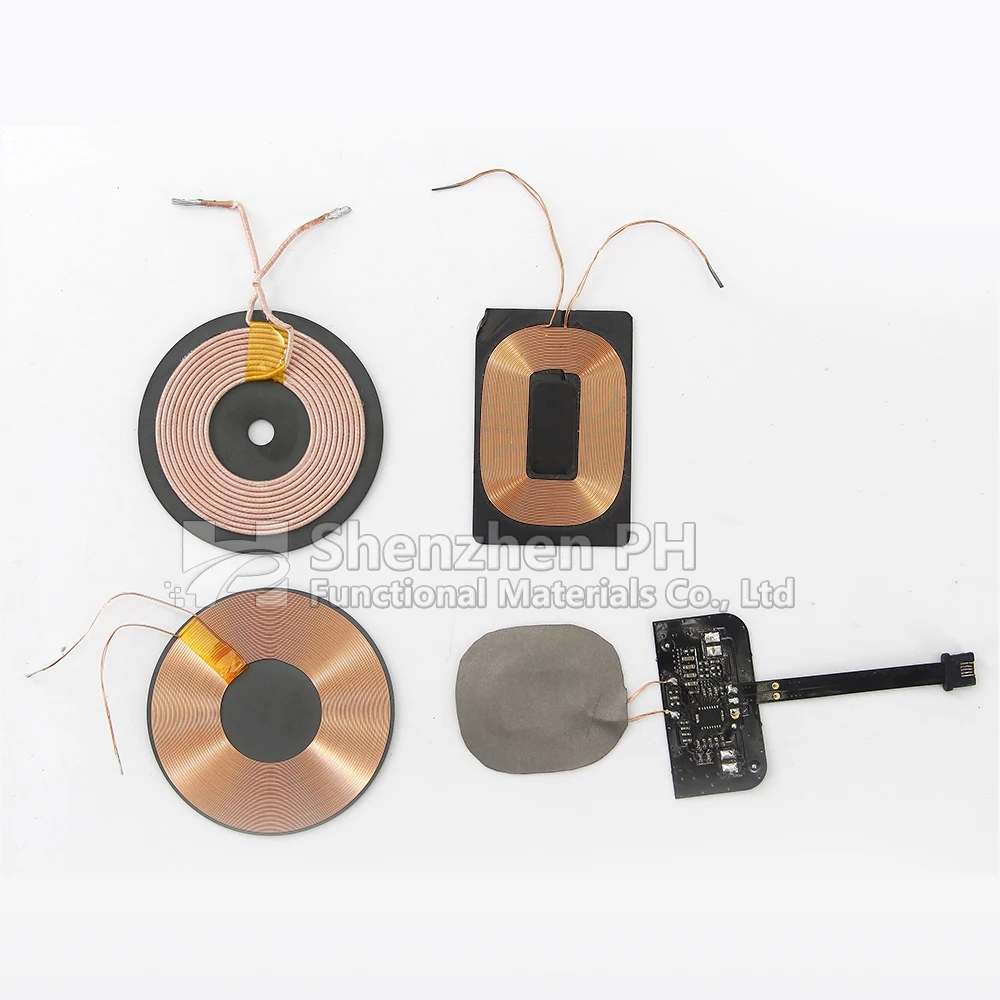

The 3 items are all possess function of Magnetic and Magnetic shield, by attached to the coil, increase the coil inductance,reduce the metal caused by vortex flow resistance of heat, metal coil in magnetic interference, improve the charging efficiency.

According to QI/A4WP/PMA standard and non-standard wireless charging transmitter (TX) and the receiver (RX), all kinds of magnet sheet match performance can be provided by PH, and can be cut into any shape as customized.

PH Wireless charging ferrite meet ROHS and halogen free, environmental protection perfectly, can be used rest assured.





Application:

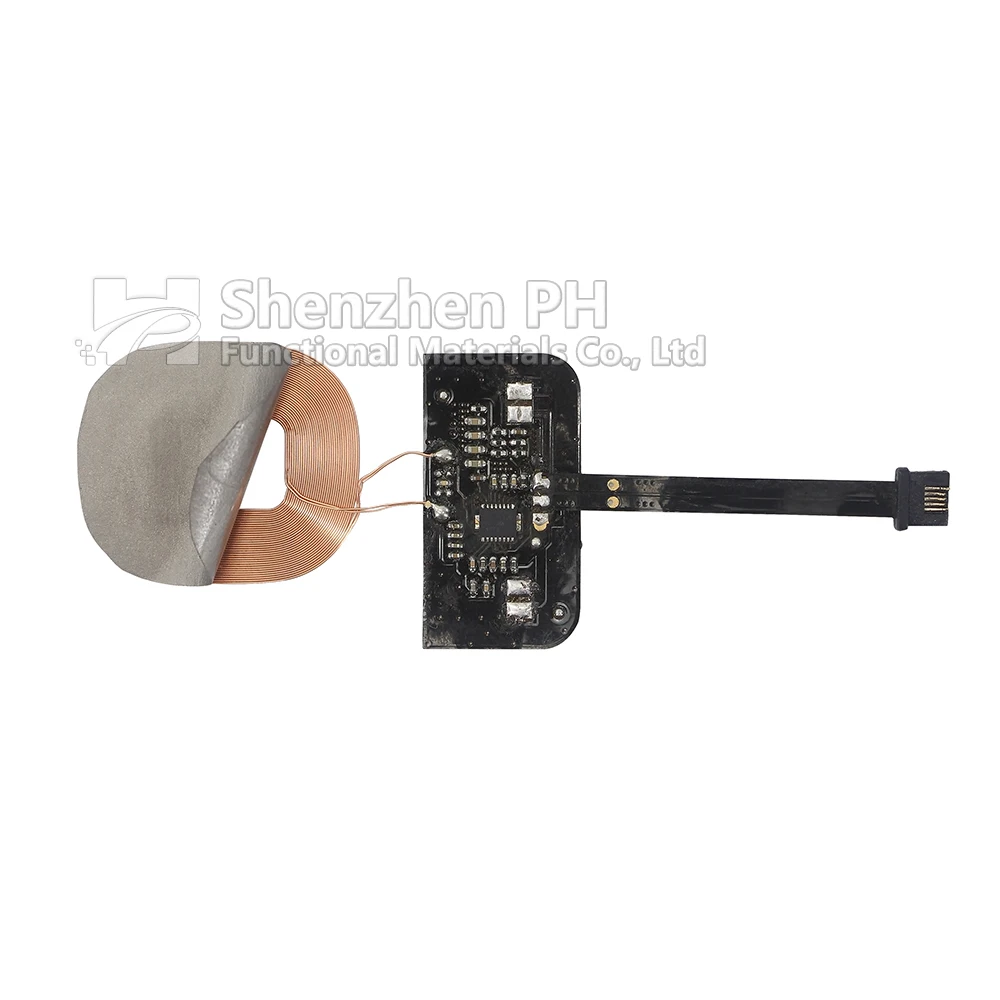

Wireless charging transmitting end and receiving end of intelligent mobile phone













Wearable electronic wireless charging













Electric vehicle wireless charging







The other common cases of wireless charging

















Characteristic of Magnetic fabric:





Low cost

General permeability, low magnetic loss

High resistivity

Meet ROHS and halogen free

Flame retardant grade:UL94-V2

Common thickness:0.3~1.0mm













Characteristic of Soft magnetic alloy:





middle and upper cost

middle and upper permeability, low magnetic loss

High resistivity

Meet ROHS and halogen free

Flame retardant grade:UL94-V2

Common thickness:0.1~1.0mm





Characteristic of Sintered ferrite:



High cost

High permeability, low magnetic loss

High resistivity

Meet ROHS and halogen free

Flame retardant grade:UL94-V2

Common thickness:0.06~0.5mm













Product features:

1 Soft texture materials, good fit;

2 Perfect absorption performance, can absorb the electromagnetic wave in the wide band range;

3 Meet the ROHS environmental protection requirements

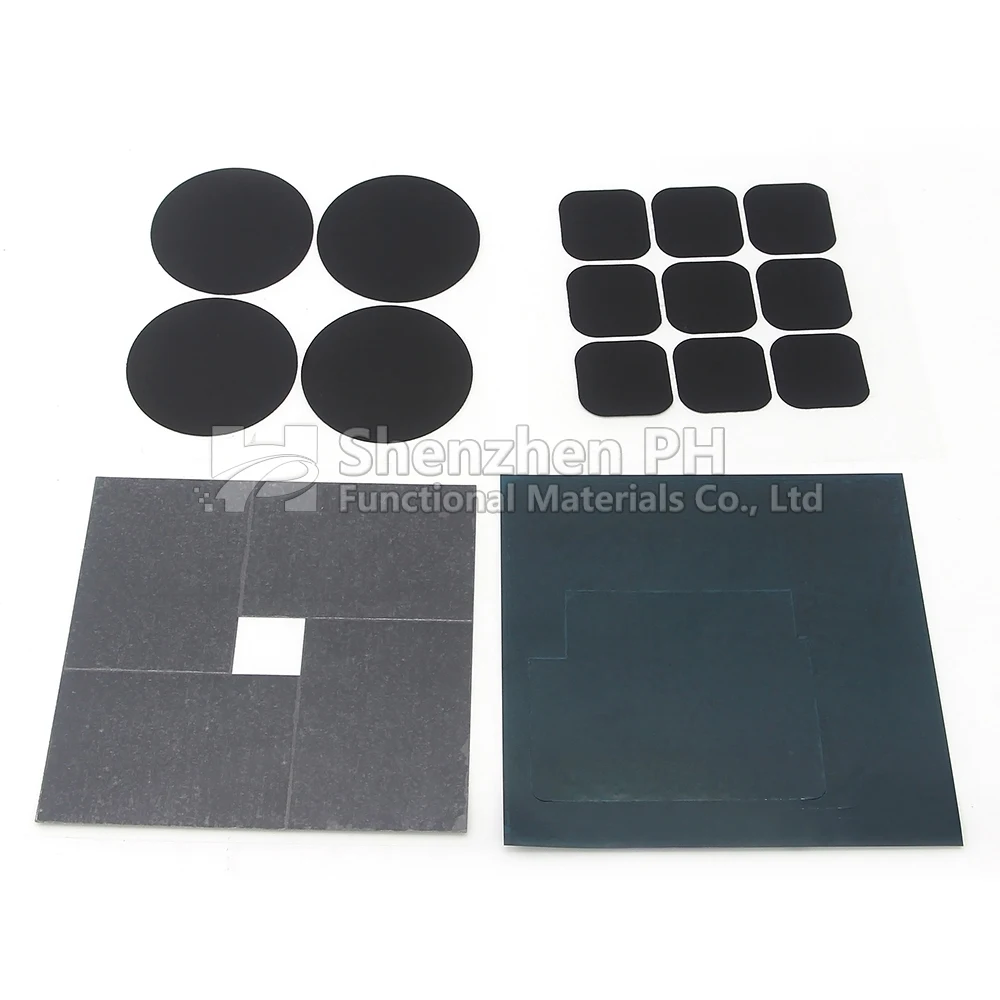

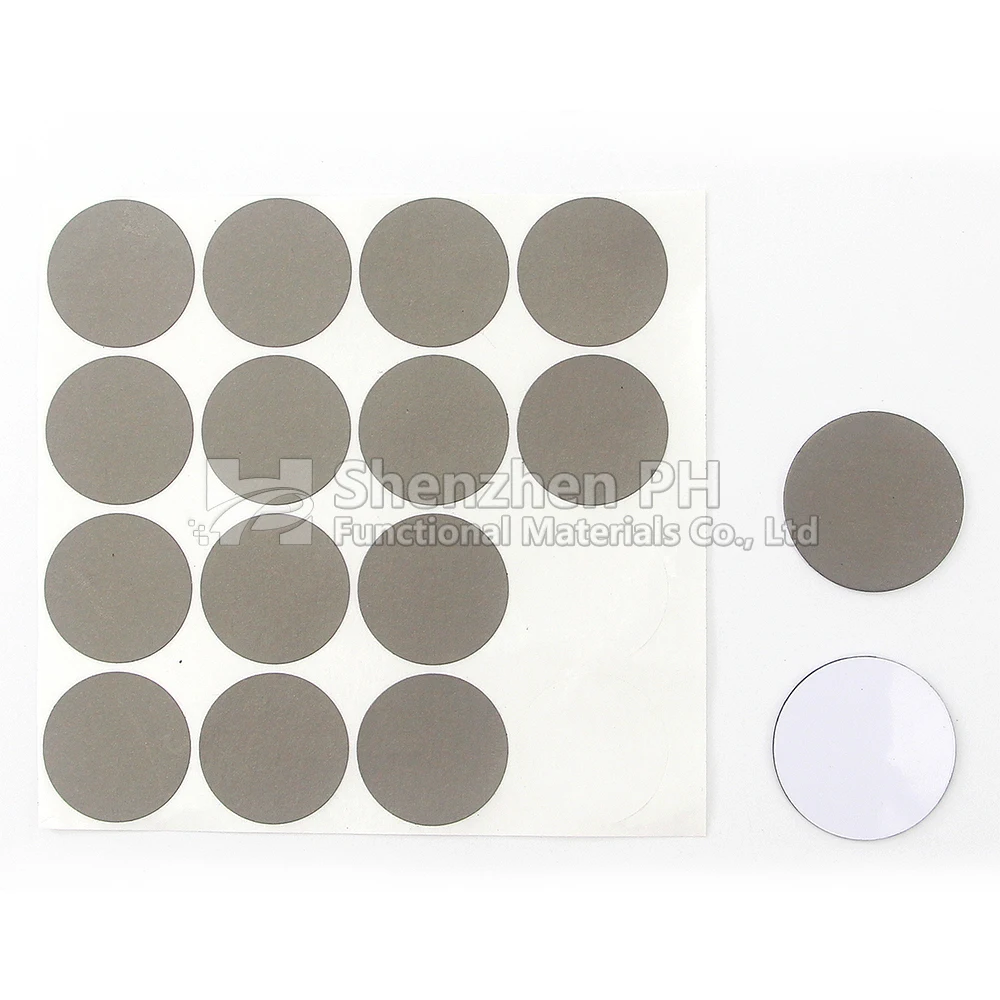

4 Can be cut into required size and shape based on customer requirements





Company certification:IS09001



Product certification:ROHS and Halogen Free



Guarantee period:5 years
