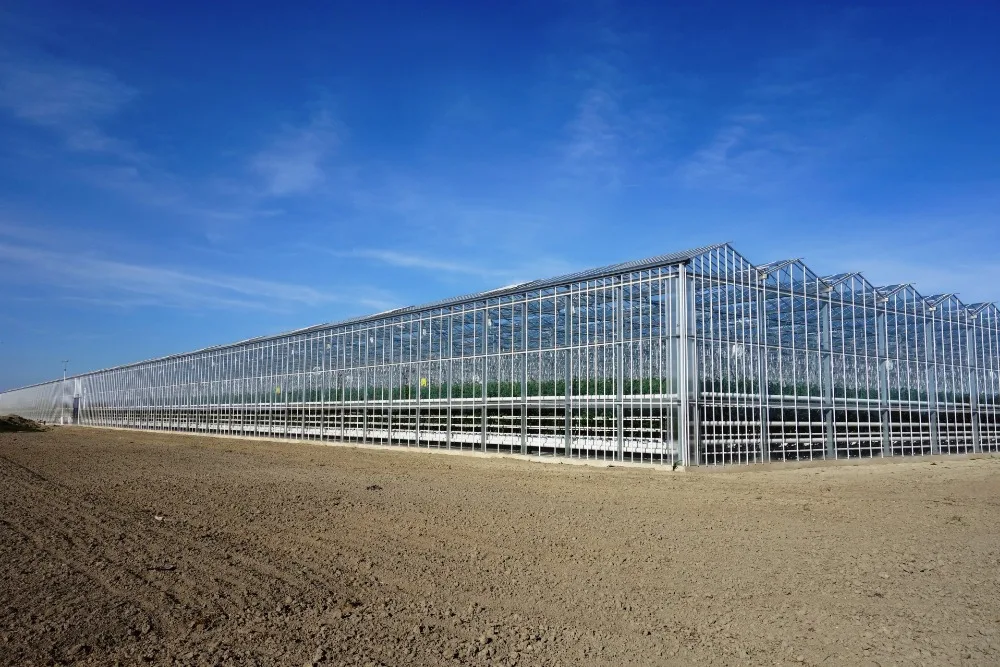

Skyplant Venlo Multi span Greenhouse With Hydroponic Systems

Product Overview

Description

Modern appearance large operation space greenhouse venlo





Features:

Modern appearance, large operation space.

Stable structure, high intensity

Strong impact resistance for hail and strong shock

Long service life

Easy maintenance

High steel quality

High quality hot-dip galvanization

Good performance of heat preservation, energy saving, flame retardant, sound insulation

Greatly reduce the cost of greenhouse structure (comparing with the glass greenhouse)

Structural Characteristics:

Venlo structure

Structure span (m)	Roof span (m)
6.4	3.2
8.0	4.0
9.6	3.2
10.8	3.6
12.0	4.0

Ridge height: 3m~6m

Spacing: 4m

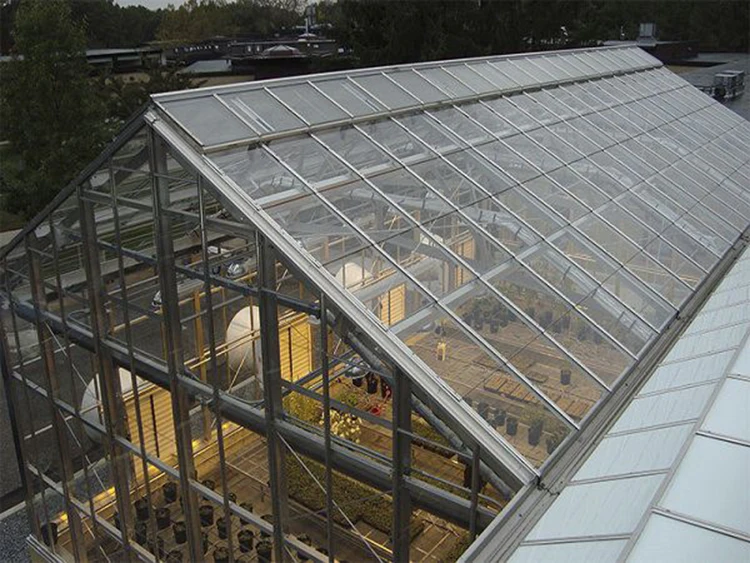

Covering: Polycarbonate sheet, fitted by special aluminum profiles together with sealed band.



Cover material	Glass	PE film	Polycarbonate sheet
Product life	15~20 years	1~5 years	10~15 years
Impact strength	Weak (Fragile)	Weak (Torn)	Tough (250 times of glass)
Light transmission	90%	85%	90%
Light stability	Excellent	Fair	Excellent , but decline over time
Heat insulation	Fair	Fair	Excellent
Maintenance	Replaceable	Reparable	Replaceable



Wind load: 0.50KN/m²

Snow load: 0.25KN/m²

Suspended load: 0.10KN/m²

Maximum drain volume: 140 mm/h

High quality steel structure and long service life. All main parts are hot dipping galvanized after processing according to European standards, guarantee excellent anti-corrosion.

Prefabricated structure. All the parts can be easily assembled on the spot with joining parts and bolts and nuts, without any welding points to damage the zinc coating on the material, which guarantee the optimal performance of anti-corrosion.

The standardization production of all the parts

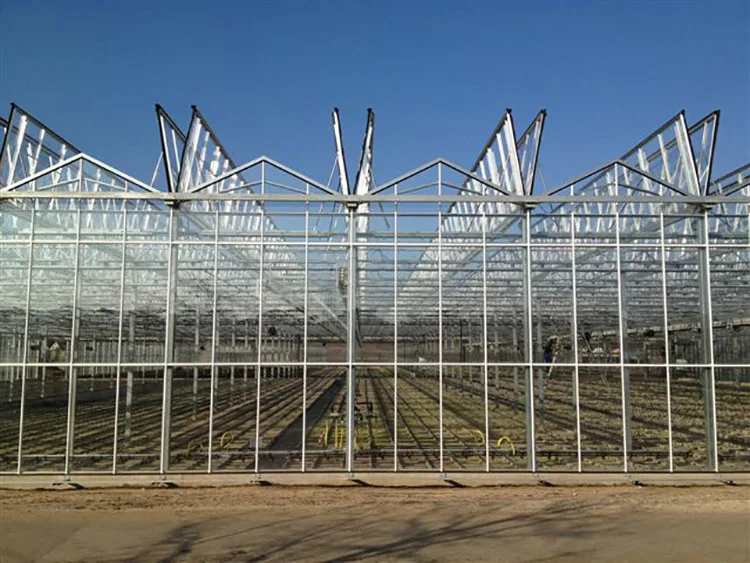

Ventilation configuration: roof vents and side vents, controlled by rack and pinion system
