600mm SMD 12v t8 led tube

Product Overview

Description



Power	Length (mm)	LED Q'ty	Luminous Flux (lm)	Input voltage	Luminous Intensity(lux)	Packing Size(mm)	Caron Qty	G.W. (kg)
5W	300mm	72pcs	432-500lm	85-300VAC	94	469*230*230	50/CTN	0.09
6W	600mm	108pcs	650-750lm	85-300VAC	100	713*230*230	25/CTN	0.135
8W		144pcs	860-1000lm	85-300VAC	130	713*230*230	25/CTN	0.16
9W		171pcs	1000-1200lm	85-300VAC	142	713*230*230	25/CTN	0.2
10W	900mm	189pcs	1130-1320lm	85-300VAC	177	1031*230*230	25/CTN	0.24
12W	1200mm	216pcs	1300-1510lm	85-300VAC	201	1335*230*230	25/CTN	0.3
15W		276pcs	1650-1930lm	85-300VAC	245	1335*230*230	25/CTN	0.32
18W		330pcs	1980-2310lm	85-300VAC	255	1335*230*230	25/CTN	0.32
22W		384pcs	2300-2680lm	85-300VAC	362	1335*230*230	25/CTN	0.36
18W	1500mm	300pcs	1800-2100lm	85-300VAC	255	1650x250x250	25/CTN	0.35
25W		432pcs	2520-2940lm	85-300VAC	403	1650x250x250	25/CTN	0.44
28W	1800mm	528pcs	3160-3690lm	85-300VAC	417	1950x250x250	25/CTN	0.55
33W	2400mm	600pcs	3600-4200lm	85-300VAC	425	2550*250*250	25/CTN	0.66

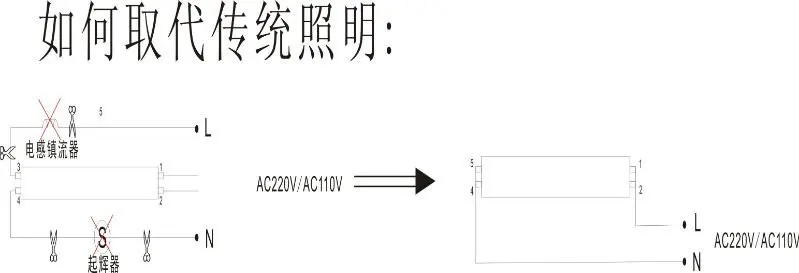

 The LED TUBE replace  the older taditional fluorescent tube introduc pic

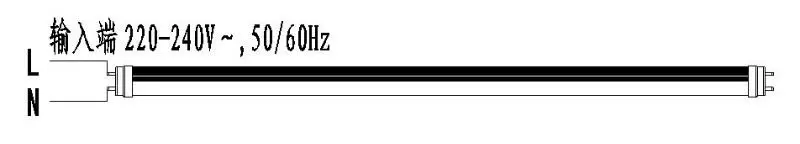

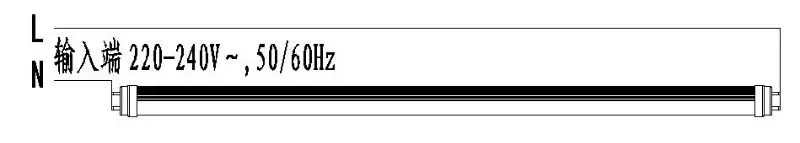

 There are two wire methods as following

1.

1)magnetic ballast











 2)electronic ballast







2.
