High speed PP PE Drinking Straw Making Machine / Drinking Straw Extruder
Product Description

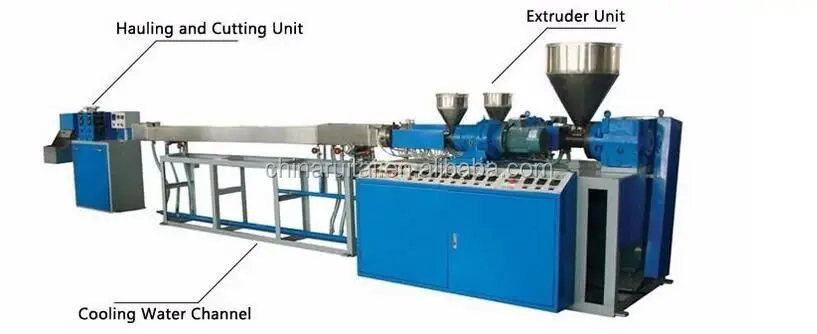

Model 55525B machine is type of extrusion machine which is used to produce straight drinking straws, it also can produce small diameter pipe, like the cotton swab stick, ball pen refill etc. This machine consists of three parts: extruder, water cooling channel,hauling and cutting machine, the machine can be optional with empty vacuum pump, straw gathering machine,straw helical stripe forming device etc.
2016 All New high speed three color straw extruding machine/straw making machine
Main specification:
Model | 55525B | 1 color | 2 color | 3 color | |
Power supply | Extruder | Main screw | 380v/220 ,3phase,50/60hz,7.5kw(VFD) | ||
|
| Sub-screw | / | 0.75kw | 0.75kw×2 |
|
| Heating | 9kw | 12kw | 15kw |
| Hauling & Cutting | Hauling motor | 0.75kw(VFD) | ||
|
| Cutting motor | 0.75kw(VFD) | ||
| Total power | 19.5kw | 23.5kw | 27.5kw | |
Temperature Controller | 5sets | 8sets | 11sets | ||
Electric control Box | 1set | 1set | 1set | ||
Automatic Counting Device | 1set | 1set | 1set | ||
Way of Hauling | By rubber roller | ||||
Way of cutting | Rotatory cutting | ||||
Cooling water tank | standard 3.5m,can be adjust from up to down,right to left,forward to backward. | ||||
Specification of Pipe | Material | PP PE etc. | |||
| Diameter | 3mm~13mm | |||
| Length | Customized | |||
| Speed | 300~1000pcs/min | |||
| Color | Single | Two | Three | |
| Cutting End | 90°/90°,90°/45°,90°/60°,45°/45°,60°/60 | |||
Machine dimension L×W×H | 2.2m×1m×1.3m | 2.2m×1.3m×1.5m | 2.2m×1.6m×1.7m | ||
Whole line dimension | 9mx1mx1.7m | 9mx1.3mx1.7m | 9mx1.6mx1.7m | ||
Weight of equipment | 1T | 1.3T | 1.6T | ||

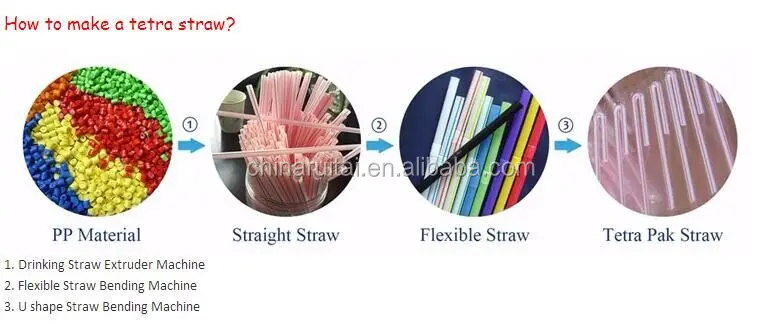

we offer full machine line of drinking straw:
1.one,two,three color drinking straw making machine: use to produce straight straw.
2.flexible drinking straw bending machine:use to bend the straight straw into flexible straw.
3.spoon straw making machine:use to produce the straight straw into spoon straw.
4. single straw packing machine:use to pack single straw in film or paper.
5. u shape straw packing machine: use to pack flexible straw by BOPP film
Remarks:
1).Price term: FOB Ningbo or Shanghai
2).Terms of payment:30% deposit and pay the balance before shipment by TT.
3).Delivery time: Within 25 days after receiving 30% deposit.
4).Packaging: export-wooden box pack
5).Warranty:1 year
