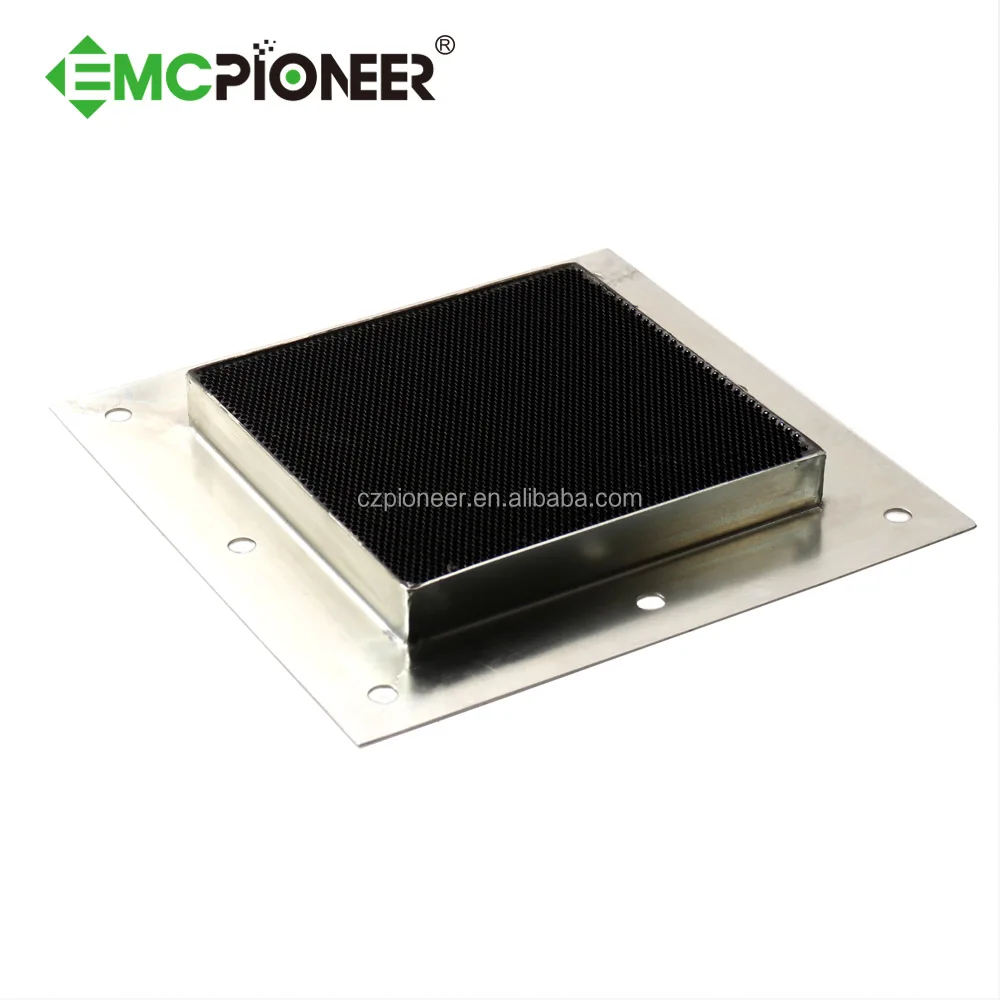

EMI RFI shield ventilation air filter

Features for air filter EMI RFI shield ventilation air filter

1- Provide maximum RF attenuation while allowing optimum airflow.

2- Available to suit individual requirements

3- Soldering waveguide windows use imported tin-plating to press molding, to ensure the quality while transport and assembly process and guarantee the shielding effect.

4- Produce various customized specification for civil or military use



Standard Dimension for EMI RFI shield ventilation air filter

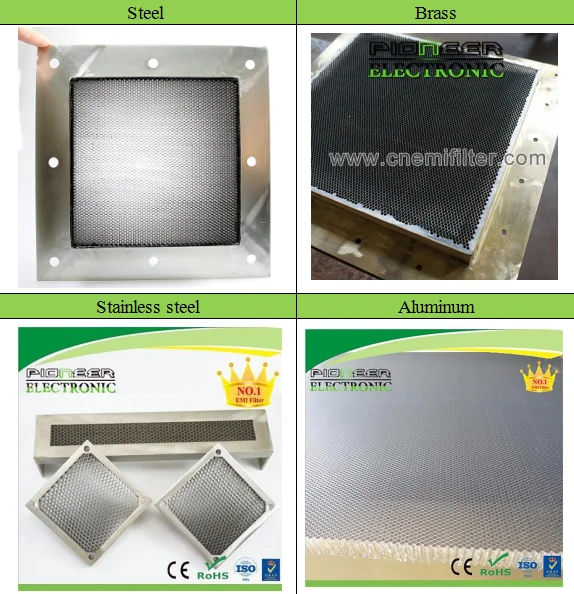

Honeycomb Materials	(A) Steel                                                         (B) Brass                                         (C) Stainless stee            (D) Aluminum
Honeycomb Size	(A) 300*300mm                                         (B) 300*600mm                                              (C) 450*450mm                                               (D) 600*600mm                           (E) 600*900mm
Honeycomb Thickness	(A) 12.5mm                                               (B) 19mm                                                 (C) 25mm                                                  (D) 50mm
The Hole size	(A) 3.2mm                                                (B) 4.0mm                                                 (C) 4.8mm
Frame Type	(A) With frame                                         (B) Without frame



Sheilding Performance for EMI RFI shield ventilation air filter



Magnetic field	14KHz≥75dB     150KHz≥100dB
Electric field	200KHz-50MHz≥110dB
Flat wave	50MHz-1GHz≥110dB
Microwave	1GHz-10GHz≥100dB  10GHz-18GHz≥90dB





Pictures for air filter EMI RFI shield ventilation air filter







What should be provided if need price



1. Honeycomb material

2. Honeycomb size: length, width, thickness

3. Hole size

4. Frame type: with or without frame

5. Quantity
