Product Overview

Description


Welding Parameter
\t
1
\t
Striking current
\t
0 - 100 A (default 30 A) (100 %)
\t
2
\t
Transferred arc current
\t
0 - 100 A (100 %)
\t
3
\t
Powder feeder
\t
Feed speed 4.5 - 45 g/min, TWT electric motor, load volume 18 kg
\t
4
\t
Welding gun
\t
Welding current 5 - 250 A
\t
5
\t
Center gas flow rate
\t
0.6 - 6 L/min
\t

\t
Powder feeder gas flow rate
\t
0.6 - 6 L/min
\t
\t
Protective gas flow rate
\t
1.6 - 16 L/min
\t
6
\t
Positioning turntable
\t
Constant speed 10 RPM, precision orbit V type wheel positioning
\t
7
\t
Welding gun rising device
\t
precision orbit, CNC motor, brush gun device
\t
8
\t

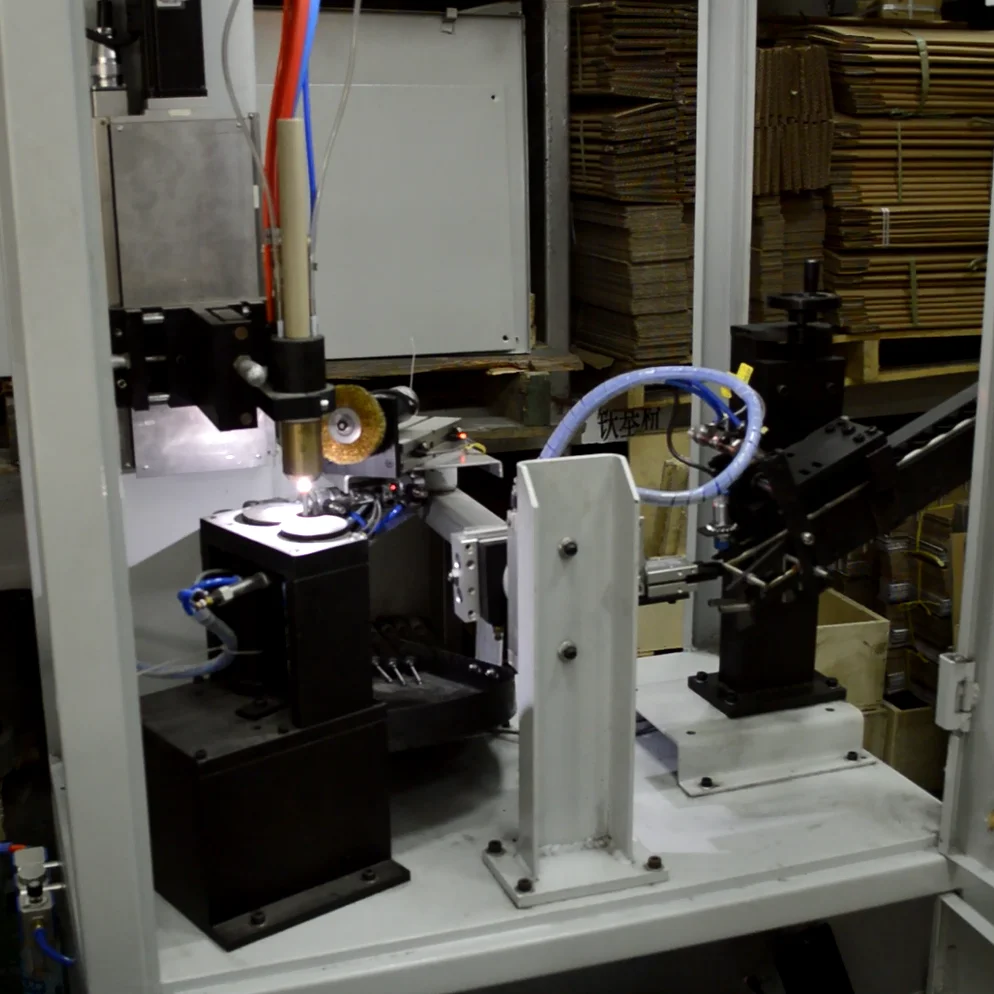

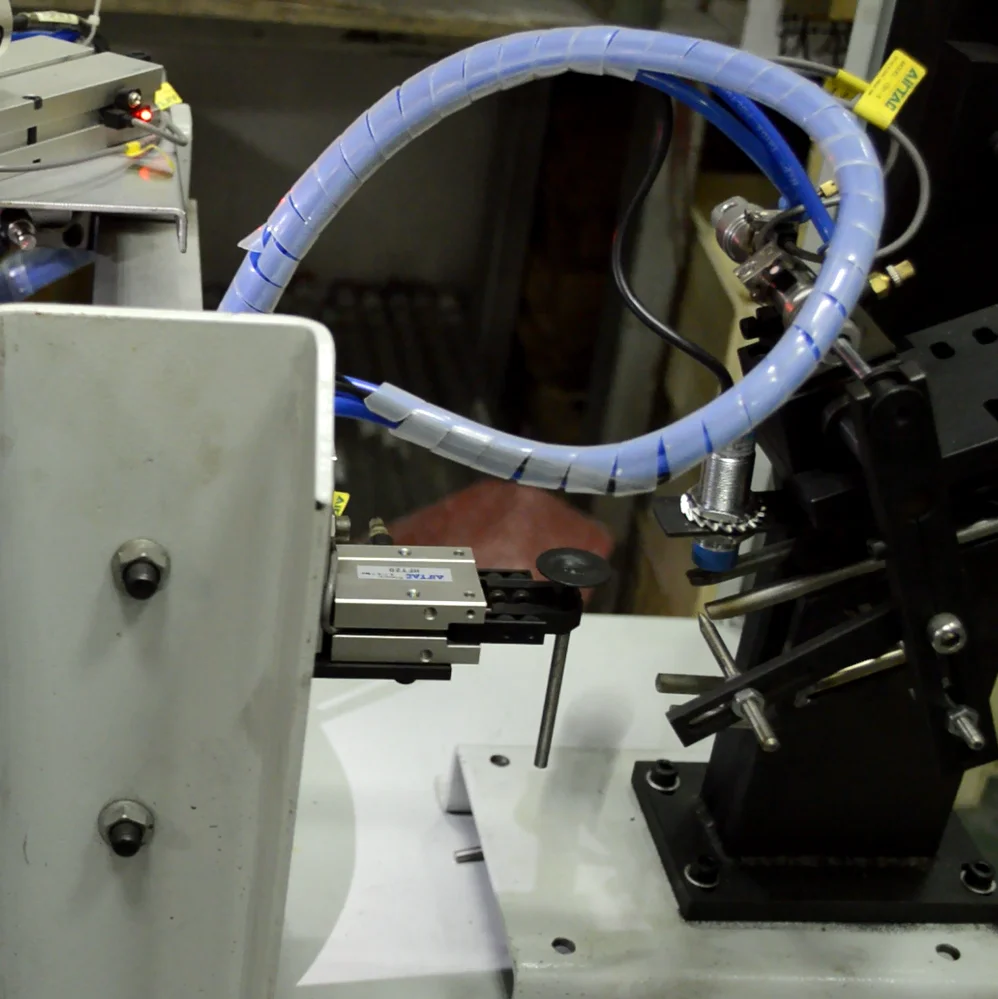

Automatic loading and releasing system
\t
engine valve reversely hanged over the slide block, then transferred to turntable through pneumatic device regularly. Air cylinder: SNS
\t
9
\t
Remote operation panel
\t
color touch screen
\t
10
\t
Cooling water tank
\t
Provide constant temperature and hydraulic pressure to welding gun and turntable. Cooling ability is 6000 kcal/h. Cooling water temperature control range is +5℃ - +30℃. Control accuracy is ±1℃. Water tank volume is 50 L (need deionized water)
\t
11
\t
Gas tube and water cooling cable components
\t
1.5 m long gas or water tube components used to connect welding gun with control cabinet
\t
12
\t
Discharge port height
\t
no lower than 230 mm
\t
13
\t
Loading direction
\t
should be accordant
\t
14
\t
\t
Equipped with cable and adapter
\t
15
\t
\t
Equipped with password protection
Working Range

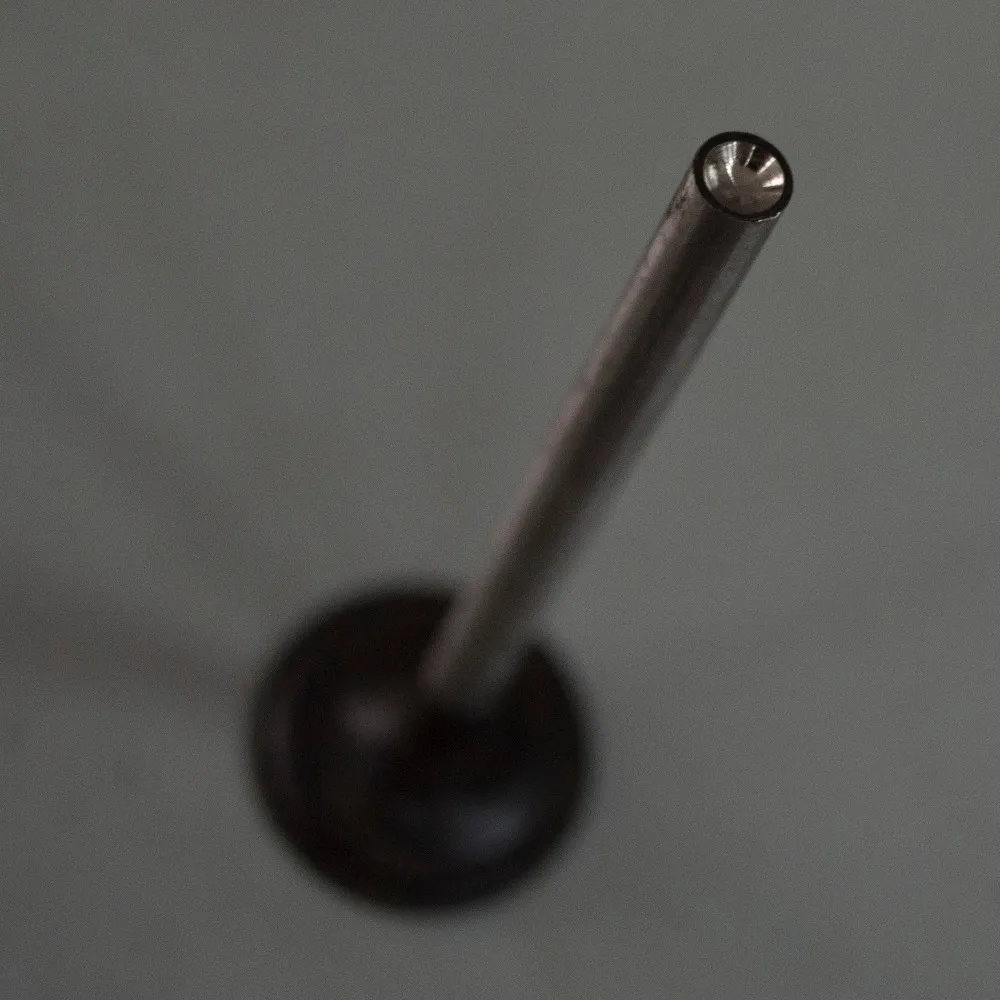

1. Workpiece stem diameter: 3.5 - 8 mm
2. Workpiece length: 65 - 120 mm

3. Working rhythm: e.g. for stem diameter 4.5mm, loading time is 1 second, and welding time is 4 seconds, which is 5 seconds in total

Safety Protection Sy

1. Alarm for low powder

2. Automatic stop protection function for water-break and electric-break

3. Automatic suspend function for no engine valve

4. Regular gun brush function

5.\tArc light prevention function

6. All the mechanical movable parts (except loading and releasing part) use whole sealing protective measure

Install Requirement
Preparation below should be ready before equipment arriving:

1.\tPower supply: one 380 VAC ± 10 %, 65 A air switch
2.\tGas supply: Bottled industrial pure argon with 99.99 % purity. Provide oxygen decompression valve (low pressure range 0 - 4 kg/cm2)
3.\tProvide 50 kg deionized water

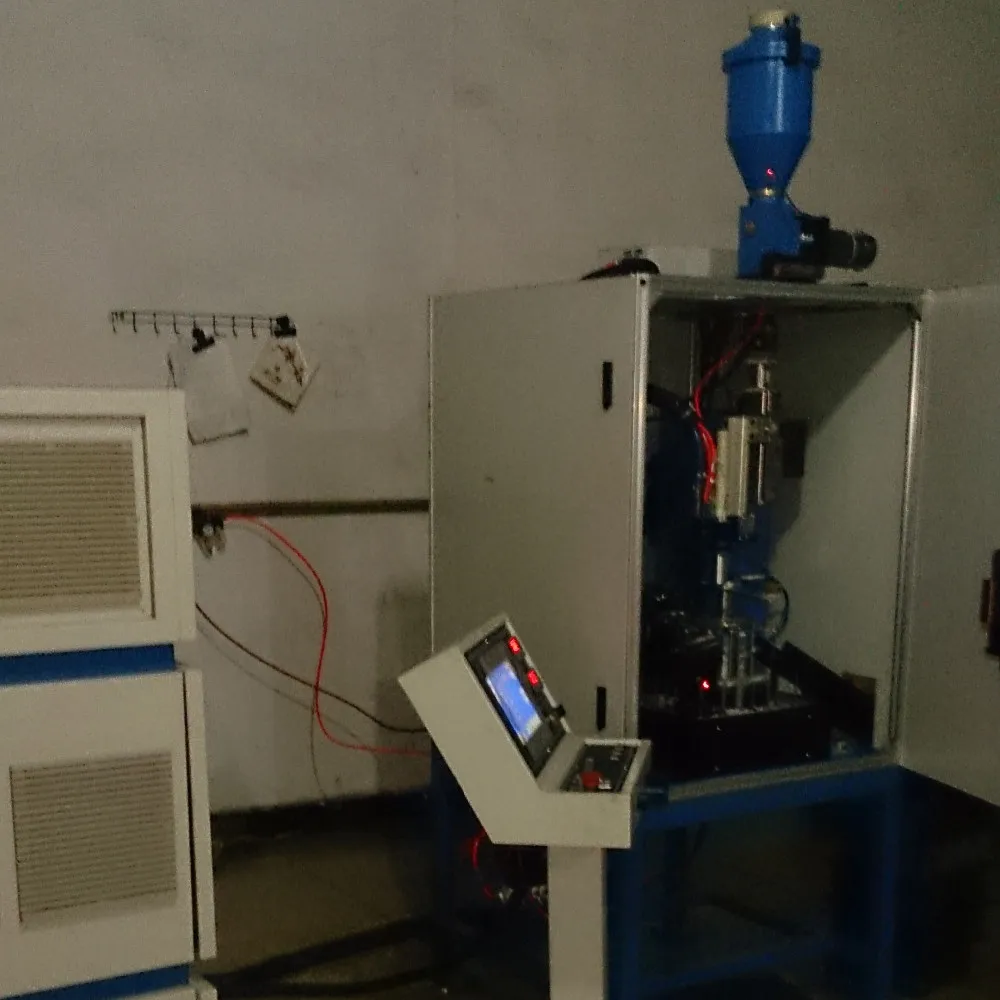

System Configuration

Main parts of machine

\t
NO.
\t
Item
\t
Component and type
\t
Piece
\t
1
\t
Control cabinet
\t
Striking power source (BL200 Panasonic), Transferred arc power source (TX400 Panasonic), PLC programmable controller, Motor Driver
\t
1
\t
2
\t
Welding chamber
\t
\t
1
\t
3
\t
Powder feeder
\t
KK1
\t
1
\t
4
\t
Welding gun
\t
600
\t
1
\t
5
\t
Remote control operating panel
\t
Touch screen
\t
1
\t
6
\t
Welding gun adjust system
\t
Precision rail
\t
1
\t
7
\t
Gas tube and water cooling cable
\t
Intake pressure resistant pipe
\t
1
\t
8
\t
Automatic feeding turntable
\t
NSK bearing, SNS air cylinder
\t
1
\t
9
\t
Water cooler
\t
6000 kilocalorie refrigeration
\t
1
\t
10
\t
Ignition box
\t

\t
1
Advantages

Quality

ISO 9001:2008 & Thorough inspection
20 years experience in production
OEM for world-class companies

Price

Most competitive price ever
Multi saving solutions
Aperiodic promotions

Service

7×24 services & Fast lead time
Free samples & Low MOQ
Various payment terms

Applications
FAQ

Q1. What is your product line?

A: We specialize in PTA (Plasma Transferred Arc) powder welding machine / equipment for hardfacing & wear-resistant applications.

Q3. What about the lead time?

A: 1-2 weeks after payment down.

Q1. How do you ship the goods and how long does it take to arrive?

A: Depends on the transportation you choose. It usually takes 3 weeks to arrive by sea. Airline and Express shipping are also optional.

Q6. Do you have a fixed price list?

A: We do not. We quote based on the result we evaluate customers from various aspects, such as quantity, payment term, lead time, etc.

Q7. Is it OK to label my logo on packages?

A: Yes. Please inform us formally before the production. You could confirm the design earlier based on our sample.

Q8. How to deal with the faulty?

A: Our products are produced in strict quality control system and the defective rate will be less
than 0.1%. If you do receive items with fault, we offer 100% refund or replacement.
