Product Overview

Description


Product Description

Knauf access hole panel, Access hold covers,  HVAC access channel door, HVAC manhole cover for maximum flexibility access ceilings and walls of buildings

It is gypsum board aluminum ceiling HVAC solution access hole panel / manhole cover, which consists outer frame and inner frame.

The inner frame is fixed to the outer frame by hinges on one side and by screw on the other side with elephant nose lock. It's cover is gypsum board inserted.


The frame are high quality extruded aluminum sheet construction with advantages of corrosion resistance and rigidity. Knauf Access holde covers can be easily open to allow for maximum flexibility in the installation and maintenance.

Attributes

Knauf access hole panel, HVAC access hole cover access door attributes

1. Easy and quick installation, fixing by screws or clips.
2. High-class quality, perfect design, light weight while strong bearing capacity, no rusting and keeping forms.
3. Mildew resistant, corrosion proof.

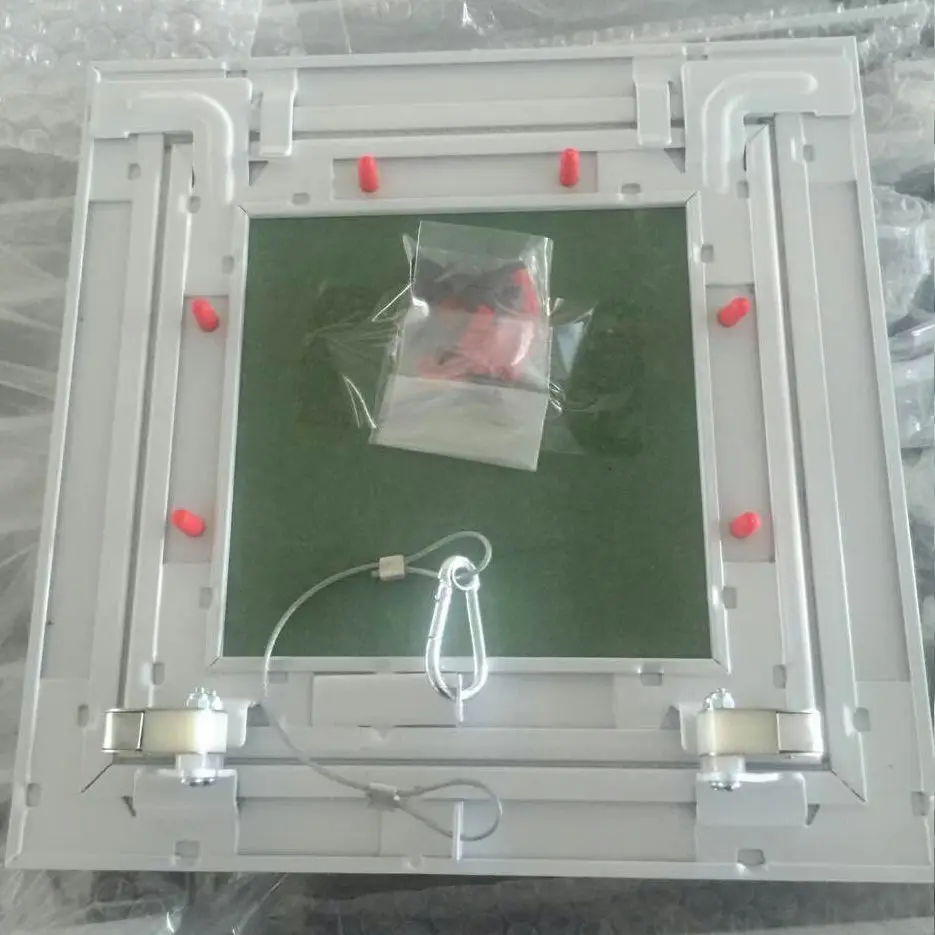

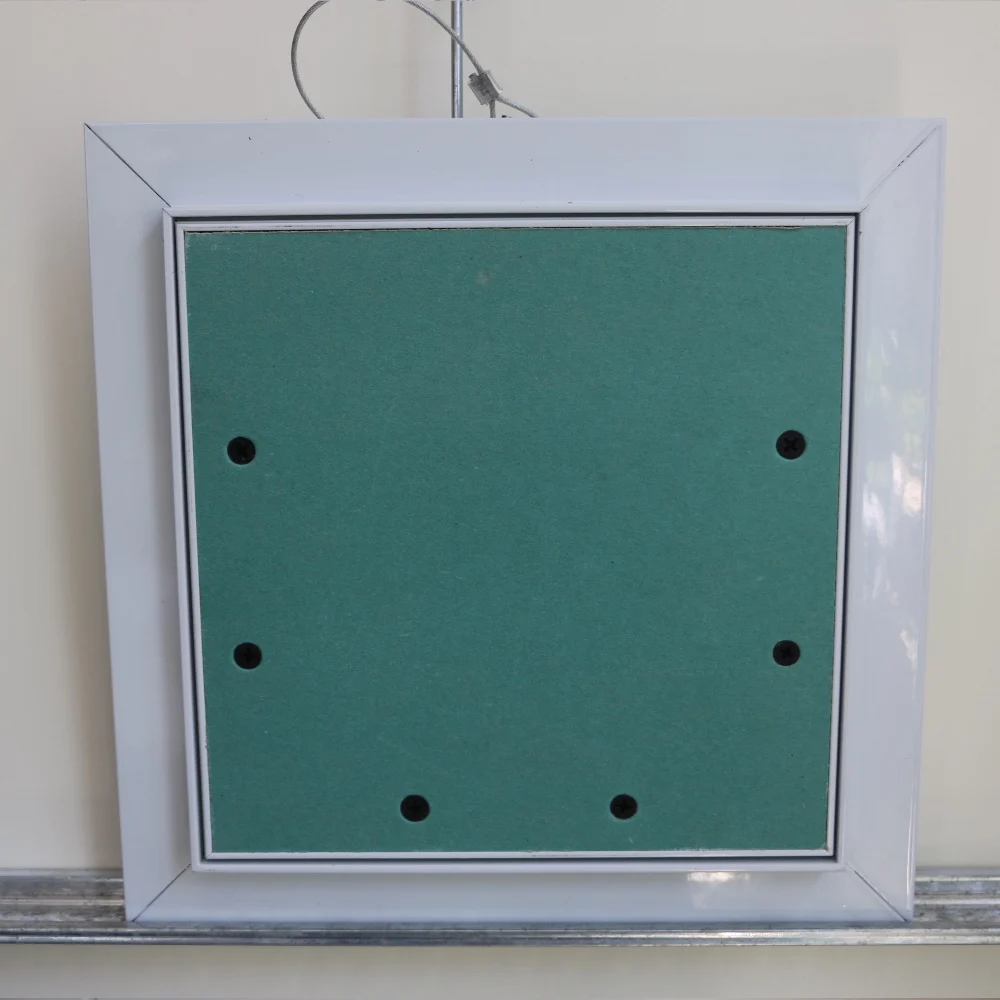

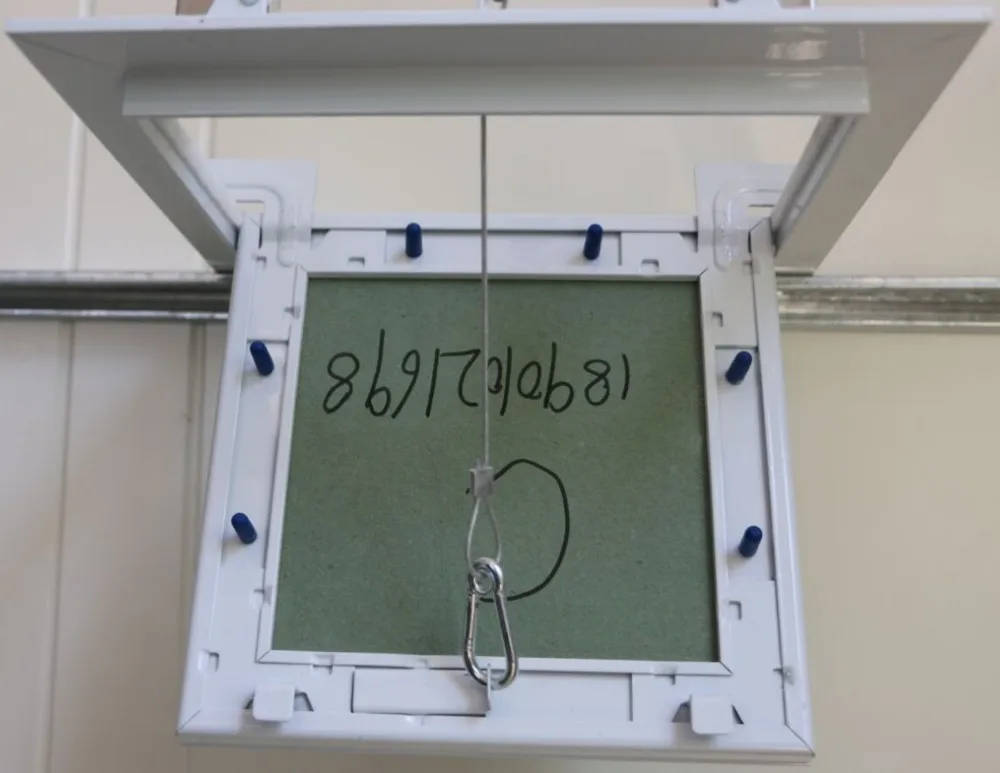

Detailed Images

We have all types of access hole panel, HVAC access door / access cover as below:

1. Strong aluminum frame and hardware
2. Available in ceiling maintenance panel
3. White powder-coated finish
4. With sealing strips between inner and outer frames
5. Special spring fixed for inner and outer frames, with easy and comfortable control handles
6. Gypsum board inlay available
7. Simple removable door panel, with safety

8. Quick installation without difficulties
9. Good lock design
10. Available in maintenance panel
11. Simple removable door panel, with safety
12. Beautiful line and can be unpicked and washed
13. It is the ideal of the new generation of environmentally friendly products.

14: All size available

Application

Knauf access hole panel manholde covers HVAC access panel access door application

1. Ceilings and Walls of building, such as shopping malls, hotels, hospital, school, office, house indoor decoration.
2. Central air conditioning system access manhole.
3.Access ductwork or pipe work above the light fixtures, vents, fire fighting pipeline, Gypsum board ceiling, bathroom pipeline, etc.

Standard Size

Any size available from Knauf access hole panel Access hole covers HVAC access door /panels


Overall frame size = Face size + 60mm
Standard size

\t
Item Code
\t
Hole Size / Face Size(mm)
\t
Outer frame Size(mm)
\t
Inner frame Size (mm)
\t
Net weight (kgs)
\t
BDC200
\t
200x200
\t
260x260
\t
194x194
\t
1.1
\t
BDC250
\t
250x250
\t
310x310
\t
244x244
\t
1.4
\t
BDC300
\t
300x300
\t
360x360
\t
294x294
\t
1.7
\t
BDC350
\t
350x350
\t
410x410
\t
344x344
\t
2.1
\t
BDC400
\t
400x400
\t
460x460
\t
394x394
\t
2.6
\t
BDC450
\t
450x450
\t
510x510
\t
444x444
\t
3.1
\t
BDC500
\t
500x500
\t
560x560
\t
494x494
\t
3.7
\t
BDC550
\t
550x550
\t
610x610
\t
544x544
\t
4.3
\t
BDC600
\t
600x600
\t
660x660
\t
594x594
\t
4.9
Packing & Delivery

Knauf access hole panel/ HVAC Access door / manhole cover package

1. Plastic angle for protecting corners
2. Poly film for scratch-resistant
3. Two pcs one carton

4. Outer wooden carton for package
5. Pallet package is optional

FAQ

Four major Knauf access hole panel/ HVAC solutions access hole cover / manhole cover / access door

According to the needs of decoration, there are four main access hole covers / panels.
Aluminum access hole cover, aluminum alloy composite access hole cover, aluminum composite flip down access hole cover, and wall access hole cover.
Now the principal decoration companies begin to apply the finished access hole covers in domestic market.
