Tunnel Subway Construction Concrete Pumping and Spraying Used Small Concrete Pump Price
- Category: >>>
- Supplier: Henan Coal Scientific Research Institute Co. Ltd.
Share on (60543414932):
Product Overview
Description
KBS-8 Concrete Pump
Tunnel Subway Construction Concrete Pumping and Spraying Used Small Concrete Pump Price
Product Description
Concrete Pump Features:
* Full Hydraulic Mini Shotcrete Pump Machine
* high efficiency: full hydraulic pumping technic, reliable performance.
* long spraying distance: 150m horizontally and 80m vertically.
* continuously adjustable flux and accelerator adding volume.
* low fitting consumption, long service life of wearing parts.
* flexible movement, convenient operation and maintenance.
Concrete Pump Application:
* convey fine aggregate concrete and mortar for high buildings.
* grout heat-insulated lightweight foamed cement, mortar floor heating, and self leveling for ground architecture.
* spray plain concrete and fiber concrete in engineering construction.
* convey and spray refractory and thermal insulation material.
* spray afforestation soil in ecological environment construction.
* pressure perfussion for foundation piles, backfill in overbroken tunnels, railway slope supporting, and disaster management.
Concrete Pump Technical parameters:
Model | Unit | KMB-6 | KMB-8 | |
Capacity | m3/h | 6 | 8 | |
Max. aggregate size | mm | 15 | 15 | |
Fineness modulus | / | ≥2.5 | ≥2.5 | |
Delivery pipe | mm | DN100/DN80 | DN100/DN80 | |
Concrete slump | cm | 10~18 | 10~18 | |
Max. conveying dist. (horizontally / vertically) | m | 150 / 80 | 120 / 50 | |
Main motor power | kw | 15 | 22 | |
Max. operating oil pressure | M pa | 12 | 19 | |
Max. output pressure | M pa | 5 | 8 | |
Feeding height | mm | 1100 | 1100 | |
Dimensions (L×W×H) | mm | 2990×1200×1140 | 2990×1200×1140 | |
Weight | kg | 1600 | 1600 | |

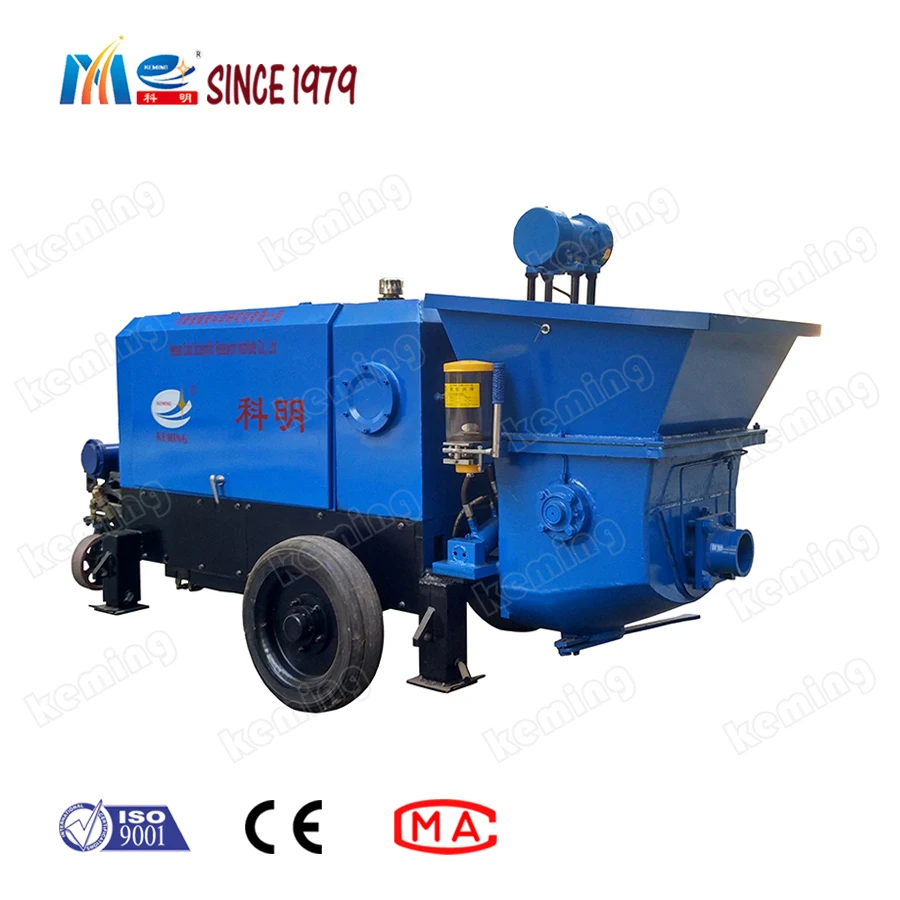

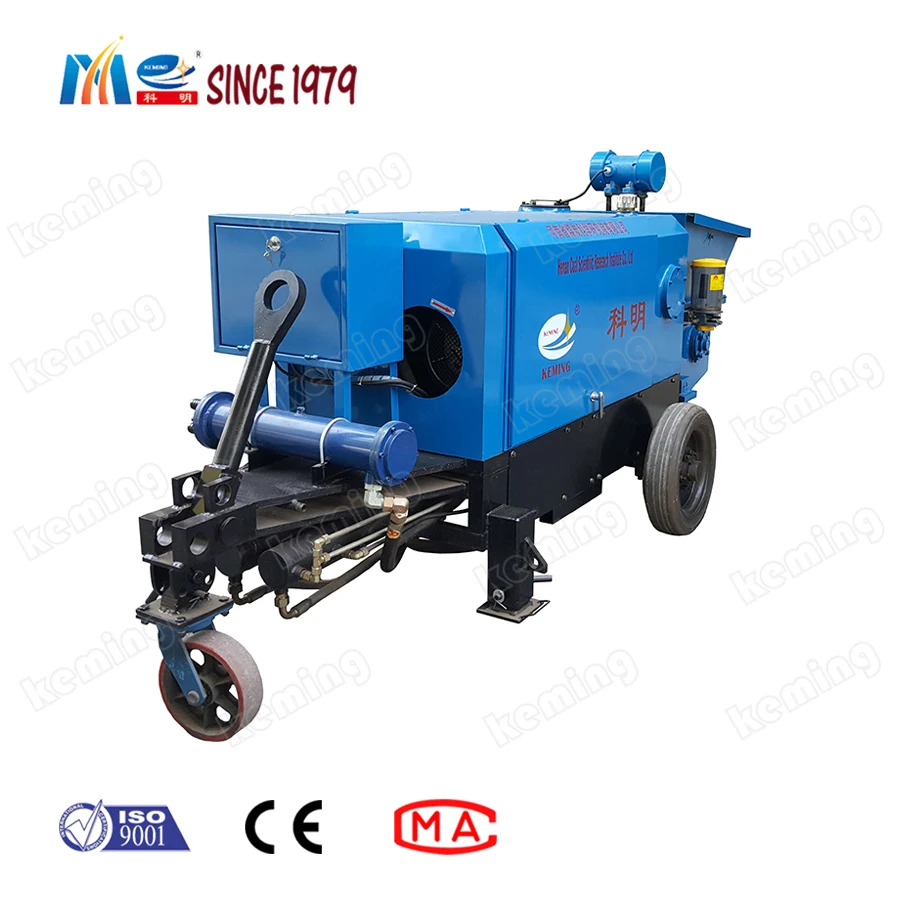

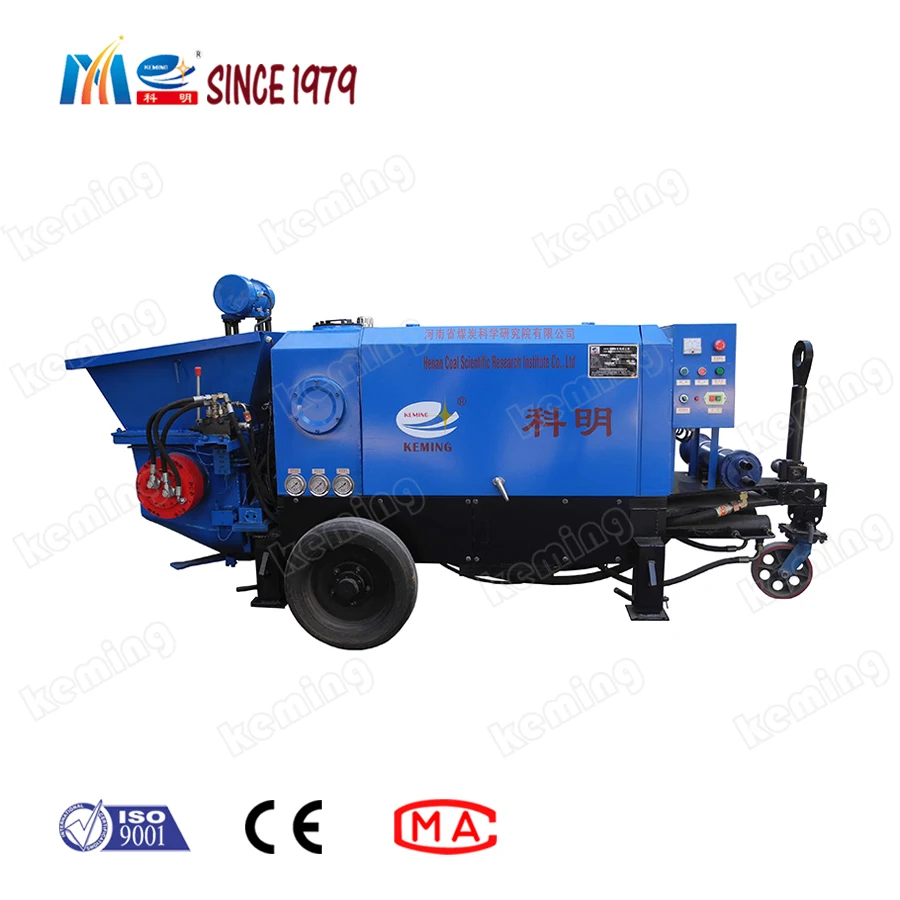

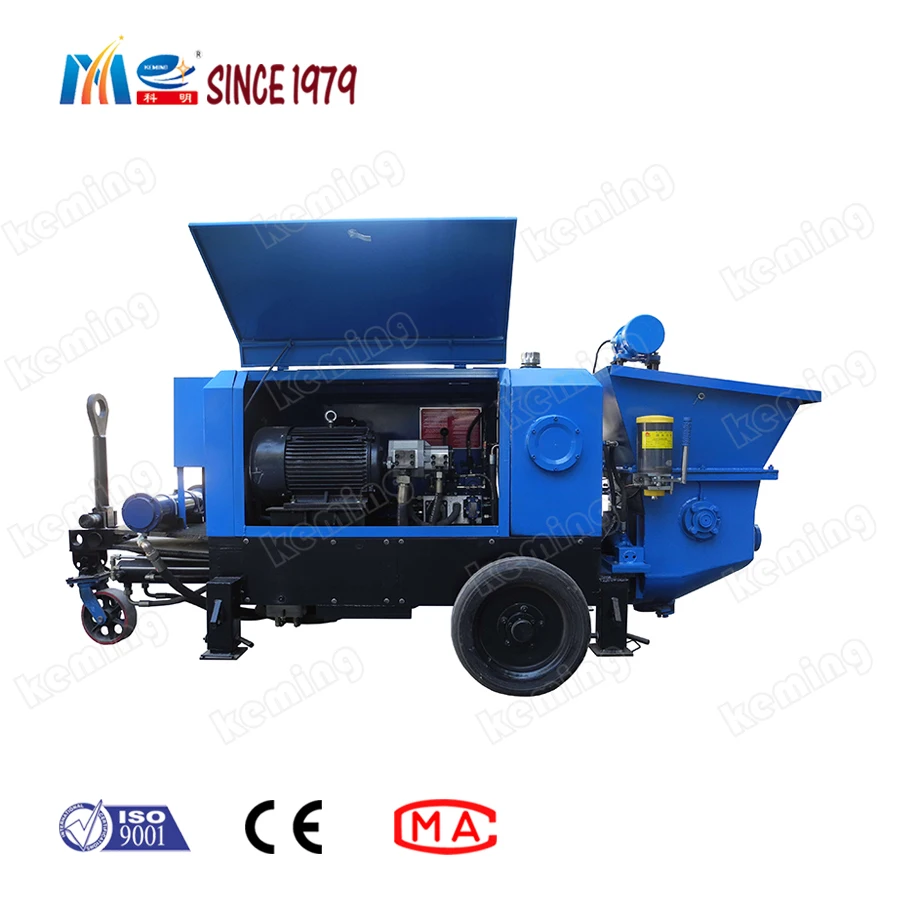

Concrete Pump Detailed Pictures:
Company Information
Henan Coal Scientific Research Institute Co., Ltd. was established in March 1979. In 1999, it was ranked among the first batch of 242 coal research institutes, and implemented localized management by Henan Province. In 2006, it was transformed successfully into a scientific and technological enterprise, and renamed officially as Henan Coal Scientific Research Institute Co., Ltd.
Achievements: As one of the standard setting unit of national shotcrete equipment industry, the company has obtained more than 170 research and development achievements, more than 110 technical consulting services, 82 technology awards and15 national invention patents and utility model patents.
Application: mining well project, hydropower engineering, highway (railway) tunnel, subway engineering, bridge and slope maintenance, air-raid shelter construction, municipal construction, environmental greening project, blast-furnace refractories spraying, etc.
Certifications
Related Products-C
 |  |
Mini Concrete Pump * KS-6, KS-8 (11kw, 15kw) * Hydraulic Type
| Concrete Pump * KMB-15, KMB-20, KMB-25, KMB-30, KMB-40 * Hydraulic Type |
 |
|
Concrete Mixer Pump *KBT2006/JZM300 KBT2506/JZM350 KBT2506/JZM450 * Hydraulic Type | Diesel Concrete Mixer Pump *HBT2008/JZC350 HBT1506/JZC350 * Hydraulic Type
|
|
|
Concrete Pump * KMB-6, KMB-8 * Hydraulic Type | Shotcrete Pump * KBS-6, KBS-8 * Hydraulic Type |
FAQ
1. Q: Which pump should we choose?
A: To recommend the most suitable model, please tell us:
- Material: composition, max aggregate size
- Capacity (-m3/h) :
- Delivery distance (horizontally / vertically):
- Grouting pressure:
- Driven type: electric motor, diesel engine, pneumatic motor
2. Q: What is the vulnerable part? How many spares should we prepare?
A: After long-time running, the rubber piston and cylinder sleeve may get worn. We will offer some spares for free.
Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale.
3. Q: Can we have customized model?
A: Yes. Customized production and OEM production are available according to your actual requirements.
4. Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
5. Q: What should we do if there are some problems with the machine?
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.
6. Q: What is the lead time?
A: 1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
7. Q: How about the package?
A: The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.
8. Q: How to place an order?
A: Both online order and offline order are acceptable.
It is suggested to place online order with a Trade Assurance to get full protection for first order.
9. Q :How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment;
L/C at sight (high bank charge, not suggest, but acceptable);
100% TT in advance (especially for small amount and spare parts etc.)
