Factory Automatic Poultry Farm Equipment Made For Big Farm

Product Overview

Description

            Factory  automatic poultry farm equipment made for big farm

                                                                           (Brand:U-Best)

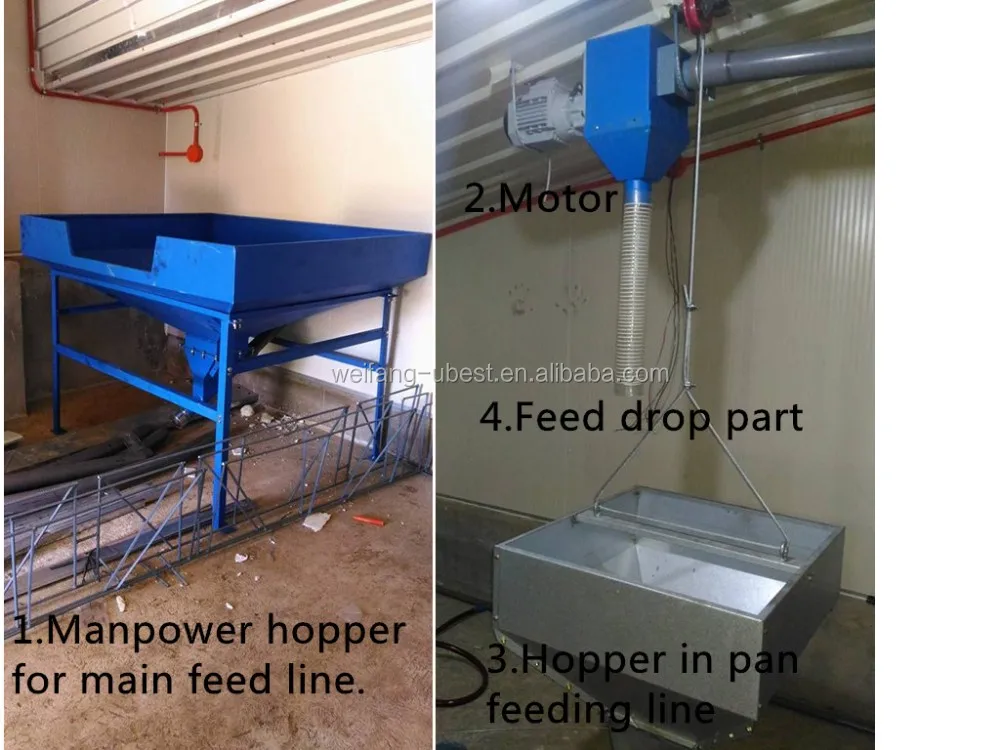

Component:Main feed line system consists of a driving device ,a forage tower,a conveying pipe ,an auger and a material level sensor.

Advantage:the main stocking line system is mainly used to convey feed from the forage tower into the hopper of the feeding line and automatically control the conveying opening/closing of the motor by the material level sensor to achieve the aim of automatic feeding.

Performance parameters of main stock line system.

1.high-quality special driving reduction

 Power:0.75kw, voltage:380v,frequency:50hz,three-phase AC current.

2.feeding system

 Diameter of conveying pipe:75*3.6mm,material:PVC

 Helical spring auger from south Africa,feeding ability:1.400kg/h.maximum

 Conveying length:60m

 Radius of bending pipe:R 1500(inclination angle 30 degrees)

3.material level sensor from Israel.

 Time delay range 0 to 2hours.

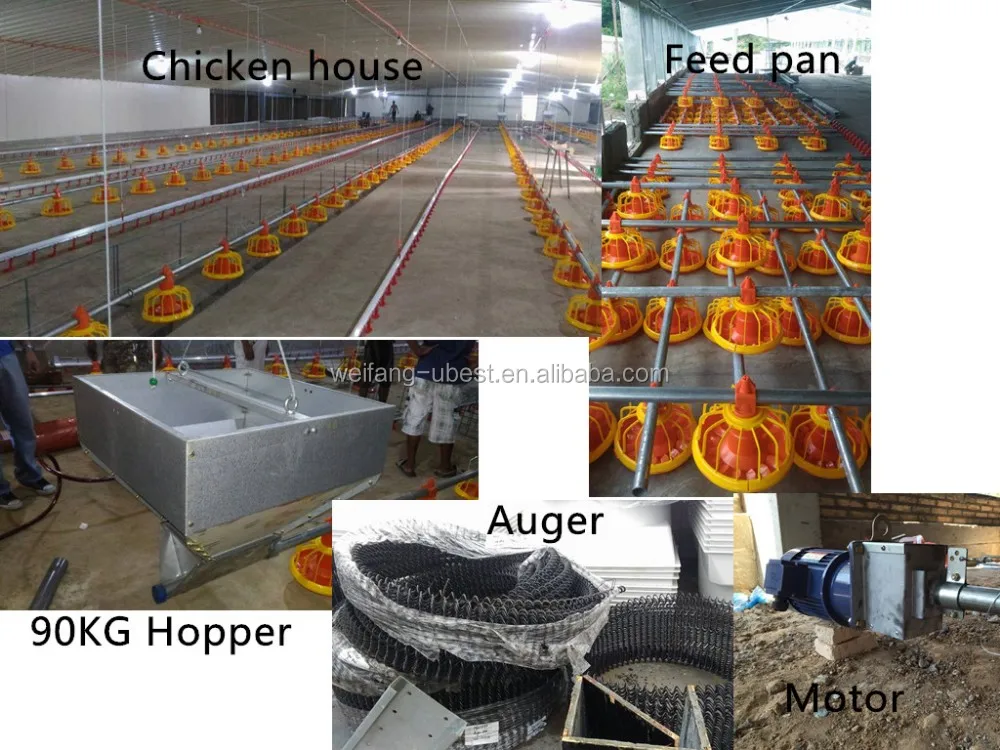

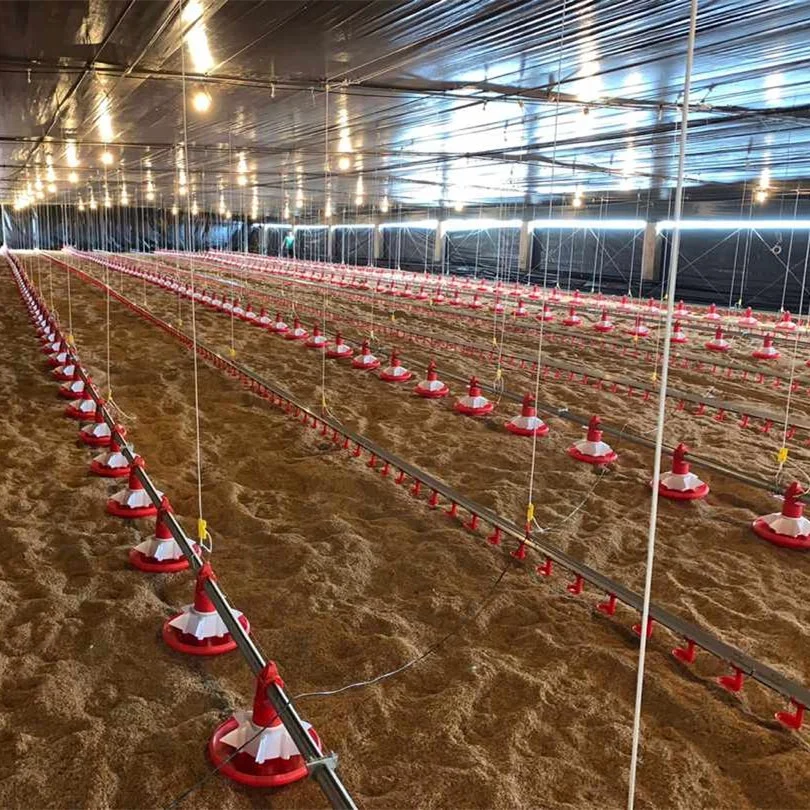

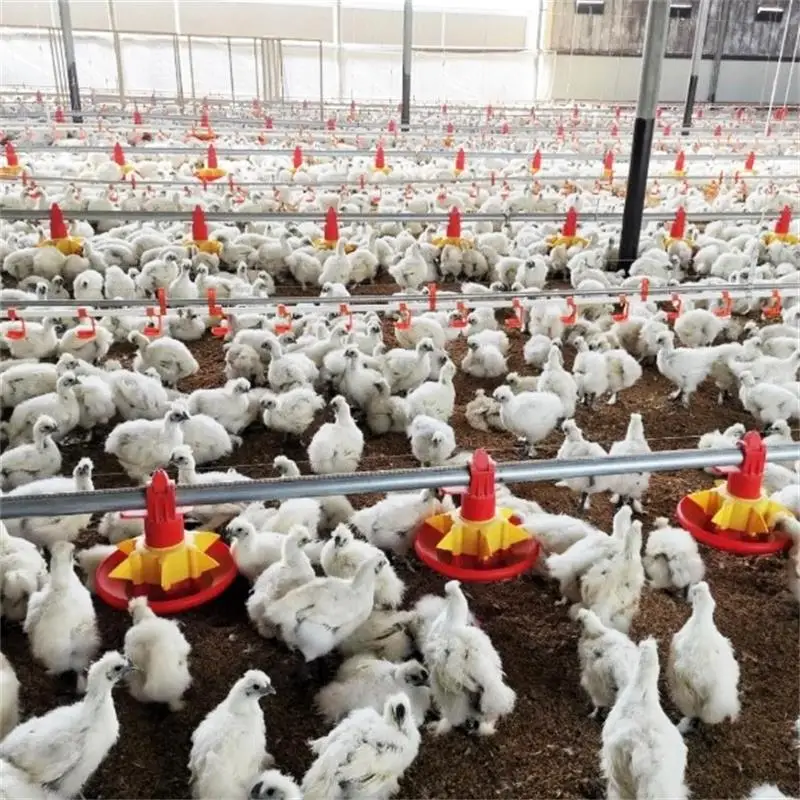

2.Automatic pan feeding system:

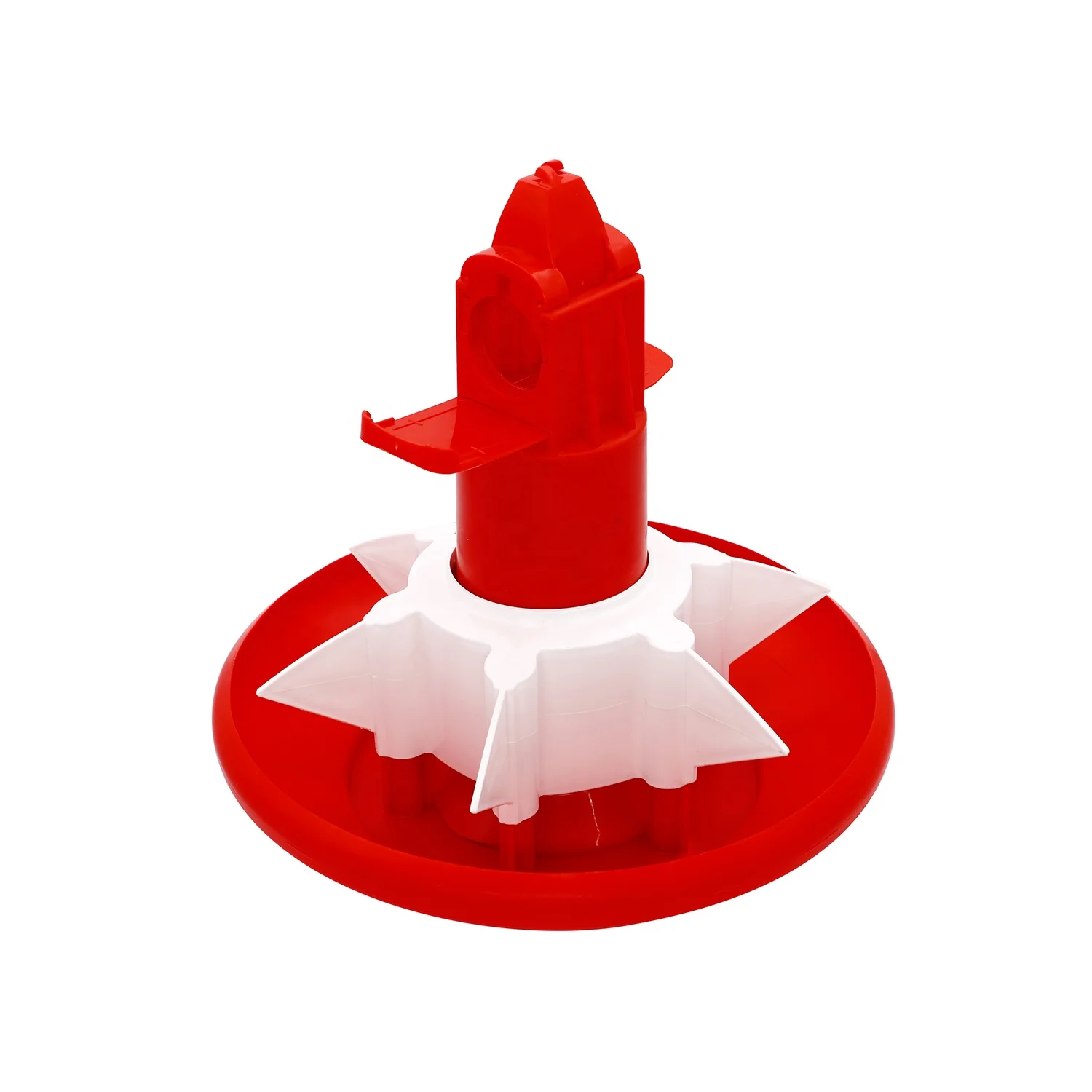

Component:Chicken disk type automatic feeding system consists of a driving device.a hopper ,a conveying pipe,an auger,trays,a suspension lifting device,an anti-perching device and a material level sensor.

Fuction:The main function of the system is to convey feed from the hopper into each tray to ensure the eating of the meat chickens and automatically control the conveying opening/closing of the motor by the material level sensor to achieve the aim of automatic feeding.

Performance parameters of feeding line system.

1.high-quality special driving reduction motor

 Power :0.75kw,voltage:380v,frequency:50hz,three-phase AC current

2.V-shaped Bin(with hopper)

Bin volume:115L,hopper volume:38L

Material:hot-dip galvanized sheet

3.feeding system

 Diameter of conveying pipe:45mm

 Material :hot-dip galvanized steel pipe with the zinc coating amount of more than 275g/m2

 Helical spring auger from South Africa feeding capacity:450kg/h

4.Material level sensor from Israel:time delay range 0to 2 hours.

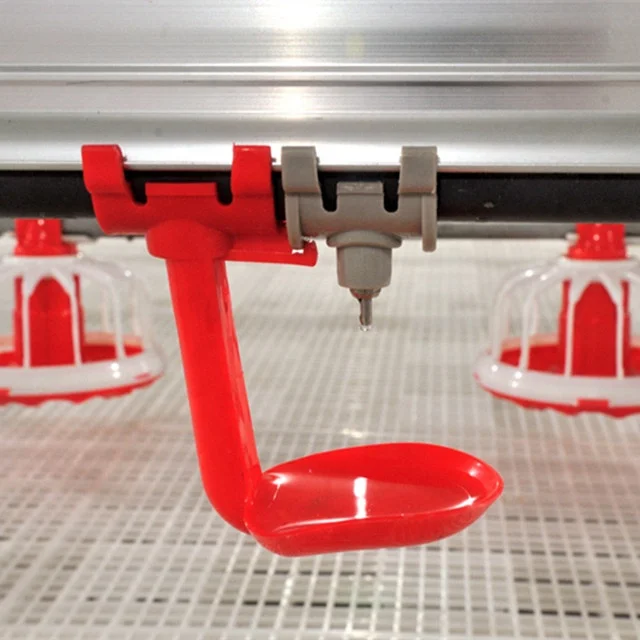

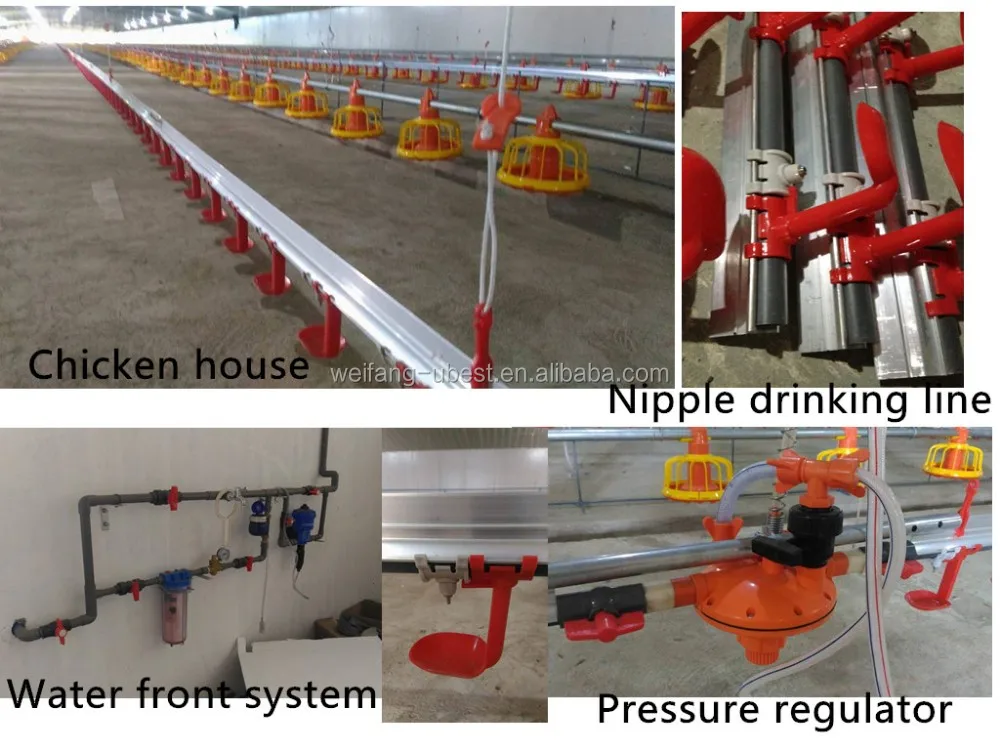

3.Automatic nipple drinking system:

Component:Main part of the system:filter,pressure regulator,nipple drinking line,lifting and suspension system,electric shock system,water front system,etc.

Funcion:This main function is to deliver certain pressure water to drinking pipe,the water will flow out when automatically broilers touch the nipple,so as to meet the function of drinking water automatically.

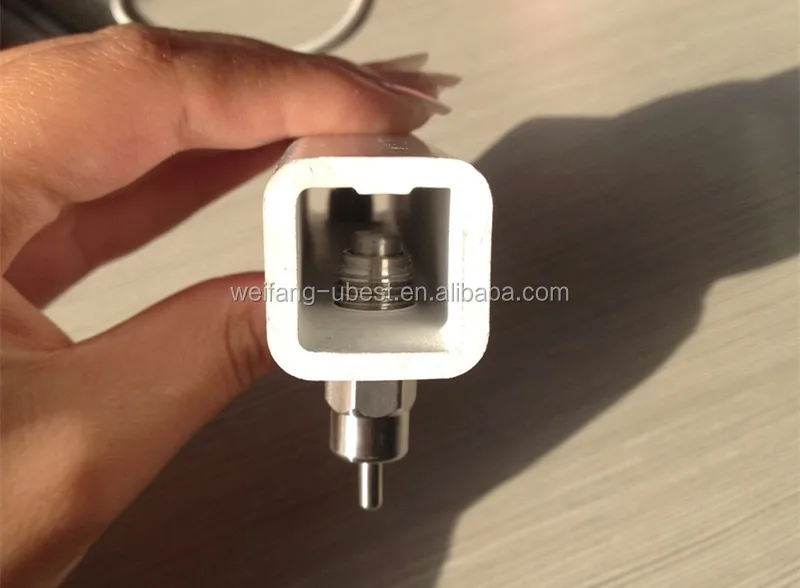

Imported waterline:

1.waterline comes from European technics ,every nipple has to pass the tests before delivery,so it will never leak..

2.Nipple is easy to be dismounted and replaced.

3.It can meet the drinking requirement of chicken more appropriately.

Nipple drinking line system type:

1. Standard nipple drinking line (nipple: one is plastic for outer and stainless steel for the inner,another is stainless steel).



2.New design nipple drinking line.



4.Ventilation system:

Component: fans and air inlet windows ( open houses also not use).

Advantage:In summer,fans can make temperature down quickly and let air inside and outside change,make chicken house in a suitable temperature to improve survival rate.In window,generally only use air inlet windows.

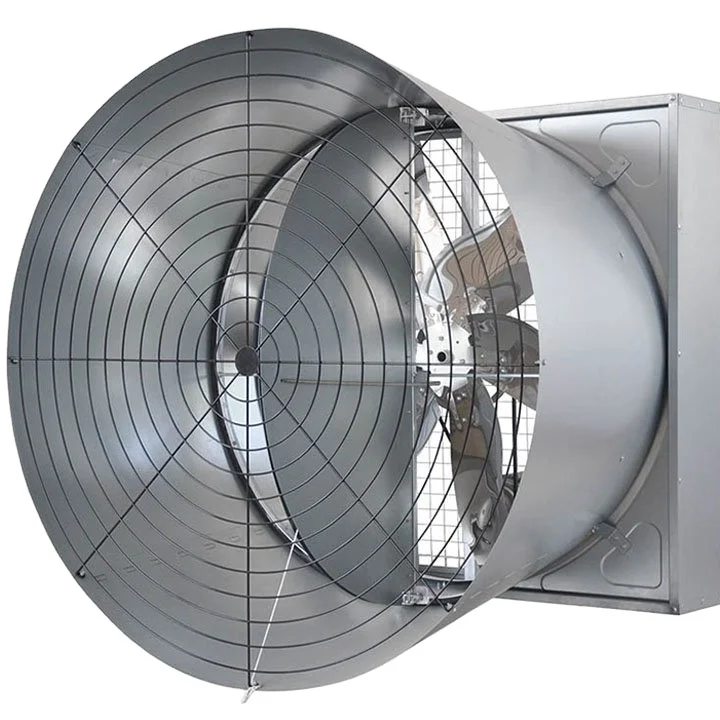

Fans Include:50’’fan,36’’fan (fan type:50''and 36''butterfly cone fan, 50''fiber glass and Axial flow fan)

Technical parameter of fan:(Drive: Belt)

Model	Blades rotataional speed (rpm)	Blades Diameter(mm)	motor rotational speed(rpm)	Air flow(m3/h)	Total pressure(pa)	Noise(dB)	Input power (w)	Power parameter	size(mm)
Axial flow fan 36''	500	910(36in)	1400	21000	57	<64	550	380v/50Hz	1000*1000*1000
50''	458	1270(50in)	1400	44000	57	<64	1100	according to customer	1380*1380*1380
Cone fan 36''	438	910	1400	28000	70	<64	550	motor brand:Chinese famous motor,Simens motor and ABB motor	1000*1000*1000
50''	439	1270	1400	51020	80	<64	1100	according to customer	1380*1380*1380





 Air inlet winow: Generally only use in closed chicken houses,now many customers also use in open houses,make inside air with outside air change,in short winter or summer.

Operation way: automatic control (motor) or manual control (manual winch).

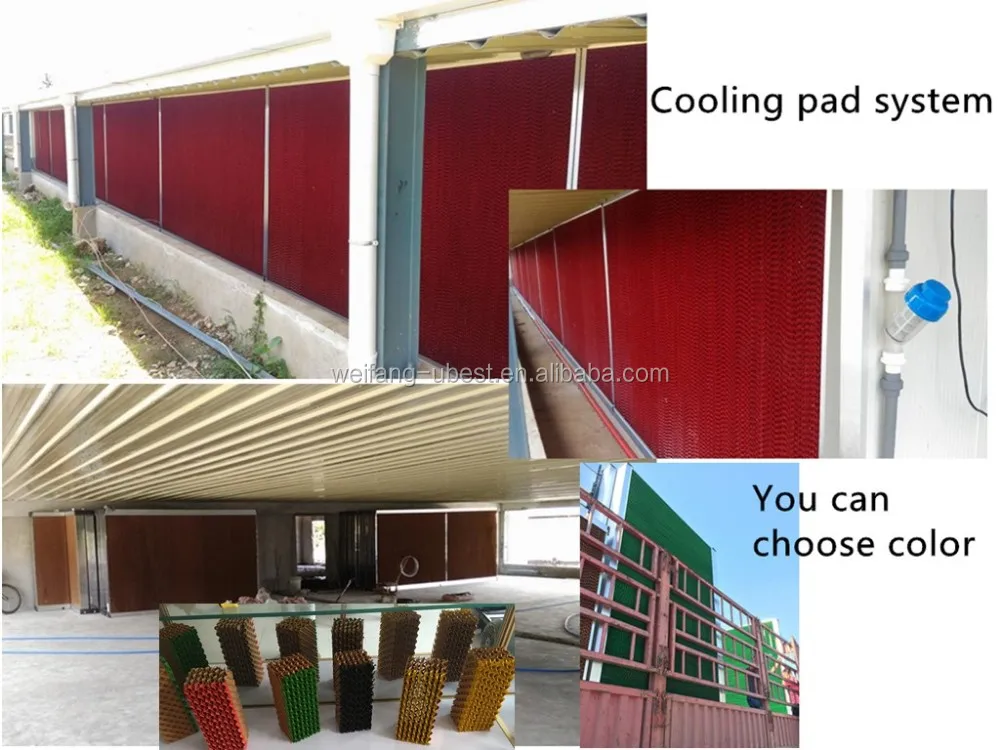

5.Cooling pad system:

Advantages:Cooling pad -fan the longitudinal ventilation cooling combination is most economical and effective summer cooling combination of the hen house.

Cooling pad parameters:

Thickness specification:100mm/150mm

Width specification:300mm/1960mm/2160mm

Height specification:1660mm/1960mm/2160mm

Outer frame:galvanized sheet and aluminum alloy,rust prevention treatment.

Aluminum alloy frame:high strength,good corrosion resistance,even water distribution,compact structure beautiful and practical

Installation and layout of cooling pad and the fan are alway oppositely arranged,and the cooling pad is installed on the wall surface facing monsoon wind.

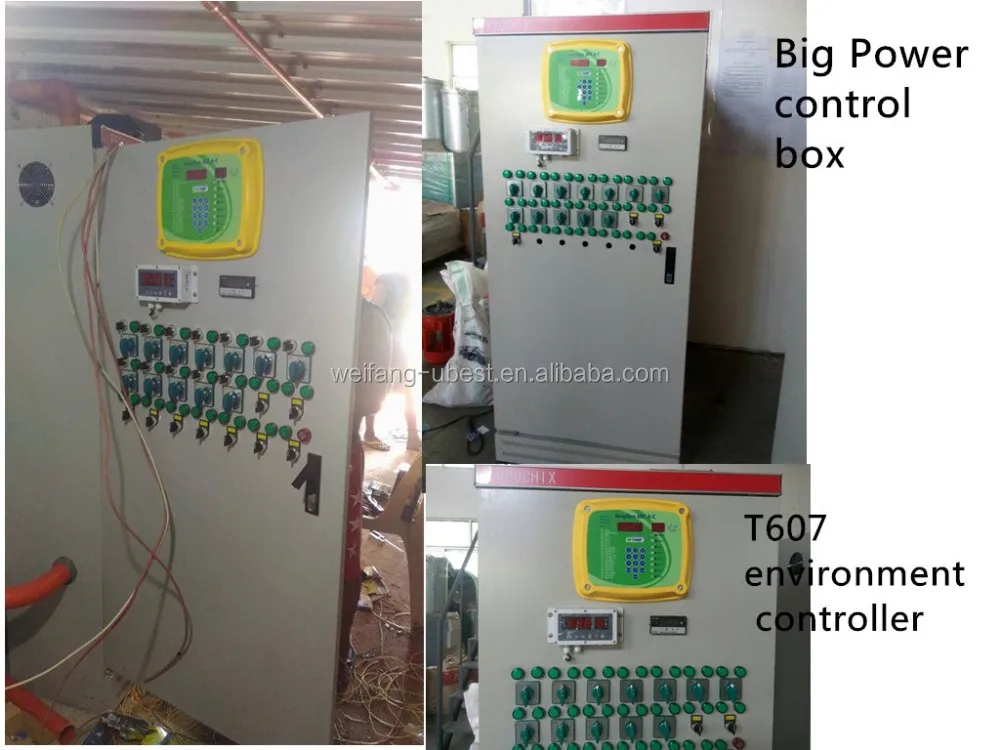

6.Automatic environment and power control system:

Have four sets:T607,T610,T616,MR6616 ,T series are imported from Israel.technology have advanced international level,on small environment control.

Environmental control system advantages:

1. Climate controllers reliable,user friendly micro controllers especially designed for broiler house

2.Has built 8 in relays for alarm output,heater,5 groups of fan,cooling equipment

3.LCD screen makes the computer and user communicate easily.User could input data to program the micro Computer

4. Several relays there.You could add relays to control more equipment

5. Available to control heating,ventilation,cooling,air inlet

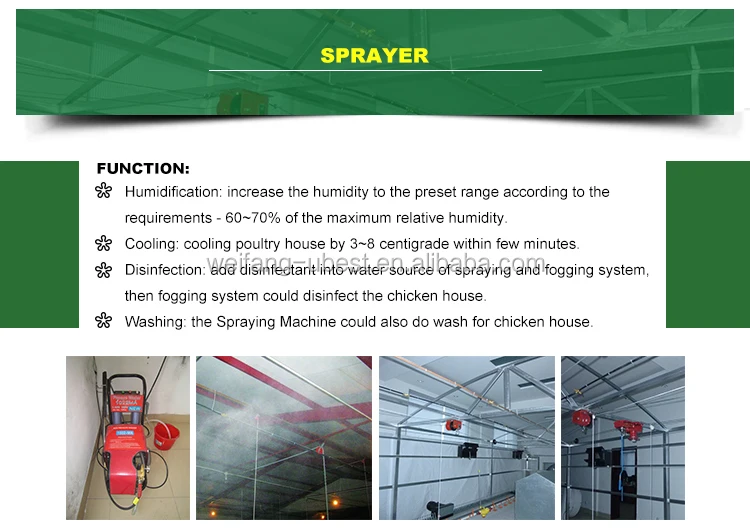

7.Spraying and disinfecting system:

Advantages:It effectively cools,humidifies,dedusts and disinfects the chicken house.

Characteristics:

1.has quick refrigeration and not damp.

2.Large flow,high pressure,good atomization,and corrosion resistance.increase the humidity to the preset range according to the requirements-60-70 percent of the maximum relative humidity

3.Effectively prevent the dust,and reduce respiratory diseases of livestock and poultry

4.Disinfect with chickens.

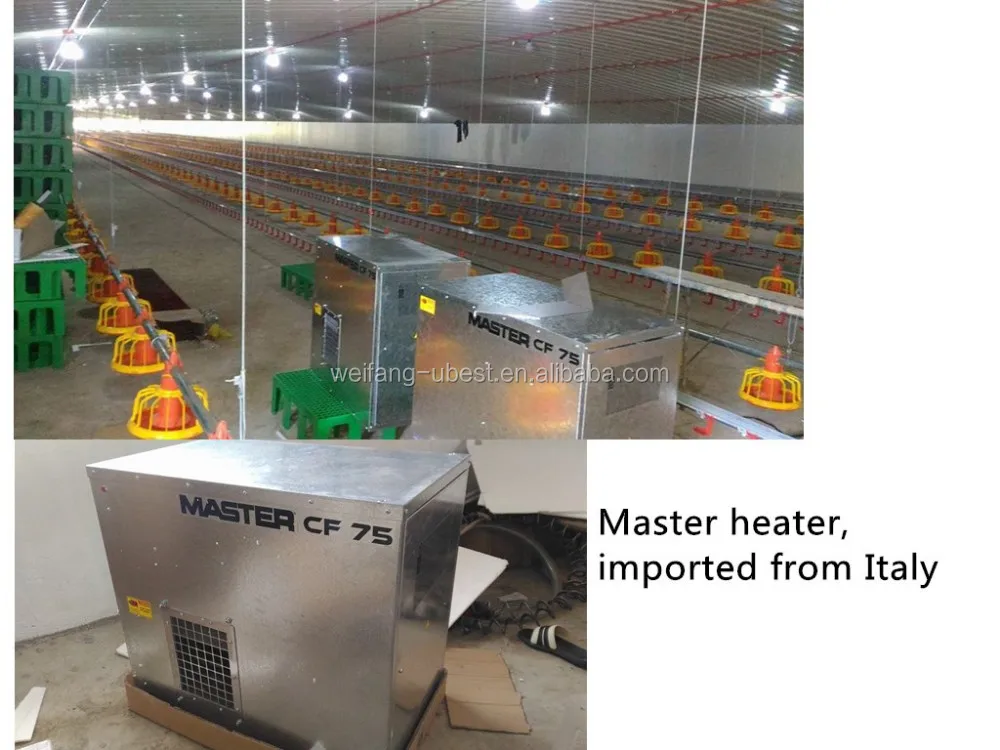

8.Poultry heating system:

Advantages:Can improve temperature of poultry house quickly,ensure poultry house have a suitable temperature .

Including:hot blast heater of coal or diesel,gas brooder,gas heater.

Our company has exported to Philippines,Indonesia,Fiji,Australia,Uzbekistan,Pakistan,Ukraine,Poland,Palestin,Lebanon,Bahrain,Qatar,UAE,Saudi Arabia,Sudan,Algeria,Nigeria,Zimbabwe,Mozambique,South Africa,Dominica,Honduras,Costa Rica,Colombia,Paraguay....U-Best company has an experienced team of engineers,special provides quotation,design and optimization services for your architecture,meet your architectural requirements.Welcome you to visit our company and become our good customer.

U-Best Exhibitions information:

We attended Philippines Exhibiton on June,2015.Achieved great success,now we have many Philippines customers and have a big agent in Philippines.On July,2016,we attended Indonesia Exhibition,got in touch with may local farmers and had a good feedback.

We have confirmed to attend Egypt Exhibiton on Oct.2016,American Exhibition on Jan.2017 and Philippines Exhibition in 2017.

If you have time,welcome and nice to meet you in these exhibitons.

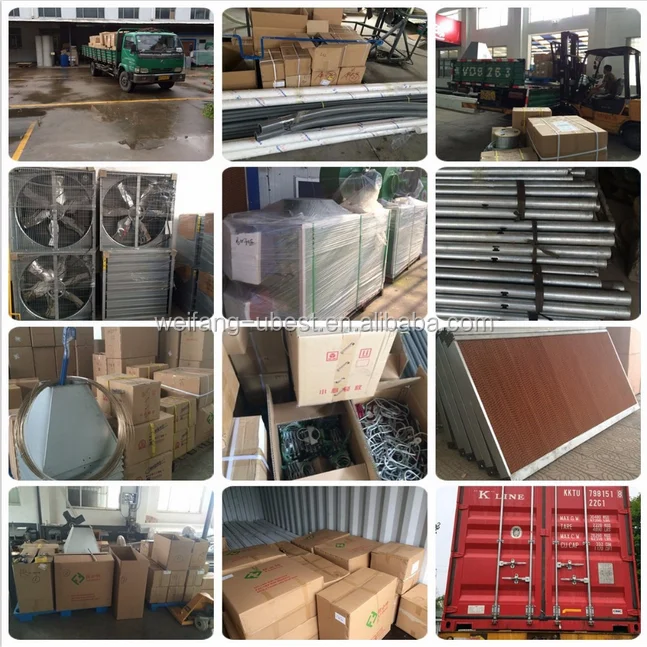

Professional workers are loading in containers.

Container:20GP can hold 32 cubic meter,40GP can hold 56 cubic meter,40HQ  can hold 68 cubic meter.

Packaging: * feed pan,drip cup,motor,winch,etc in boxes.

                    * feed pipe,support pipe,water pipe with nipple,etc in bundle,use stretch film to    protect.

                    * silo with working accessories,hopper,fans,cooling pad,etc in nude packing in container,use boxes to protect.
