Фотоаппарат для волочения проволоки с прямой линией CL 560/9

Product Overview

Description



CL-560/9 Straight Line Wire Drawing Machine

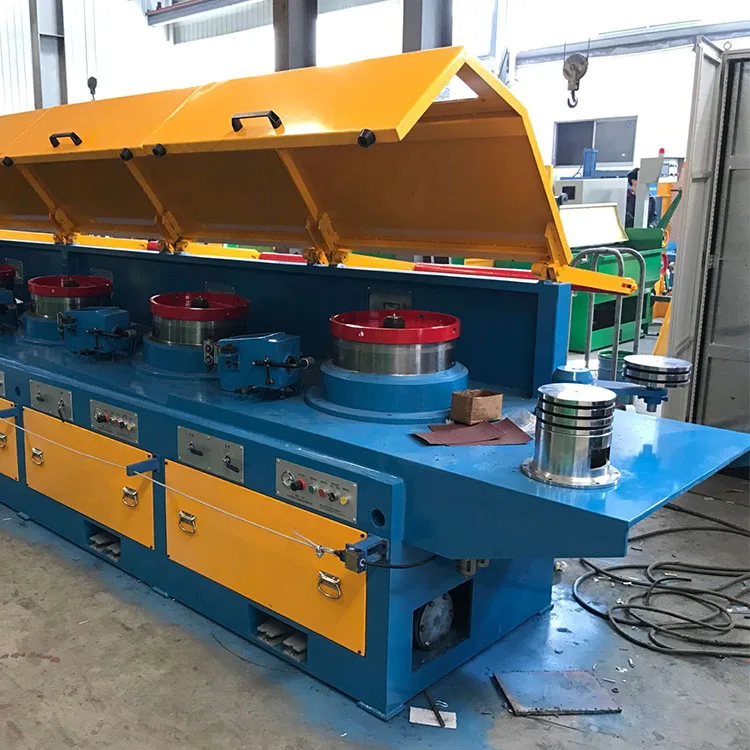

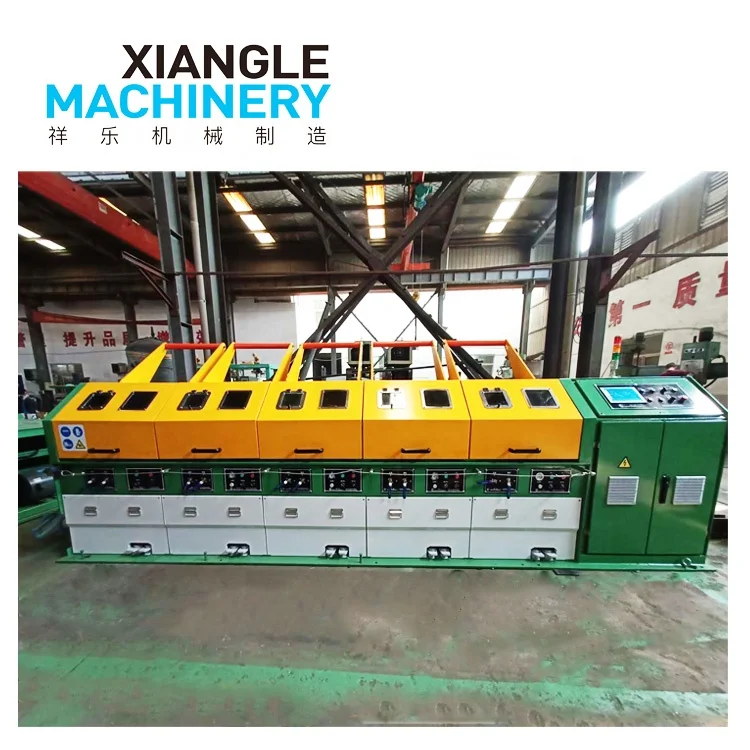

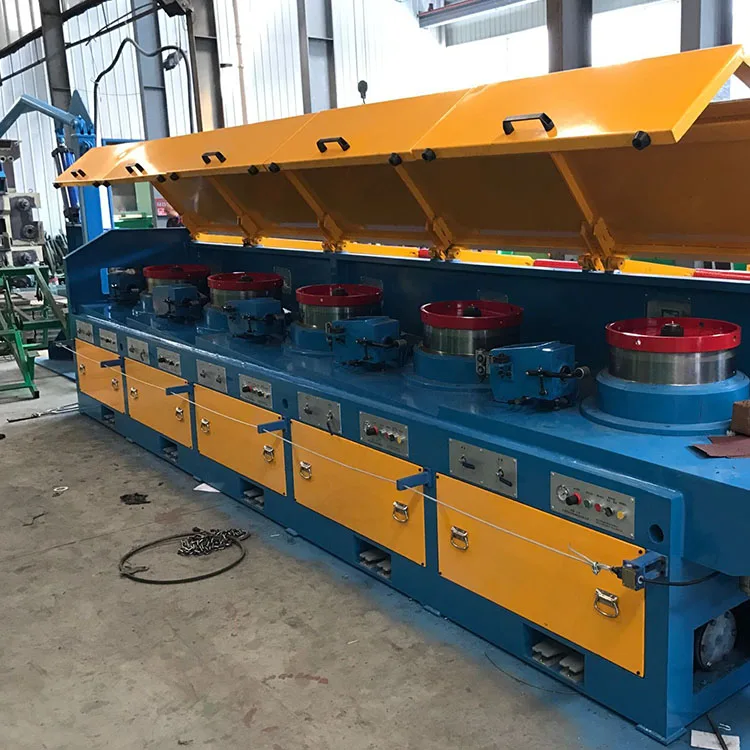

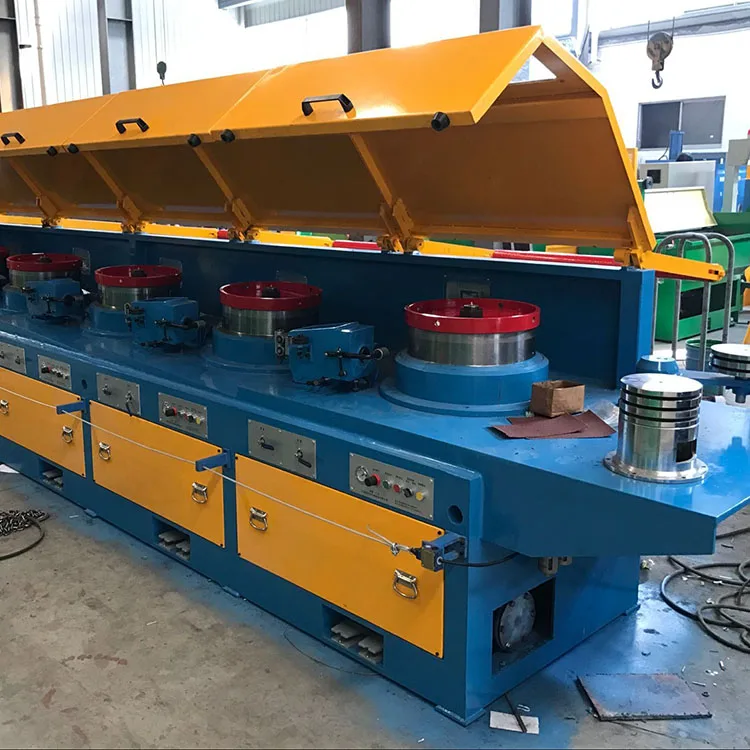

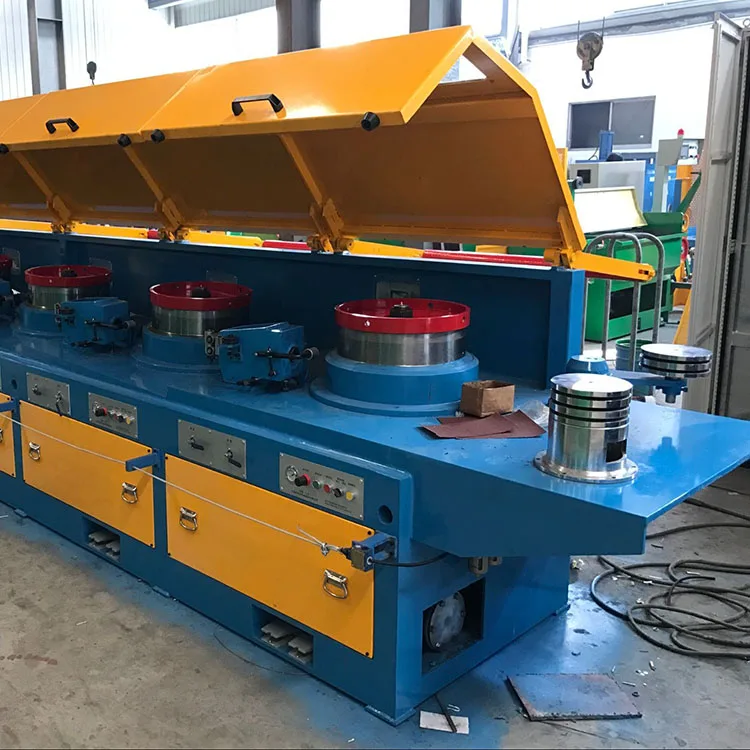

Equipment Pictures



Technical Parameters



Item	Unit	CL-12/1200	CL-10/800	CL-9/700	CL-10/560	CL-10/400
drum diameter	mm	1200	800	700	560	400
draw pass		12	10	9	10	10
input size	mm	8-12	8-10	6.5-8	5.5-6.5	8-14
output size	mm	3-5	3-4	2.5-3	1.8-2	0.8-1
drawing speed	m/min	300	360	480	720	840
tensile strength	Mpa	<1300	<1300	<1300	<1300	<1300
total compressibility	%	87.24-85.94	84-85.94	85.94-85.21	90.53-89.29	87.24-84
average compressibility	%	20.48-19.58	18.42-19.58	19.58-19.13	21.00-20.02	18.61-16.74
motor	KW	110-90	90-55	75-55	37-22	15-7.5







Product Advantages



1. high efficiency, higher speed

2. easy operation;

3. much better finish wire quality due to less deviations , no torsion drawing

4. high performance cooling system-water cooling plus high pressure wind cooling



    The domestic market share of stainless steel drawing machines takes more than 90% in  stainless steel

 equipment industry area. For the overseas market,our equipment are exported to Japan, Russia,  Brazil,

 Vietnamese, India and other countries.
