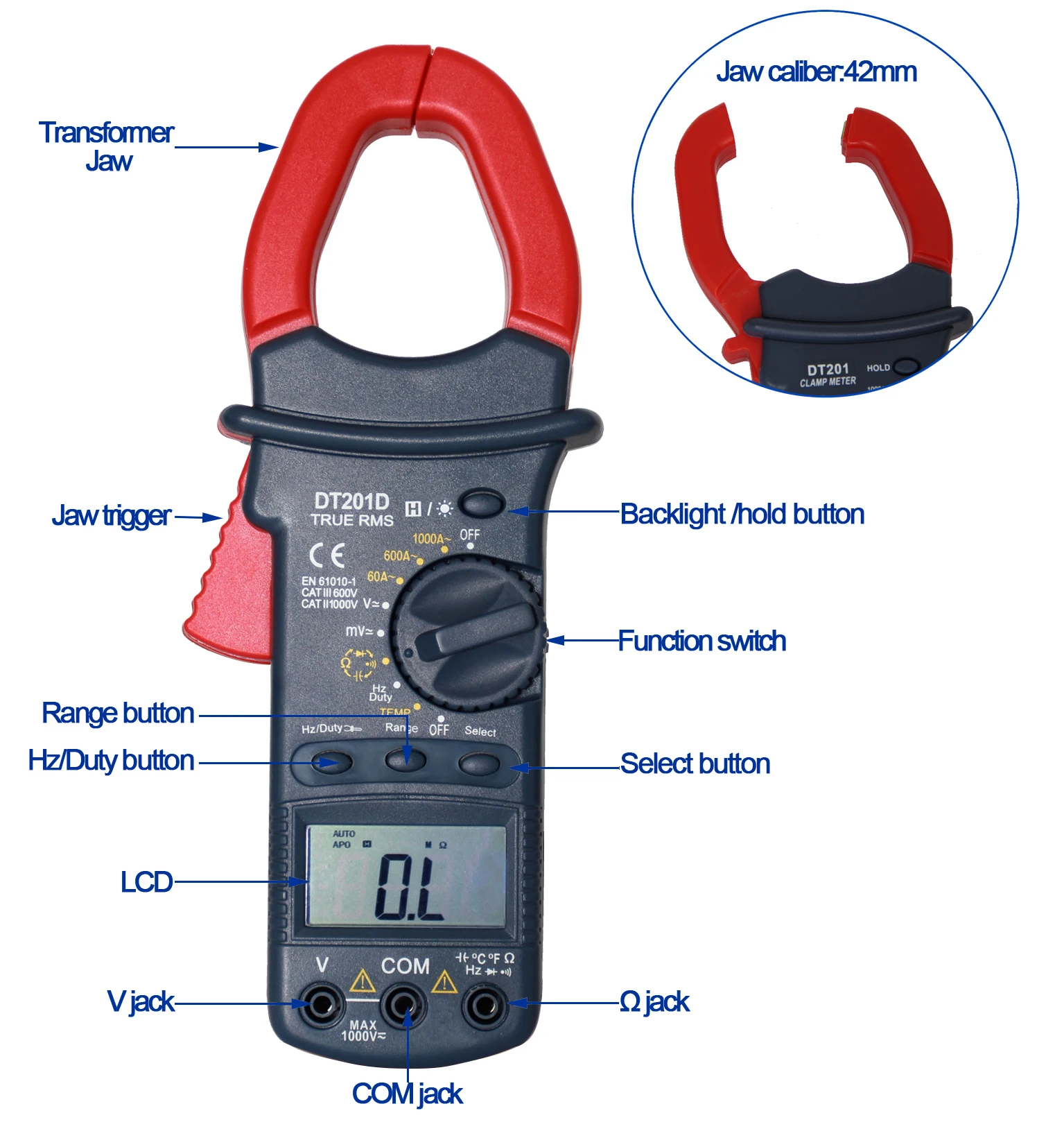

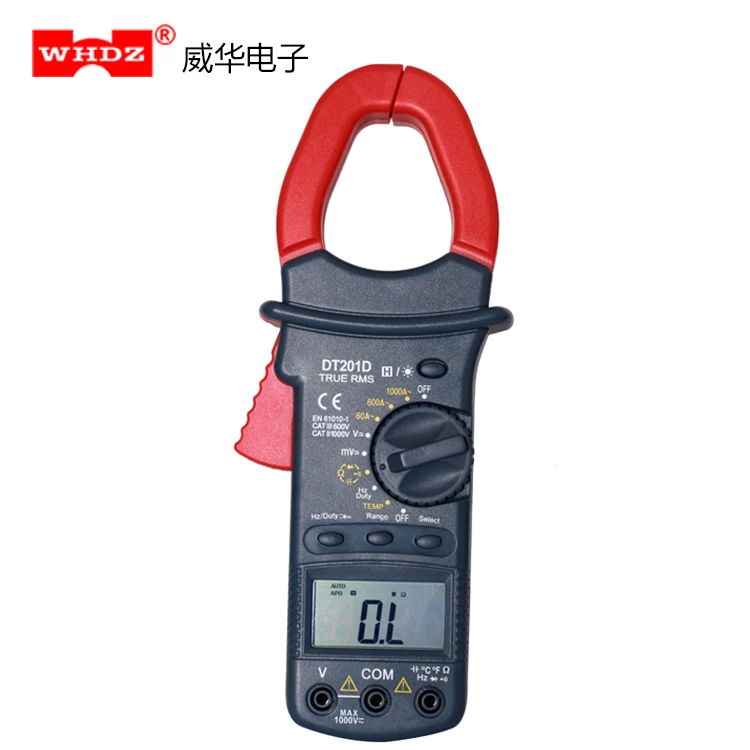

True RMS Clamp meter Auto range DT201D duty cycle frequency temperature capacitance test
True RMS Clamp meter Auto range DT201D duty cycle frequency temperature capacitance test
True RMS Clamp meter Auto range DT201D duty cycle frequency temperature capacitance test
True RMS Clamp meter Auto range DT201D duty cycle frequency temperature capacitance test
True RMS Clamp meter Auto range DT201D duty cycle frequency temperature capacitance test
True RMS Clamp meter Auto range DT201D duty cycle frequency temperature capacitance test
True RMS Clamp meter Auto range DT201D duty cycle frequency temperature capacitance test

True RMS Clamp meter Auto range DT201D duty cycle frequency temperature capacitance test

Share on (60547117175):


Price:$8.65 - $10.71

Quantity:


Product Overview

Description





Characteristic

large Jaw Calibe clamp meter with full protection design.

Data hold function for easy reading after measurement
Easy to read in dark condition with blue backlight
Non-contact measurement ensures the measurement safety.
auto range clamp meter with capacitance measurement
auto range clamp meter with large capacity capacitance
auto range clamp meter with True RMS measurement
Non-contact frequency measurement
auto range clamp meter with temperature measurement

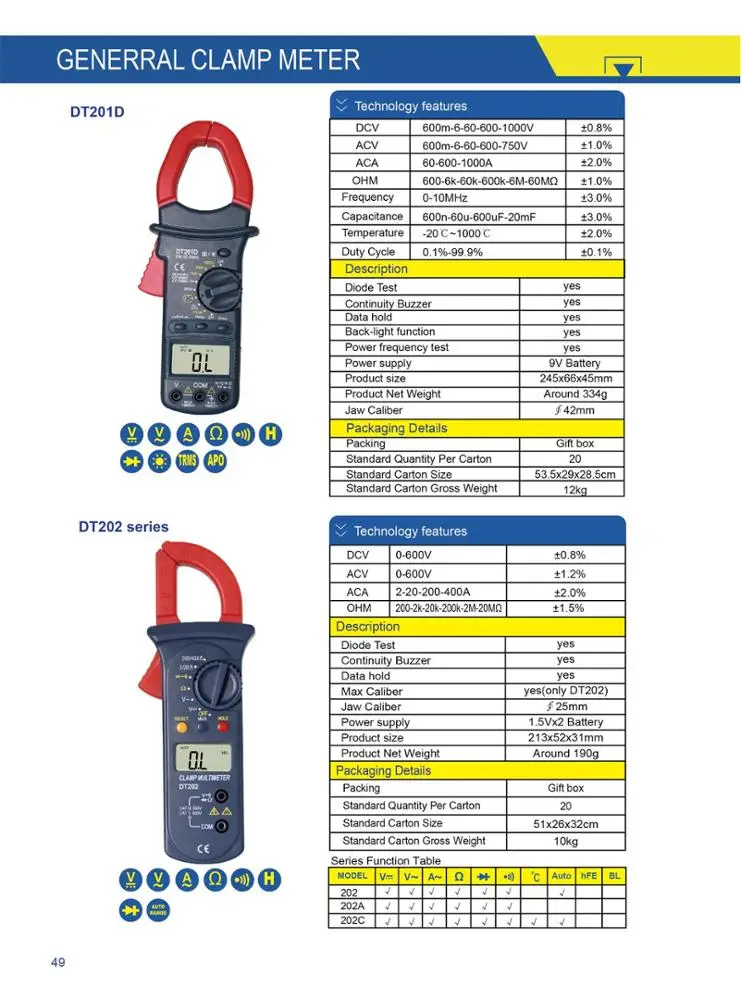

Technology features
DCV:600m-6-60-600-1000V ±0.8%
ACV:600m-6-60-600-750V ±1.0%
ACA:60-600-1000A ±2.0%
Resistance:600-6k-60k-600k-6M-60MΩ ±1.0%
Frequency:0-10MHz ±3.0%
Capacitance: 600n-60u-600uF-20mF ±3.0%
Temperature: -20ºC~1000ºC ±2.0%
Duty Cycle: 0.1%-99.9% ±0.1%
Description

LCD size::45x23mm

Max display:5999

Low battery indication: yes

Overload protection:yes

Diode Test :yes

Transistor Test:yes

Data Hold: yes

Backlight: yes

Auto range: yes

True RMS: yes

Jaw Caliber::42mm

Power supply: one 9V 6F22 battery

Product size:245x66x45mm

Product weight: about 334g (without battery)

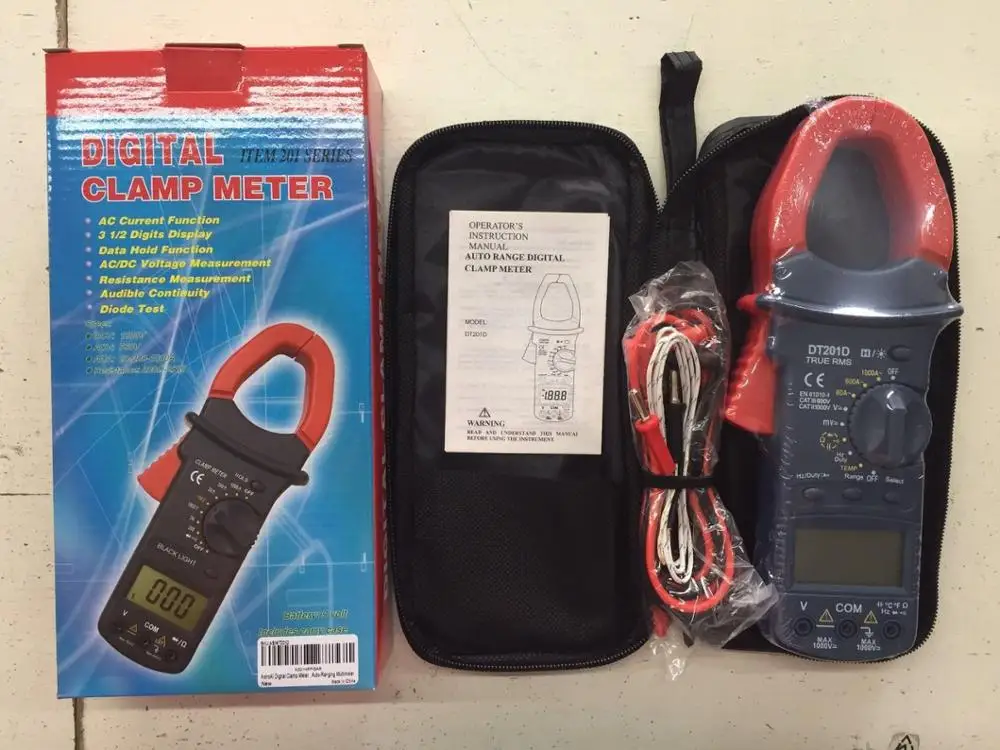

Standard Accessories:meter(without battery) ;carrying bag, test lead, manual, battery



Packing details

Packing: color box

Packing quantity :20 PCS/CTN

Carton size: 52.5x29x28.5CM

G.W/ N.W:13/12KG

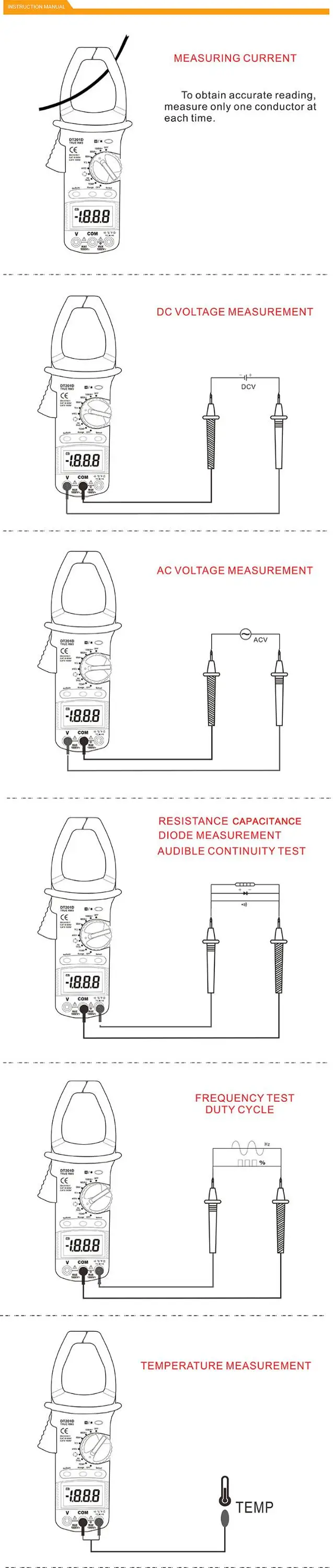

201D (1).jpg
