Automatic Pipe Polishing Machine / Stainless Steel Pipe Polishing Machine
- Category: Metal Polishing Machine >>>
- Supplier: Zhengzhou Honest Machinery Co. Ltd.
Share on (60547352739):
Product Overview
Description
Product Description

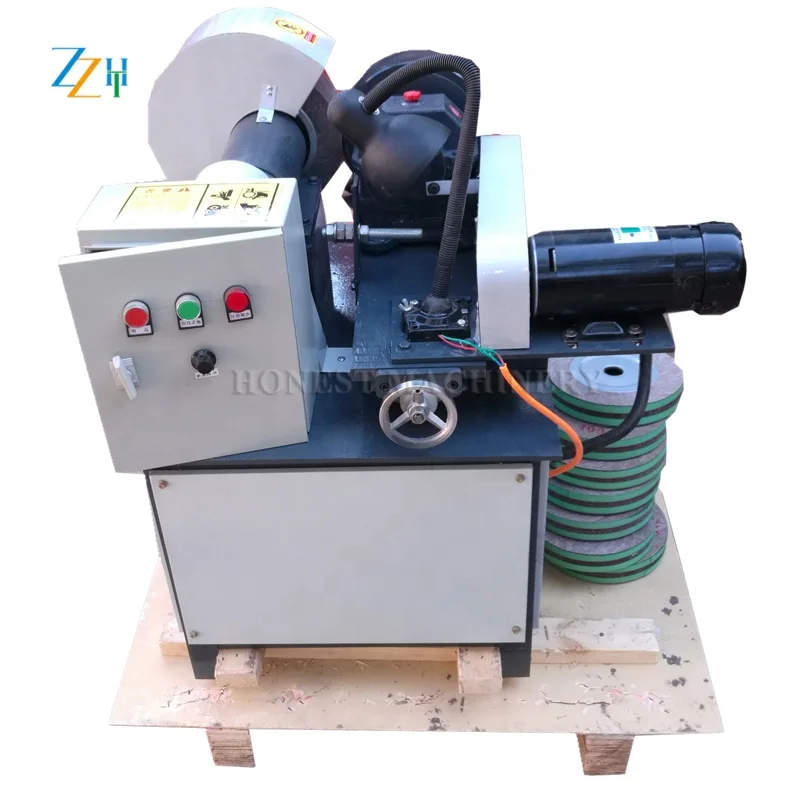

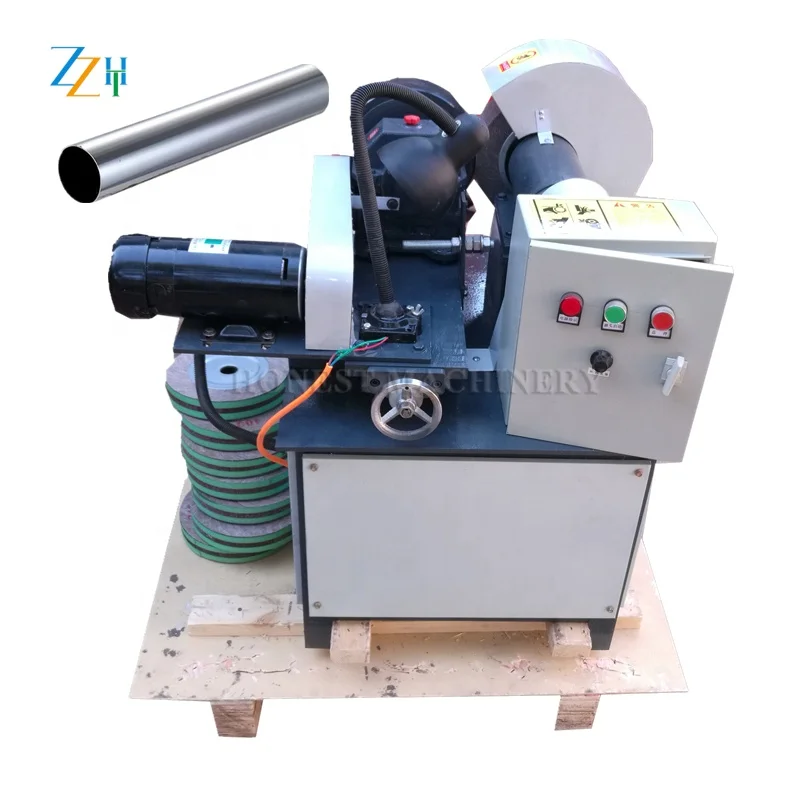

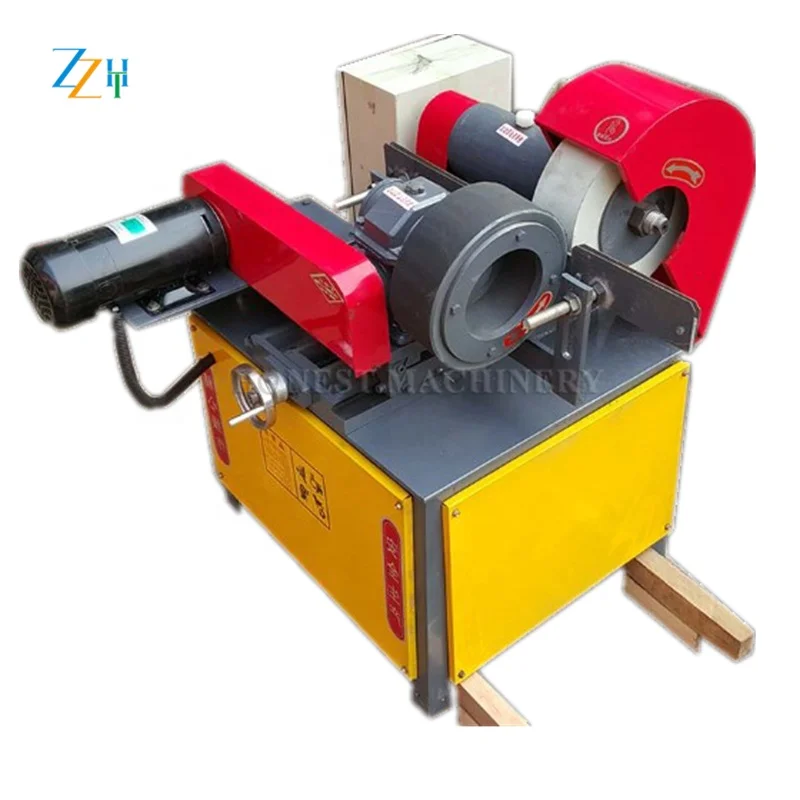

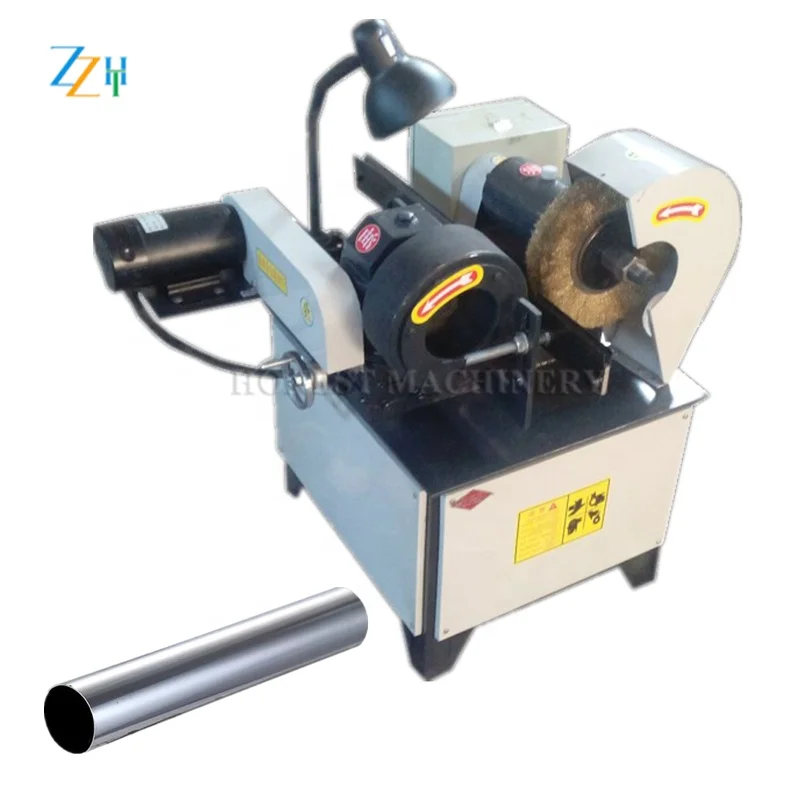

Automatic Pipe Polishing Machine / Stainless Steel Tube Polishing Machine
Automatic Steel tube Stainless steel pipe rod polishing machine Pipe Polisher Machine

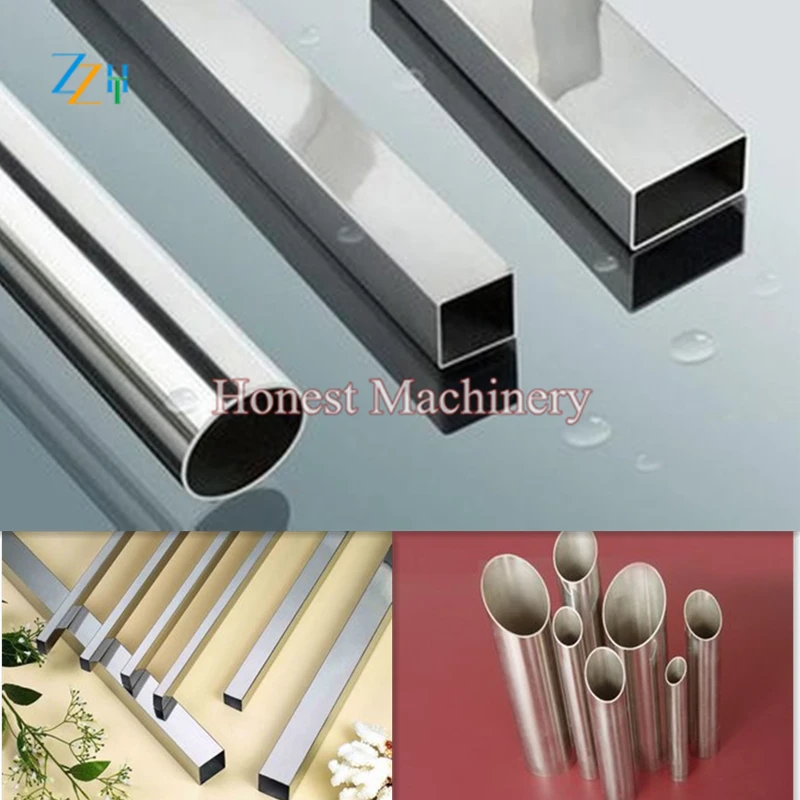

Application: polishing machine can be of various round tube, the surface of cylindrical workpiece rust, polishing, polishing, wire drawing, polishing, descaling, bright mirror polishing etc..
Technical Parameter
Model | HT-SP80 | HT-SP120 | HT-SP150 | HT-SP200 |
Max working dia.(MM) | 1-80 | 1-120 | 1-150 | 20-200 |
Max working length(MM) | 6000 | 6000 | 6000 | 6000 |
Main roll dia.(MM) | 32 | 32 | 32 | 32 |
Max wheel dia.(MM) | 300 | 300 | 300 | 300 |
Max wheel thickness(MM) | 160 | 160 | 160 | 160 |
Guide roller dia.(MM) | 230 | 230 | 260 | 260 |
Buff whell speed(r/min) | 2800 | 2800 | 2800 | 2800 |
Guide roller speed(r/min) | 0-200(adjustable) | |||
Working speed(m/min) | 0-10(adjustable) | |||
Buff wheel power(KW) | 3 | 3 | 4 | 4 |
Guide roller power(KW) | 0.4 | 0.4 | 0.8 | 0.8 |
Total power(KW) | 3.4 | 3.4 | 4.8 | 4.8 |
Total weight(KG) | 320 | 360 | 420 | 460 |
Dimension (MM) | 900*700*1200 | 1000*700*1200 | 1100*800*1200 | 1200*800*1200 |
Lighting voltage(V) | 36 | 36 | 36 | 36 |
Multi working heads(2/4/6/8/10 heads also could customize)
Model | HT-DP2 | HT-DP4 | HT-DP10 |
Polishing head | 2pcs | 4heads | 10pcs |
Working dia.(MM) | 6-219 | 6-219 | 6-219 |
Guide roller dia.(MM) | 120 | 120 | 120 |
Buff whell speed(r/min) | 2800 | 2800 | 2800 |
Guide roller speed(r/min) | 0-200(adjustable) | 0-200(adjustable) | 0-200(adjustable) |
Working speed(m/min) | 0-10(adjustable) | 0-10(adjustable) | 0-10(adjustable) |
Motor | variation speed motor | variation speed motor | variation speed motor |
Total power(KW) | 10 | 35 | 35 |
Total weight(KG) | 800 | 1600 | 3000 |
Dimension (CM) | 120*120*150 | 220*120*150 | 480*120*150 |

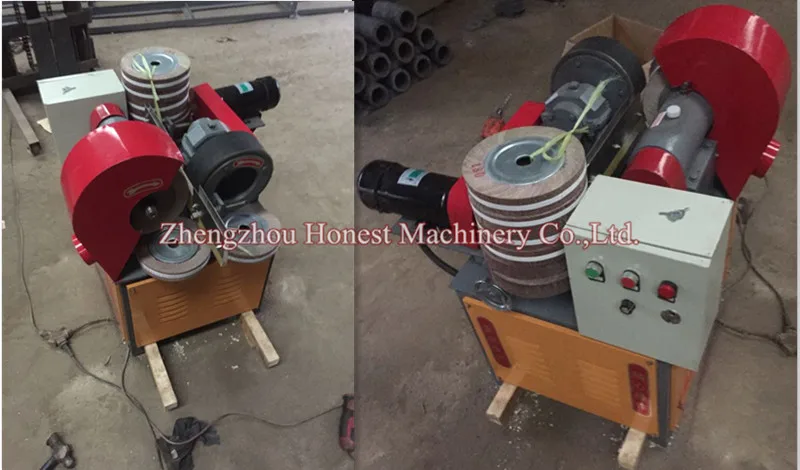

Product Pictures

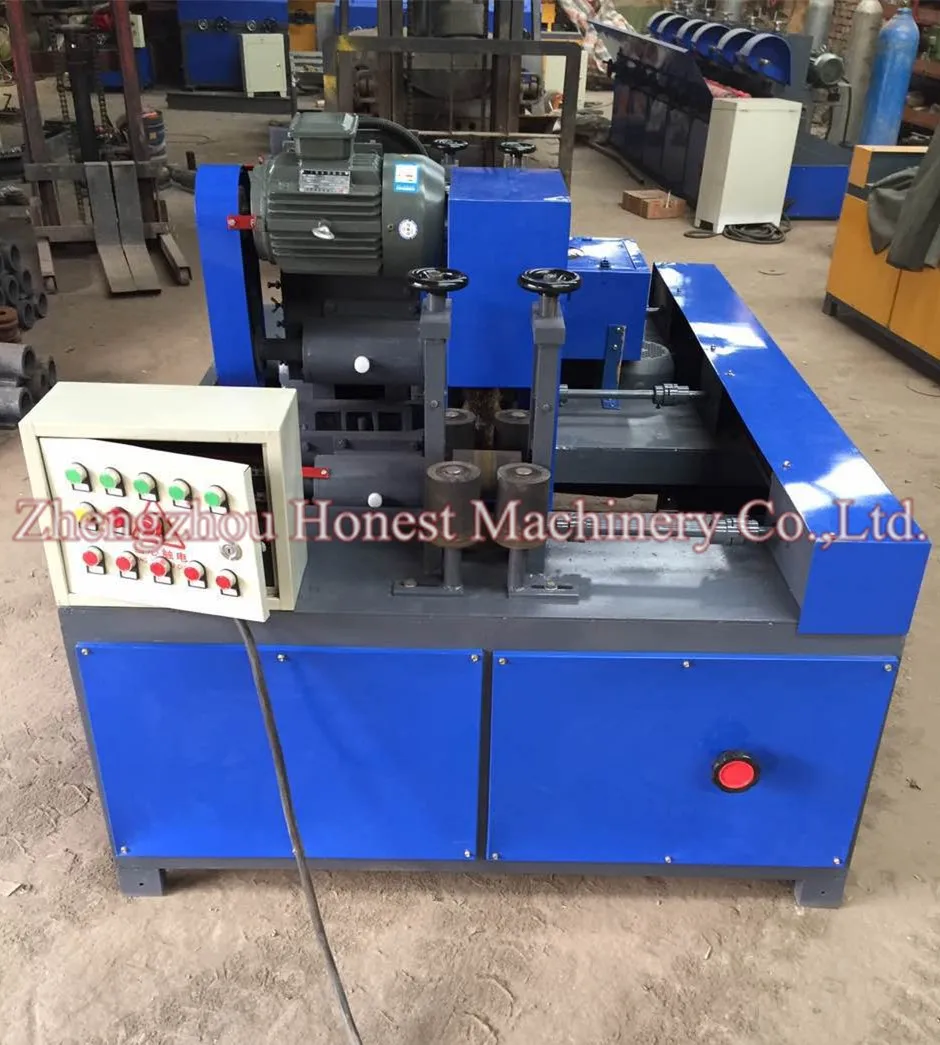

Square tube polishing machine
Company Certificates
Our Customers
Contact information:
If you need further information, please contact us freely, we will do our best to cooperate with you.
