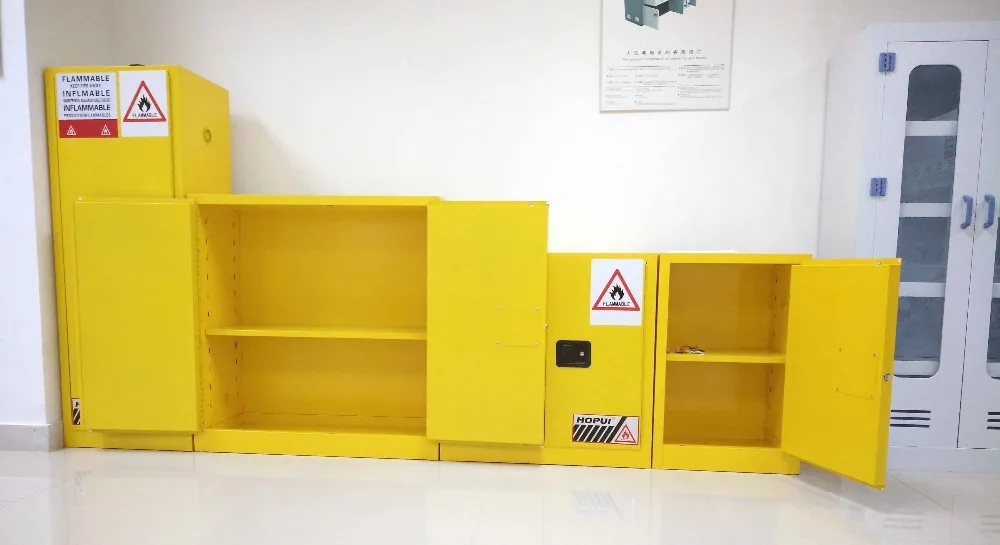

Guangzhou chemistry liquid storage explosion proof cupboard flammable safety cabinet

Share on (60548464827):


Price:

Quantity:


Product Overview

Description


Product Description

Product Application

Common explosion-proof cabinet products usually have five colors, and each color corresponds to the different use performance.
Red cabinet is used for storing flammable liquid.
Yellow cabinet is commonly used for storing flammable liquids.
Blue cabinet is commonly used to store weak corrosive liquid.
White cabinet (PP cabinet) is commonly used for storing strong corrosive substances such as strong acid and alkali.
Green cabinet is commonly used to store toxic substances, such as pesticides, etc

\t

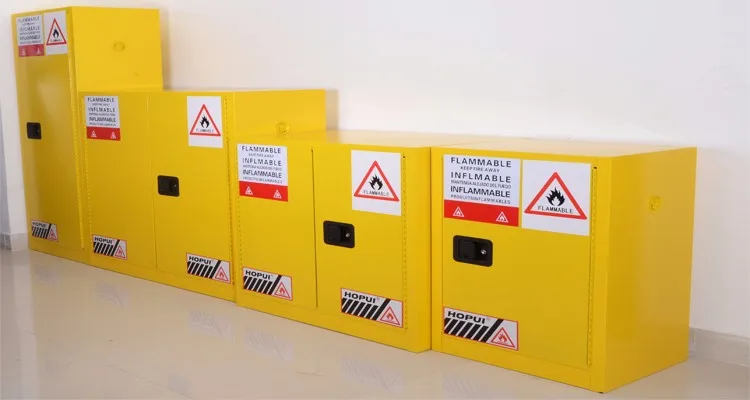

SPECIFICATIONS FOR flammable cabinet
\t
Model
\t
Size
\t
Performance
\t
4 gallons
\t
560*430*430mm
\t
15L, 28Kg, single door with lock, 1 layer adjustable plate, color:red/yellow/blue
\t
12 gallons
\t
890*590*460mm
\t
45L, 59Kg, single door with lock, 1 layer adjustable plate, color:red/yellow/blue
\t
30 gallons
\t
1120*1090*460mm
\t
114L,105Kg,double door with lock,1 layer adjustable plate,color:red/yellow/blue
\t
45 gallons
\t
1650*1090*460mm
\t
170L,140Kg,double door with lock,2 layer adjustable plate,color:red/yellow/blue
\t
60 gallons
\t
1650*860*860 mm
\t
227L,176Kg,double door with lock,2 layer adjustable plate,color:red/yellow/blue
\t
90 gallons
\t
1650*1090*860mm
\t
341L,218Kg,double door with lock,2 layer adjustable plate,color:red/yellow/blue

Main Features

1) Two layers 1.2mm thickness cold rolled steel, long lifetime and better fireproof.

2) Three-point linkage lock, easy to open and close, high temperature resistance.

3) The 50mm drain tank may prevent chemical liquids from overflowing.

4) Two air vents with fire protection devices are located on each side of the flammable cabinet.

5) The professional warning labels are clear and can be noted quickly.

6)The unique leak-proof layer can be adjusted between the top and bottom of every 6 cm.

7)Both inside and outside of the cabinet are sprayed with durable, lead-free enamel to prevent chemical erosion.

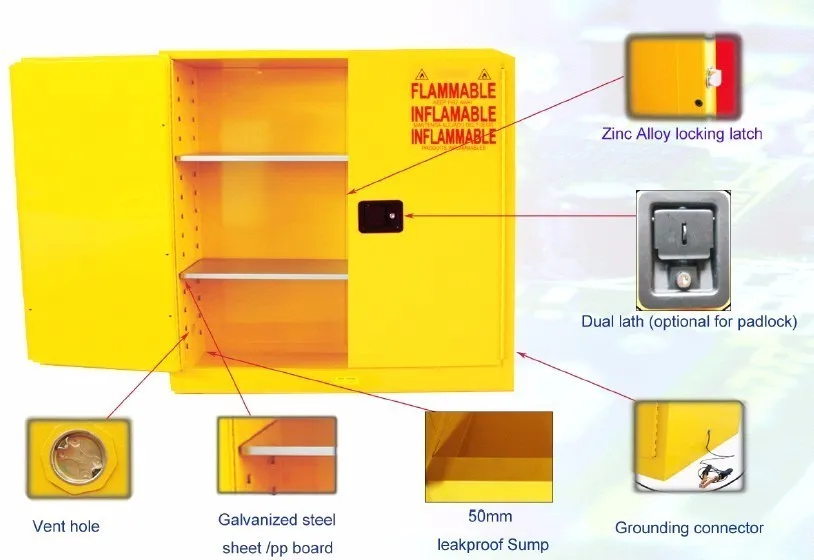

Detailed Images



Name:Self-locking door

Self-locking door latch with continuous hinge to ensure smooth opening and closing.




Name: Air vent
Two air vents with fire protection devices are located on each side of the flammable cabinet.

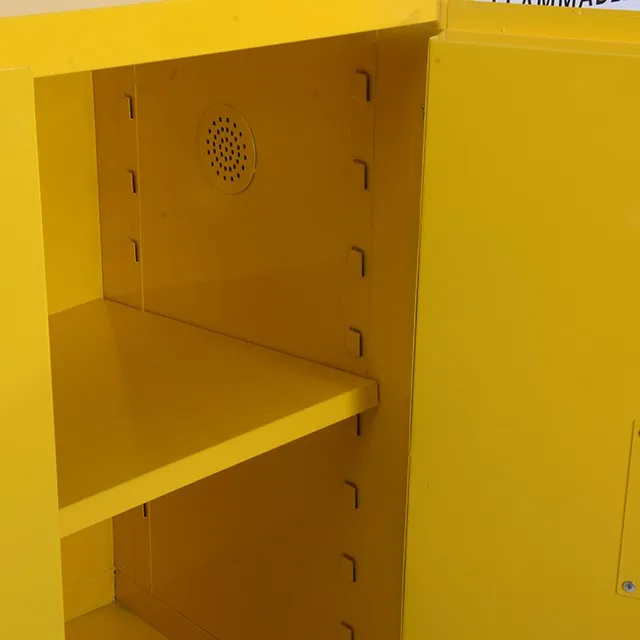

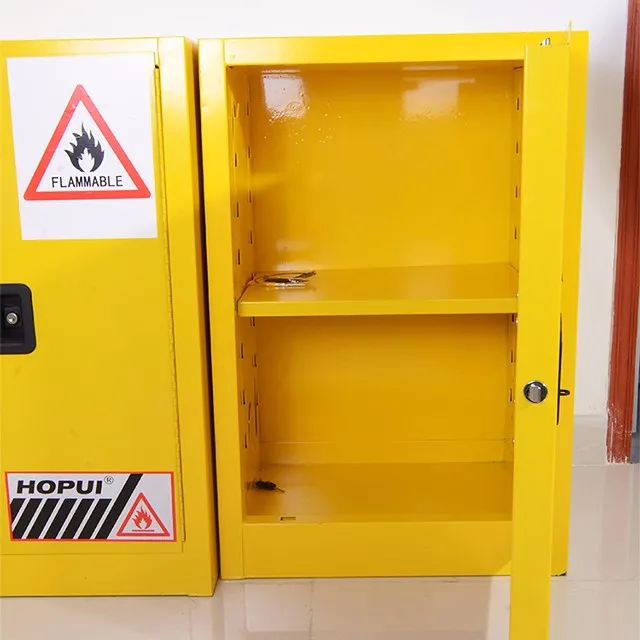

Name: Adjustable plate
The unique leak-proof layer can be adjusted between the top and bottom of every 6 cm.

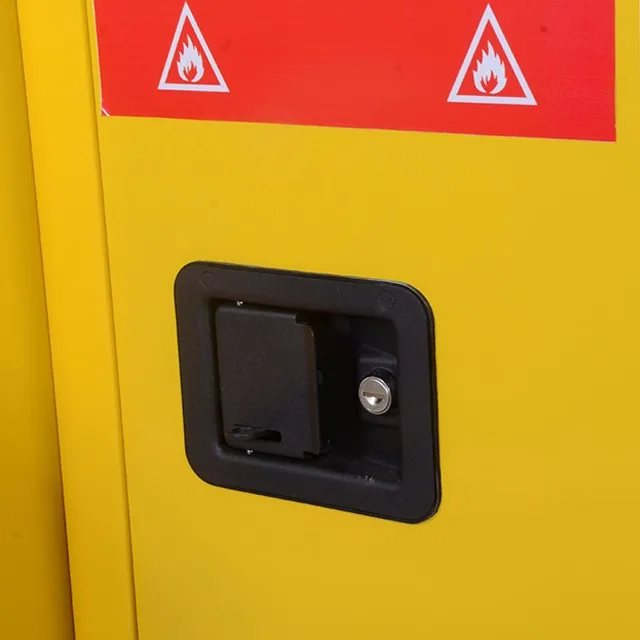

Name: Lock
Three-point linkage lock, easy to open and close, high temperature resistance.

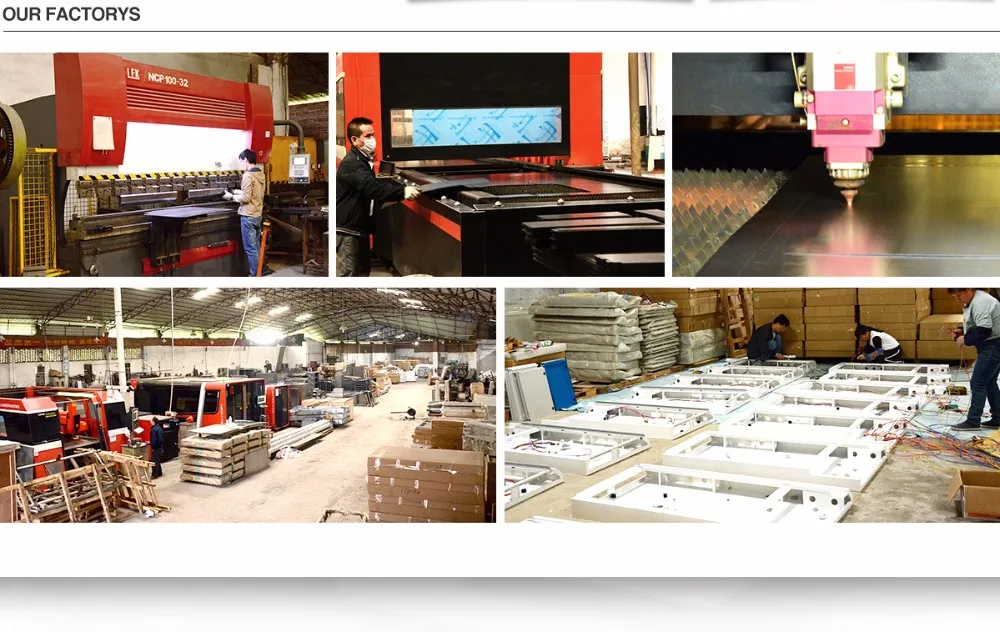

Our Company

Hopui was founded in 2006, It has more than 12 years manufactureing and exporting lab furniture experience. Our mainly products: lab dental bench, lab wall bench, lab corner bench, fume hood, flammable cabinet, pass box, air shower, eye wash station, sink and tap ect.

Our customers are from all over the world and speak highly of our flammable cabinet. One stop service is provided here and just feel free to contact me, and 24h service is ready for you.

Click here and send me inquiry.

Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Free design support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
\t
Packaging
\t



Packaging Details
\t


The normal package is wooden box if export in bulk cargo
We can also pack it according to customers special request.
\t
Packaging
\t



Packaging Details
\t


The normal package is carton box if export with container.
We can also pack it according to customers special request.
Related Products

Lab island bench

 Steel and wood structure lab bench

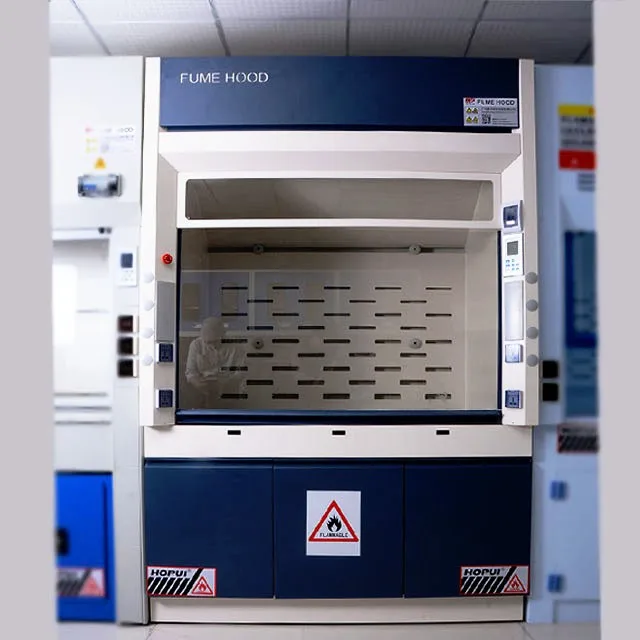

Fume hood

All steel fumr hood

Air shower

Air shower for two people

FAQ

Q: What is the size of flammable cabinet?
A:30, 45, 60, 90 gallons.

Q:How about the shipping?
A:Expree, by sea, by air are all available. depends on weight and volume.

Q:How long is the delivery time?
A:Depend on quantity, we will inform you the accurant delivery time after known your needs.

Q:How to pay the order?
A:Via Ali security pay, TT, or Western union.


Q:How to contact me?

A: Via email, wechat, whatsapp, skype  ect.

Wechat: daihong93

Whatsapp: +8613006382889

Skype: adaliu9303
