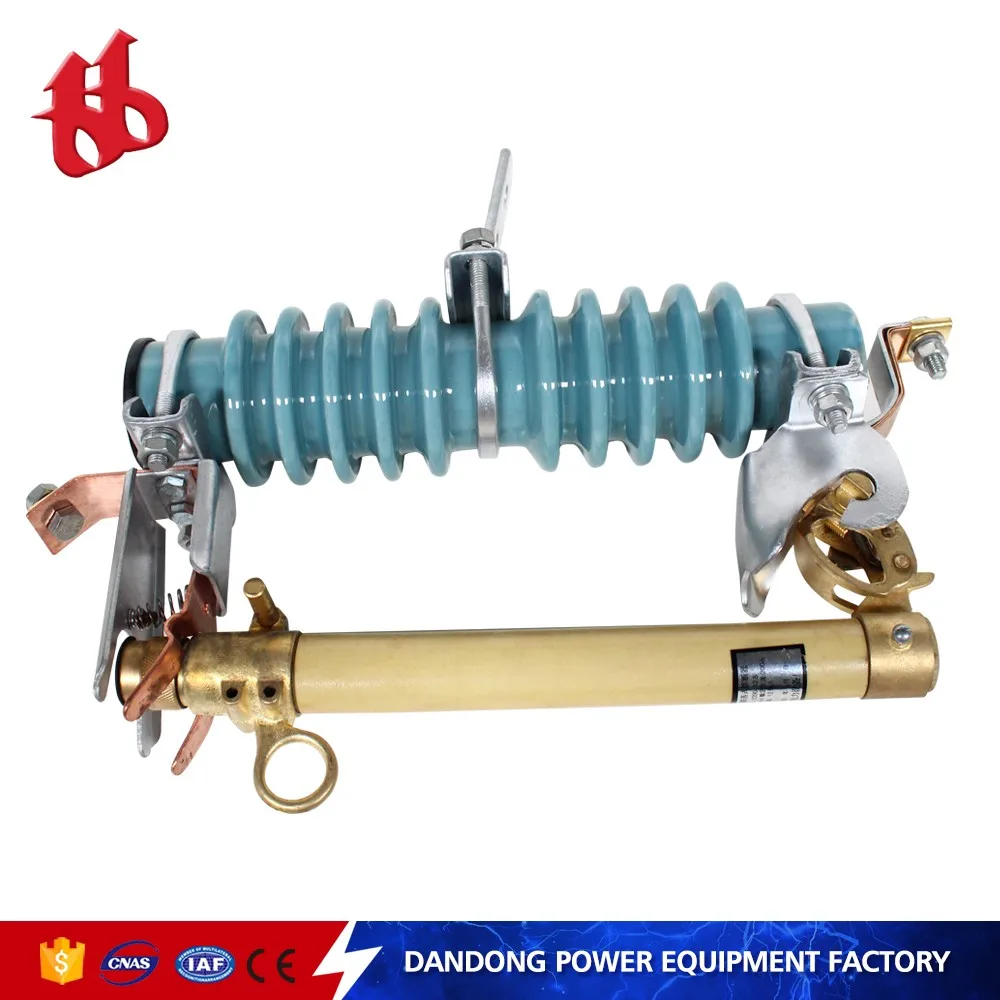

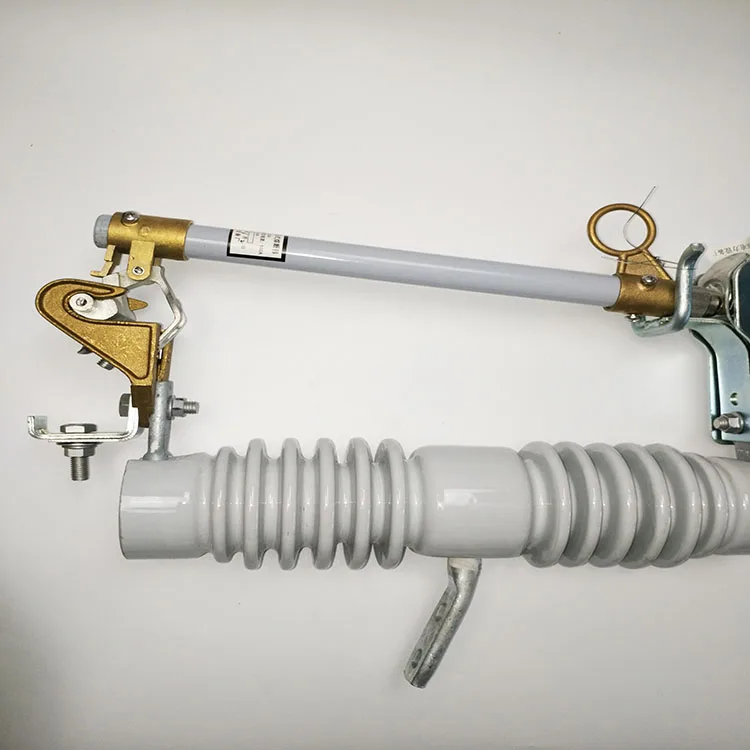

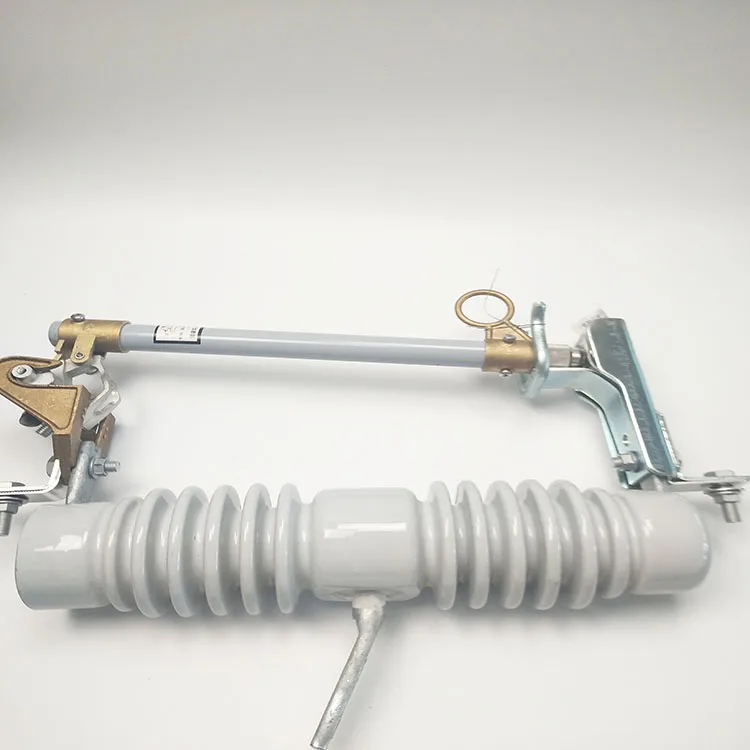

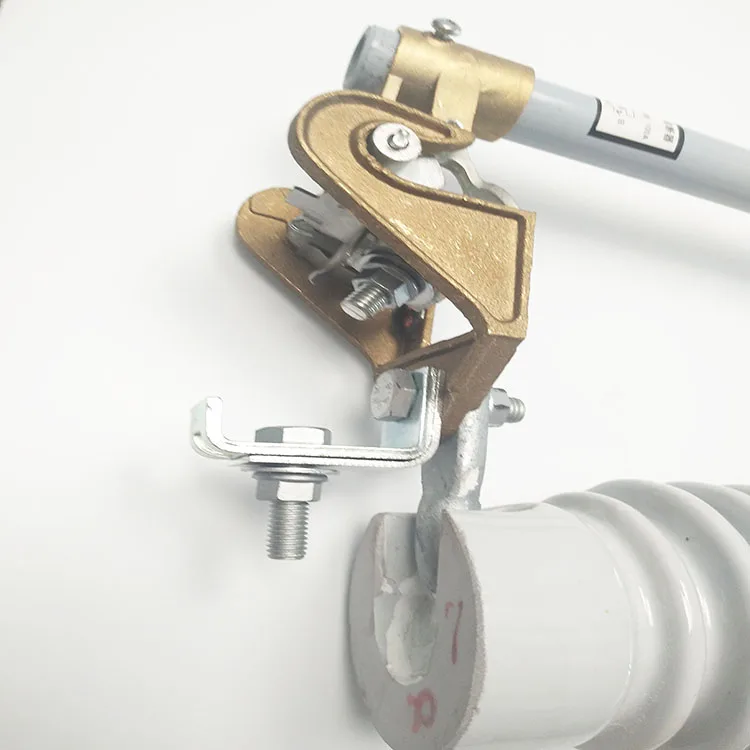

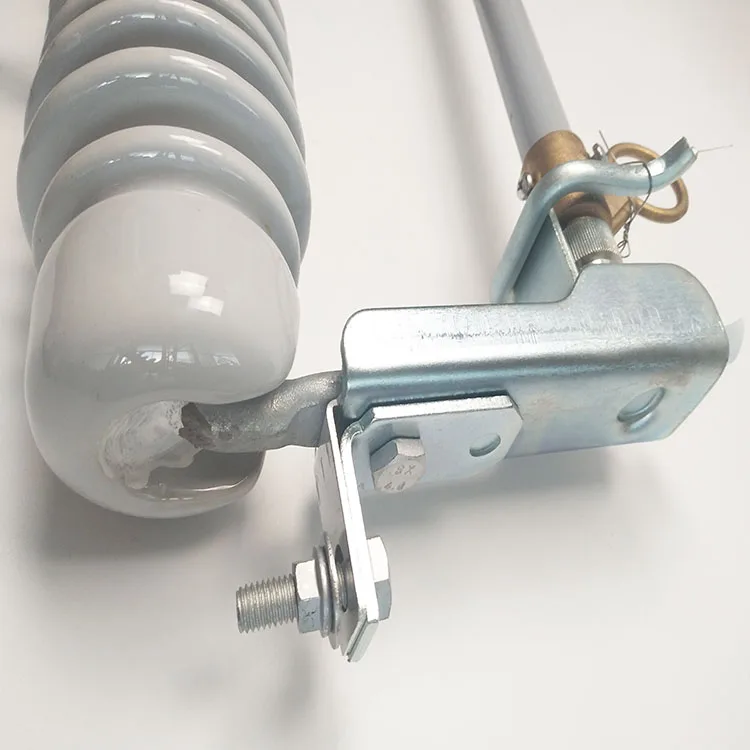

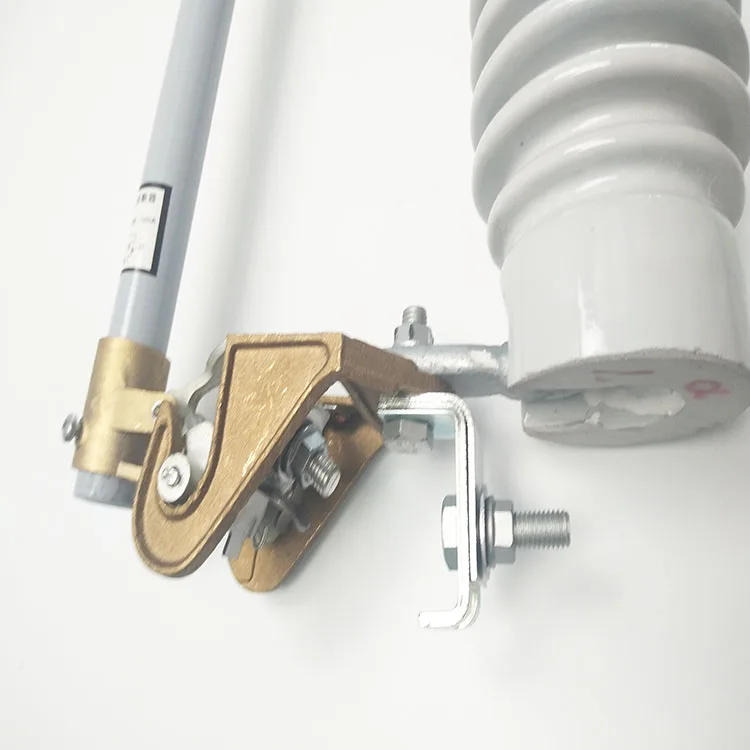

Factory price high quality ceramics drop-out fuse box and fuse cutout

Overview:
(H)RW11-12 Type ac high voltage drop-fuse to be connected with in coming feeder of distributing transformer or distribution lines it mainly protect transformer or line from short circuit and overload and on/off loading current, provide reliable protection from low level, overloads that just melt fuse link, intermediate faults, through maximum interrupting capacity.

Service conditions:
1. Ambient Temperature: -40℃~+40℃
2. Altitude: ≤1000m
3. Wind speed: ≤34m/s
4. Installation site: location where is no flammable and explosive substance, pollution,chemical corrosion and intensive vibration.

Instructure:
Fuse is composed of base and arc suppression device of two parts, arcing pipe bottom is equipped with possible rotation of the spring bracket, always make the fuse in nervous condition to ensure that the arcing takes in the closing position self-locking, circuit and transformer overload or short circuit the blown fuse pumped rapidly from arcing takes arcing design for exhaust type step by step to solve the breaking size on the same fuse current contributions.

Technical parameters:

Type
Rated
voltage(KV)
Rated
Current(A)
Rated Cut-off Current(KA)
Deciliter
Load
Current(A)
Rated fuse Current(A)
upper limit
 lower limit
(H)RW11-12/100-6.3
12
100
6.3
0.015
/
5~100
(H)RW11-12F/100-6.3
12
100
6.3
0.015
100
(H)RW11-12/200-12.5
12
200
12.5
0.27
/
125,140,200
(H)RW11-12F/200-12.5
12
200
12.5
0.27
200
