1. This series of models are suitable for bleaching and dyeing of pure cotton, polyester, acrylic, nylon, wool, hemp and other yarns
2. This series of models are innovative design, energy saving and high efficiency. Under the same heating area, the uniquely designed heat exchanger can achieve the best effect of heating and cooling.
3. The main pump and heat exchanger are compact in structure, without heat loss, and can improve the efficiency of dye liquor flow
4. Compared with the conventional dyeing machine, the overall piping layout is simple, which can effectively save space and area.
5. Accurate flow control makes the dyeing of spun yarn to roving achieve high-quality effects.
6. The frequency converter controls the main pump motor, providing stepless flow control, saving energy consumption for starting and decelerating operation.
7. Ultra-low energy consumption design (patent number: ZL201620462419.3) low bath ratio dyeing (1:4), save dye, chemical additives, steam, water, and less sewage.
8. Smooth and uniform liquid flow and high exchange rate of dye liquor accelerate the main process, greatly shorten the circulation period of dye liquor, and improve efficiency.

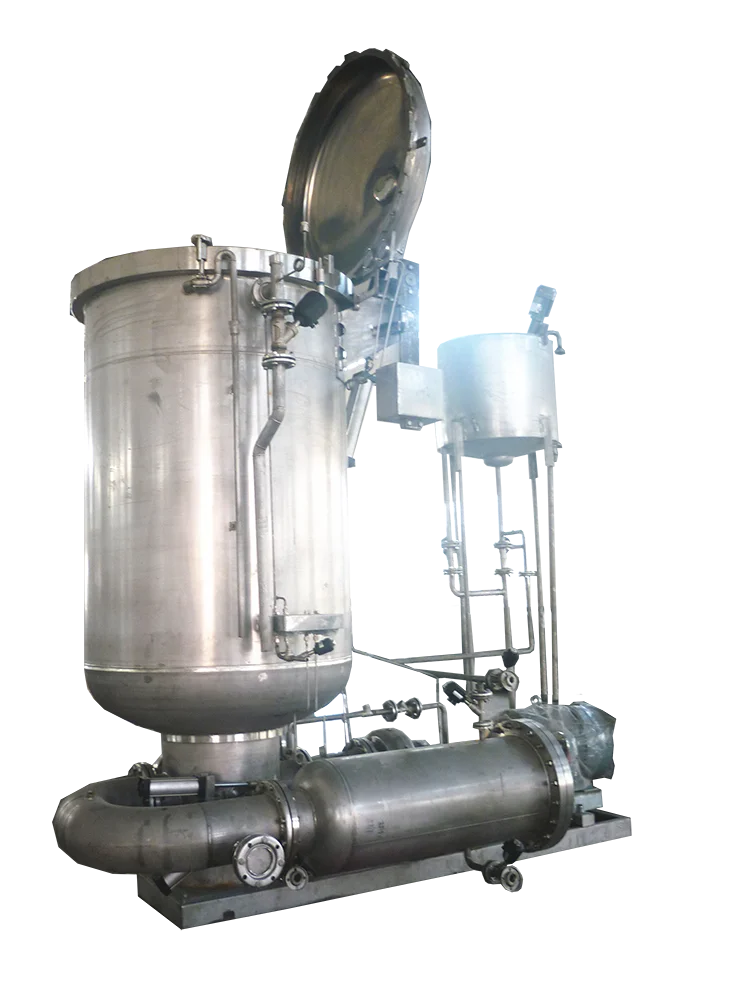

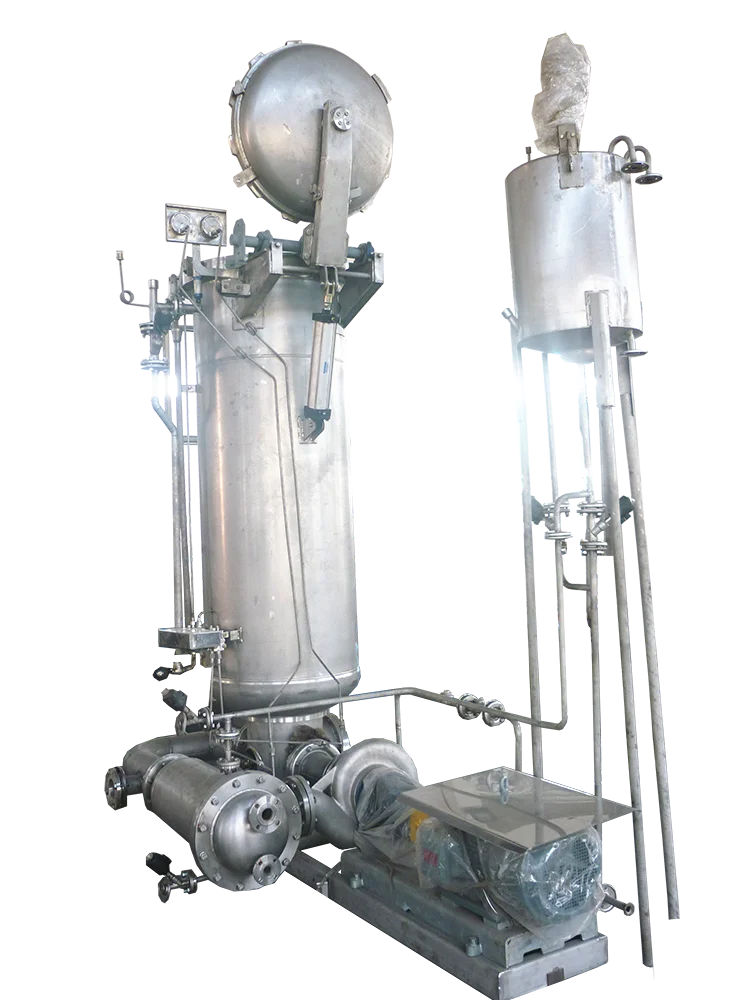

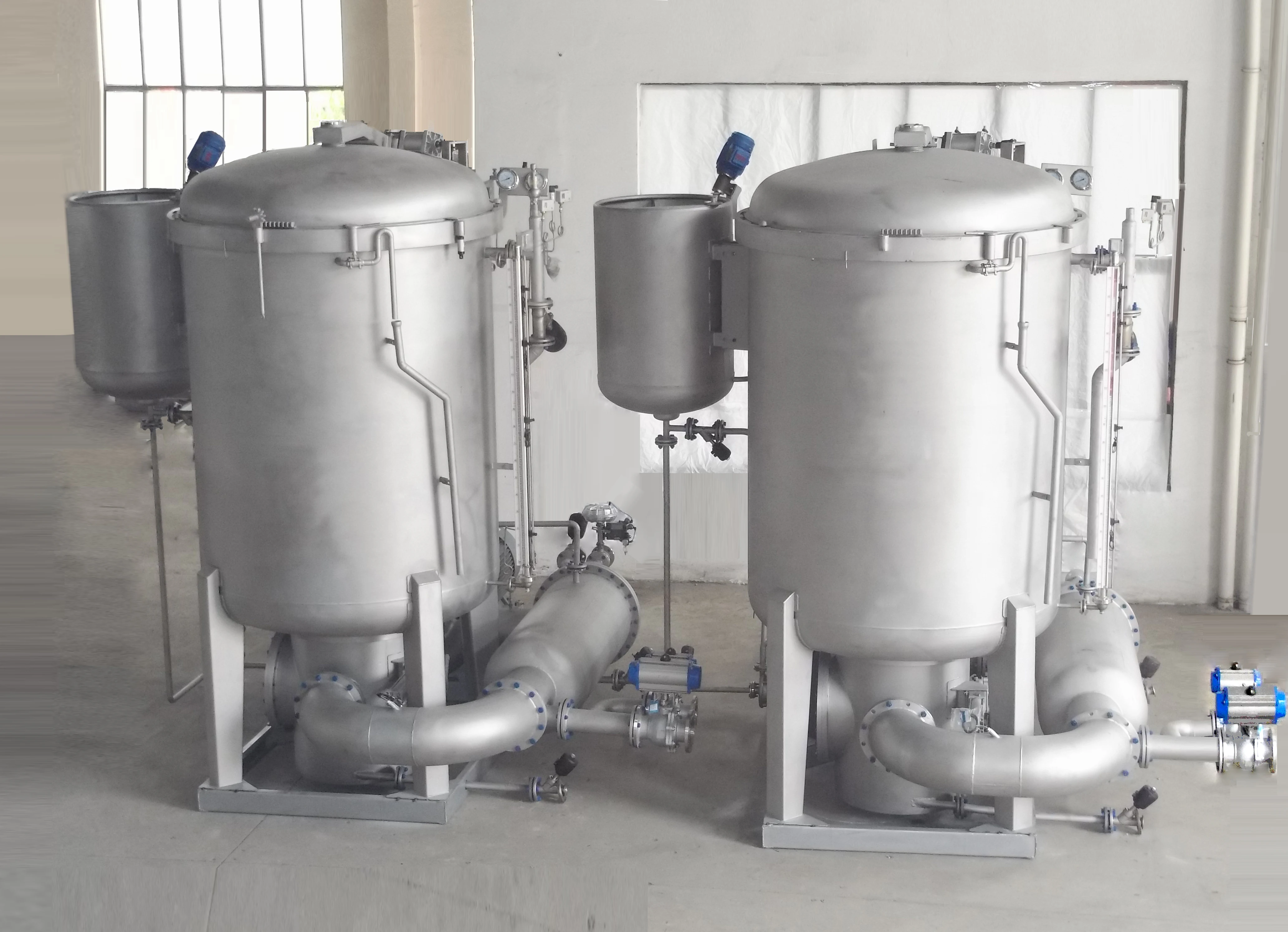

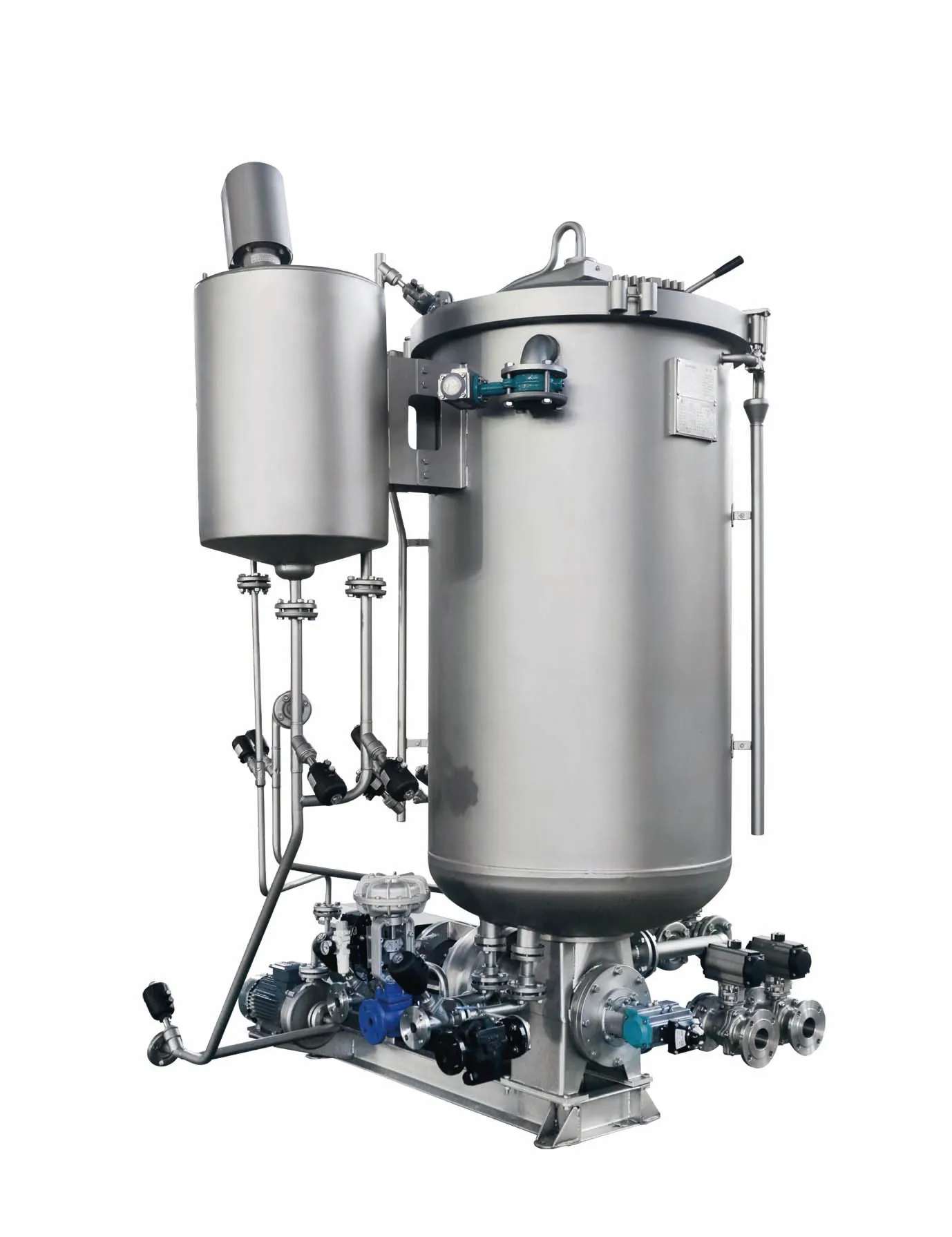

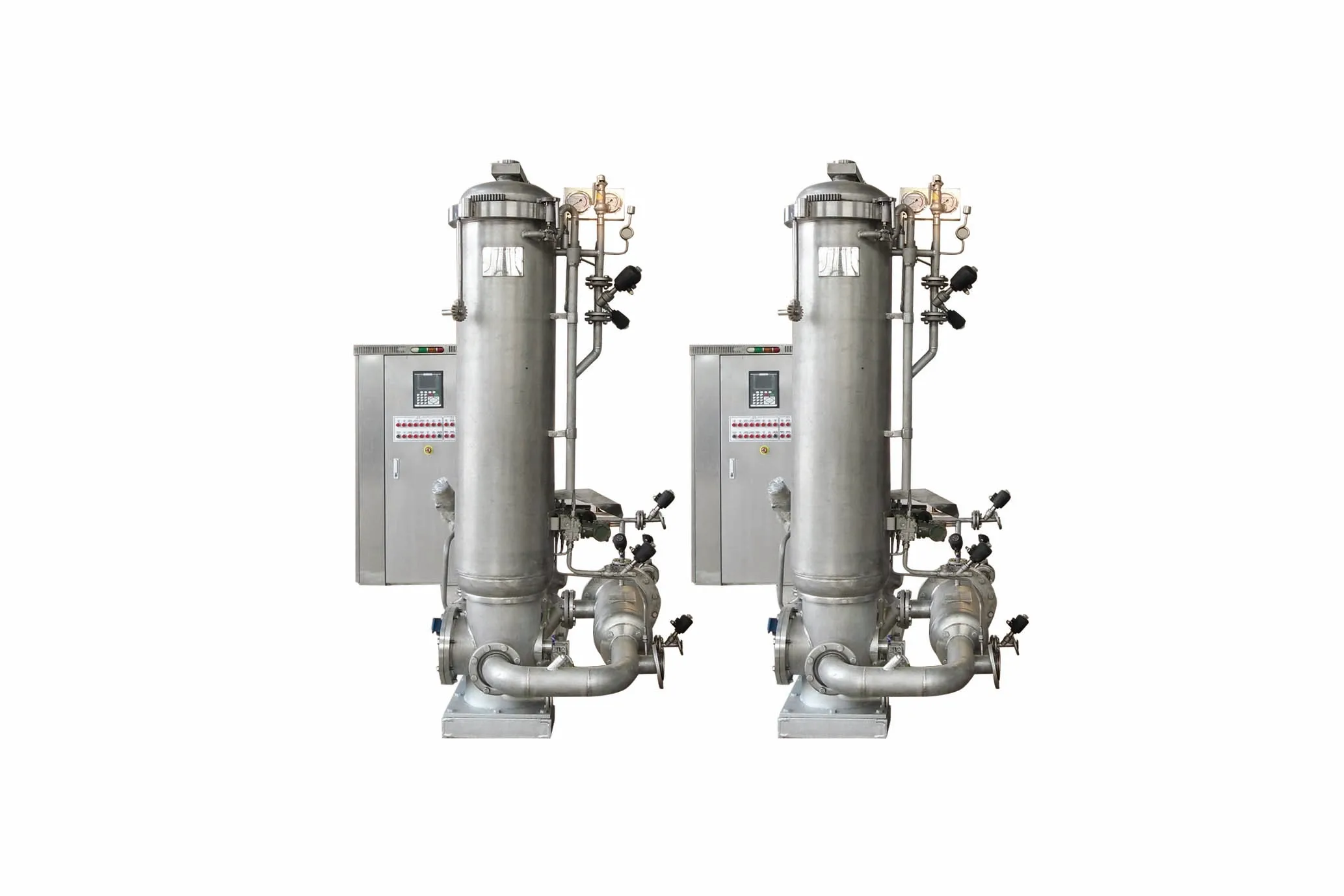

Detailed Images
technical parameter
●The standard size of the package is φ165×H165, and the capacity of each yarn is 1kg
●The maximum working pressure is: 0.45Mpa
●The maximum working temperature is: 140 ℃
●Heating rate: 20-130℃ for about 30 minutes (saturated steam pressure is 0.7Mpa)
●Cooling rate: 130-80℃ for about 20 minutes (cooling water pressure is 0.3Mpa)
Optional accessories
●PH value control system
●Ionic strength detection system
●Curve proportional feeding system
●Salt system
●Centralized control system
●Dyeing and chemical material automatic conveying system
Model
No of layers
No of packages
Cone
Total power（kw）
DG241CKS-75
10
120
120
20
DG241CKS-75
12
144
144
20
DG241CKS-90
10
190
190
31.5
DG241CKS-90
12
228
228
31.5
DG241CKS-110
10
300
300
39.6
DG241CKS-110
12
360
360
39.6
