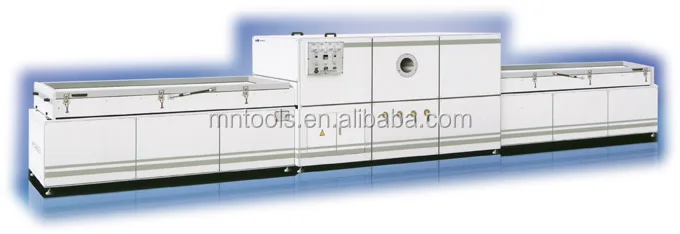

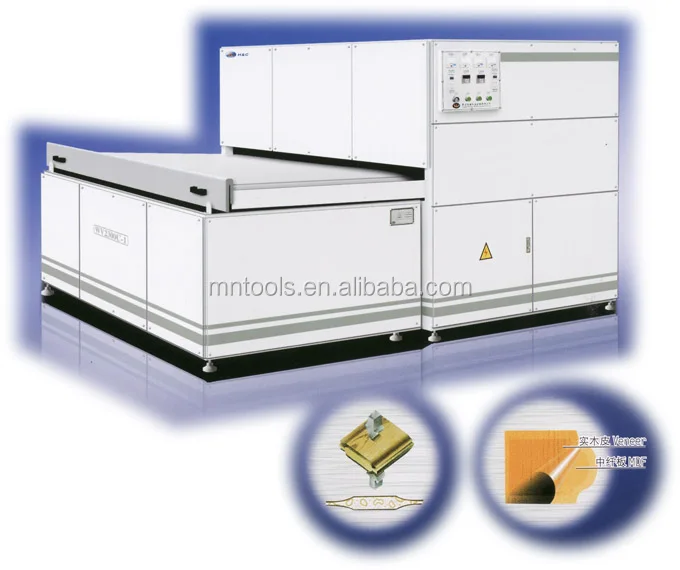

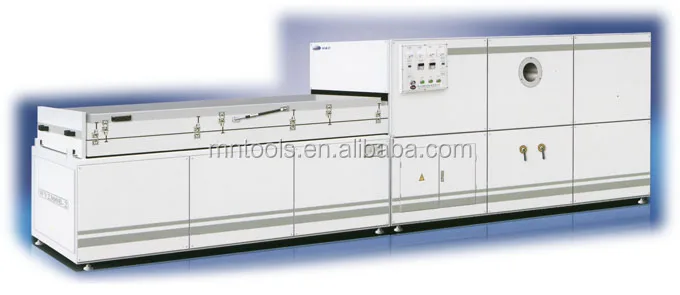

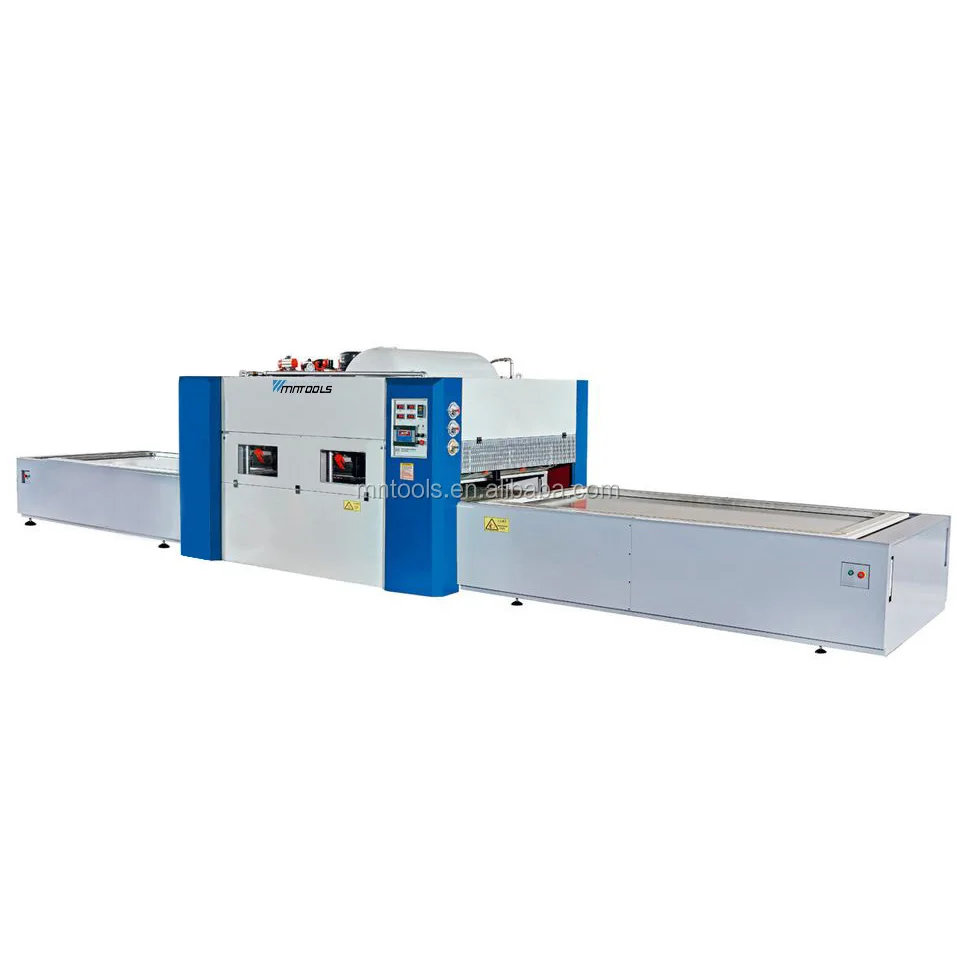

Thermoforming machine for MDF vacuum press machine

1、Stainless heating elements can heat evenly and improve the efficiency.
2、Double layer thermal preservation and full sealing design can save energy.
3、Special steel plate worktable is proof against high temperature and corrosion.
4、Vacuum pump of high quality is efficient, stable and durable.
5、Advanced digital technology can make sure of high level of automation and easy operation.
6、All kinds of products can meet different clients’ needs.

Function

It can be used to cover PVC on the surface of the craft compound door, furniture, cabinet and sound box and to cover veneer and thermal transfer membrane on single side of the door panel and furniture with the silicon membrane provided by our company.

Techncial parameters

Model	MTWV2300A-1
Overall dimensions	5300X1800X1800mm
Worktable size	2300X1100mm
Total power	23 Kw
Vacuum	-0.1Mpa
Weight	1300kg

Packing & Delivery

Our Service

1, One year warranty
2, Free Comprehensive Training
3, Lifelong maintenance.
4, Equipped with necessary accessories to improve productivity
5, Fast response
