Product Overview

Description


  • PUR profile wrapping machine   (length of machine body is 6 meter )



    Specification:

    --Max.process thickness               : 90mm

    --Max.film covering width             :300mm

    --Process length                      : 600mm—indefinite length

    --Feeding speed                : 0-50m/min(According to the actual production status)

    --Power of material delivery motor :     : 2.2kw

    --Max.diameter of roll cover material    : 400mm

    -- Heating power                     : 16KW

    --Weight                            :2500kg

    --Overall dimensions                  :6000 x 980 x 1600mm



    (Wrapping PVC,paper ,high glossy ,leather, CPL, aluminum foil on MDF board , particle board, wooden line ,aluminum ,wood plastic and so on .)

    Terms and conditions:

    1.Time of delivery: 15 working days after receiving deposit from the the buyer.

    2.Terms of payment: 30% down payment at order,the balance by TT before loading the  container

    3.Packing:Foam packing,

    4.Validity of this quotation is within 30 days from the above mentioned date.

    5.The voltage :380V,50Hz





     Specification

    1)     With a 5 gallon PUR hot melt glue system.

    2)     Glue cutter , can divide and close in middle.

    3)     Stud and quick change frame can choose one of them .

    4)     Electric brand,PLC: France brand, Schneider

    Pneumatic brand: Taiwan Airtac .



    Mechanical appearance (To design for real now):Touch screen display ,PLC system control.

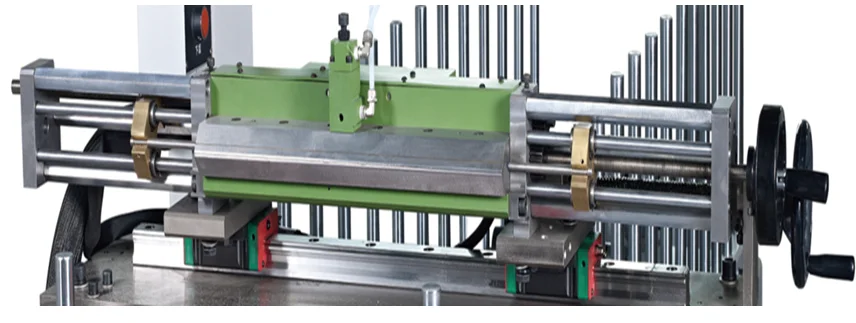

  • 1,  Sealing glue cutter ,spread glue on the film ,can control the width of spread glue better, can wrap any profile , it’s easy adjust width , just need to divide from middle to both sides, after finish working need to close and sealing by scotch tape .11.png

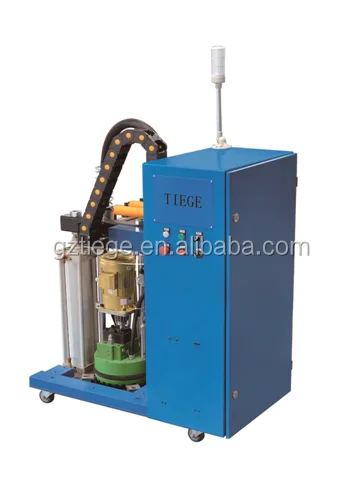

    2,5 gallon PUR hot melt glue system , this machine use PUR glue ,after glue melting through high temperature arrived to glue cutter and spread , melting speed according to the production speed of machine to automatic adjust glue output, before the glue through the glue cutter , it need to through the filter twice ,so there won’t be particles and make glue line when spread glue .

  •     22.png



    3,The hot melt glue system and machine wire butt joint by adopt aviation socket ,it’s easy operate .



  • 33.png







    4,Quick divide and close :according to the different width of profile to adjust , through the handle shaking to divide and close

  •

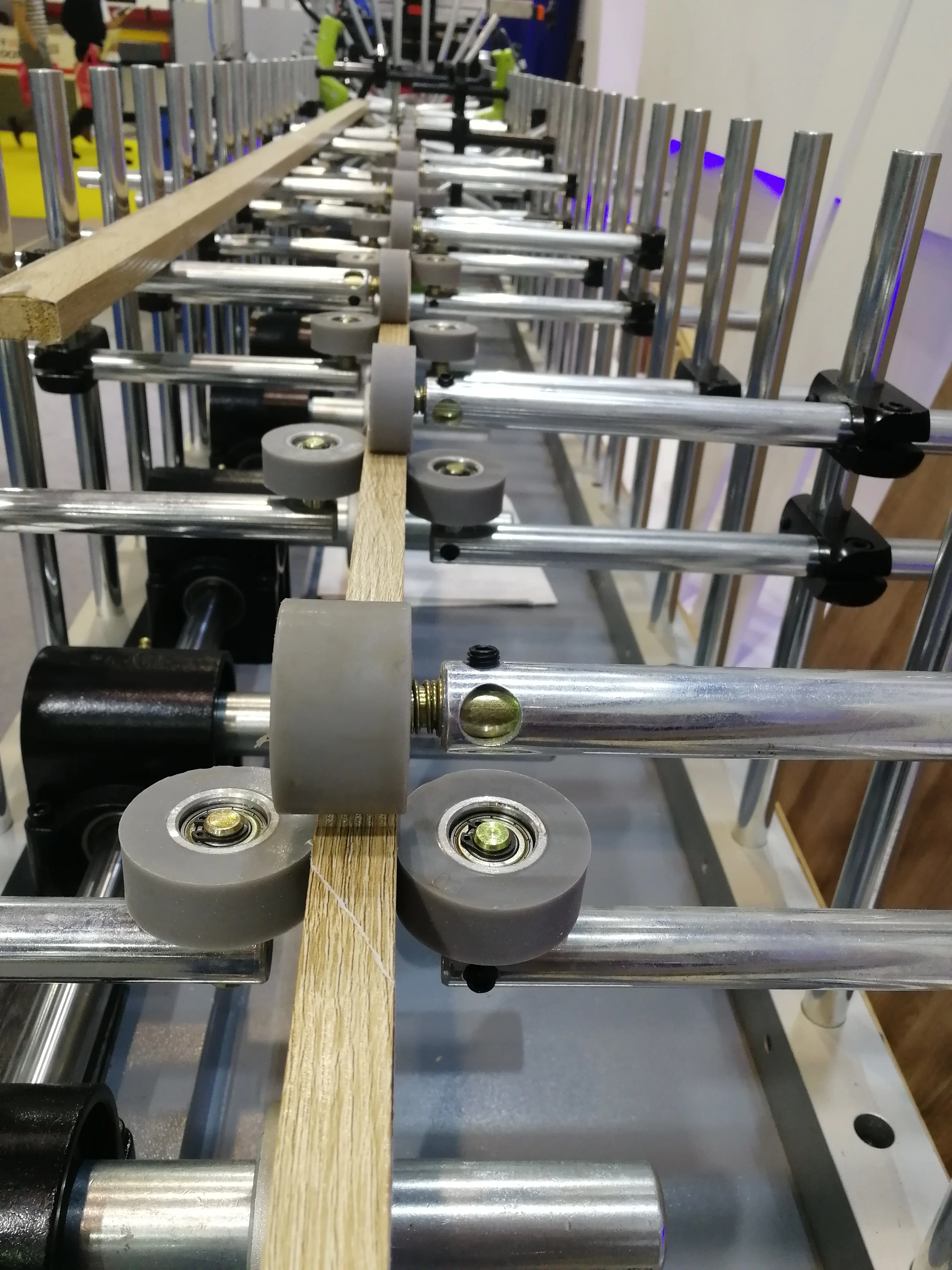

    4,Linear profile wrapping picture, according to different profile make different adjust , profile must be parallel between line and line , the max width of cover film is 300mm .

  • 55.png66.png

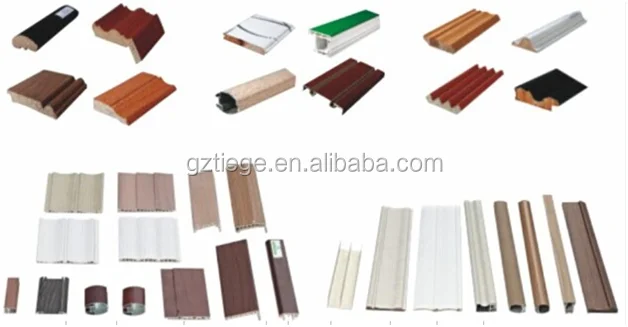

    5,Production sample .

    The PLC in both Chinese and English

  • 88.png777.png
  •
