20W 30W 50W Jewelry Stainless Steel Fiber Laser Marking Machine For Sale metal laser engraving machine Raycus source
Features:
1. Marking Area:110*110mm, 175*175mm, 200*200mm, 300*300mm.However, larger working area can be realized by equipped with electric xy moving platform 300*400mm, 300*500mm etc.
2. Best Marking Effect:Owning to the orignal Raycus laser source technology, the laser beam is fine and thin to ensure best marking effect. Together with the stable precision slider, the fiber laser marker is especailly good for large size seamless splicing image marking.
3. Higher Accuracy: The fiber laser marking machines can reach up to 0.001mm precision.
4. Long lifetime: the lifetime can reach 80,000 - 100,000hours. 5. No consumables, just electricity. 6. No need to adjust the laser path. 7. Free Maintenance. 8. Easy operation: Machine is installed well.We will supply the installation training video for our dear customers to install laser marking machine.
Product Description
Technical data:
Product Name
Laser Marking Machine
Cooling Mode
Air Cooling
Model
OV SF-20/30/50
Max Marking Speed
7000mm/s
Laser Source
Raycus
Mininum Line Width
0.015mm
Power
20/30/50W
Mininum Character
0.2mm
Laser Wavelength
1064um
Pulse Frequence
30 KHz - 60 KHz
Filed Lens Brans
wavelength
Operation Environment
5℃~45℃ , clean or dust-free / dustless
Marking Area
110*110mm-300*300mm
Power Supply
AC110V /220V +10% / 50HZ or 60HZ
Control Card
JCZ Brand EZCAD
Operation System
Win XP / 7 / 8 / 10 (32 bit , 64 bit)
Advantages:
1.The fiber laser generates high-quality permanent coding on each part without affecting the functionalitybarcode, QR 2D codes, text, logos, serial numbers and optical characters, etc).
OV Laser offers a customized solution for meeting customers’ personalized requirements from processing to maintenance. 2.When power more than 30w, it is easily to cut stainless steel, aluminum,copper, brass, gold silver.Max 1mm thickness. 3.When laser is equipped with electric Z-axis, it can automatic focus distance and convenient to dodeep engraving until 0.8mm aluminum etc. 4.OV LASER also supply mopa series fiber laser marking machine.Mopa fiber laser can mark colors on stainless steel and titanium, also mark black on anodized aluminum and some plastic.

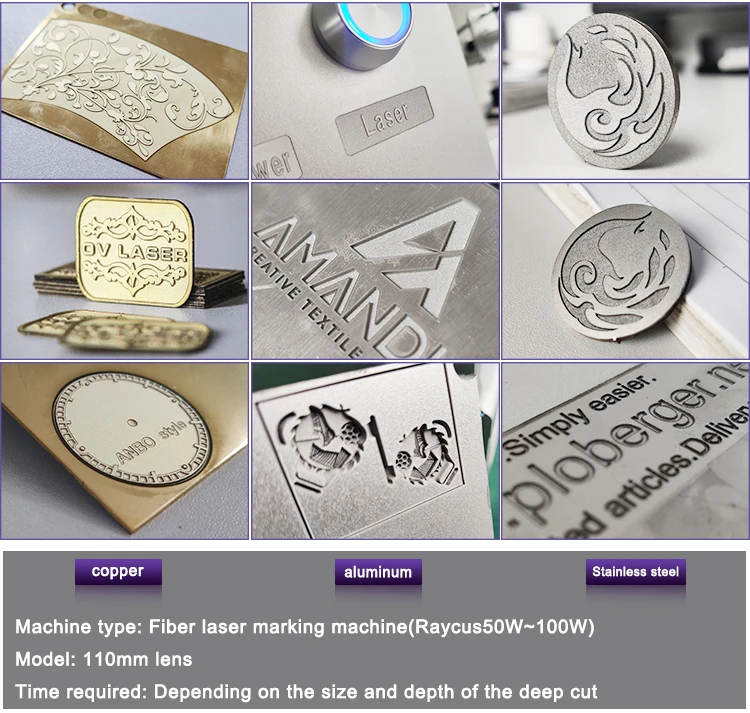

Sample Show
>>Ring marking

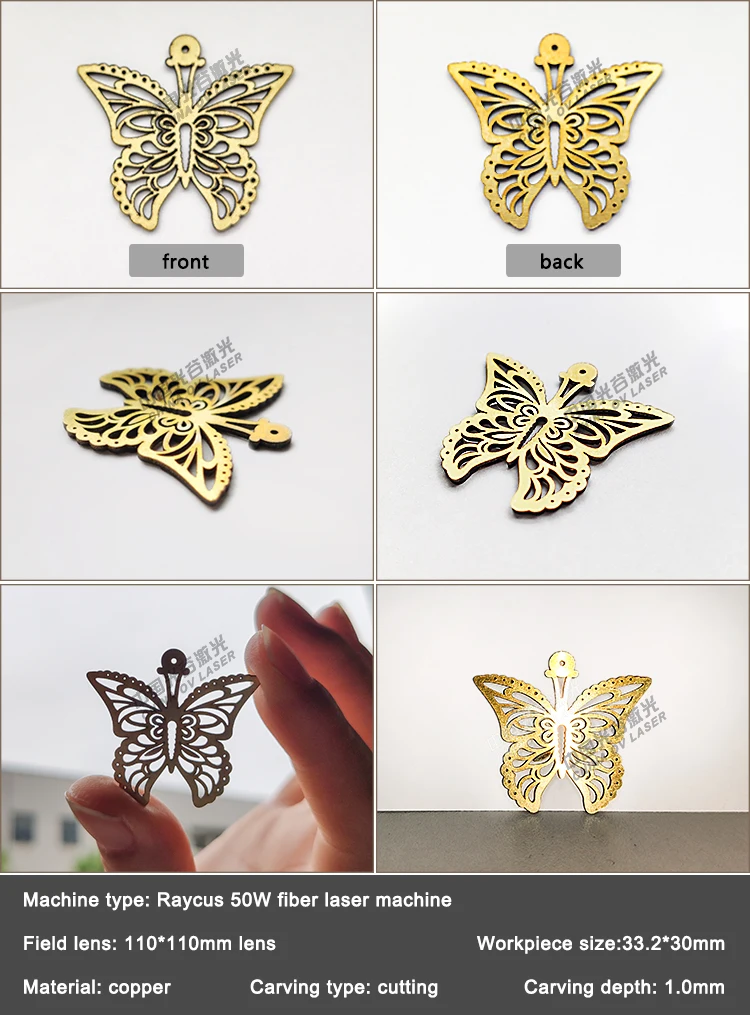

>>Jewelry cutting and deep engraving
>>Nonmetallic material
Packaging & Shipping
customer feedback
We strongly encourage customers to pay through Alibaba trade assurance order. On the one hand, customers will pay more safely, on the other hand, they will be more secure for future after-sales services.
If you think our machine is very good, please give us a good evaluation of five stars. Thank you.
Company Information
FAQ
Q1: How can I get the best machine for me? You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate? We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or other contact ways.
Q3: If the machine has problem in my place, how could I do? We could send free parts to you in warranty period if machines have any problem under "normal use".
Q4: This model is not suitable for me, do you have more models available? Yes, we can supply many models, such as separate portable, table type, enclosed type, mini portable, fly type etc. Replacement of some part based on your need. The above are most popular. If it can not meet your requirement, then tell us. We have the ability to make specially according to your requirement!
Q5:What's the guarantee, in case the machine breaks down? The machine has two years' guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client's feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
