20years experienced mining machine manufacturer supply high efficiency ore washing gold leaching tank of gold leaching plant
Please tell usthe type and the amount of the processing mine,we will design a processing project,and suitable mining equipment for you.The price is negotiable.
We have Big Sale activities recently!! Welcome to contact us for details!
Introduction
gold leaching plant —Introduction
The introduction of leach plant: Agitation equipment which forces the slurry to take up and down circulation Effective Volume: 0.58- 45 m3
Product Improvement
gold leaching plant —Improvement
The improvement of leach plant: Umbrella shaped impeller presses the slurry, so that the slurry takes up and down circulation along draft tube, which makes reagents and slurry mix well
Advantages
gold leaching plant —Advantages
The advantages of leach plant: High efficiency agitation tank 1. Advanced structure of impeller, strong stirring ability 2. The impeller of Xinhai high efficiency agitation tank adopts umbrella shaped with large diameter and linear velocity to enhance the agitation and circulation capability.
3. The enhancement of circulation capability improves floatation index 4. The baffle can compress negative pressure to a limited space and improve suction capability. As a result, the circulation capacity is enhanced. 5. Every single part and working principles of High Efficiency Agitation Tank are showed in Xinhai 3D video, which is really convenient for you to see the structure and working principles of those large equipment.

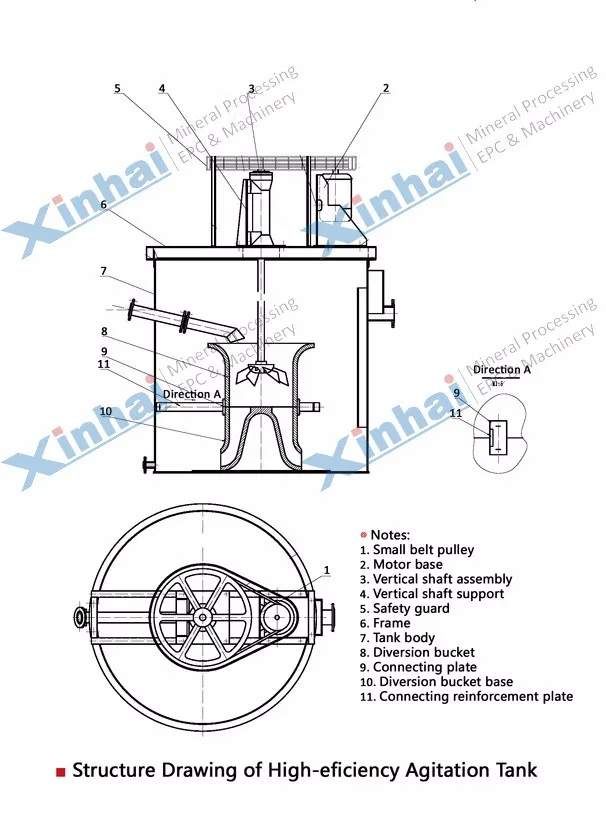

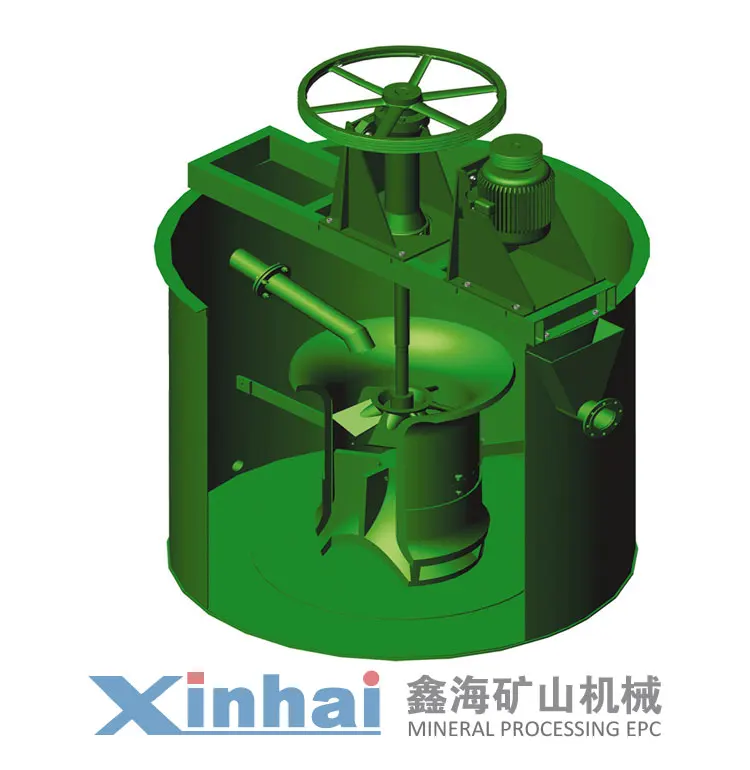

Product Structure
gold leaching plant —Structure
Contact Us to Get More Details and Latest Price Discount !!
Technical Parameters
gold leaching plant —Technical parameters
The technical parameters of leach plant:
Model
Effective Volume (m3)
Rotating Speed of Impeller (r/min)
Diameter of Impeller (mm)
Motor Model
Motor Power (kW)
Weight (kg)
GBJ-1000X1000
0.58
530
240
Y112M-6
2.2
548
GBJ-1250X1250
1.15
350
240
Y100L2-4
3
820
GBJ-1500X1500
2.2
320
420
Y132M2-6
5.5
1350
GBJ-2000X2000
5.46
240
560
Y160M-6
7.5
3173
GBJ-2500X2500
11.2
232
560
Y180L-6
15
3939
GBJ-3000X3000
19.1
220
700
Y225S-8
18.5
6676
GBJ-3500X3500
31
248
700
Y225M-8
22
7581
GBJ-4000X4000
45
153
1000
Y250M-8
37
9560
