188 2103 New Aftermarket Final Drive Duo Cone Seal
- Category: >>>
- Supplier: Huangshi Rviton Machinery Co. Ltd.
Share on (60561416849):
Product Overview
Description

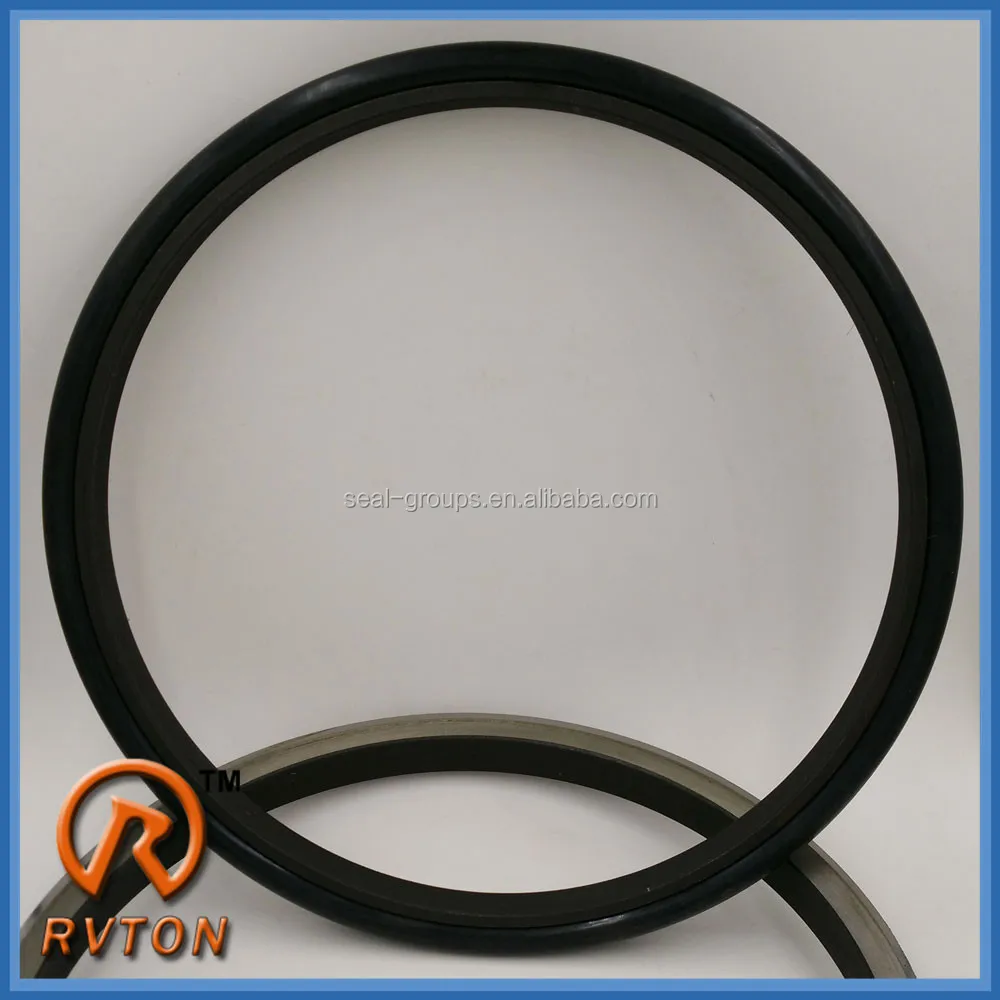

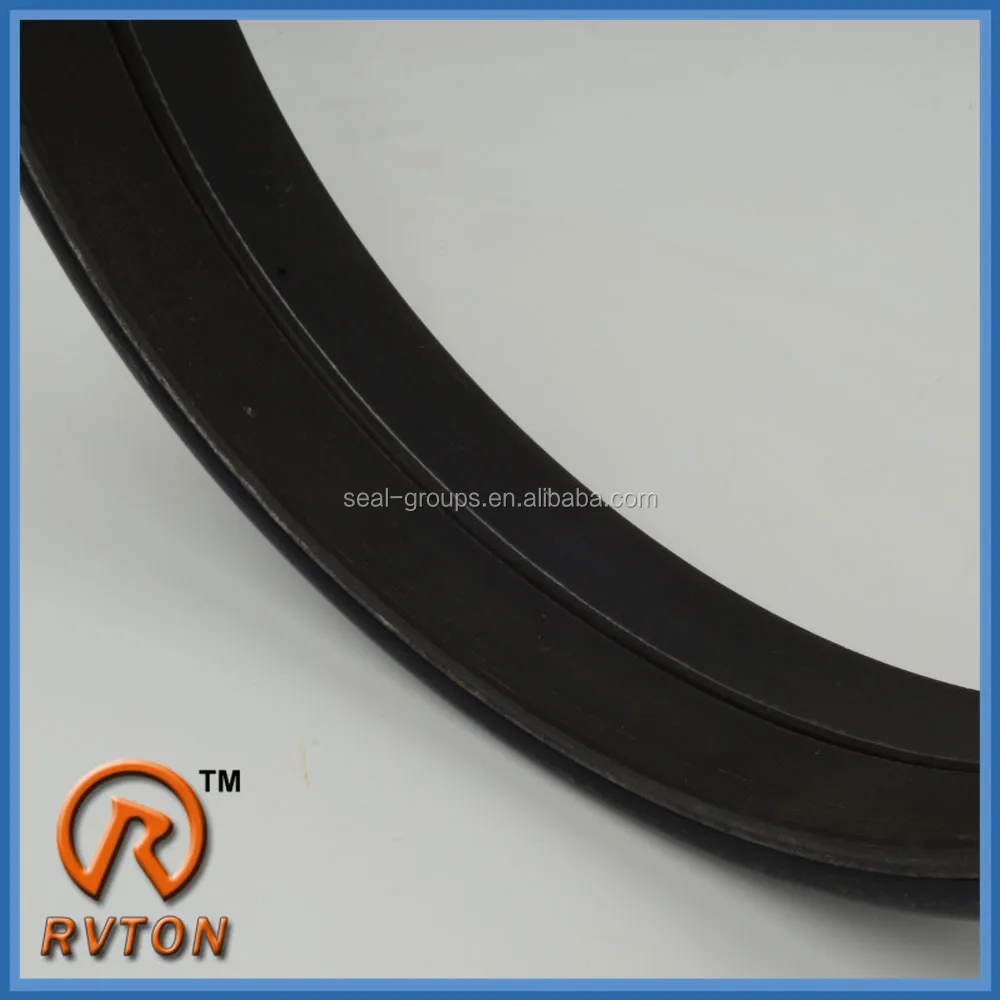

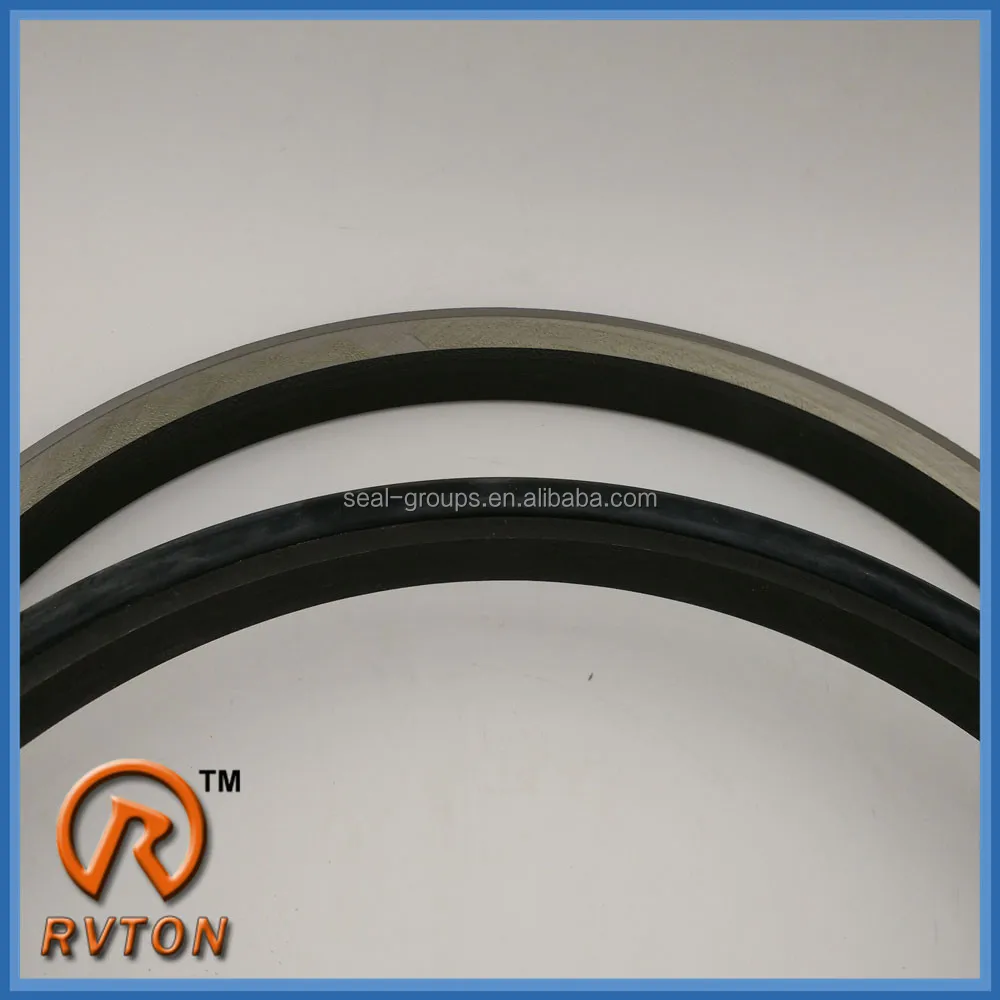

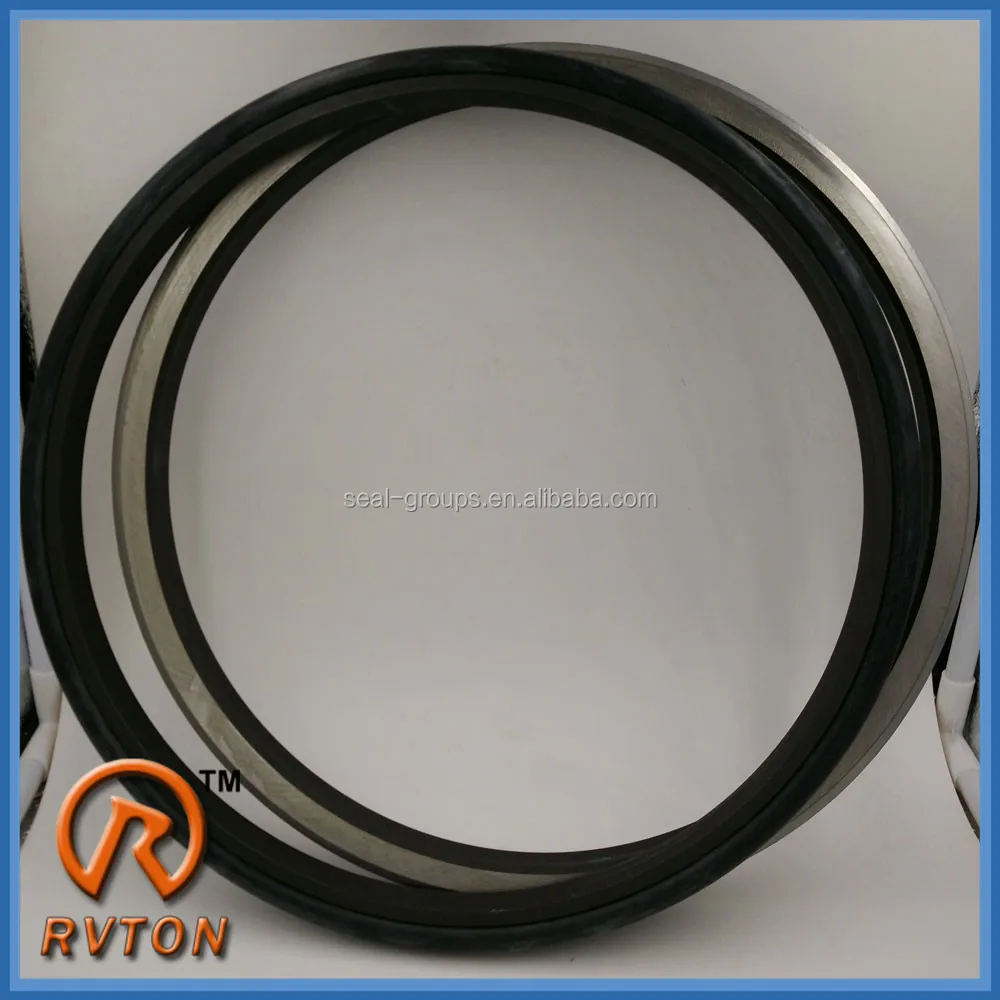

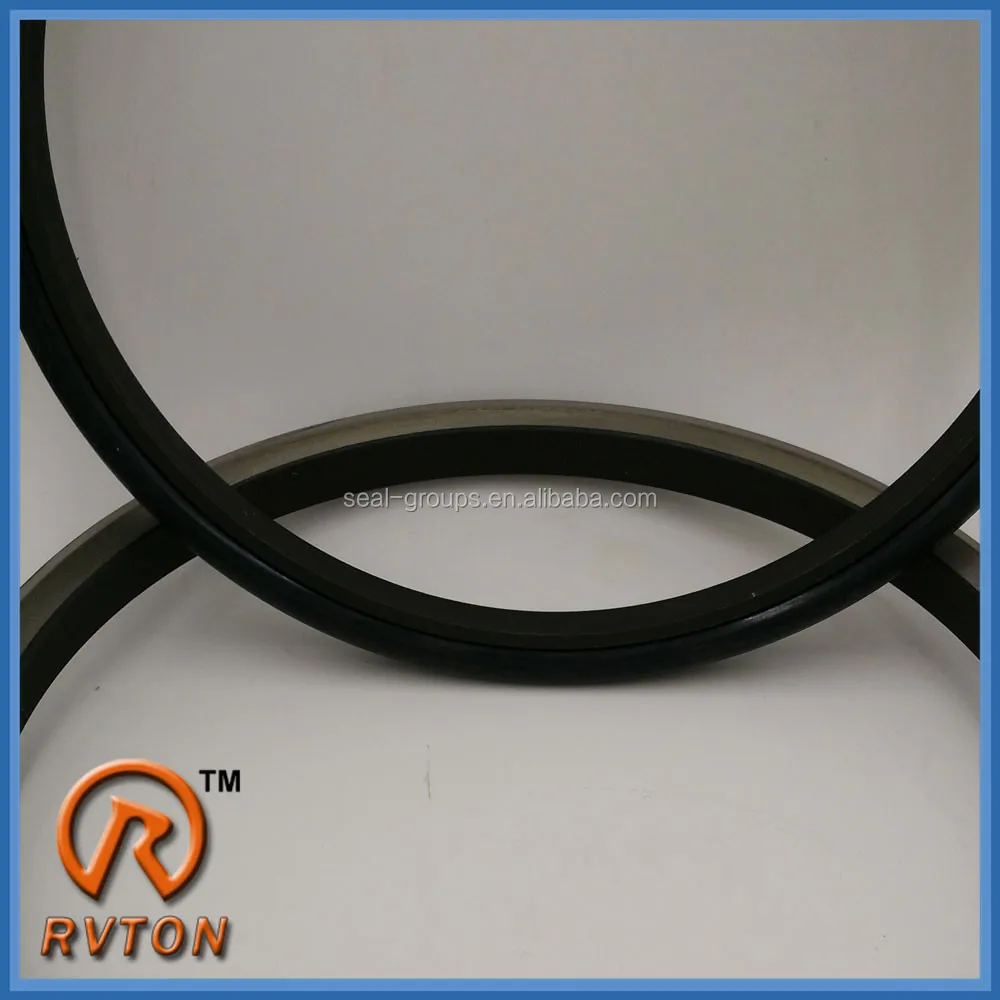

188-2103 New Aftermarket Final Drive Duo Cone Seal
Part# 188-2103
Weight: 6.1 kgs
One set = 2 metal rings + 2 rubber rings
MOQ: 1 SET
One set= 2 rubber o rings + 2 metal rings
Stock offered
| Product | Seal group (floating seals) |
| Weight | 6.1 kgs |
| Type | Standard type |
| Material | Steel Gcr15 rings + NBR60 rubber o rings |
| MOQ | 1 set |
| Rubber hardness | 60-78 |
| Metal hardness | 58-62HRC |
| Life-span | 5000hours |
| Warranty | 18 months |
| o RINGS | NBR60 / Silicone / FKM |
Packaging & Shipping
1), Packing: Shrink films + Inner box (yellow or brown neutral box) + standard export carton + wood pallet or wood case
2) Shipment: Regular parts normally in a week, 20 days to 40 days for mass production
3) Custom design offered: Your box, labels, log on the metal rings are offered. Special box and special labels need mass production order supported.
Our Services
Wide range of part numbers for various brands
OEM for most of the construction / mining / agriculture machines brands.
| 2445Z1109 CR3069 MT4021-1881 R45P0018D25 TD0352/04 5691020340 5691020530 TD00611/02 UK5500 204-50805000 TZES 100-154B TZ300A-1010 TZ310B-1027 TZ550A-1010 TA860A-1010 TZ150A-1010 | ES-64 58845-20500 7T0158 45P0018D18 655973C91 988430 R45P0018D9 R45P0018D27 R45P0018D13 R45P0018D14 R45P0018D16 R45P0018D18 R45P0018D29 R45P0018D20 CR1857 TZ010F-1027 | U17386 CR 4359 ES-56 5691020160 MT4000-7918 R45P0018D6 JB5680 R45P0018D12 ES-102 R45P0018D15 TLDOA1460 619-95032001 ES-209 TZES100-250-A GZ5810 TLDOA5300-2CP00 |
| YN53D00008S023 TZ150F-1027 TZ200B-1010 110-30-00085 110-30-00045 | 123-0638 1C9748 LQ15V00020S067 760S297FS YN15V00037S029 | 4176379 4110358 JB5830 R45P0018D28 VOE14522998 |
| 140-30-00040 140-30-00141 141-30-00610 | 317-6441 9W7206 1796863 | 4128201 4508192 4060222 |
| 170-30-00110 170-30-00210 175-30-00070 | 3176441 9W6644 1456034 | 4110359 4512571 4060225 |
| 20Y-30-00040 130-27-00020 150-27-00025 | 9W6822 3T6602 6D1190 | 4317586 4047279 4104605 |
| 150-30-00035 154-30-00035 154-30-00833 154-30-00830 154-30-00832 154-30-00831 | CR3820 CR4050 9W2629 205-9025 9W9230 9W6622 | 4110360 4153468 4163731 4068433 4153731 4163731 |
Company Information
1, Rvton's advantages
- Rvton floating seal size is from 38-1000mm
- Offer steel Gcr15 and Cast 15Cr3Mo floating seals
- 13 years seal group manufacturer
- Over 10 years supplier of Italy top undercarriage parts company
- Offer wide range OEM part numbers of various brands machines
- Keep regular goods in stock for fast delivery
- ISO & TUV certified
- 30% to 50% cheaper than the original parts
2, Rvton offer cast iron 15Cr3Mo and steel 100Cr6 floating seal rings, each month output reaches more than 50000 sets.
| METAL | Steel Gcr15/ 100Cr6 | Cast 15Cr3Mo |
| Surface smoothness/roughness: | ≤Ra0.2μm | 6.3-12.5μm |
| Work face smoothness | ≤Ra0.15μm | ≤Ra0.1μm |
| Pressure loading | ≤0.15MPa | ≤0.3 MPa |
| Forging line speed | 2m/s | 3m/s |
| Temperature range | —100~200°C | -40~160°C |
| Hardness (HRC) | 58-62 | 60-68 |
| Lifetime (Hours) | 3000 | 5000 |
3, NBR60, silicone, HNBR and FKM floating seal rubber rings are offered
| Material | NBR60 | SILICONE | FKM |
| Hardness | 60°~ 65° | 60°~ 65° | 72°~ 78° |
| Minimum tensile strength | 11MPa | 10.6Mpa | 11MPa |
| Minimum elongation at break | 300% | 400% | 260% |
| Permanent deformation | 12% | 8% | 25% |
| Temperature range | -40℃- +120℃ | -49℃- +230℃ | -30℃- +250℃ |
| Specific Gravity(g/cm3) | 1.25 | 1.2 | 1.8 |
FAQ
- Are you the floating seals factory?
Yes, we are a 15 years professional floating seals manufacturer in Huangshi City, Hubei Province of China.
- How do you control the quality?
Each seal group is 100% inspected in every process before exported.
- How long to make the shipment of floating seals order?
In three days with stocks, 15-30 days according to the order qty.
- Can i buy one to test?
Yes, we offer seals trial order and sample order for your Quality Evaluation.
Welcome to contact us and visit us!
