Шанхай стеклянная бутылка мед розлива машина
- Category: Packaging Machines >>>
- Supplier: Shanghai Npack Automation Equipment Co. Ltd.
Share on (60561481616):
Product Overview
Description

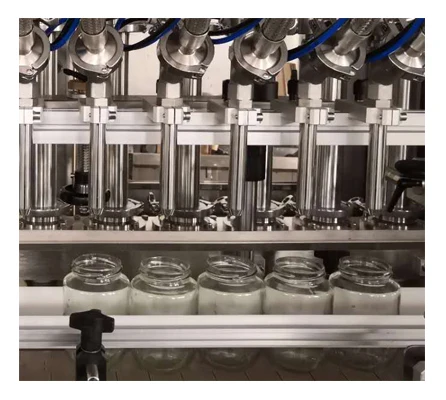

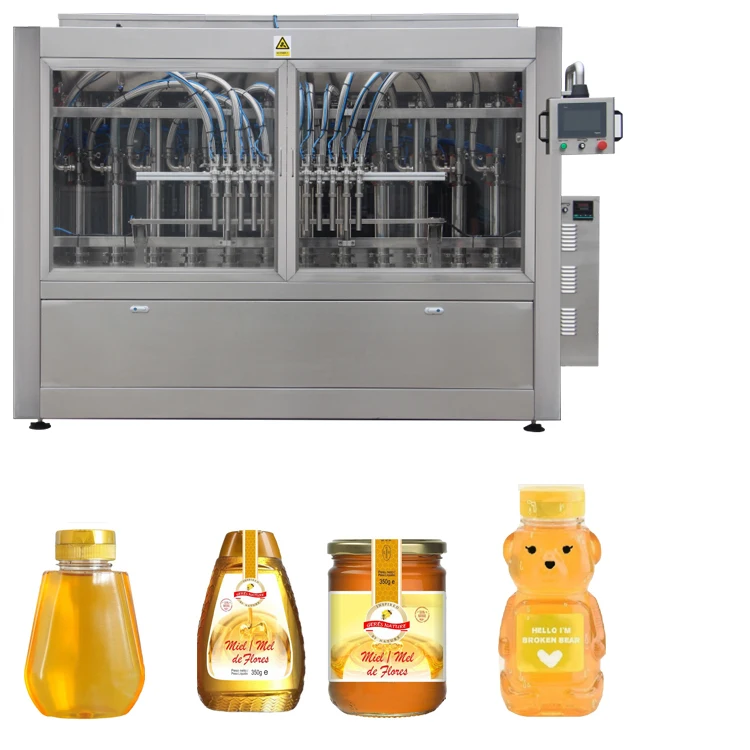

NP-VF AUTOMATIC Honey FILLING MACHINE
Npack honey filling machine adopts the volume measurement method, so that the filling accuracy can reach 100% ± There is no need to control the system due to frequent temperature changes. When filling, put the filling head into the bottle, so that the liquid material will not splash out. The filling nozzle rises slowly with the liquid level. The filling head has a special locking device, so that the filling nozzle will not drip after filling.
It is mainly applicable to the filling of the following materials:
① All kinds of semi fluid, paste and viscous materials with or without particles, such as cream, syrup, pulp beverage, honey, etc;
② Various food sauces, such as chili sauce, bean paste, sweet sauce, jam, peanut butter, sesame sauce, fan
① All kinds of semi fluid, paste and viscous materials with or without particles, such as cream, syrup, pulp beverage, honey, etc;
② Various food sauces, such as chili sauce, bean paste, sweet sauce, jam, peanut butter, sesame sauce, fan
Model | NP-VF-2 | NP-VF-4 | NP-VF-6 | NP-VF-8 | NP-VF-10 | NP-VF-12 | NP-VF-16 | ||||||
Heads | 2 | 4 | 6 | 8 | 10 | 12 | 16 | ||||||
Range（ml） | 100-500,100-1000,1000-5000 | ||||||||||||
Capacity（bpm）base on 500ml | 12-14 | 24-28 | 36-42 | 48-56 | 60-70 | 70-80 | 80-100 | ||||||
Air Pressure（mpa） | 0.6 | ||||||||||||
Accuracy（%） | ±0.1-0.3 | ||||||||||||
Power | 220VAC SINGLE PHASE 1500W | 220VAC SINGLE PHASE 3000W | |||||||||||
Main Features
①The body is mainly made of high-quality stainless steel, beautiful appearance, clean and sanitary, and completely meets the food hygiene requirements;
②The quick and flexible connection mode makes disassembly and cleaning more convenient;
③It is light and convenient, and has strong adaptability, and has a variety of anti drip filling heads for selection.
④Honey automatic filling machine is convenient to control, without bottle and can, and has the function of counting
⑤It can make the product more simple and convenient in operation, accuracy error value, installation adjustment, equipment cleaning, equipment maintenance and so on
②The quick and flexible connection mode makes disassembly and cleaning more convenient;
③It is light and convenient, and has strong adaptability, and has a variety of anti drip filling heads for selection.
④Honey automatic filling machine is convenient to control, without bottle and can, and has the function of counting
⑤It can make the product more simple and convenient in operation, accuracy error value, installation adjustment, equipment cleaning, equipment maintenance and so on

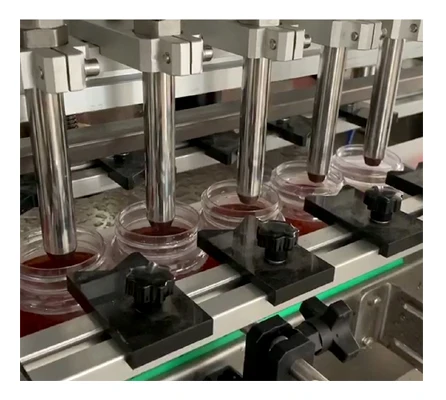

Shut off Filling Head Anti Silk
1.Automatic shut off Filling nozzles for preventing honey silk
2.With Drop tray
3.High Filling Accuracy
4.Diving Nozzles Filling avoid bubble inside of Jar or bottles
5.304SS contruction
6.High quality Food grade O rings and seals inside of the nozzles and piston
7.The Filling head with heating system too.
ESG Valve
1.Easy disassembly three way connectors
2.ESG long life valve and high performace
3.ESG valve to gurantee the shut off accuracy and more stably
4.Suitable for thin to viscous liquid
5.Special choosing the suitable model for the food products, no Dead corner and easy cleaning.
Tools Free Adjustment System
1.No need tools adjustment for different size of bottles
2.All adjustment parts with measurement and easy for record
3.Filling nozzles are easy for moving right and left for the slider system
4.Adjust the Filling Volume by one touch and operation by touch screen.

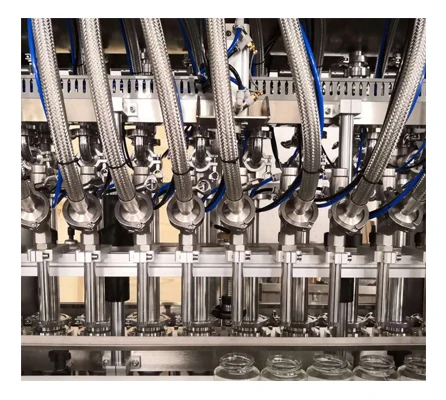

High Quality Hose with Heating System
Adapt world top brand of hose,such as TOYOX.
hose characteristics:
With stand pressure
With SUS316 reinforced coil and special reinforced structure, it has excellent stereotypes and is suitable for pressure and vacuum conveying
High heat resistance
It can withstand high-temperature fluids within 150 ℃, and can be used to clean the inside of food hoses and the floor (conditional restrictions).
With stand pressure
With SUS316 reinforced coil and special reinforced structure, it has excellent stereotypes and is suitable for pressure and vacuum conveying
High heat resistance
It can withstand high-temperature fluids within 150 ℃, and can be used to clean the inside of food hoses and the floor (conditional restrictions).
No Dead Corner Top Tank.
1.The top tank is with round or semi round design no dead corner, more easy Cleaning
2.Double jacket round hopper with heating system
3.Mixing system optional
4.CIP system optional
5.304SS constuction material, 316SS for option.
Automatic Piston Take off Sytem
1.Automatic piston take off system, no need manually, and easy cleaning.
2.Double jacket heating system design for honey.
