Product Overview

Description

Hitachi EX200-3 PLANETARY SUN GEAR 3063955 3063958 3063956 3063959 3063957

9119377 TRAVEL DEVICE ASS'Y 9132405 (for assembly of machine)
(9132405) TRAVEL DEVICE ASS'Y (for transportation)
9120000 MOTOR;OIL 9131678 (for assembly of machine)
(9131678) MOTOR;OIL (for transportation)
02. 4114753 [1] - SEAL;GROUP
03. 4246793 [2] - BRG.;ROL.
04. 1018736 [1] - DRUM
05. 1018740 [1] - SPROCKET
06. J932055 [16] - BOLT
07. A590920 [16] - WASHER;SPRING
08. 3047448 [1] - HUB
09. 3057125 [1] - NUT
10. 4246783 [1] - PIN;KNOCK
12. 1019147 [1] - CARRIER
13. 3063957 [3] - GEAR;PLANETARY

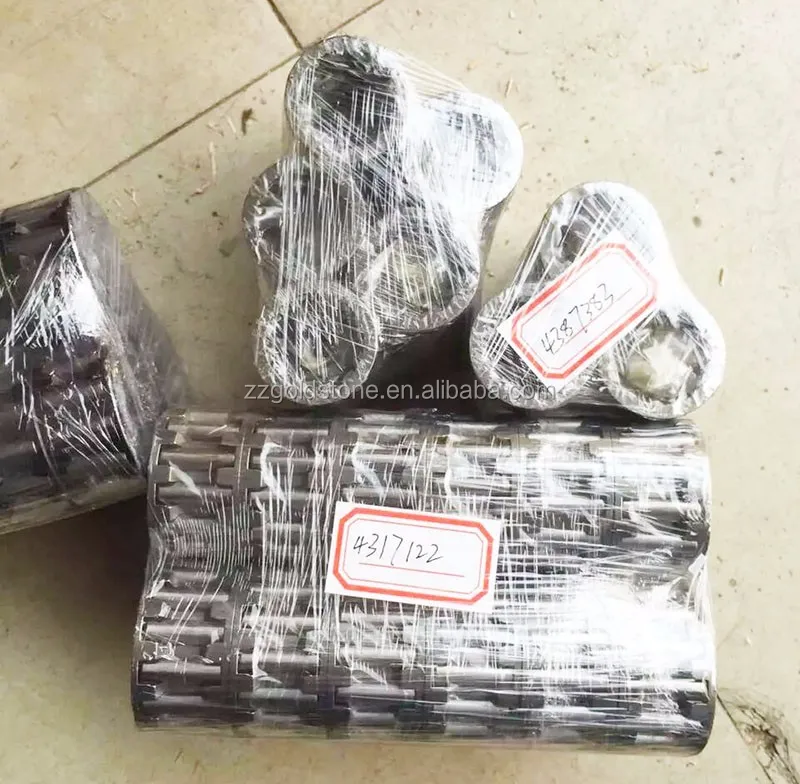

14. 4317122 [6] - BRG.;NEEDLE
15. 4284521 [6] - PLATE;THRUST
16. 4315838 [3] - PIN
17. 4116309 [3] - PIN;SPRING
18. 3063959 [1] - GEAR;SUN
20. 1018789 [1] - GEAR;RING
21. J931640 [24] - BOLT
23. 2034836 [1] - CARRIER
24. 4192979 [2] - SPACER
25. 3063956 [3] - GEAR;PLANETARY

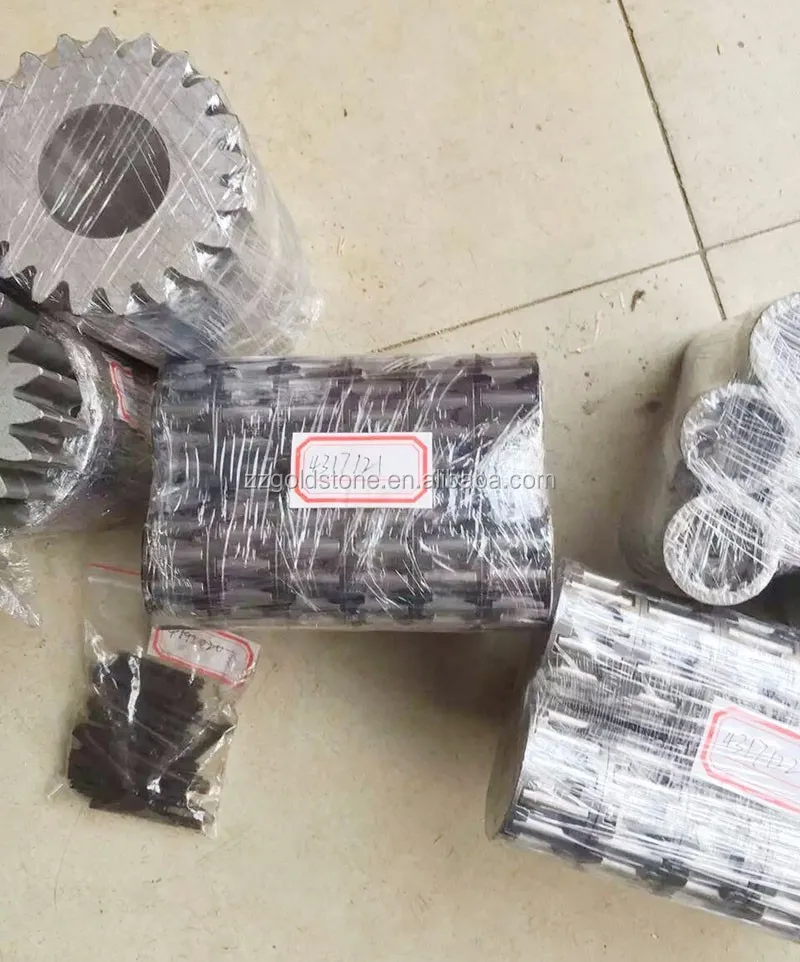

26. 4317121 [3] - BRG.;NEEDLE
27. 4210851 [6] - PLATE;THRUST
28. 4309995 [3] - PIN
29. 4192020 [3] - PIN;SPRING
30. 3063958 [1] - GEAR;SUN
32. 2034835 [1] - CARRIER
33. 3063955 [3] - GEAR;PLANETARY
34. 4317120 [3] - BRG.;NEEDLE
35. 4192910 [6] - PLATE;THRUST
36. 4210853 [3] - PIN
37. 4173093 [3] - PIN;SPRING
38. 2034834 [1] - SHAFT;PROP.
40. 2034833 [1] - COVER
41. 4285323 [1] - PIN;STOPPER
42. J011230 [12] - BOLT;SEMS
43. 4245797 [3] - PLUG
47. M492564 [2] - SCREW;DRIVE
48. 3053559 [1] - NAME-PLATE
132. 4248607 [28] - BOLT
133. 4018545 [28] - WASHER

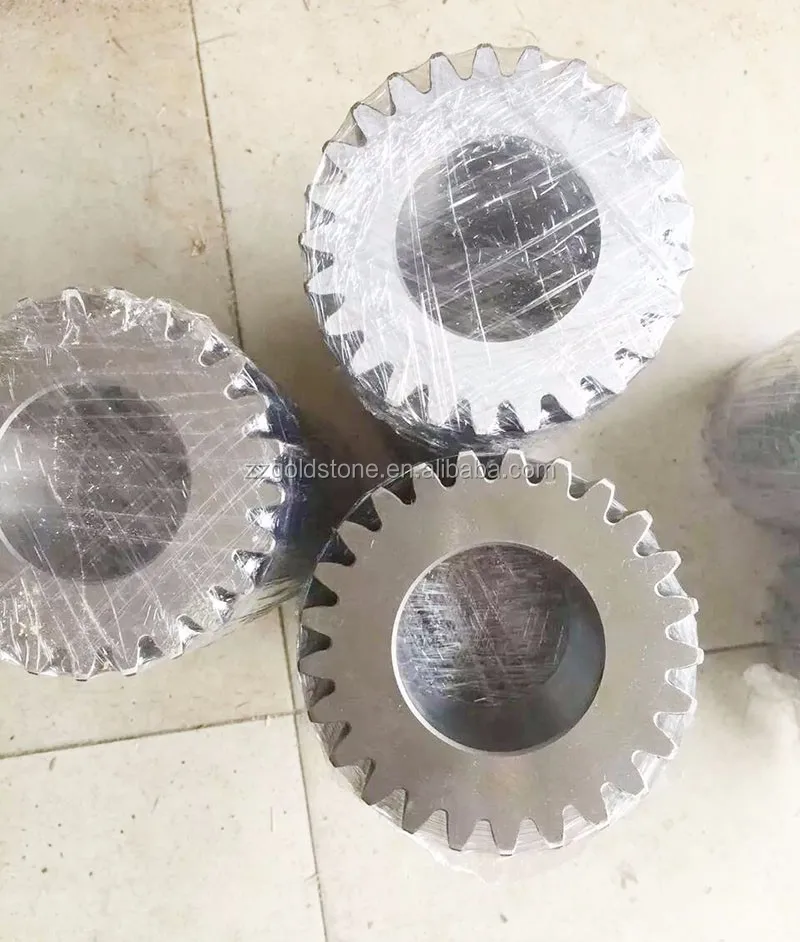

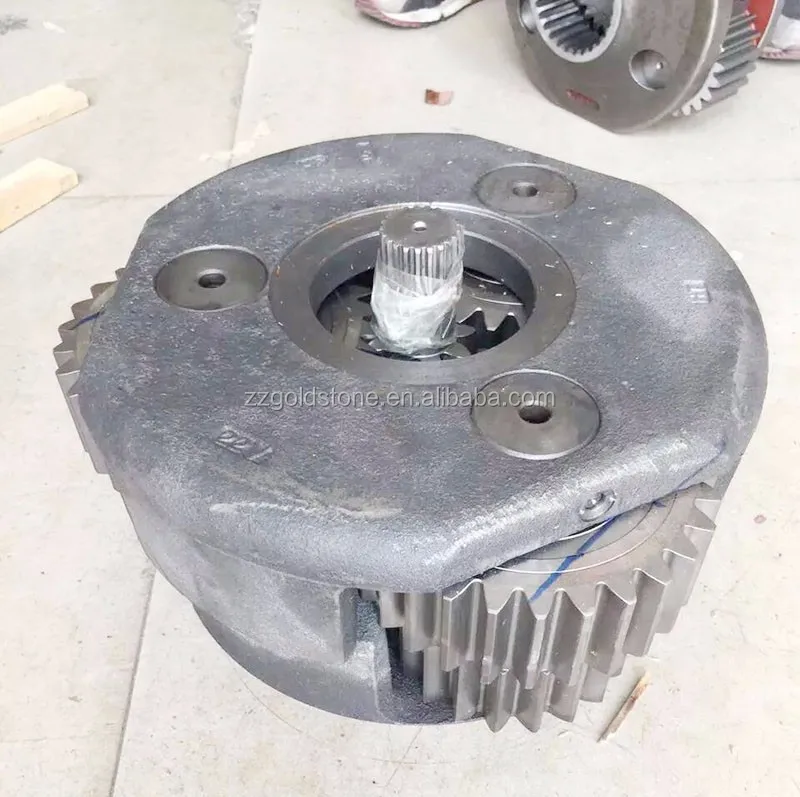

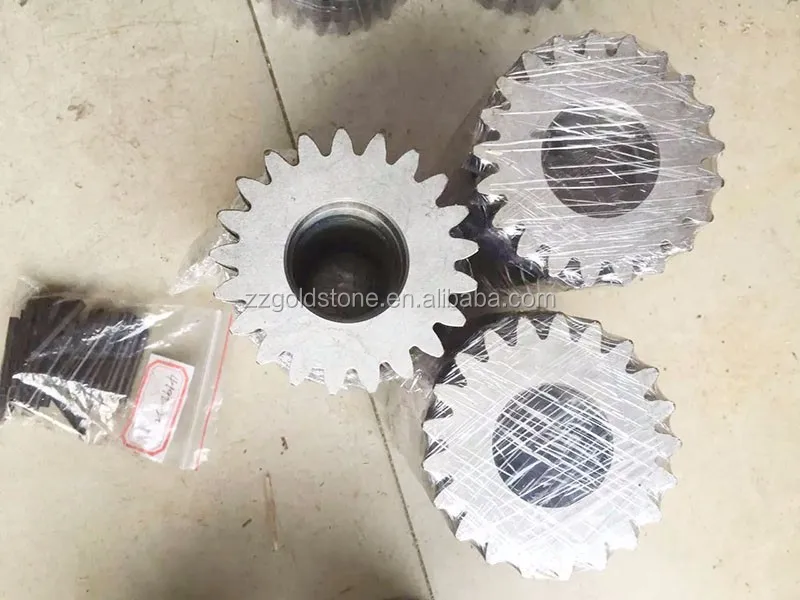

Hitachi EX200-3 PLANETARY SUN GEAR pictures:
